MLE06278

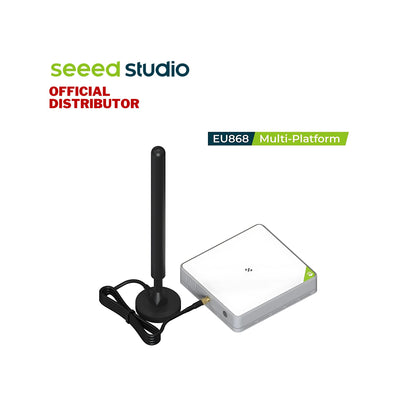

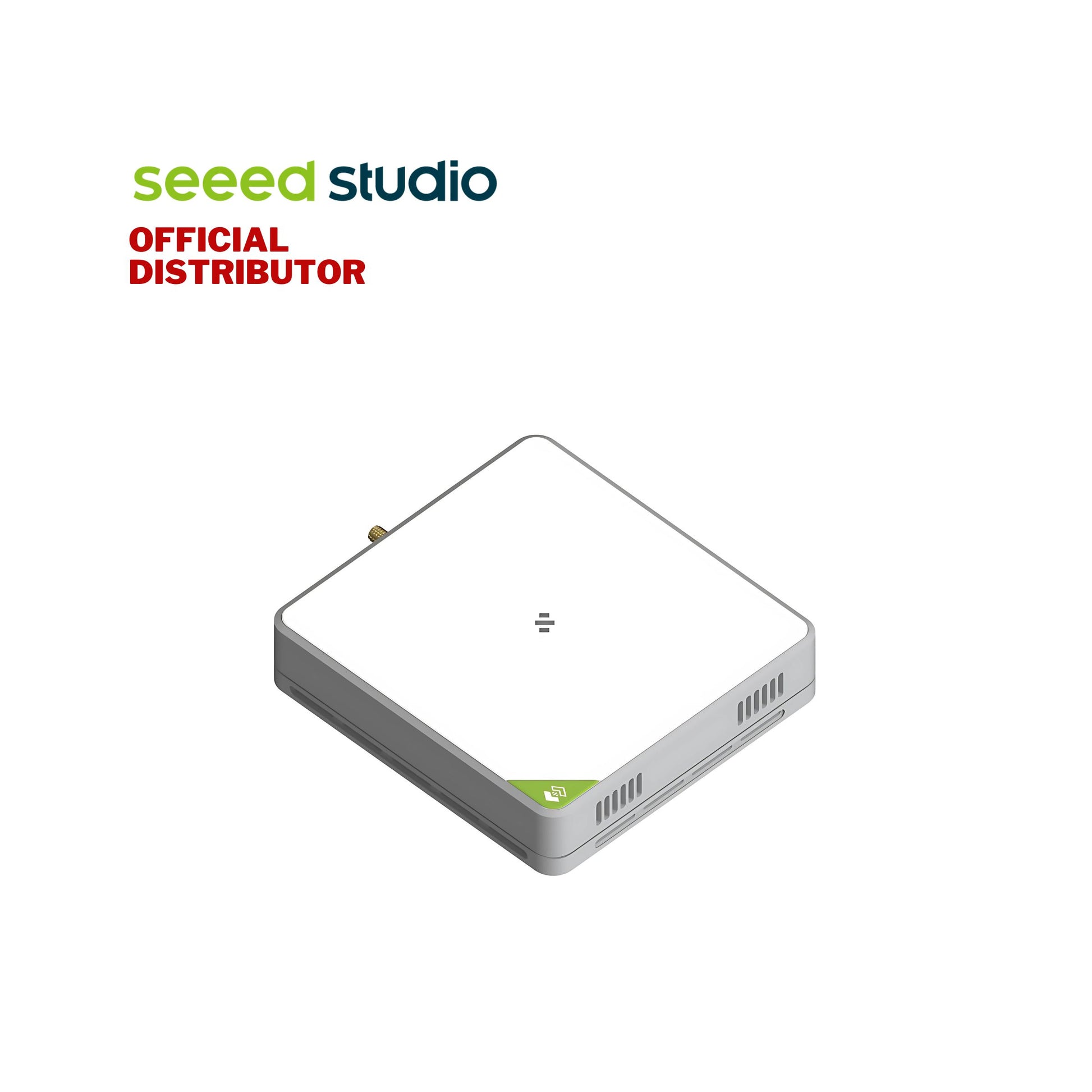

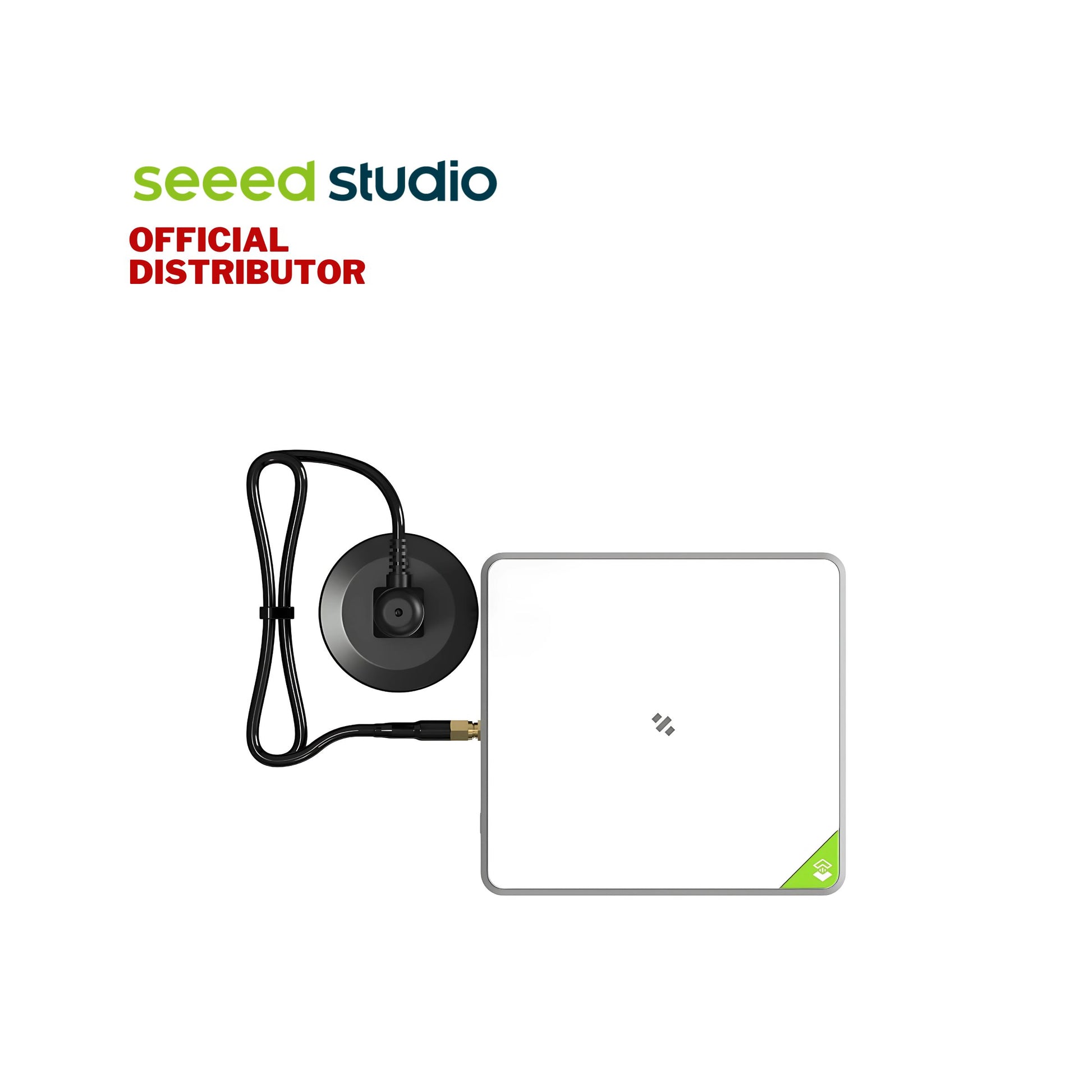

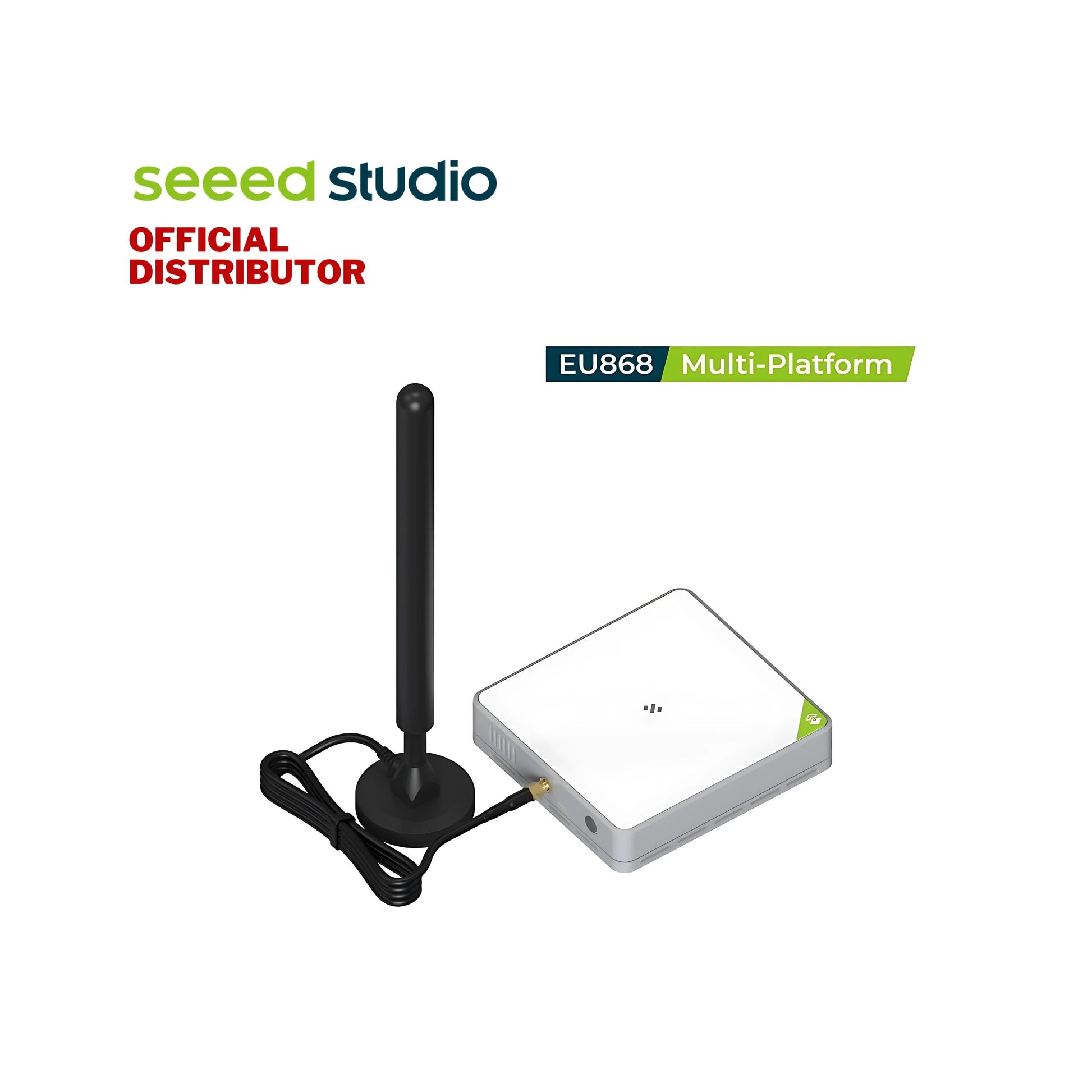

SenseCAP Multi-Platform LoRaWAN Indoor Gateway

₱9,999.00
₱9,999.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Loading locations...
Product Description

Description:

The SenseCAP M2 Multi-Platform LoRaWAN® Gateway is a fully customizable and open-sourced LoRaWAN® gateway that supports connection to various network servers. It supports global LoRaWAN® frequency plans from 865 MHz to 923 MHz and can be used in multiple LoRaWAN® applications like smart building, environmental monitoring systems, precision farming, etc. It has wide-range coverage and strong signal output capability, and other features, making it the perfect gateway for building a LoRaWAN® network.

The Gateway can be set up easily out of the box. Users can bind and manage the device through SenseCAP Mate APP and SenseCAP Portal in 4 steps. After that, users can start configuring the sensors in the same way to create the LoRaWAN® network solutions.
  1. Scan the QR code for device binding
  2. Connect the gateway to the internet and power on
  3. Check the gateway status on the SenseCAP platform
  4. Connect sensors to the network and upload data to the cloud

Here is the network architecture for reference:

SenseCAP M2 Multi-Platform LoRaWAN® Gateway can be configured in 2 ways:
  1. Wi-Fi/ Ethernet access to the SenseCAP Local Console
  2. Access the SenseCAP Local Console via SenseCAP Portal remotely
Note: The SenseCAP M2 Multi-Platform LoRaWAN® Gateway doesn't support the Helium network. It can not be connected with SenseCAP Hotspot APP and SenseCAP Dashboard.


Features:

Usage: Indoor
Network Connection: Ethernet/Wi-Fi/4G
Region: EU868
Open-Source Support: Easily customize and develop users' own LoRaWAN solutions for seamless integration into their specific use cases. Check out details here.
Support Multiple LoRaWAN® Network Servers: Compatible with multiple LNS like AWS, TTN, ChirpStack, etc. via using the Packet Forwarder / Basics™ Station mode.
Built-in LoRaWAN Network Server: Based on Chirpstack, provides a fast and reliable solution for launching a LoRaWAN network.
Built-in SenseCAP Local Console for Configuration: Provides a simple setup experience to configure the device on the Web UI through Wi-Fi AP and Ethernet.
Support Power-over-Ethernet (PoE): For users who need to power the gateway on Ethernet instead of an extra power supply cable, the PoE feature is also added to this device, making your deployment more reliable and faster.
Wide-range Coverage and Strong Signal: Provides up to 10km of LoRaWAN® coverage and strong signal, allowing users to send data with extremely long ranges at low data rates.
Excellent and Stable Performance: The gateway is powered by the mature hardware solution MT7628 and Semtech SX1302 baseband Long Range chip. It supports Cellular(optional)、Wi-Fi, and Ethernet internet connection.
Professional Management Tools and Cloud Services: Users can easily set up the gateway in a few simple steps via the Web Interface. SenseCAP Portal and SenseCAP Local Console are also developed for users to monitor and manage the gateway efficiently and easily.


Interface:



Specifications:

Processor: MT7628(MIPS24KEc@580MHz)
RAM: DDR2 128MB
Flash: 32MB
Long Range Gateway Chip: SX1302
Channel: 8
LoRaWAN® Protocol: V1.0.3 Class A/Class B/Class C
Frequency Plan: IN865/EU868/RU864/US915/AU915/KR920/AS923
Long Range Sensitivity:
  • -125dBm @125KHz/SF7
  • -139dBm @125KHz/SF12
Long Range TX Power: Up to 26 dBm
Antenna:
  • Long Range: 3dBi External Antenna with Base
  • Wi-Fi: Internal Antenna
  • 4G Antenna:
    • Main Antenna: 3dBi @ PCB Antenna
    • DIV Antenna：7dBi @FPC Antenna
Antenna Impedance: 50 Ohm
Wi-Fi: Support 2.4 GHz 802.11 b/g/n
Ethernet: 1xRJ45 (10M / 100 M), PoE PD support
4G Band:
  • LTE-FDD: B1/B3/B7/B8/B20
  • LTE-TDD: B38/B40/B41
  • WCDMA: B1/B8
  • GSM: 900/1800MHz
4G Features:
  • Support non-CA Cat 4 FDD and TDD
  • LTE-FDD: Max 150Mbps (DL), Max 50Mbps (UL)
  • LTE-TDD: Max 130Mbps (DL), Max 30Mbps (UL)
UMTS Features:
  • Support 3GPP R8 DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA
  • DC-HSDPA: Max 42Mbps (DL) HSUPA: Max 5.76Mbps (UL)
  • WCDMA: Max 384Kbps (DL), Max 384Kbps (UL)
Input Voltage:
  • DC 12V - 2A
  • PoE (IEEE 802.3 af), 40V-57V DC
Interfaces:
  • Ethernet RJ45 * 1
  • RP-SMA Female Antenna Connector * 1
  • Micro SD Card Slot (Future use) * 1
  • USB Type-C (Console) * 1
Management Software: Web
Dimension:
  • 143.6x135x34mm (connector not included)
  • 150.6x135x34mm (connector included)
  • Package: 340*230*65mm
Operating Temperature: -20°C to 55°C
Relative Humidity: 0% - 85% (non-condensing)


LoRaWAN® Frequency

Frequency Band: Switchable Frequency Band
EU868: IN865/RU864
US915: US915/AU915/KR920/AS923
AS923: US915/AU915/KR920/AS923


Application:

Smart Agriculture
Smart Building
Environmental Monitoring
Other Wireless Sensing Applications


Documents:

Quick Start for SenseCAPGateway&Sensors
Connect M2 Multi-Platform Gateway to The Things Network
Connect M2 Multi-Platform Gateway to AWS IoT
Connect M2 Multi-Platform Gateway to ChirpStack

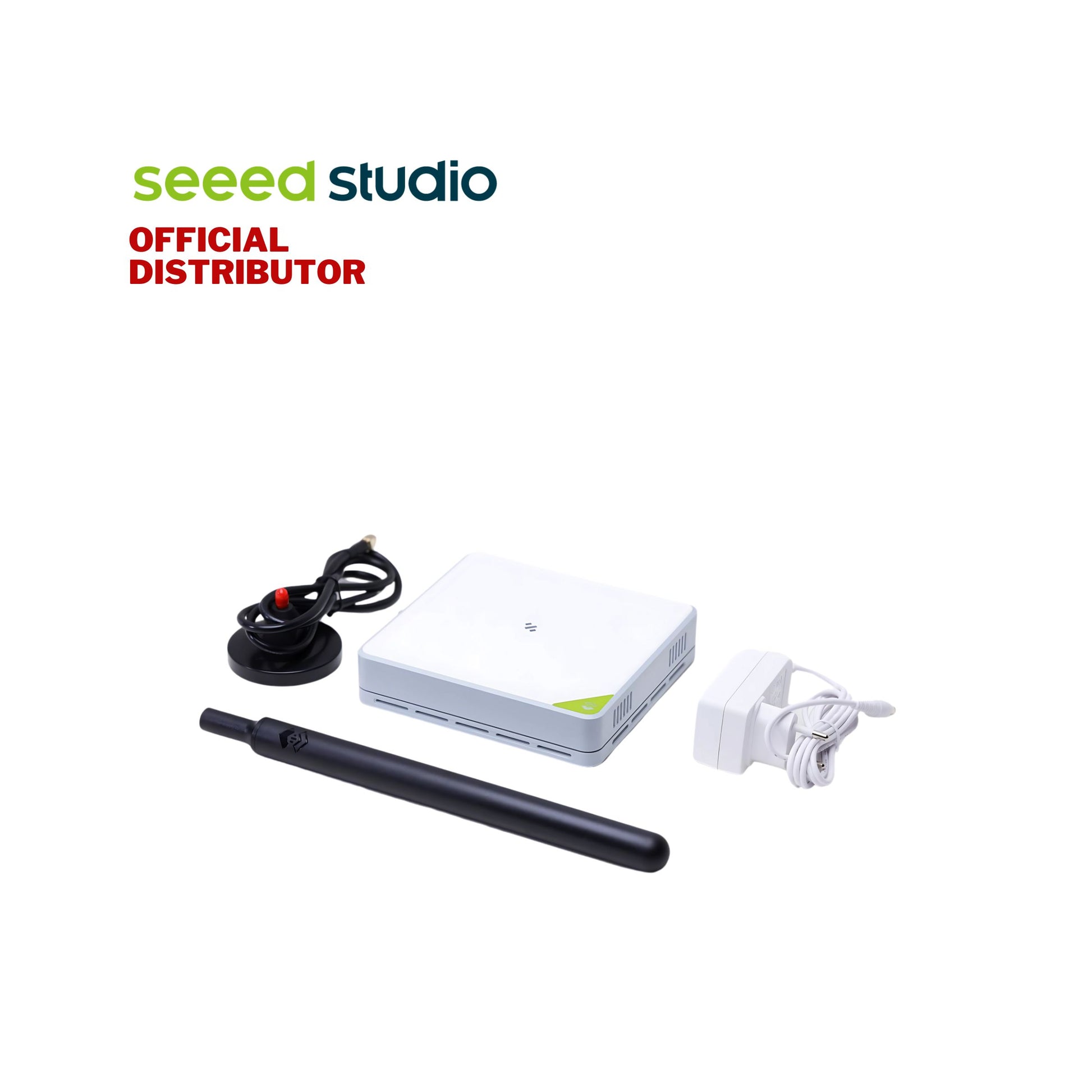

Part List:

1x SenseCAP M2 Multi-Platform LoRaWAN® Gateway
1x Adapter
1x 3dBi LongRange Antenna


FAQ

1. Is the SenseCAP M2 Multi-Platform LoRaWAN® Gateway an outdoor gateway?

The gateway is a standard LoRaWAN® gateway designed for indoor scenarios. In addition, if you want to maximize the capability of the gateway in the outdoor environment, please consider applying an outdoor enclosure.

2. What APP can I use when binding the gateway and managing the device?

The SenseCAP Mate can be used to bind the gateway and manage the device. It is a powerful tool for the usage of SenseCAP M2 Multi-Platform LoRaWAN® Gateway. You can download the APP here: 1. iOS; 2. Google Play; 3. App Center
