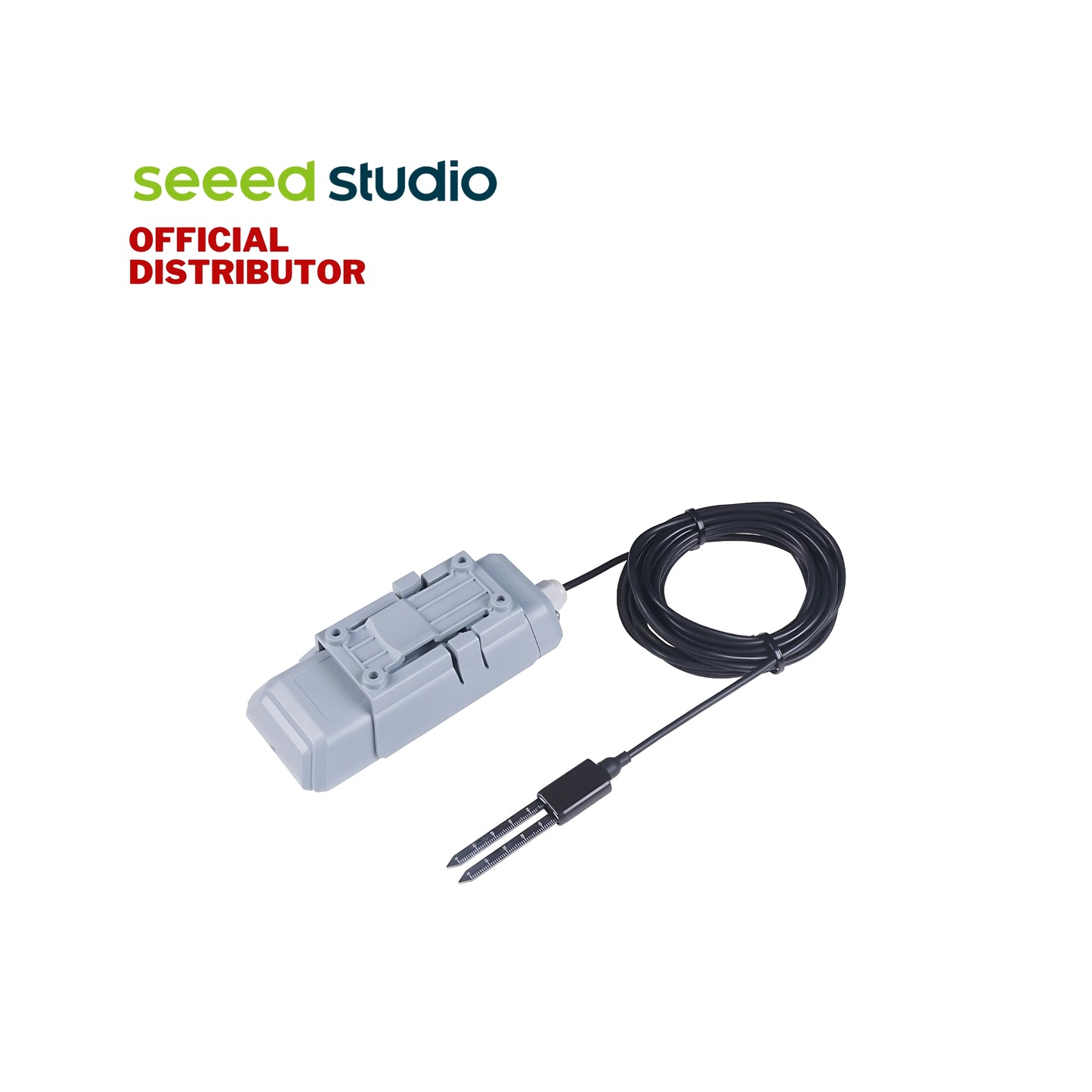

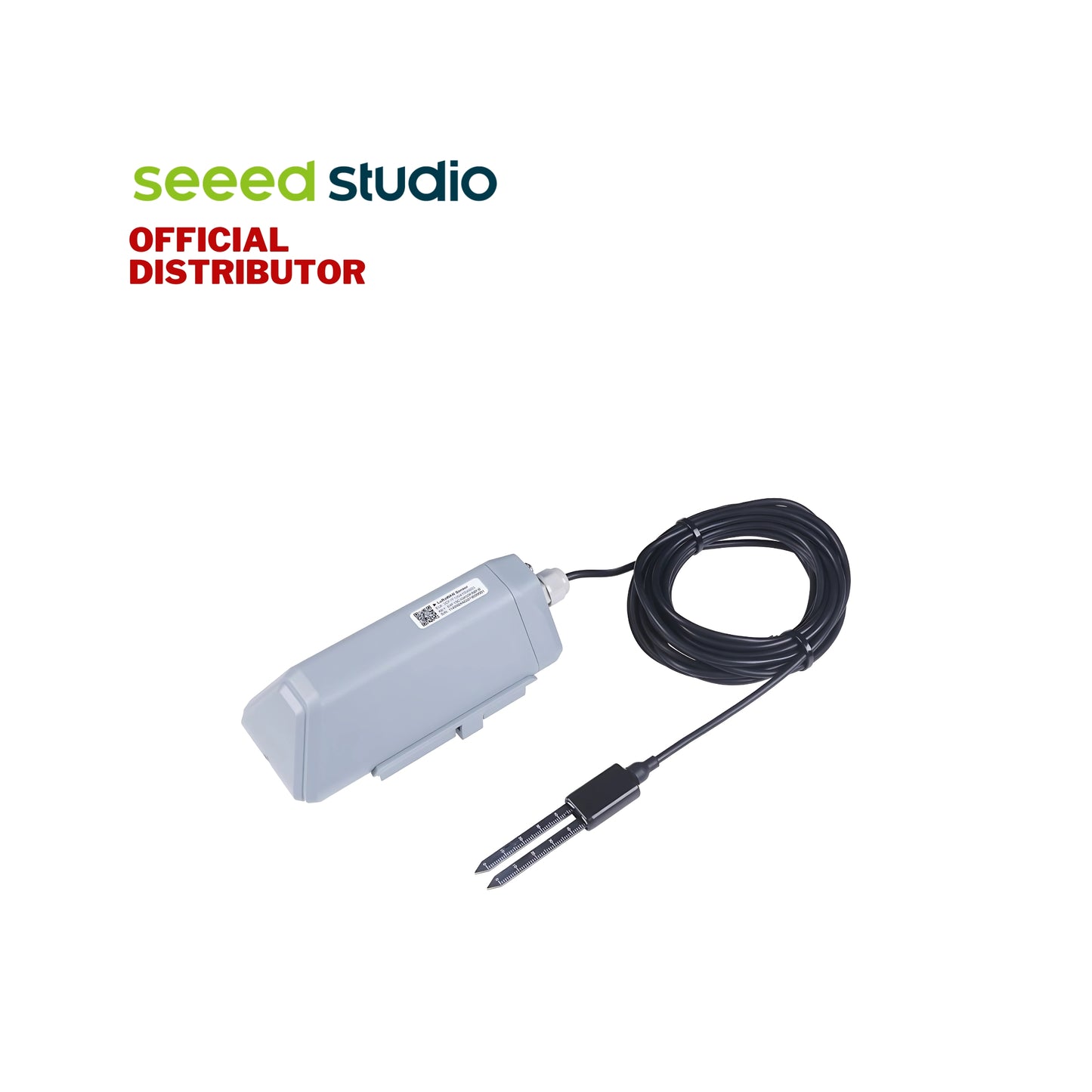

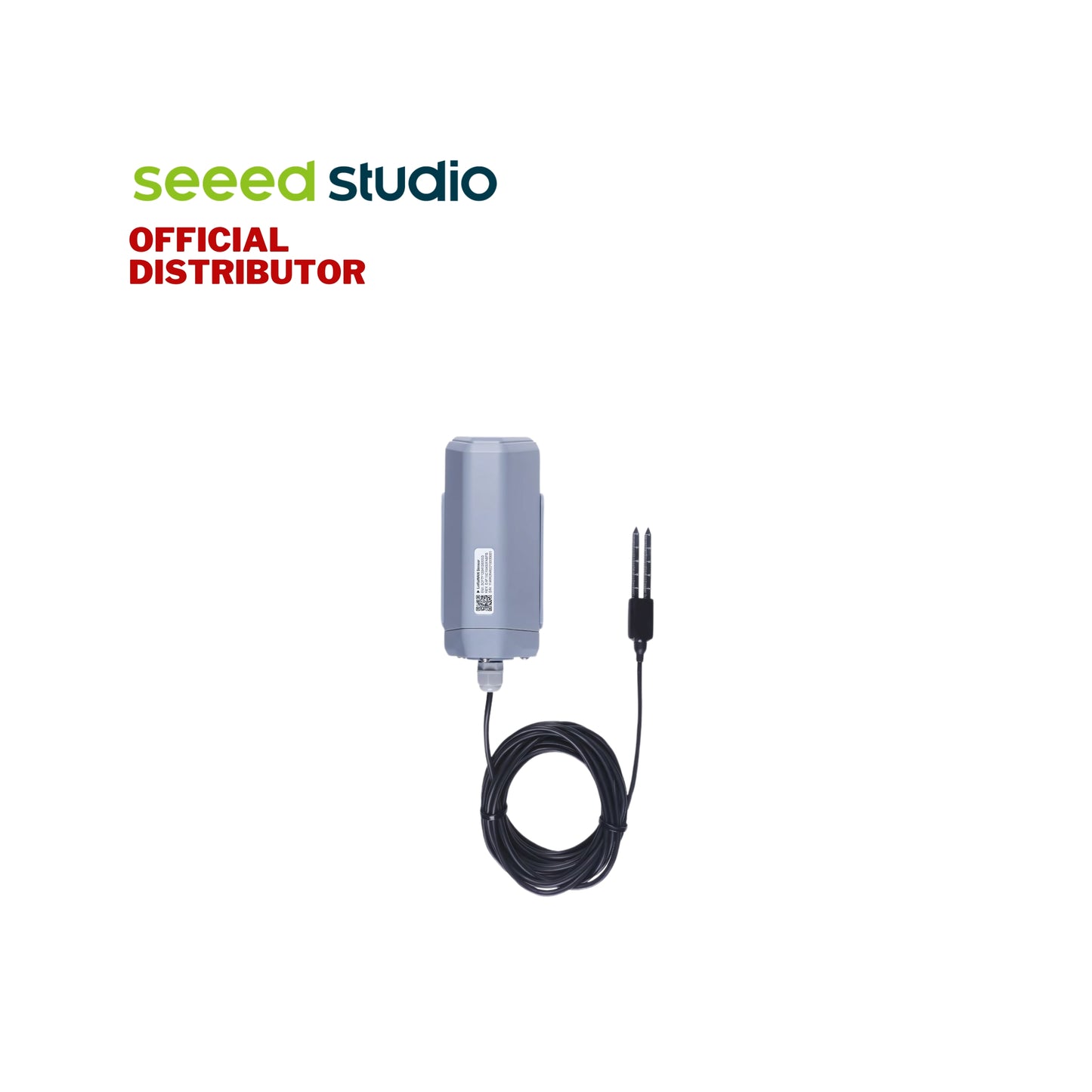

SenseCAP S2105 - LoRaWAN® Soil Moisture, Temperature, and EC Sensor
₱8,499.00
₱8,499.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Loading locations...
Or 3 months for only ₱1,000 with
. Learn More.
Couldn't load pickup availability
Share
About the Product
Description:
SenseCAP S2105 - LoRaWAN® Soil Moisture, Temperature and EC Sensor is a battery-powered IP66 wireless soil moisture, temperature, and EC sensor, ranging from 0 ~ 100% (m³/m³), -40 ~ 80℃, and 0 to 23 dS/m, equipped with built-in Bluetooth and APP service for OTA configuration and remote device management. Used in smart farming, smart yards, and environmental monitoring solutions.
Features:
Compatible with Worldwide LoRaWAN® Networks: Compatible with different types of LoRaWAN® gateways to enable fast connection with LoRaWAN® networks (support the universal frequency plan from 863MHz ~928MHz).
Long Range & Battery Powered: Ultra-wide-transmission range of 2km in urban scenes and 10km in line of sight scenes. Powered by easily replaceable standard Li-SOCl2 battery (type: ER34615) with Max.10 years of battery life.
Designed to Use in Harsh Environments: -40℃ ~ 85℃ operating temperature and IP66-rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc.
Simple Configuration: SenseCAP provides a no-code experience that enables users to finish configuration with 4 steps through SenseCAP Mate APP.
Specifications:
Soil Moisture (VWC-Volumetric Water Content)
-
Range: 0 to 100% (air-water)
-
Accuracy: 0 to 50%: ±3%; 50 to 100%: ±5%
- Resolution: 0 to 50%: 0.1%; 50 to 100%: 0.5%
Soil Temperature
-
Range: -40 to +80 °C
-
Accuracy: 0 to 50°C: ±0.5 °C; -40 to 0, 50 to 80°C: ±1 °C
- Resolution: 0.1 °C
Electrical Conductivity (Only supported in S2105)
-
Range: 0 to 23 dS/m
-
Accuracy: 0 to 5 dS/m: ±5%; 5 to 23 dS/m: ±10%
- Resolution: 0 to 5 dS/m: 0.01dS/m; 5 to 23 dS/m: 0.1dS/m
General Parameters
-
Product Model: S2105
-
Microcontroller: Wio-E5
-
Support Protocol: LoRaWAN® v1.0.3 Class A
-
Built-in Bluetooth: App Tool to change parameters
-
LoRaWAN® Channel Plan: IN865/EU868/US915/AU915/ AS923/KR920/RU864 *
-
Max Transmitted Power: 19dBm
-
Sensitivity: -136dBm@SF12 BW=125KHz
-
Communication Distance: 2 to 10km (depending on gateway antenna and environment)
-
IP Rating: IP66
-
Operating Temperature: -40 to +85 °C
-
Operating Humidity: 0 to 100 %RH (non-condensing)
-
Device Weight: 405g
-
Cable Length: 5 meters
- Certification: CE / FCC / RoHS
Battery (Contained in equipment)
-
Battery Life: Up to 10 years**
-
Battery Capacity: 19Ah (non-rechargeable)
- Battery Type: Standard D-size SOCl2 Battery
Hardware Overview:
SenseCAP LoRaWAN S2105 Sensor measures moisture, temperature and EC at the range of 0 ~ 100% (m³/m³), -40 ~ 80℃, and 0 to 23 dS/m respectively. Soil electrical conductivity (EC) is a metric of the salt content in the soil which will affect crop yield and quality, plant nutrient availability, and the activity of soil microbes. S2105 can be widely applicable in soil sensing scenarios. It is specifically optimized for OTA with built-in Bluetooth, which enables quick setup and update. Benefiting from LoRa and IP66 design, this sensor features stability and reliability and can cover a long transmission range while keeping lower power consumption. Unlike wireline devices, it is battery-powered, reducing the workload and complexity of the deployment, and can be disassembled and installed in a few minutes.

It can cover a transmission range of 2km in urban scenes and 10km in line-of-sight scenes while keeping lower power consumption during the transmission process. Together with a replaceable battery that supports up to 10 years of usage and an industrial IP66 enclosure. It supports -40 ~ 85℃ operating temperature and can be deployed in harsh environments.

Application:
Agricultural Irrigation
Greenhouse
Garden Planting
Drought Monitoring
Turf and Lawn Management
Documents:
Part List:

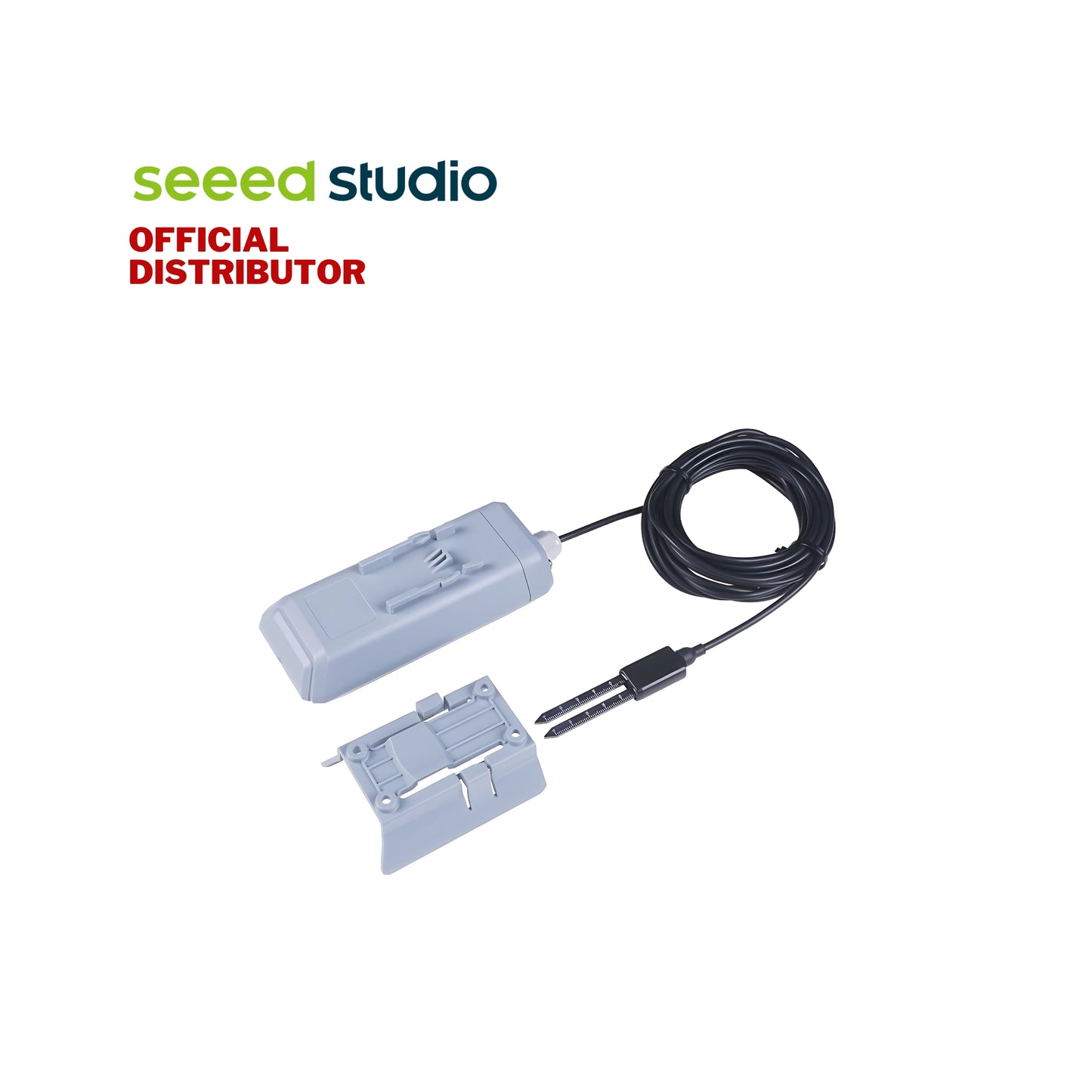

1x Sensor Node
2x Bracket
1x Quick Start Guide
4x KA4*20mm Self-drilling Screw
