Short Flex Sensor
₱750.00
₱750.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Loading locations...
Or 3 months for only ₱1,000 with
. Learn More.
Couldn't load pickup availability
Share
About the Product
Description:

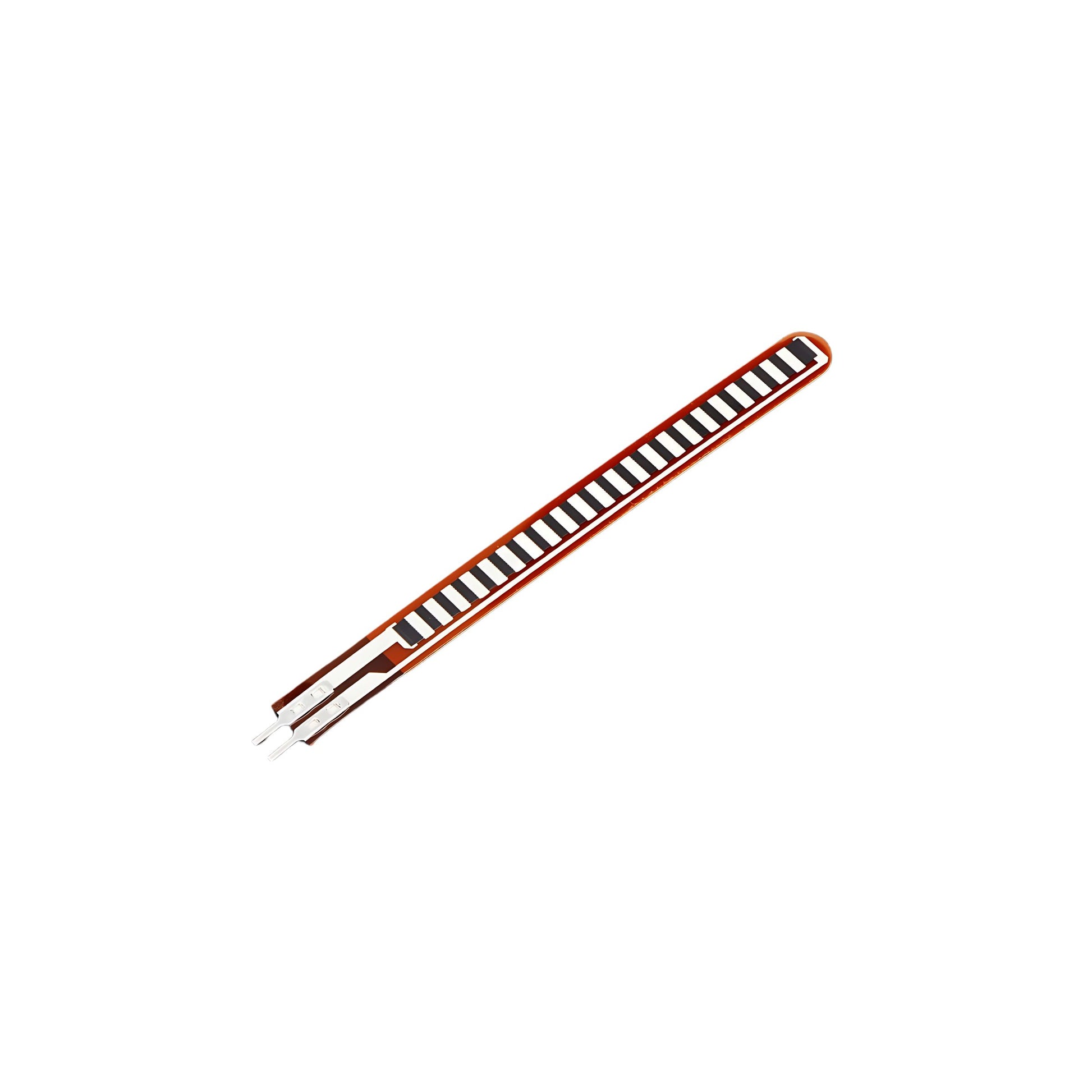

This simple, short flex sensor, 2.2" in length, can detect flexing or bending in one direction. They were popularized by being used in the Nintendo PowerGlove as a gaming interface.
These sensors are easy to use; they are basically resistors that change value based on how much they are flexed. If they're unflexed, the resistance is about ~25KΩ. When flexed all the way, the resistance rises to ~100KΩ. You can use an analog input on a microcontroller (with a pullup resistor) or a digital input with the use of a 0.1uF capacitor for RC timing. The resistance of the sensor changes when the metal pads are on the outside of the bend (text on the inside of the bend).
The bottom part of the sensor (where the pins are crimped on) is very delicate, so make sure to have strain relief, such as clamping or gluing that part, so as not to rip out the contacts!
Note: Please refrain from flexing or straining this sensor at the base. The usable range of the sensor can be flexed without a problem, but care should be taken to minimize flexing outside of the usable range. For best results, securely mount the base and bottom portion and only allow the actual sensor to flex.
Features:
- Angle Displacement Measurement
- Bends and Flexes physically with the motion device
- Simple Construction
- Low Profile
Specifications:
Flat Resistance: 25K Ohms
Resistance Tolerance: ±30%
Bend Resistance Range: 45K to 125K Ohms (depending on bend radius)
Power Rating: 0.50 Watts continuous; 1 Watt Peak
Life Cycle: >1 million
Temperature Range: -35°C to +80°C
Applications:
Robotics
Gaming (Virtual Motion)
Medical Devices
Computer Peripherals
Musical Instruments
Physical Therapy
