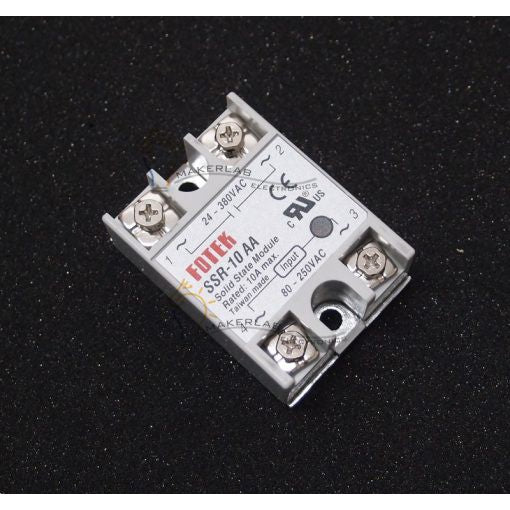

Solid State Relay SSR-10AA (80-250V AC Input)- Original

₱400.00 PHP
₱400.00 PHP ₱799.75 PHP
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
Only 9 units left

About the Product

Solid State Relay SSR-10AA (80-250V AC Input)- Original

This Solid State Relay SSR-10AA can switch current loads of up to 10A with a 80-250V AC input and a zero cross trigger control method. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.

Feature:

  • Long service life and high reliability
  • Highly reliable and compact sized
  • Designed to offer users maximum simplicity
  • Fast switching

Specification:

  • Model: SSR-10AA
  • Rated Load: 10A
  • INPUT DATA:
  • Operating Voltage: 80~250VAC 50 / 60Hz
  • Min. ON/OFF Voltage: ON?45V , OFF ?35V
  • Trigger Current: 5.0mA / 110VAC max.
  • Control Method: Zero Cross Trigger
  • OUTPUT DATA:
  • Operating Voltage: 24~380VAC
  • Min. Block Voltage: 600VAC (Repetive)
  • Voltage Drop: 1.6V / 25°C
  • Max. One Cycle Surge: 135A
  • Leakage Current: 3.0mA
  • Response Time: ON?20ms , OFF?20ms
  • Dielectric Strength: Over 2.5KVAC / 1min.
  • Isolation Strength: Over 50M? / 500VDC
  • Operating Temperature: -20°C ~ + 80°C
  • Housing Material: Intensive ABS
  • Weight: Approx. 100 g

Note:

  • Load 10A, must be installed radiator, 40A or more plus fan strong cold or water cooled.
  • When using an inductive load, it is usually necessary to have a voltage control device with a specific clamping voltage, such as a bi-directional Zener diode or a varistor (MOV), at the output. For varistors we recommended 1.6-1.9 times the rated voltage.
