Solid State Relay SSR-10AA (80-250V AC Input)- Original

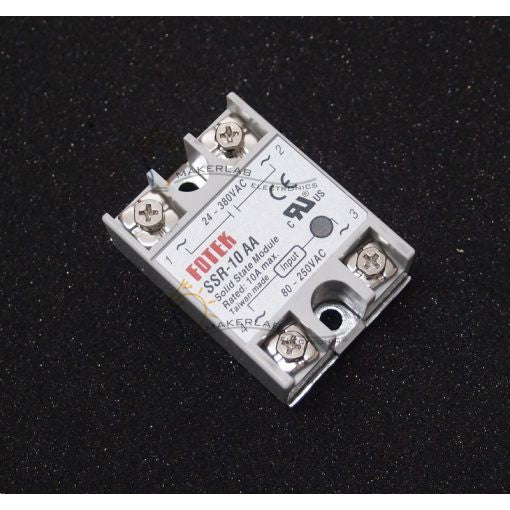

This Solid State Relay SSR-10AA can switch current loads of up to 10A with a 80-250V AC input and a zero cross trigger control method. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.

Feature:

• Long service life and high reliability
• Highly reliable and compact sized
• Designed to offer users maximum simplicity
• Fast switching

Specification:

• Model: SSR-10AA
• Rated Load: 10A
• INPUT DATA:
• Operating Voltage: 80~250VAC 50 / 60Hz
• Min. ON/OFF Voltage: ON?45V , OFF ?35V
• Trigger Current: 5.0mA / 110VAC max.
• Control Method: Zero Cross Trigger
• OUTPUT DATA:
• Operating Voltage: 24~380VAC
• Min. Block Voltage: 600VAC (Repetive)
• Voltage Drop: 1.6V / 25°C
• Max. One Cycle Surge: 135A
• Leakage Current: 3.0mA
• Response Time: ON?20ms , OFF?20ms
• Dielectric Strength: Over 2.5KVAC / 1min.
• Isolation Strength: Over 50M? / 500VDC
• Operating Temperature: -20°C ~ + 80°C
• Housing Material: Intensive ABS
• Weight: Approx. 100 g

Note:

• Load 10A, must be installed radiator, 40A or more plus fan strong cold or water cooled.
• When using an inductive load, it is usually necessary to have a voltage control device with a specific clamping voltage, such as a bi-directional Zener diode or a varistor (MOV), at the output. For varistors we recommended 1.6-1.9 times the rated voltage.
