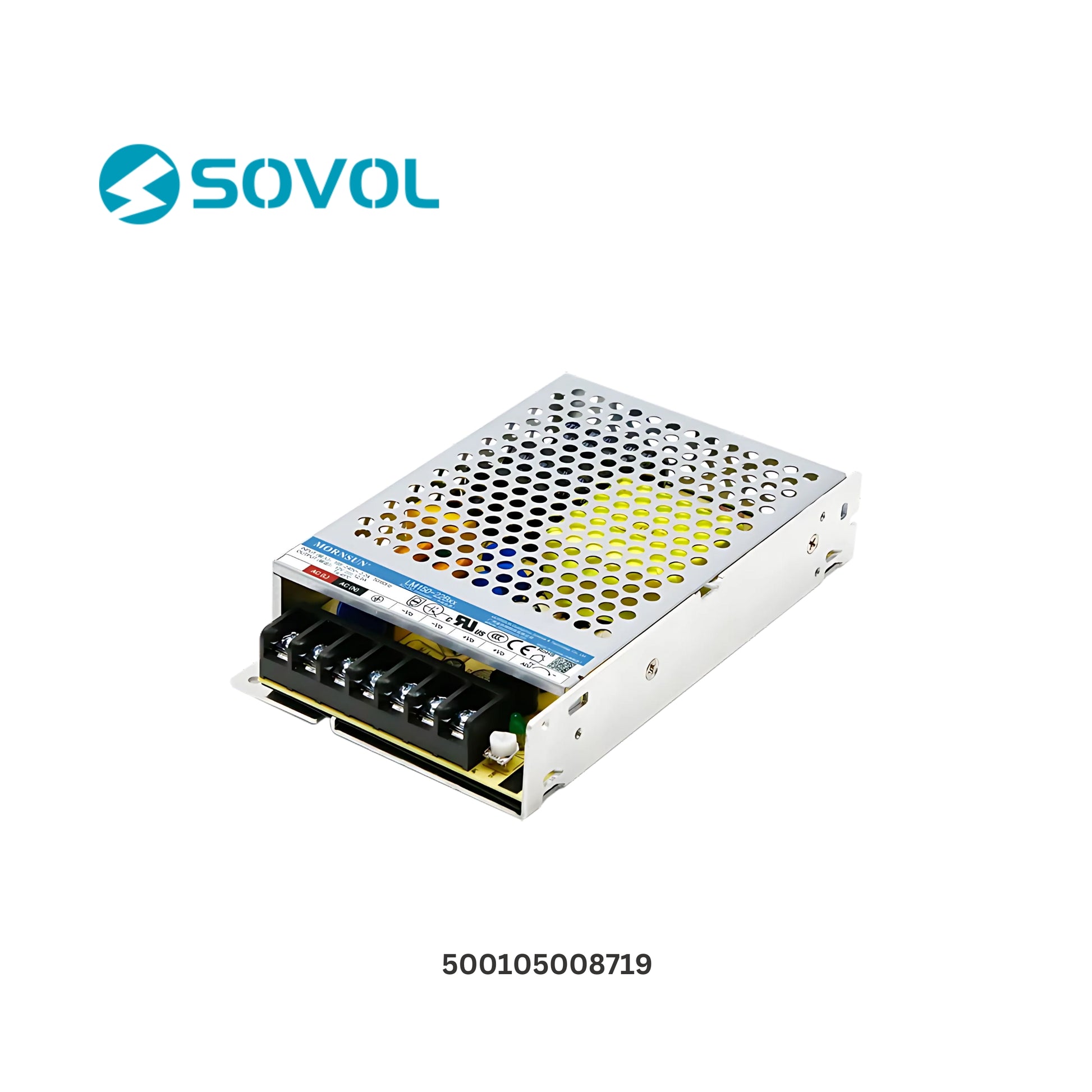

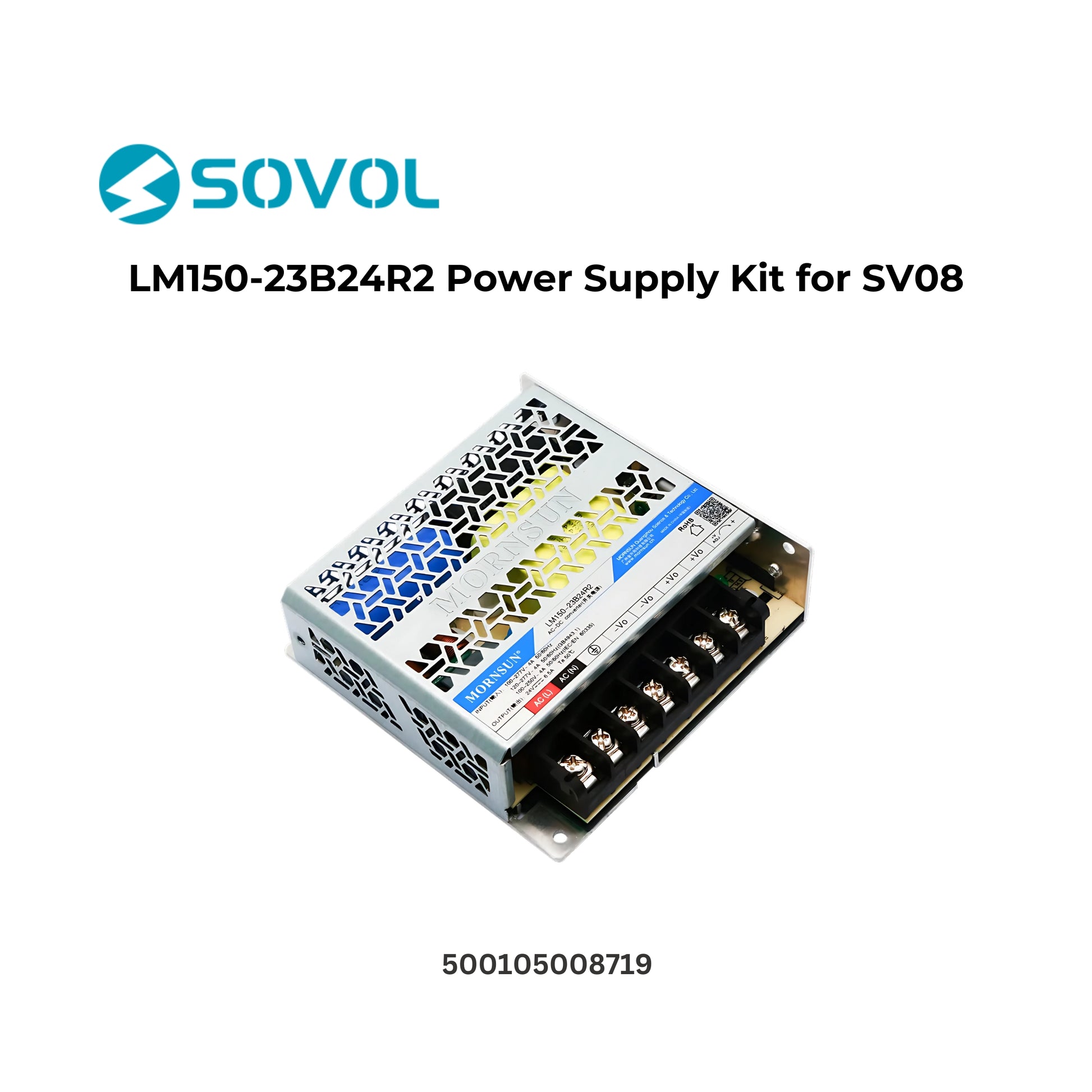

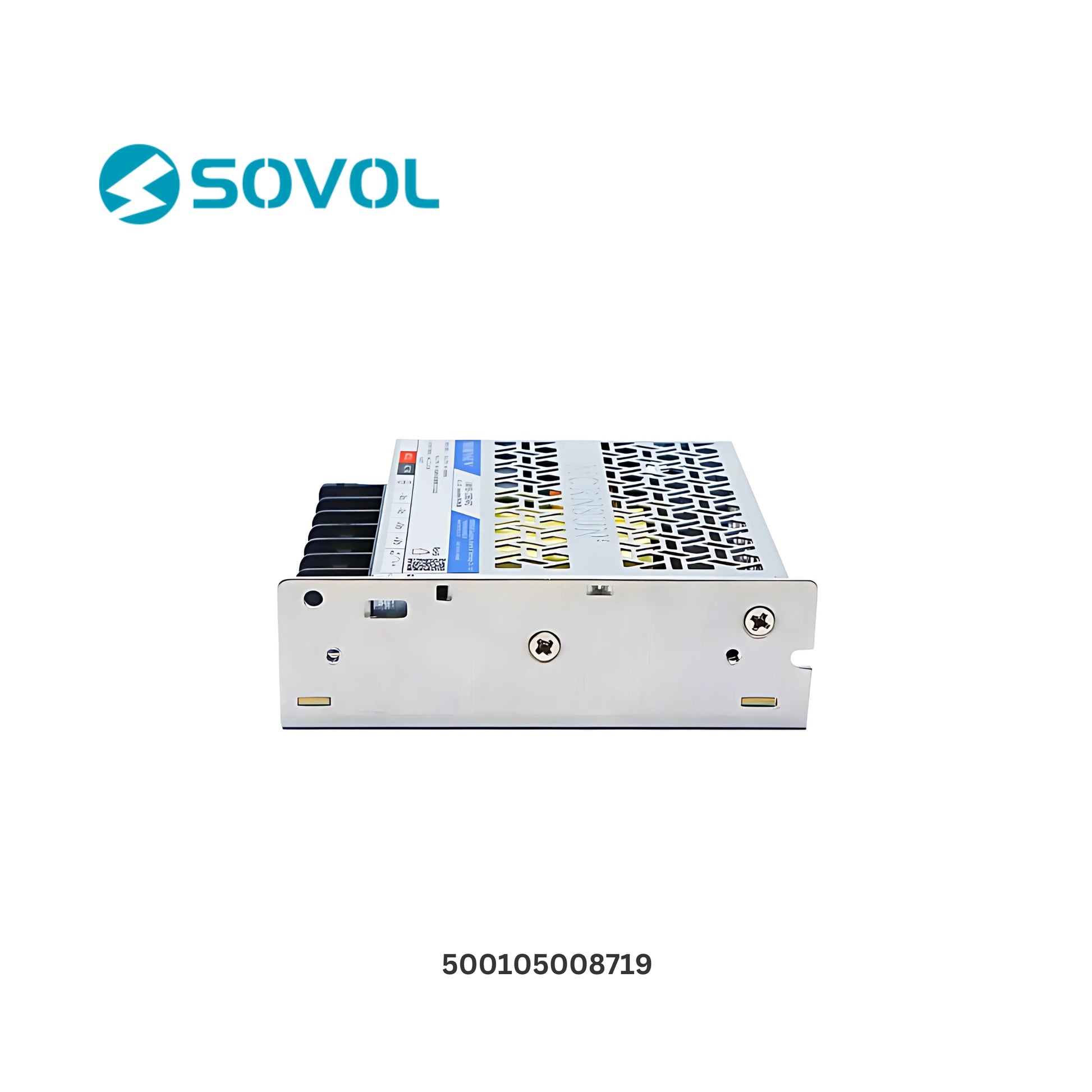

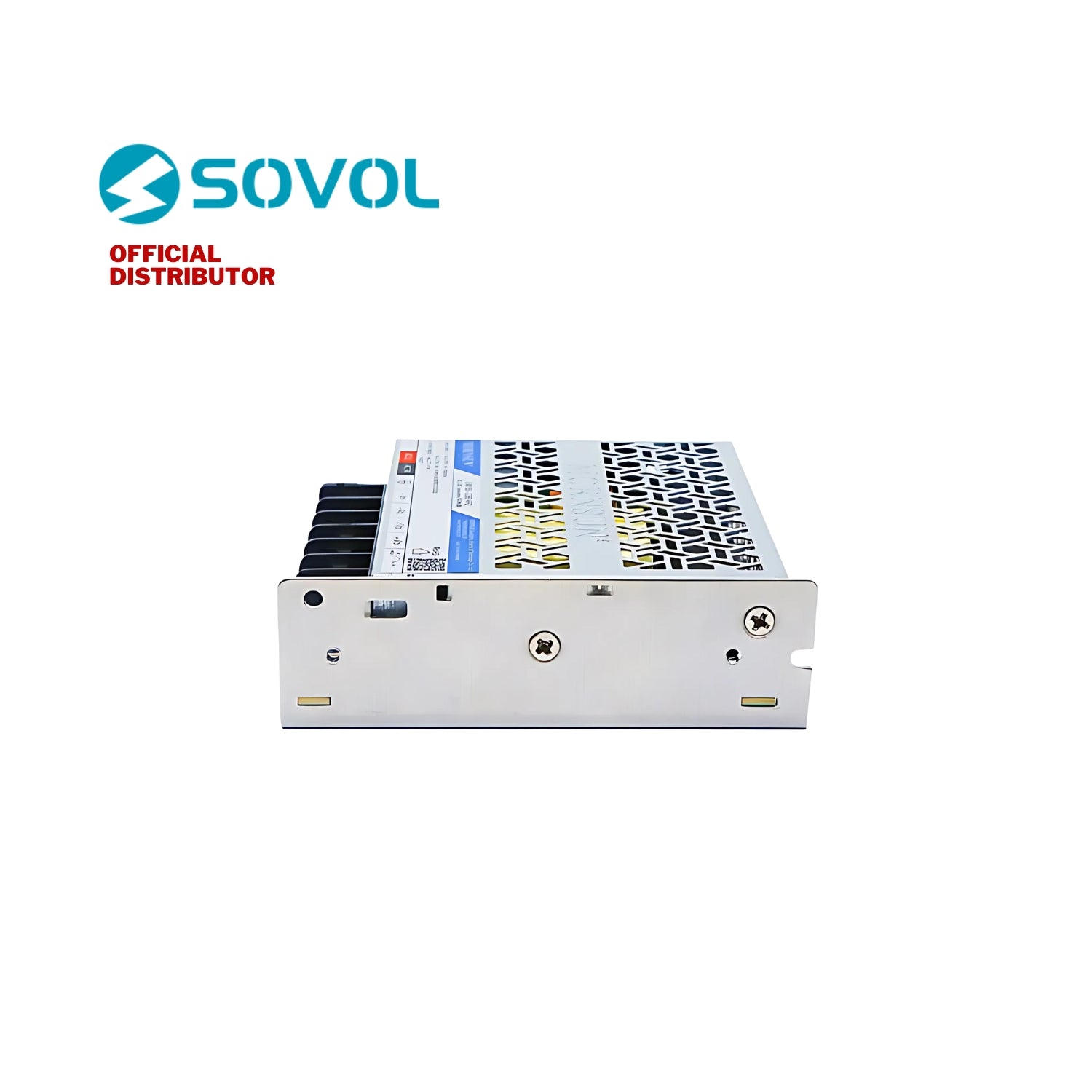

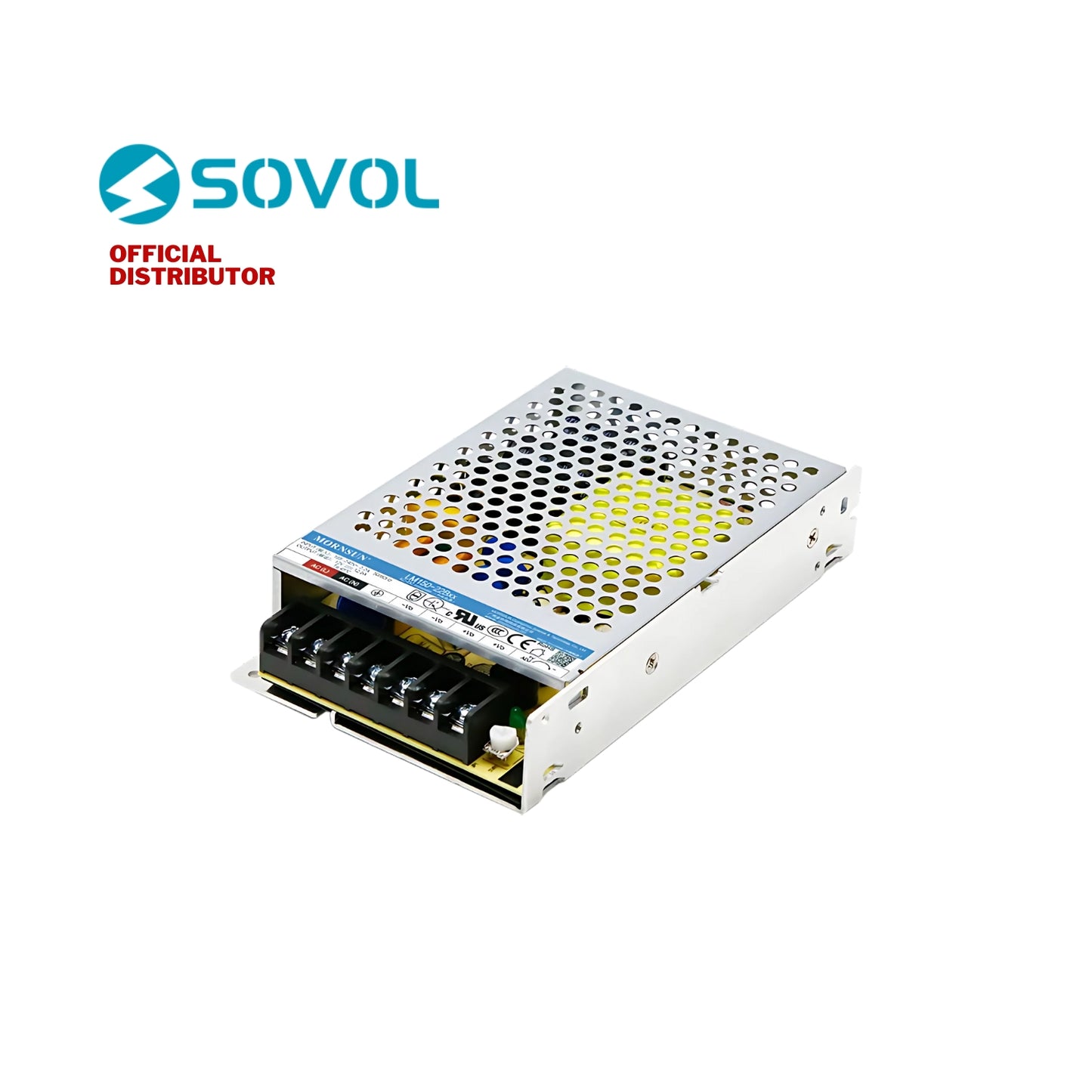

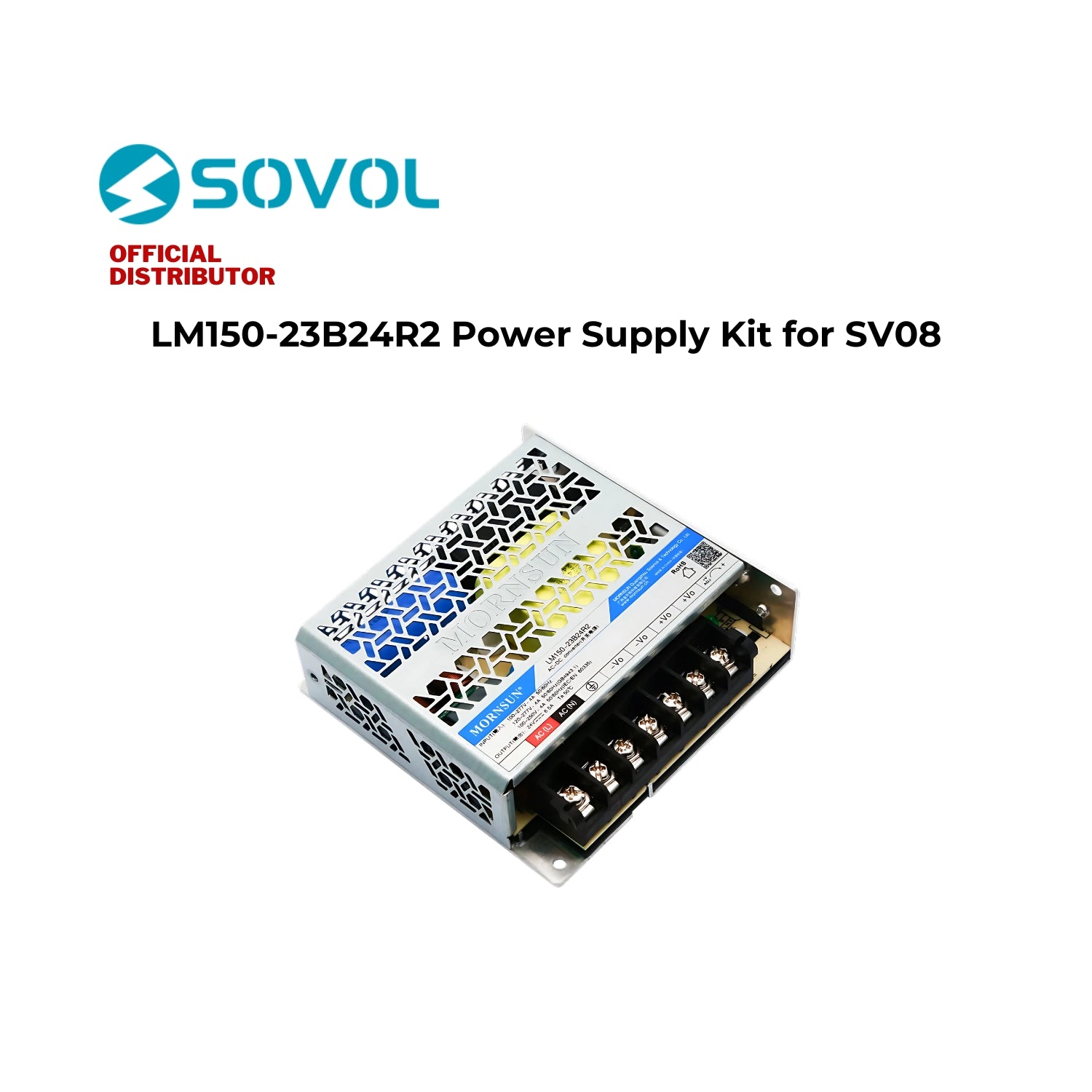

Sovol LM150-23B24R2 Power Supply Kit for SV08 3D Printer

Description:

The Sovol LM150‑23B24R2 Power Supply Kit is a dedicated upgrade for the SV08 series 3D printer, including the SV08 Zero and T300. Built around a compact, industrial-grade 24V power supply, it ensures consistent, reliable performance and enhanced protection during intensive printing. Engineered for global use and long-term stability, it’s the ideal replacement or upgrade unit for Sovol's CoreXY machines.

Product Features:

• Reliable Power Output: Provides a stable 24V, 150W output to support all SV08 print functions under load.
• Industrial-Grade Protections: Built-in safeguards against over-voltage, over-current, and short circuits.
• Universal Input Voltage: Operates with 80–305 VAC or 100–430 VDC, making it globally compatible.
• High Efficiency & Low Power Loss: Delivers efficient power conversion with minimal energy waste.
• Compact & Lightweight: Space-saving metal housing fits neatly into the SV08’s electronics compartment.
• Safety Compliant: Meets key global electrical and safety standards for peace of mind.

Specifications:

• Model: LM150‑23B24R2
• Output Voltage: 24 V DC
• Rated Power: 150 W
• Maximum Output Current: 6.5 A
• Input Voltage Range: 80–305 VAC or 100–430 VDC
• Efficiency: Up to 91.5%
• Power Supply Type: Enclosed switch-mode
• Dimensions: 159 × 97 × 30 mm
• Weight: Approx. 420 g
• Mounting Type: Screw mount
• Protection Features:
  - Over Voltage Protection (OVP)
  - Over Current Protection (OCP)
  - Short Circuit Protection (SCP)
  - Dual/reinforced insulation
• Certifications: IEC/EN, UL, CISPR, RoHS
• Cooling Method: Natural air convection (no fan)
• Operating Temperature: -40°C to +85°C
• Compatibility: Sovol SV08, SV08 Zero, T300, and other similar models
