Sparkfun MyoWare 2.0 Muscle Sensor Development Kit | KIT-21269

Sparkfun MyoWare 2.0 Muscle Sensor Development Kit | KIT-21269

In stock

SKU:MLE04766

Regular price ₱9,749.00
Regular price ₱12,200.00 Sale price ₱9,749.00
Sale Sold out
Model:
View full details

The MyoWare® 2.0 Muscle Sensor Development Kit is an Arduino-compatible, all-in-one electromyography (EMG) sensor kit that provides you with all the boards from the MyoWare 2.0 ecosystem to test out different configurations for your application. Depending on your configuration, you can visualize the muscles in action with the MyoWare 2.0 LED Shield or read the analog output using an Arduino-compatible microcontroller! Simply snap on a MyoWare 2.0 Shield, add some EMG sensor pads, attach the sensor to a muscle group, and flex!

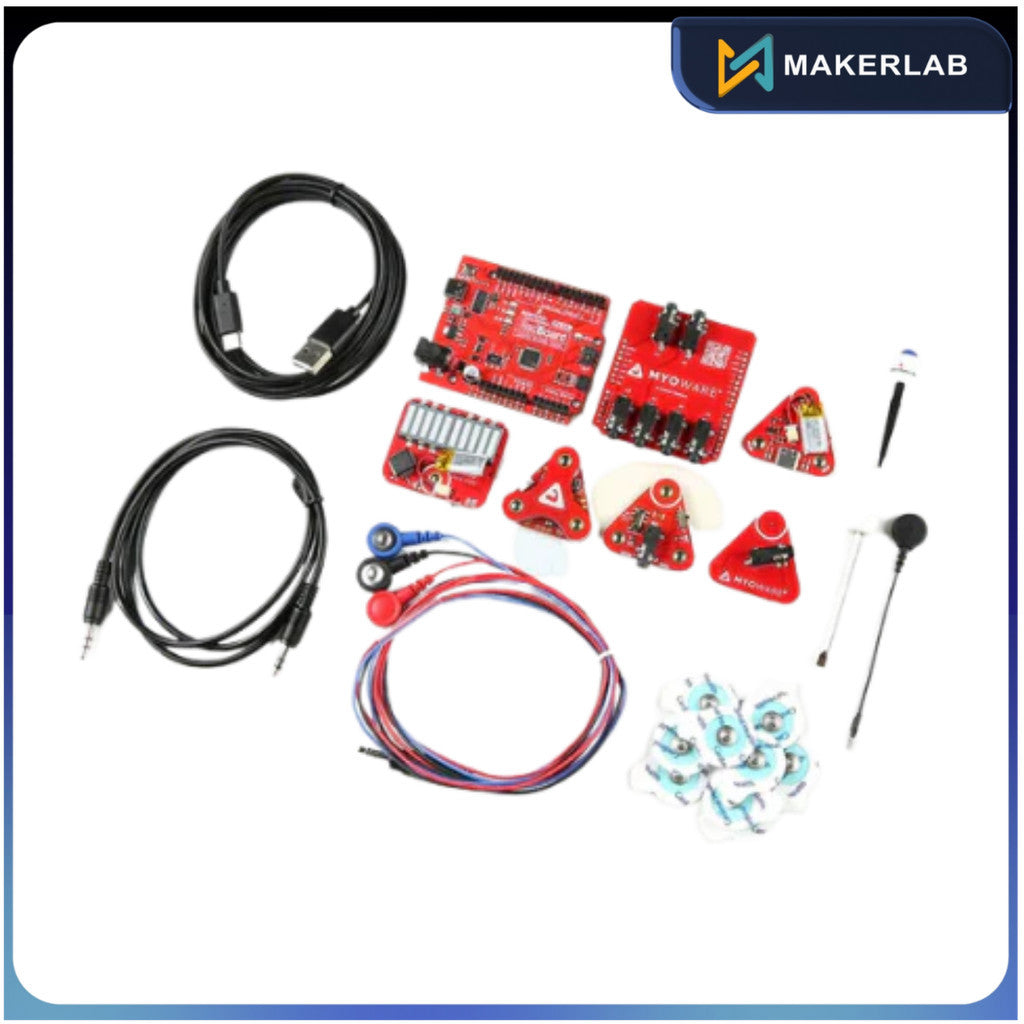

Includes
1x MyoWare 2.0 Muscle Sensor (Version 2.0.4)
1x MyoWare 2.0 Power Shield
1x MyoWare 2.0 LED Shield
1x MyoWare 2.0 Link Shield
1x TRS 3.5mm Cable
1x MyoWare 2.0 Arduino Shield
1x Reversible USB A to C Cable - 2m
1x Disposable Surface EMG/ECG/EKG Electrode - 24mm (10 pack)
1x MyoWare 2.0 Cable Shield
1x Sensor Cable - Electrode Pads (3 connector)
1x MyoWare 2.0 Reference Cable
1x SparkFun Mini Screwdriver
1x SparkFun RedBoard Plus

MyoWare 2.0 Muscle Sensor Features:

Wearable Design
Supply Voltage
Minimum: +2.27V
Typically: +3.3V to +5V
Maximum: +5.47V
Input Bias Current
250pA, max 1nA
Reverse Polarity Protection
Three Output Modes
Raw EMG
Rectified
Envelope
Expandable via Shields
MyoWare® 2.0 Muscle Sensor Form Factor
3x Female Snap Pins (Power and EMG Envelope Output)
3x Male Snap Pins (Input Electrodes)
LED Indicators
VIN
ENV
Reference Electrode Jumper
Specially Designed For Microcontrollers
Adjustable Gain
Board Dimensions
37.57mm x 35.90mm (1.48” x 1.41”)
