SKU:MLE01630

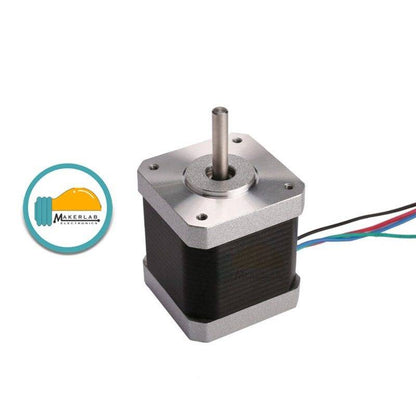

Wantai Stepper Motor Nema 17 2600g cm 42BYGHW616
₱549.00
₱549.00
₱499.75
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Loading locations...
Or 3 months for only ₱1,000 with
. Learn More.
Couldn't load pickup availability
Share
About the Product
Stepper Motor Nema 17 2600g-cm
A stepper motor is used in the robotics industry. They move a known interval for each pulse of power. These pulses of power are provided by a motor driver and is referred to as a step. As each step moves a known distance it makes them handy devices for repeatable positioning.
This is a bipolar stepper motor with nema 17 size, featuring 2600 g-cm of holding torque.
Technical Specification:
- Form Factor Nema 17
- Step Angle 1.8 degrees
- Motor Length 40 mm
- Rated Voltage 4.1 V
- Rated Current 0.5 A
- Phase Resistance 8 Ω
- Phase Inductance 15 mH
- Holding Torque 2600 g-cm
- No. of Lead Wires 4
- Rotor Interia 54 g-cm²
- Detent Torque 220 g-cm
- Motor Weight 0.26 kg
