SKU:MLE00414

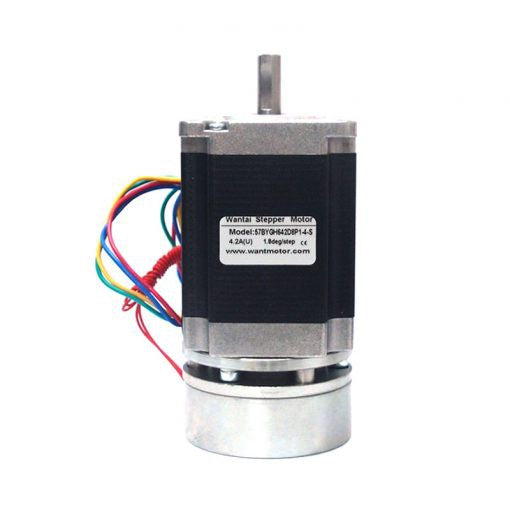

Stepper Motor with Brake Nema 23 18kg-cm

₱2,500.00 PHP
₱2,500.00 PHP
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
Only 5 units left

About the Product

Stepper Motor with Brake Nema 23 18kg-cm

This stepper motor has an electromagnetic brake attached at the back, this allows the stepper motor to instantly stop even with high inertia load.

Stepper Motors are great for position control. They can be found in desktop printers, plotters, 3d printers, CNC milling machines, and anything else requiring precise position control. These are a special segment of brushless motors. They are purposely built for high-holding torque. This high-holding torque gives the user the ability to incrementally “step” to the next position. This results in a simple positioning system that doesn’t require an encoder. This makes stepper motor controllers very simple to build and use.

Technical Specification:

Part No. 57BYGH642D8P1-4-S
Form Factor Nema 23
Step Angle 1.8 deg.
Rated Voltage 1.98VDC
Rated Current 4.2 A/phase
Phase Resistance 0.33Ohm/phase
Phase Inductance 3mH/phase
Holding Torque 18 Kg-cm / 254oz-in
No. of Lead Wires 4
Rotor Interia 1700 g-cm²
Detent Torque 9.5N-cm
Motor Weight 1.55 kg

Mechanical Dimension:


Applications

  • Printers
  • CNC machines
  • 3D printer/prototyping machines (e.g. RepRap)
  • Laser cutters
  • Pick and place machines
  • Linear actuators
  • Hard drives
