M5Stack Time-of-Flight Distance Ranging Sensor Unit (VL53L0X)

₱600.00
₱600.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
Only 3 units left

About the Product

ToF that employs time-of-flight techniques to resolve distance between the emit point and the reach point of a subject, measuring the round trip time of an artificial light signal provided by a laser.

This unit integrated a distance measuring sensor VL53L0x providing accurate distance measurement whatever the target reflectance, unlike conventional technologies. It can measure absolute distances up to 2m in less than 30ms.

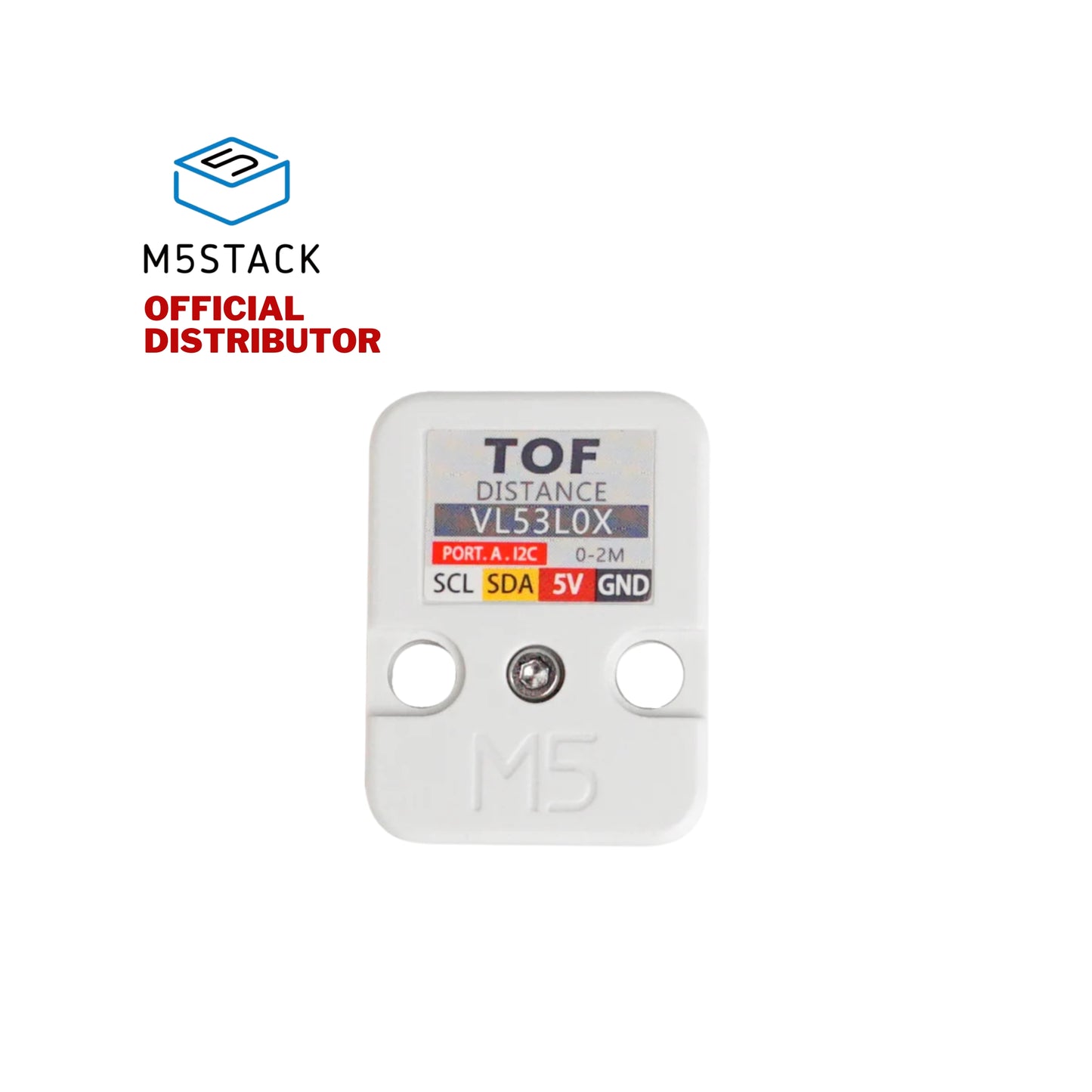

This unit communicates with M5Core via I2C(0x29).

  • In this case, make sure you use the 3.3V on SDA and SCL, M5Core GROVE provide 3.3V to data pins, 5V to power pin. only 3.3v allowed on VL53L0x.

Product Features

  • High precision
  • Measure absolute distances up to 2m
  • Measurement accuracy ±3%
  • The wavelength of laser: 940nm
  • Program Platform: Arduino, UIFlow(Blockly, Python)
  • Two Lego-compatible holes

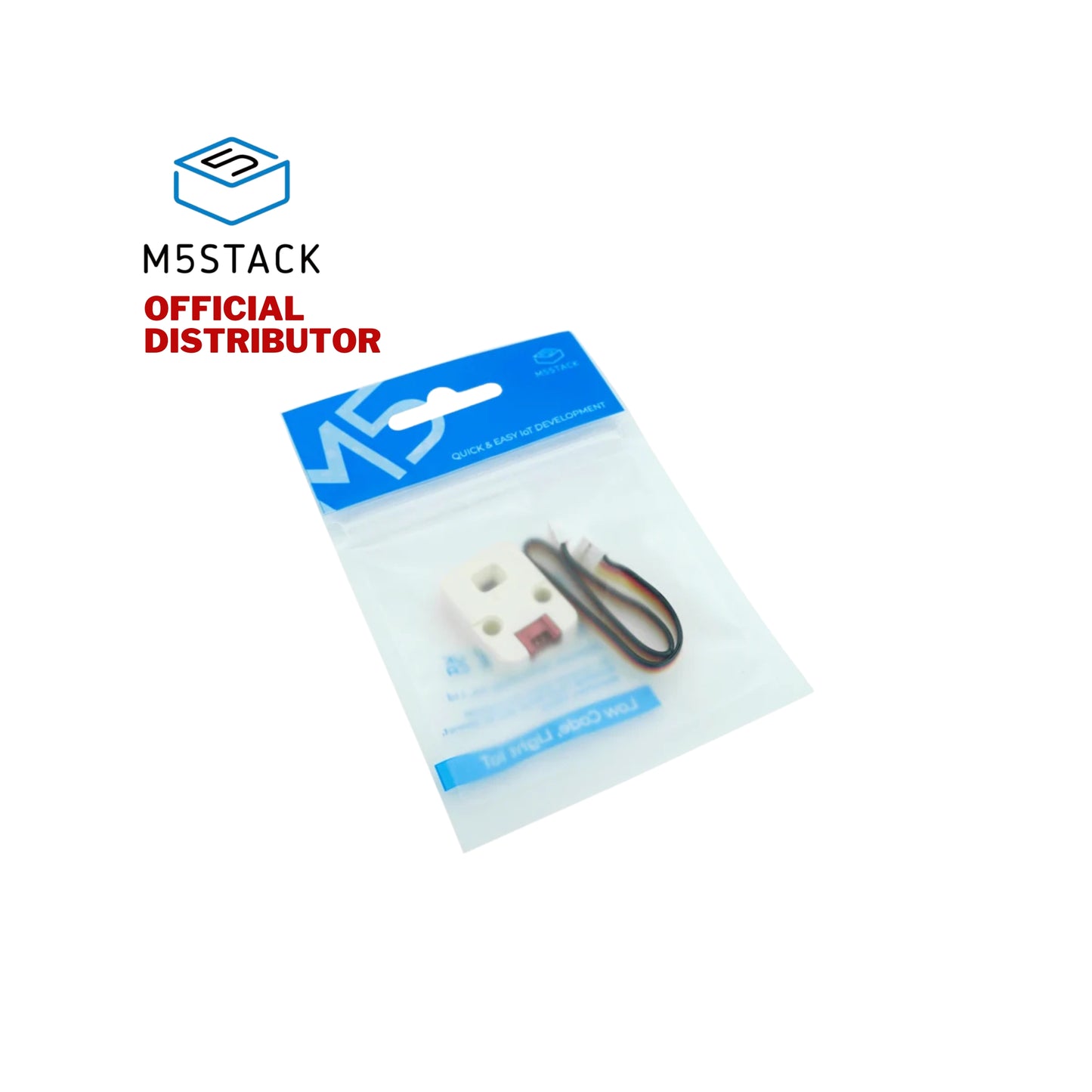

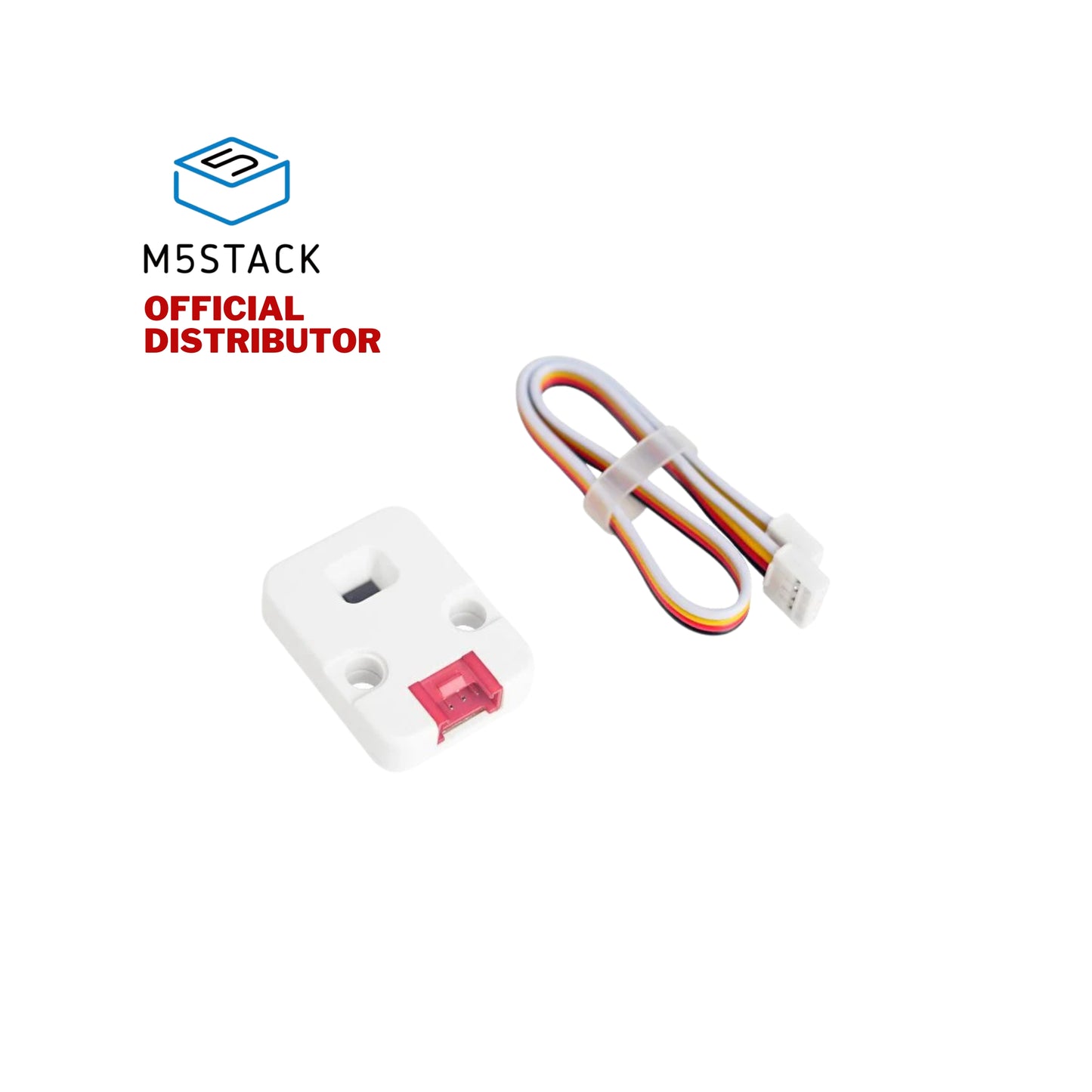

Include

  • 1x ToF Unit
  • 1x Grove Cable

Applications

  • 1D gesture recognition
  • Laser Ranging
  • 3D structured light imaging?3D sensing?
  • Camera assist (ultra fast autofocus and depth of field)

Specification

Resources Parameter
Measuring distance 0.3-2m
Measurement accuracy ±3%
Net weight 4g
Gross weight 17g
Product Size 32*24*8mm
Package Size 67*53*12mm
