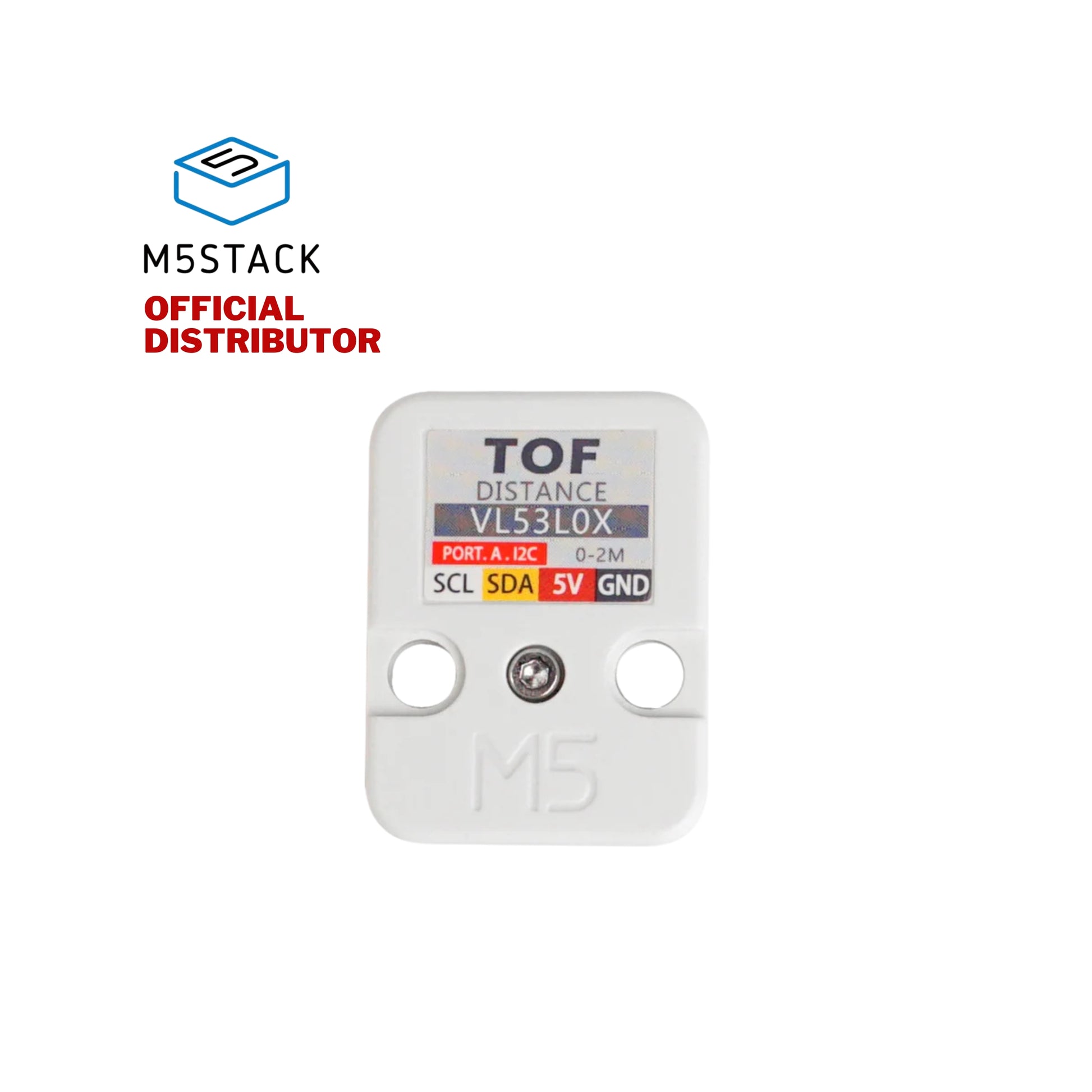

M5Stack Time-of-Flight Ranging Unit (VL53L0X)

Description:

ToF that employs time-of-flight techniques to resolve distance between the emit point and the reach point of a subject, measuring the round trip time of an artificial light signal provided by a laser.

This unit integrated a distance measuring sensor VL53L0x providing accurate distance measurement whatever the target reflectance, unlike conventional technologies. It can measure absolute distances up to 2m in less than 30ms.

This unit communicates with M5Core via I2C(0x29).

• In this case, make sure you use the 3.3V on SDA and SCL, M5Core GROVE provide 3.3V to data pins, 5V to power pin. only 3.3v allowed on VL53L0x.

Features:

• High precision
• Measure absolute distances up to 2m
• Measurement accuracy ±3%
• The wavelength of laser: 940nm
• Program Platform: Arduino, UIFlow(Blockly, Python)
• Two Lego-compatible holes

Specifications:

• Product code: U010
• Measuring distance: 0.3-2m
• Measurement accuracy: ±3%
• Net weight: 4g
• Gross weight: 17g
• Product Size: 32*24*8mm
• Package Size: 67*53*12mm

Applications:

• 1D gesture recognition
• Laser Ranging
• 3D structured light imaging?3D sensing?
• Camera assist (ultra fast autofocus and depth of field)

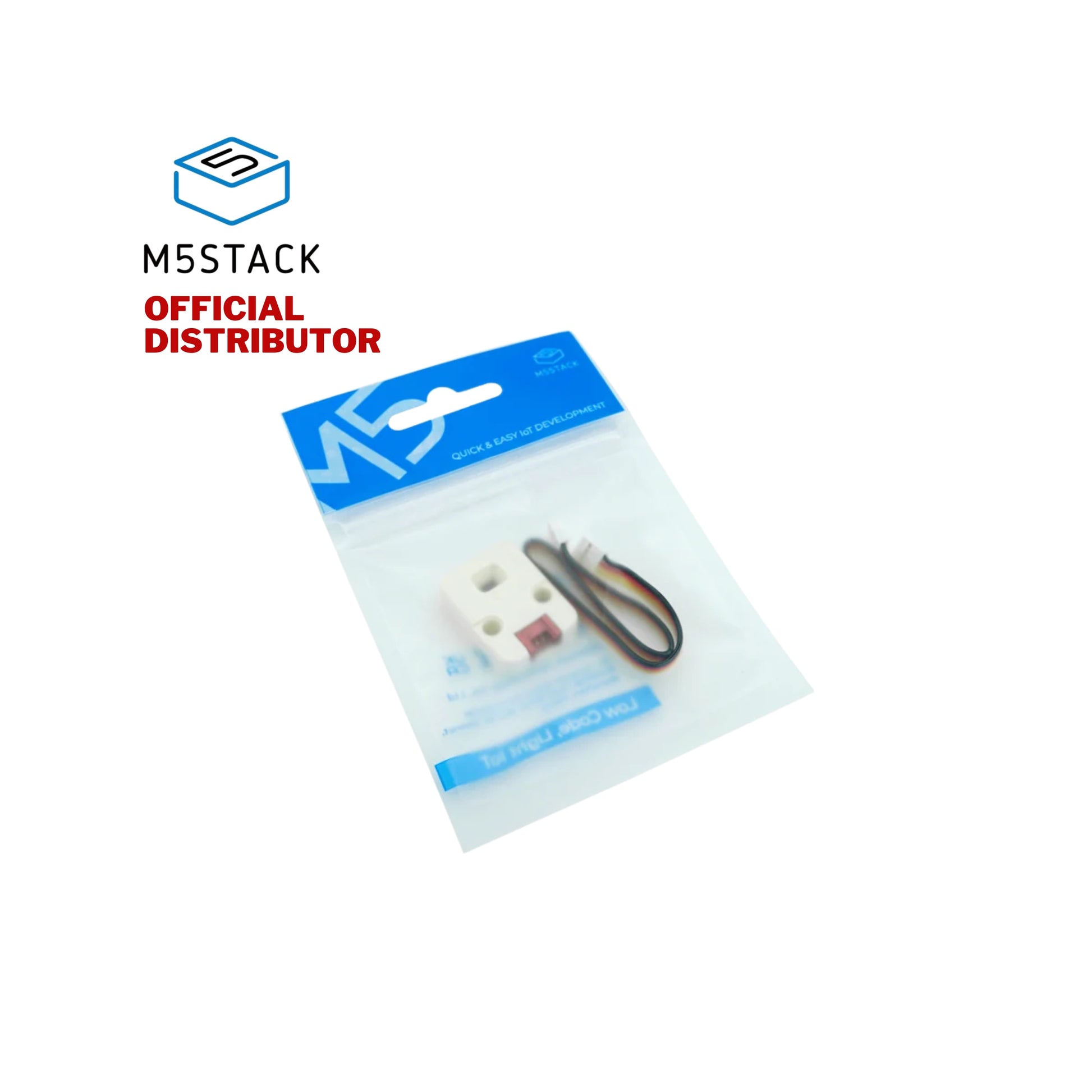

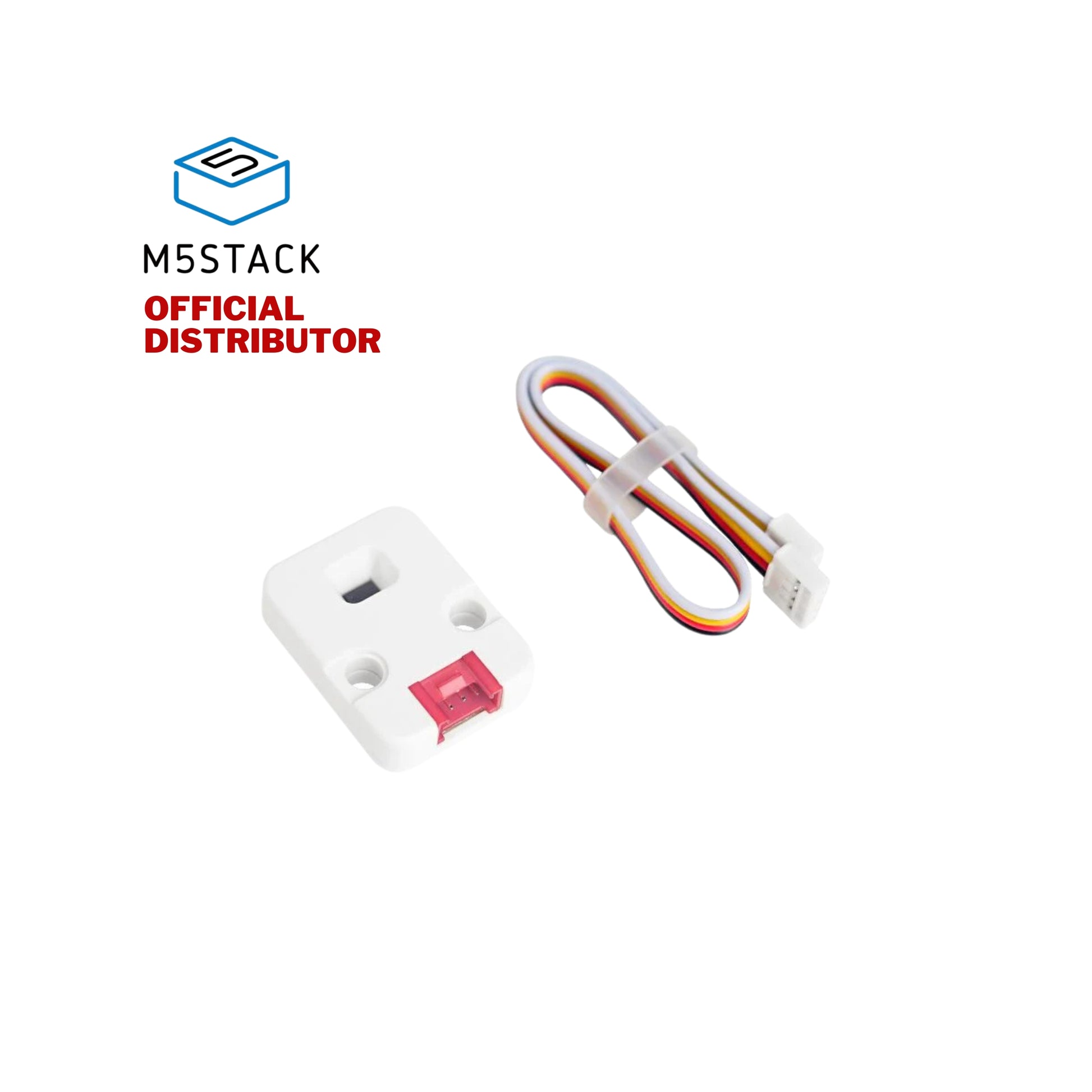

Part List:

• 1x ToF Unit
• 1x Grove Cable
