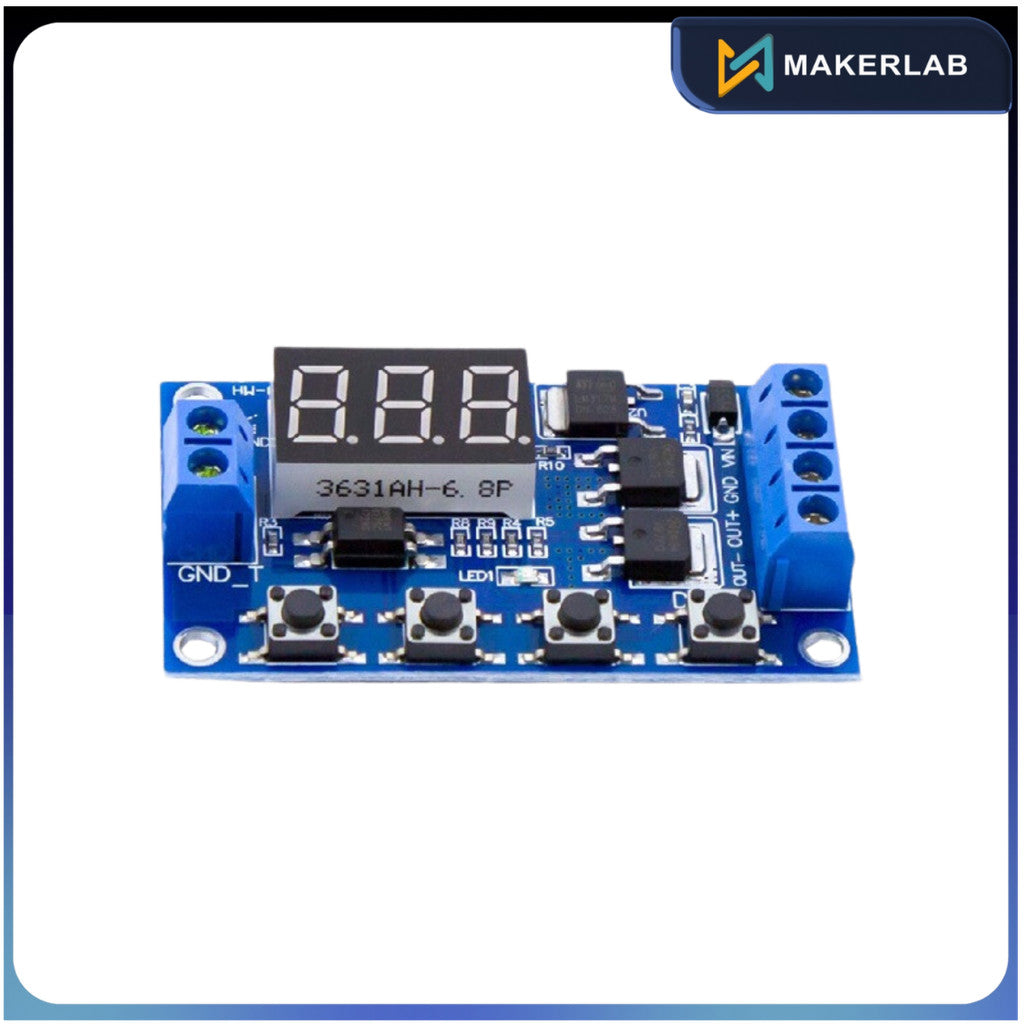

Timing Delay Switch Circuit Double MOSFET Control Board

Timing Delay Switch Circuit Double MOSFET Control Board

In stock

SKU:MLE02958

Regular price ₱149.00
Regular price Sale price ₱149.00
-Liquid error (snippets/price line 90): divided by 0% OFF Sold out
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
View full details

Product details of Timing Delay Switch Circuit Double MOSFET Control Board

Wide voltage power supply (6~30V)

supports micro USB 5.0V power supply

The interface is clear and simple, powerful, easy to understand.

All set parameters automatically save power.

Features:

Module characteristics and uses:

To achieve fast turn-on and off the circuit, an unlimited number of switching; Conducting and cutting process does not produce noise, no spark, no electromagnetic interference.

Compared with electromagnetic relay products, longer life.

The dual-MOS parallel drive, lower resistance, more current, strong power; at room temperature, operating current of up to 15A, power up to 400W, to meet the most use of the equipment.

A method for controlling the motor, lights, LED, DC motors, micro-pumps, solenoid valves, etc., very convenient.

Highlights:

Wide voltage input (5 ~ 36V), most devices can be used, very convenient;

The interface is clear and simple, powerful, easy to understand, meet almost all your needs;

The emergency stop function (“STOP” key), With reverse polarity protection, reverse polarity will not burn the product.

Increase the sleep mode, if this mode is enabled, without any operation within 5 minutes, then automatically turn off the monitor, any key wake-up;

You can set a different OP, CL, LOP parameters, which are independent of each other, and are automatically saved;

After the module is powered down, all parameter settings are not lost.

Operating mode:

P1: trigger signal, the relay is on “OP” time, and then disconnect; in the “OP” time, as follows:

P1.1: Signal Retrigger, invalid

P1.2: The signal is triggered again, the clock is reset

P1.3: Signal trigger again, relay off, stop the clock;

P-2: trigger signal, the relay off “CL” of time, the relay on “OP” time, and then disconnect relay;

P3.1: trigger signal, the relay is turned on after the “OP” time, the relay off “CL” time, then the operation cycle, if the trigger signal period, the relay off, stop the clock; the number of cycles ( “LOP “) can be set.

P3.2: without triggering signal, the relay is on “OP” time, the relay off “CL” time, and has been cycling; frequency ( “LOP”) cycle can be set;

P-4: signal holding function. If there is a trigger signal timing is cleared, the relay remains on; when the signal disappears, after the timing “OP” time, the relay is; if another signal during timing, timing is cleared;

Description:

  • Operating Voltage 5 – 36V.
  • Trigger Source Active-high (3.0V-24V)
  • Quiescent Current 20mA
  • Operating Current 50mA
  • Maximum Operating Current 30 A
  • Working temperature -40 – 85 ºC
  • Continuous current 15A
  • Power 400W
  • Length(mm) 60
  • Width(mm) 34
  • Height(mm) 21
  • Weight(g) 18
  • Shipment Weight 0.02 kg
  • Shipment Dimensions 10 × 7 × 3 cm
