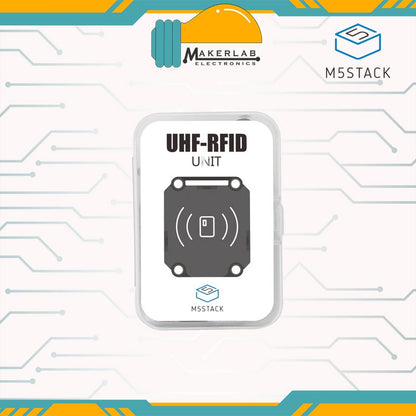

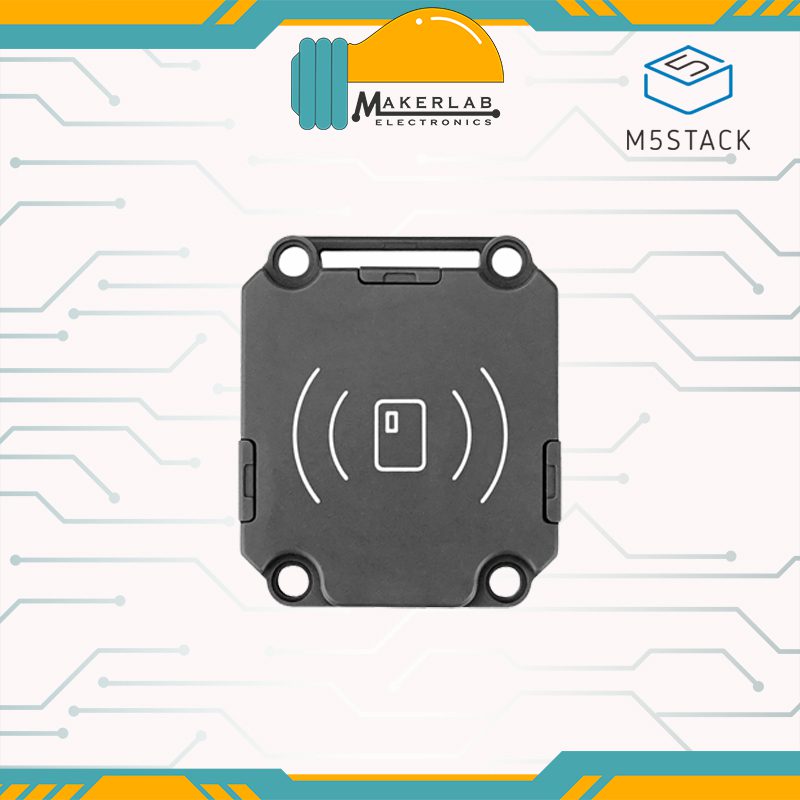

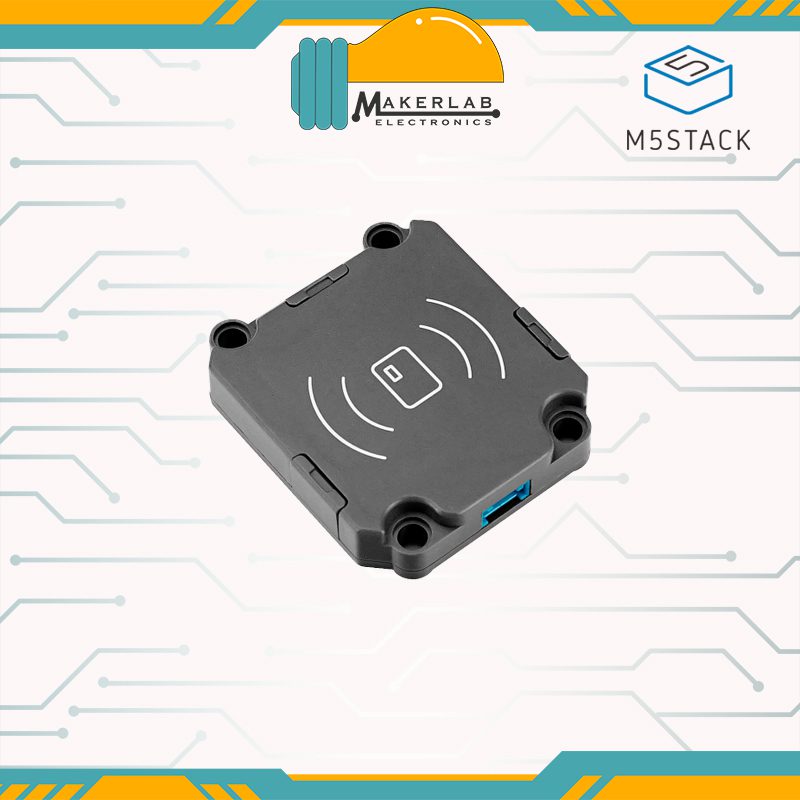

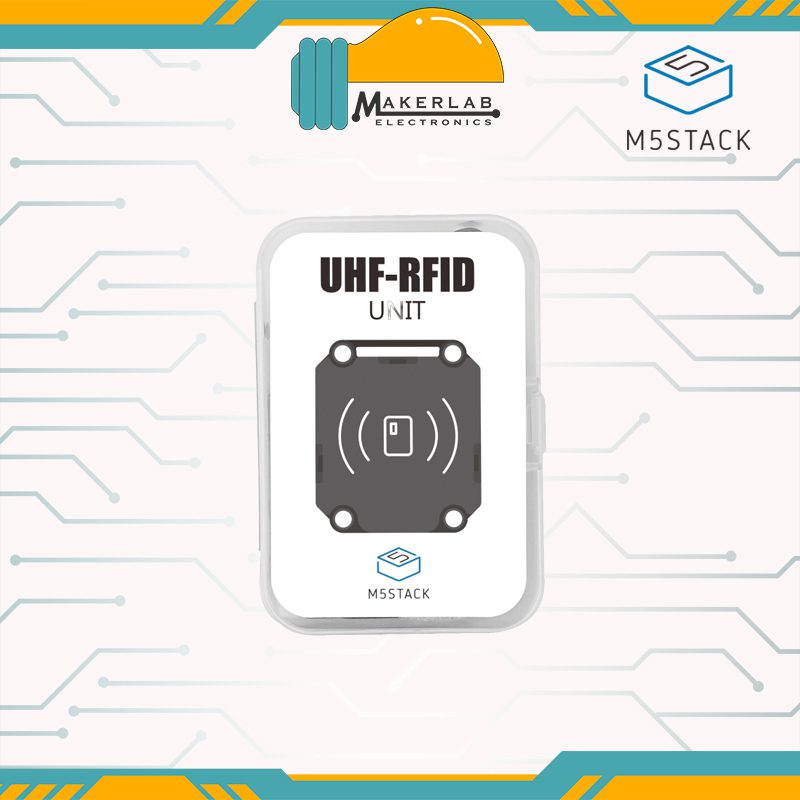

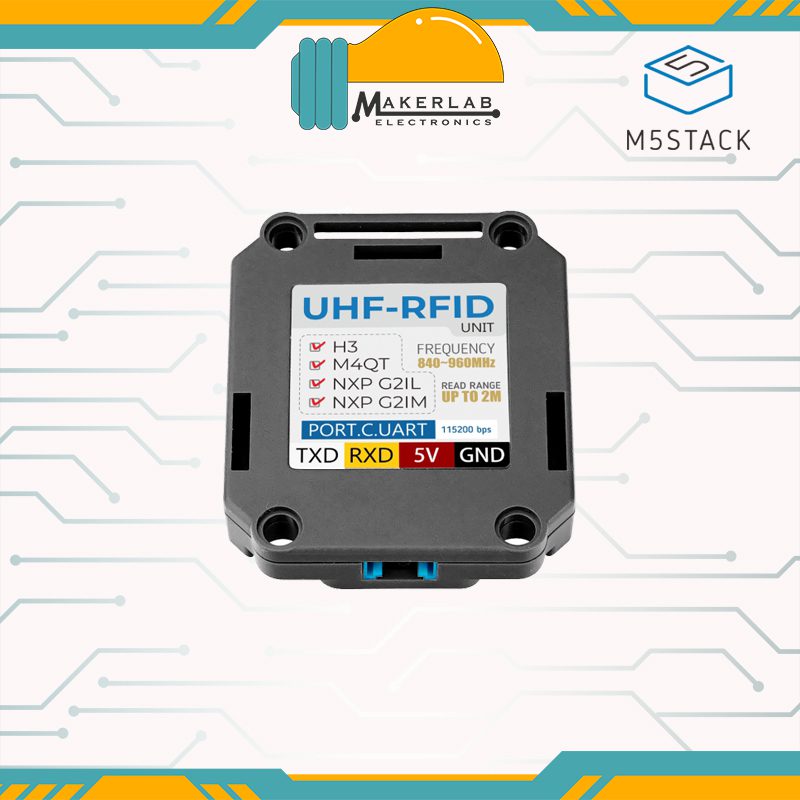

M5Stack UHF RFID Unit (JRD-4035)

M5Stack UHF RFID Unit (JRD-4035)

In stock


Regular price ₱5,350.00
Regular price Sale price ₱5,350.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
View full details

UHF-RFID is an ultra-high frequency (UHF) embedded wireless radio frequency reader module. The JRD-4035 module solution with built-in ceramic antenna completely eliminates the technical uncertainty that ordinary UHF modules need to be equipped with additional antennas for users. Optimize the RF design to realize the low power consumption and high performance of the module, and the transmission power of 100mW can reach the effective distance of more than 1.5M. Use serial communication interface, cooperate with built-in encapsulated AT command set, realize plug and play, provide good development and use experience. It is suitable for application scenarios such as warehousing logistics management and smart retail, and meets the application requirements of monitoring and reading multiple product tags.

Product Features

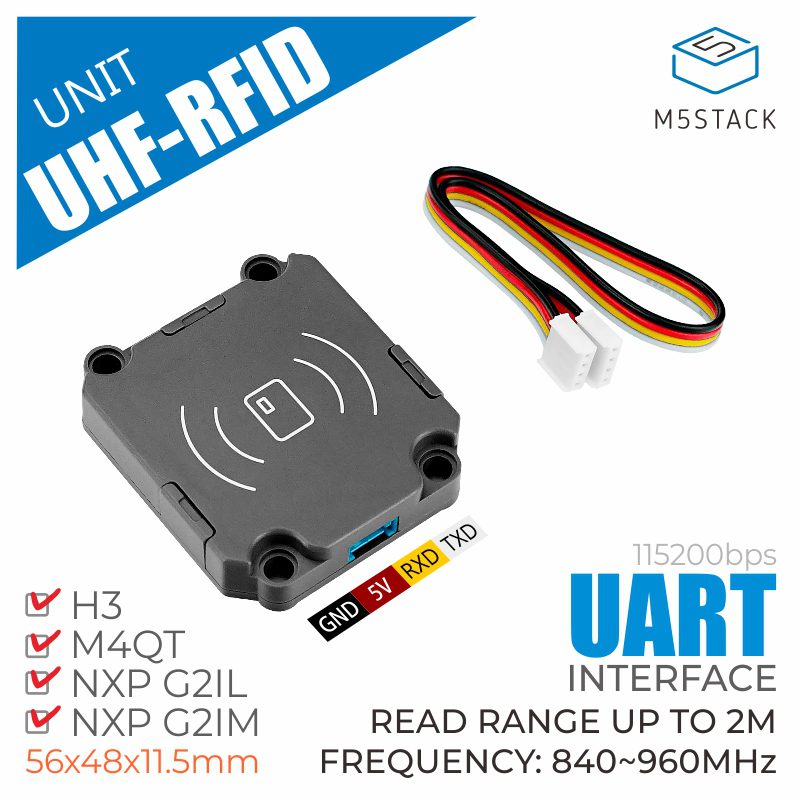

  • Stable recognition distance 1.5m-2m
  • Working spectrum range: 840-960MHz
  • Air interface protocol:
    • EPCglobal UHF Class 1 Gen 2
    • ISO 18000-6C
  • UART communication interface (baud rate: 115200bps)
  • The buffer area can hold up to 200 tags
  • Tag recognition is sensitive and stable

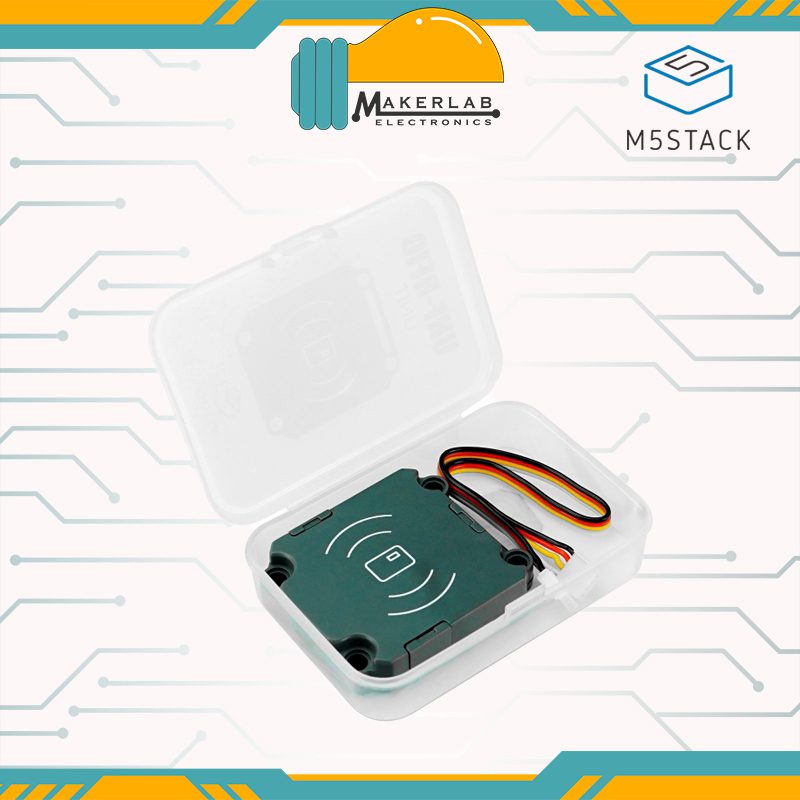

  • 1x UHF-RFID
  • 1x HY2.0 cable (5CM)


  • Warehouse logistics pallet management
  • Vehicle management
  • Smart retail


Specifications Parameters
Air interface protocol EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
Work area support US, Canada and other regions following U.S. FCC. Europe and other regions following ETSI EN 302 208, Mainland China, Japan, Korea, Malaysia, Taiwan
Working spectrum range 840-960MHz
Tag cache area 200 tags
Communication protocol UART (Baud rate: 115200bps)
Net weight 41g
Gross weight 58.8g
Product size 56*48*11.5mm
Package size 88*61*21mm
Shell material Plastic (PC )
