SKU:MLE03475

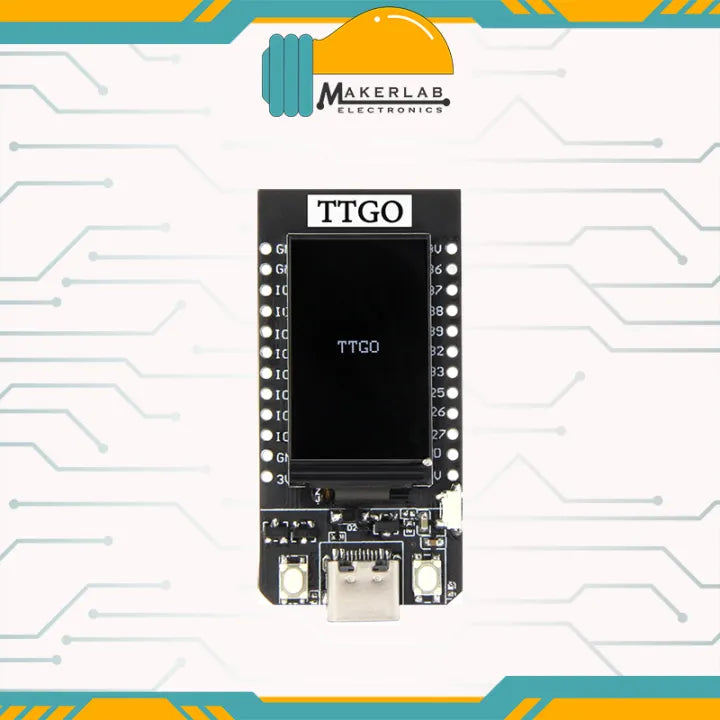

Unsoldered TTGO T-Display ESP32 WiFi Bluetooth Module 1.14 Inch LCD Control Board 4MB CP2104 Chip

₱1,100.00
₱1,100.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
Only 1 units left

About the Product

This is TTGO board is based on the ESP32-D0WDQ6 Wifi Module comes with a built-in 1.14inch display and also it has an onboard battery connector and battery management system. The board has an onboard USB Type – C connector which can be used to provide power and to upload code to the ESP32.
Features:
Easy to Use
LOW Energy Consumption
Wide Application
Long Life
Package Includes:
1 x TTGO ESP32 WiFi and Bluetooth Development Board with 1.14? LCD Display
1 x Battery Connector
2 x 12 Pin Male Header
Specification:
Chipset ESPRESSIF-ESP32 240MHz Xtensa dual-core 32-bit LX6 microprocessor
Memory 4MB Flash
520 kB SRAM
USB to TTL Converter CP2104
Interface UART, SPI, SDIO, I2C, LED PWM, TV PWM, I2S, IRGPIO,ADC, capacitor touch sensor, DACLNA pre-amplifier
Display IPS ST7789V 1.14 Inch 135*240 resolution
Operating Voltage (VDC) 2.7 ~ 4.2
Max. Operating Current (mA) 60
Working Temperature Range (°C) -40 to 85
Length (mm) 51.52
Width (mm) 25.04
Height (mm) 8.5
Weight (gm) 7.81
Shipment Weight 0.012 kg
Shipment Dimensions 8 × 8 × 2 cm
