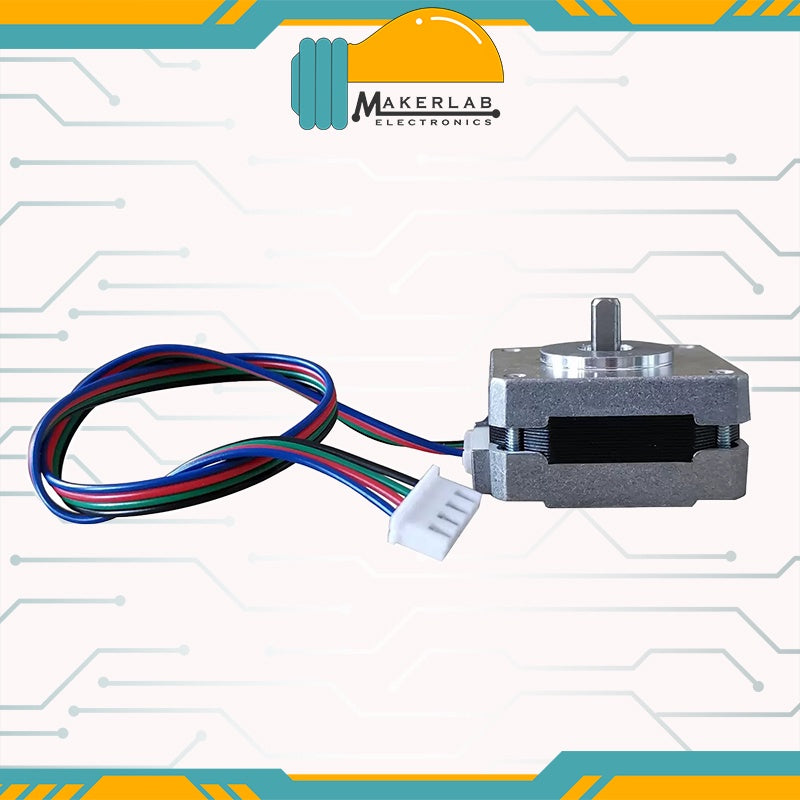

Wantai Stepper Motor 39BYG003

39BYG Stepper Motor is a high-torque, large-rotor motor that can move smoothly. It is very suitable for various small automation equipment and instruments, such as: pneumatic marking machine, labeling machine, cutting machine, laser marking machine, plotter, small engraving machine, CNC machine tool, clamping tool, etc.

Size of the shaft: 15mm

Electrical Specifications:

• Model: 39BYG003

• Step Angle (°): 1.8

• Motor Length L(mm): 20

• Rate Voltage(V): 12

• Rate Current(A): 0.48

• Phase Resistance(Ω): 25

• Phase Inductance(mH): 22

• Holding Torque (g.cm): 1000

• Lead Wire (NO.): 4

• Rotor Inertia(g.cm²): 11

• Detent Torque(g.cm): 50

• Motor Weight (Kg): 0.12
