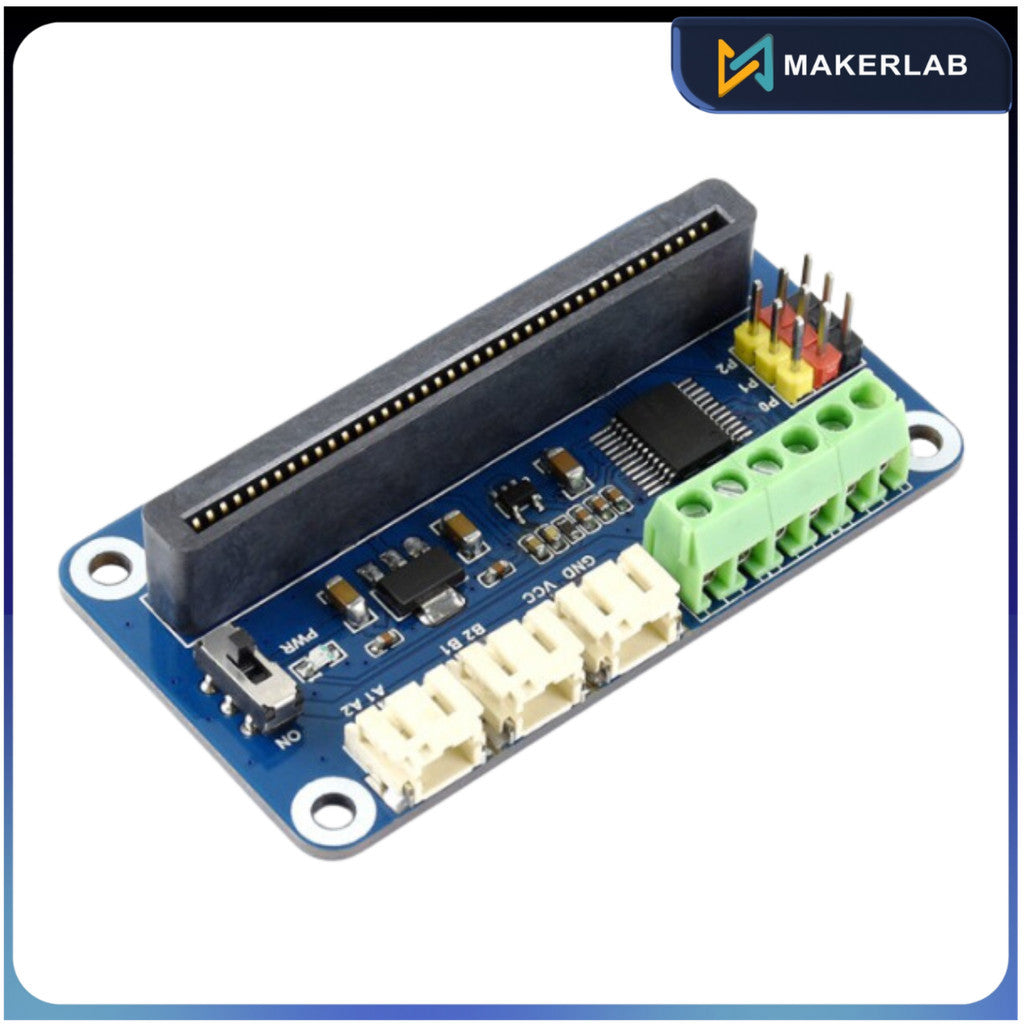

Waveshare Driver Breakout for micro:bit, drives motors & servos Two-Way Motors/Three-Way Servos

Waveshare Driver Breakout for micro:bit, drives motors & servos Two-Way Motors/Three-Way Servos

In stock

SKU:MLE04595

Regular price ₱800.00
Regular price ₱1,000.00 Sale price ₱800.00
Sale Sold out
Model:
View full details

This driver board gives your micro:bit the ability to drive two

channel DC motors and three channel servos. It's an ideal

choice for you to DIY mobile robots.

USE CASE

Drives motors and servors.

Overview

This driver board gives your micro:bit the ability to drive two channel DC motors and three channel servos. It's an ideal choice for you to DIY mobile robots.

Features

  • micro:bit edge connector, directly pluggable
  • 2x DC motor interfaces, 3x servo interfaces
  • Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
  • Onboard multi connector options for DC motors in different specifications, onboard standard servo headers
  • Comes with development resources and manual (micro:bit graphical examples)

Specifications

  • Power supply: 6V~12V (VIN terminal)
  • Servo voltage: 5V
  • Logic voltage: 3.3V
  • Driver: TB6612FNG
  • Dimension: 65mm x 36mm
  • Mounting hole size: 3.0mm
