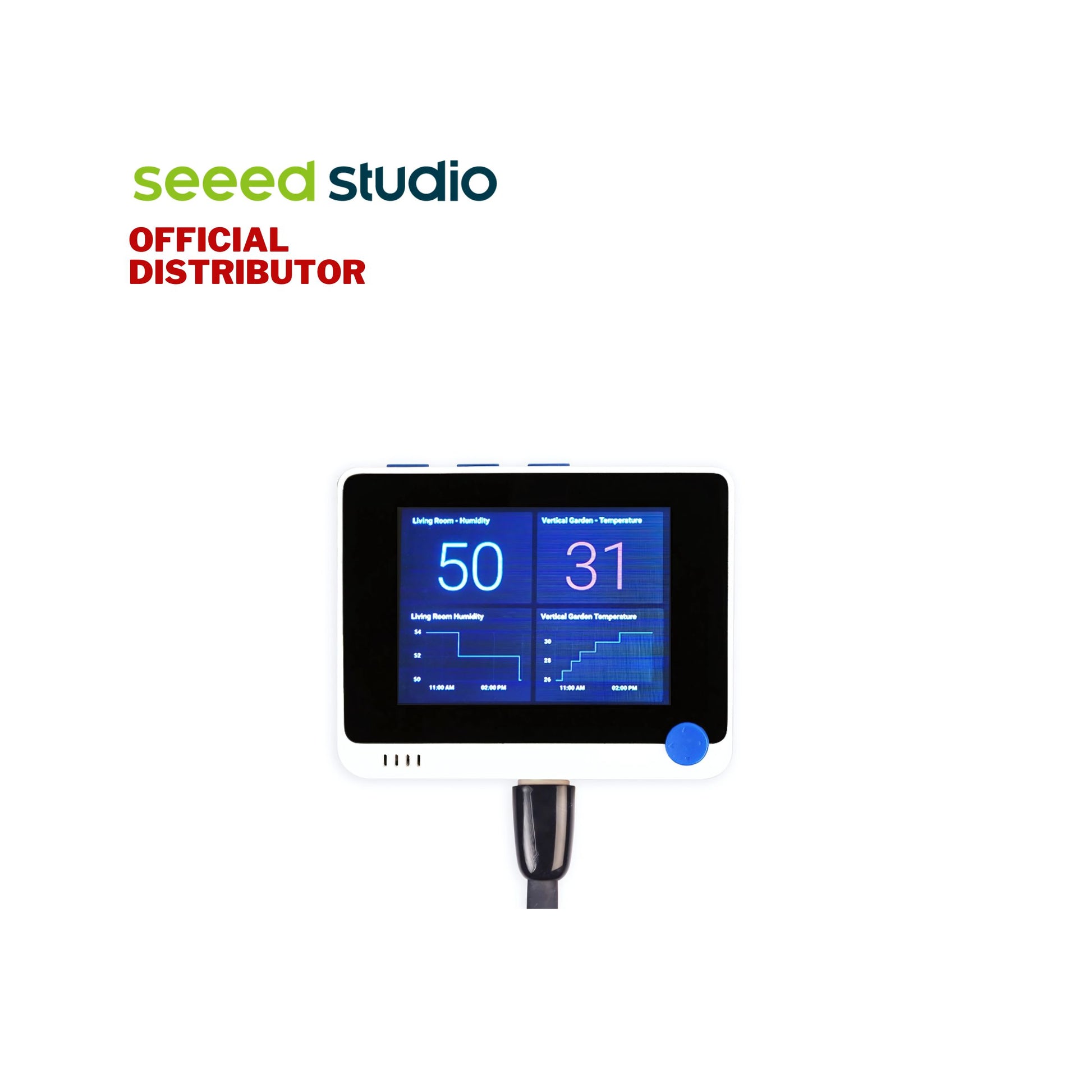

Description:
The Wio Terminal is an ATSAMD51-based microcontroller with both Bluetooth and Wi-Fi Wireless connectivity powered by Realtek RTL8720DN, compatible with Arduino and MicroPython. Currently, wireless connectivity is only supported by Arduino. More than just a single embedded functional module, Wio Terminal itself is integrated with a 2.4” LCD Screen, onboard IMU(LIS3DHTR), microphone, buzzer, microSD card slot, light sensor, and infrared emitter(IR 940nm).On top of that, it also has two multifunctional Grove ports for the Grove Ecosystem and 40 Raspberry Pi-compatible GPIO pins for more add-ons. All of these practical add-ons are carefully housed in a compact enclosure, making it an efficient and product-ready product. Equipped with a Raspberry Pi 40-pin GPIO, it can be mounted to a Raspberry Pi as a slave device.
With Wio Terminal, you can:
- Sense and tag the Real-World data with over 300 Groves created by Seeed and visualize through the Azure IoT Central Platform to create an end-to-end IoT project
- Use 100% open-source Hardware in a Pythonic way
- Build your program interpreter starting from 90% with an LCD screen and compact enclosure
- Create an embedded GUI with easy-to-use graphical elements and beautiful, visualized editing tools.
Features:
Powerful MCU: Microchip ATSAMD51P19 with ARM Cortex-M4F core running at 120MHz
Reliable Wireless Connectivity: Equipped with Realtek RTL8720DN, dual-band 2.4GHz / 5GHz Wi-Fi
Complete system equipped with Screen + Development Board + Input/Output Interface + Enclosure
Highly Integrated Design: 2.4” LCD Screen, MCU, IMU, WIFI, BT, and more practical add-ons housed in a compact enclosure with built-in magnets & mounting holes allow you to set up your IoT project easily
Raspberry Pi 40-pin Compatible GPIO enables installation as a peripheral to the Raspberry Pi
External onboard multi-functional Grove ports: Compatible with over 300 Plug&Play Grove modules to explore with IoT
USB OTG Support： can act as a USB host (reads data or signals from a mouse, keyboard, MIDI device, 3D printer, etc.) or USB client (emulates a mouse, keyboard, or MIDI device to a host PC).
Support Arduino, CircuitPython, Micropython, ArduPy, AT Firmware, Visual Studio Code
Azure Certified Device: Sense and tag real-world data and visualize it through Azure IoT Central
TELEC certificated
Specifications:
Main Chip
-
Manufacturer Part Number: ATSAMD51P19
-
Core Processor: ARM® Cortex®-M4F running at 120MHz
-
Memory: 4 MB External Flash, 192 KB RAM
-
Maximum Speed: 200MHz
-
External Flash: 4MBytes
-
Operating Temperature: -40°C ~ 85°C (TA)
LCD Screen
-
Resolution: 320x240
-
Display Size: 2.4inch
-
Drive IC: ILI9341
Wireless Connectivity
-
Manufacturer Part Number: RTL8720DN
-
KM4 CPU: ARM® Cortex®-M4F @ 200MHz
-
KM0 CPU: ARM® Cortex®-M0
-
Wi-Fi: 802.11 a/b/g/n 1x1, Dual Band 2.4GHz & 5GHz
-
Bluetooth: Support BLE5.0
Built-in Modules
-
Accelerometer: LIS3DHTR
-
Microphone: 1.0V-10V -42dB
-
Speaker: ≥78dB @10cm 4000Hz
-
Light Sensor: 400-1050nm
-
Infrared Emitter: 940nm
Interface
-
MicroSD Card Slot: Maximum 16GB
-
GPIO: 40-PIN (Raspberry Pi Compatible)
-
Supported Protocol: SPI, I2C, I2S, ADC, DAC, PWM, UART(Serial)
-
Grove: 2 (Multifunction), for Digital, Analog, I2C, and PWM
-
FPC: 20-Pins
-
USB Type-C: Power & USB-OTG
Operation Interface:
- 5-Way Switch
- Power/Reset Switch
- User-defined button *3
Enclosure
-
Mouting: Built-in magnets and two mounting holes
-
Dimension: 72mm*57mm*12mm
-
Materials: ABS+PC
Software Support:
- Arduino
- MicroPython
- ArduPy
- AT Firmware
- Visual Studio Code
- CircuitPython

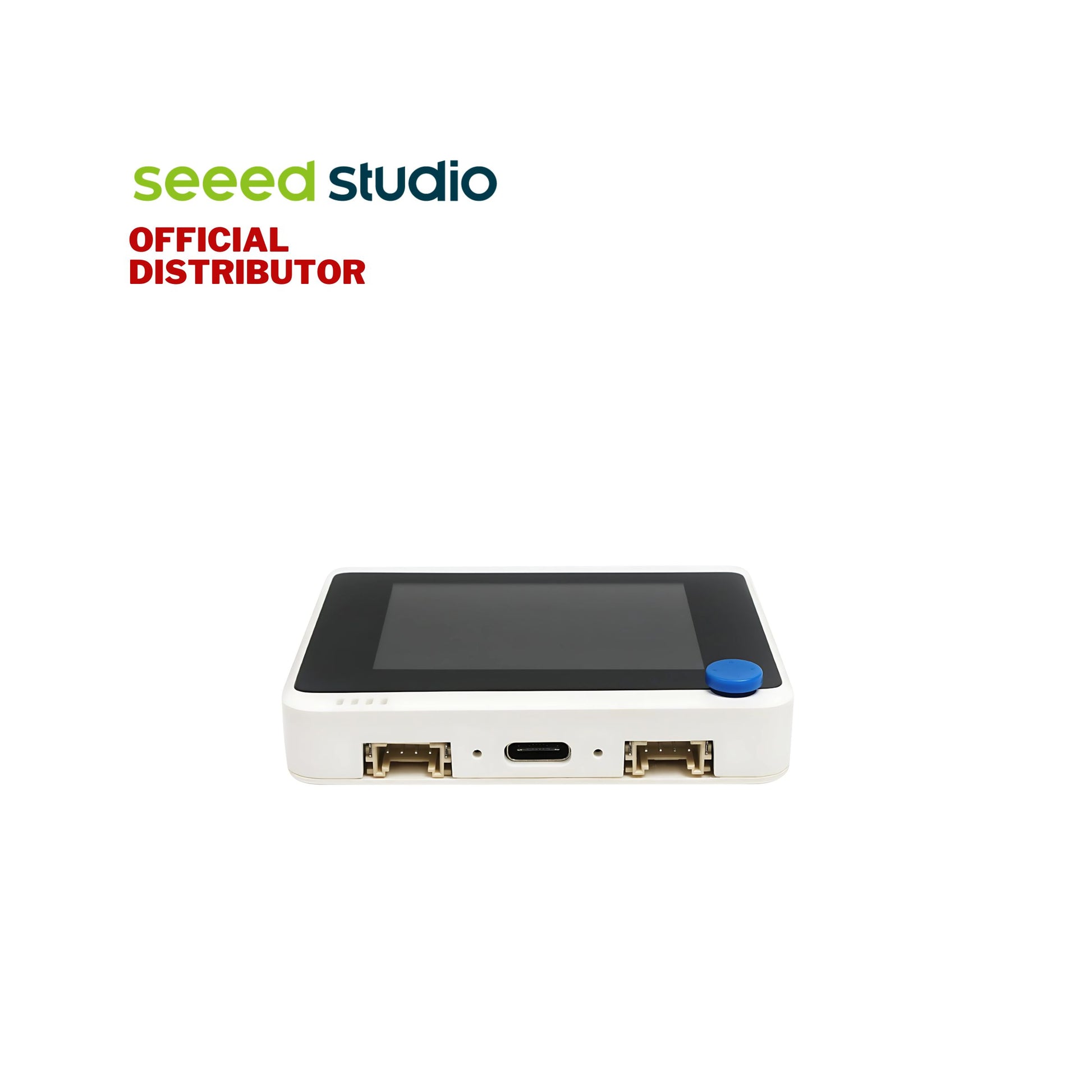

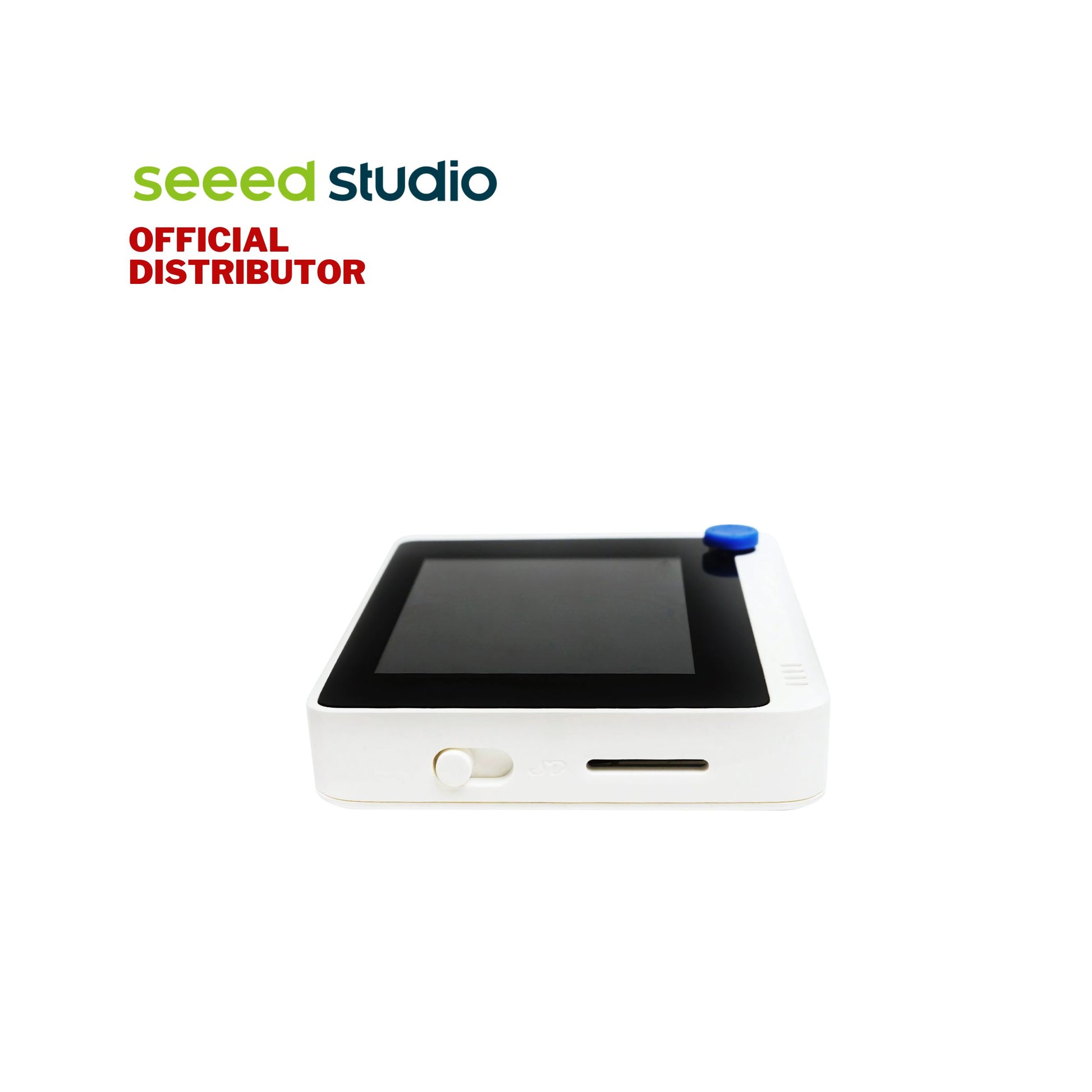

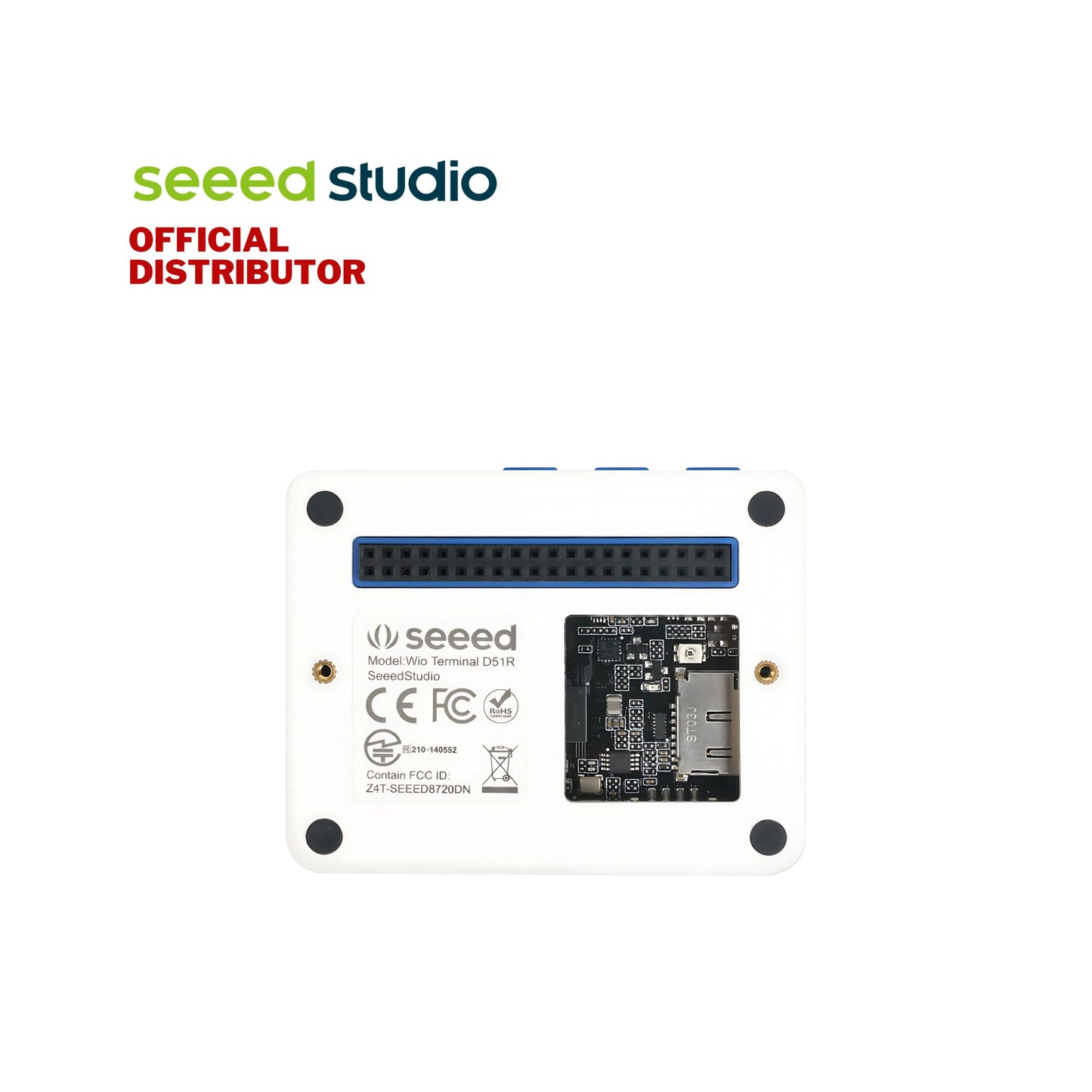

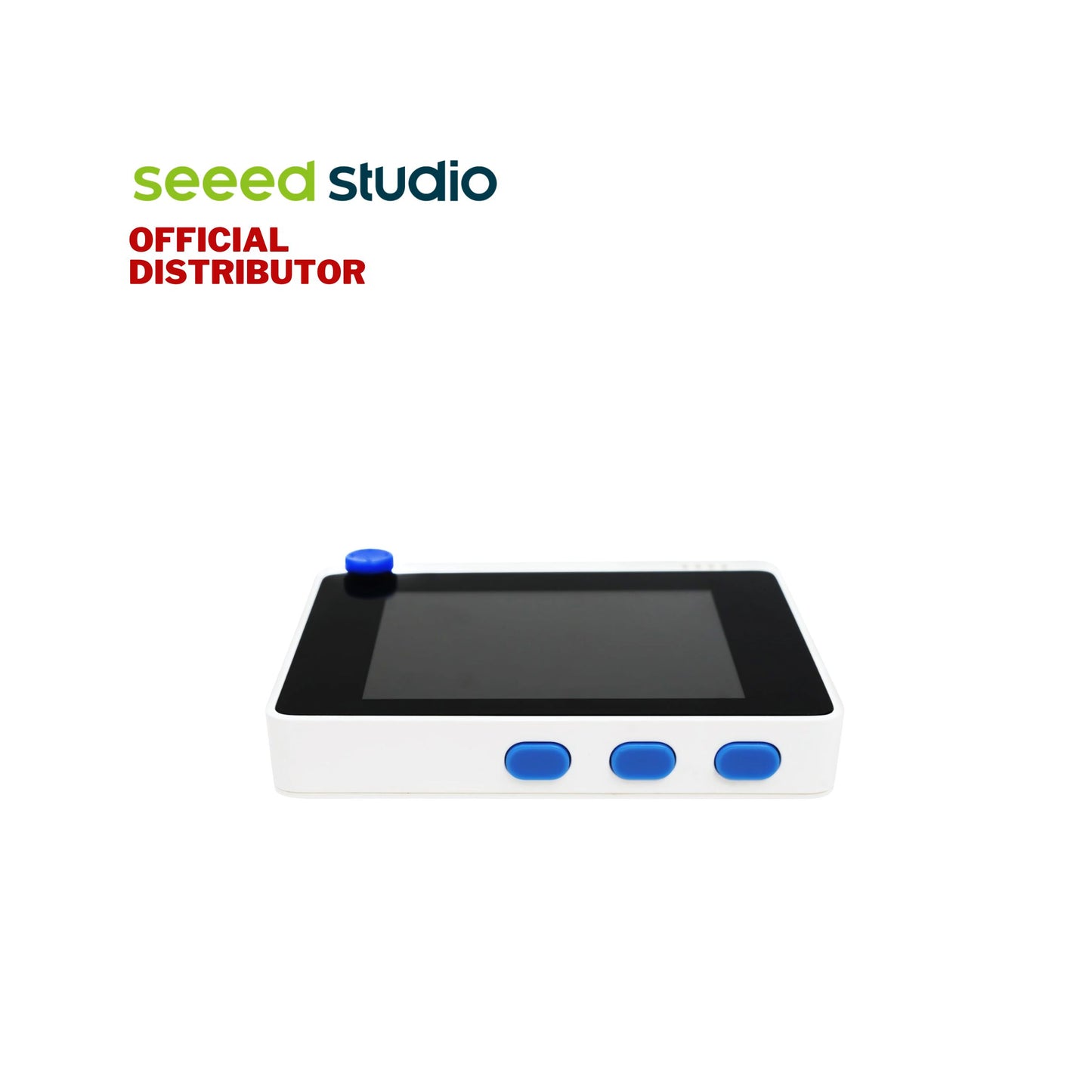

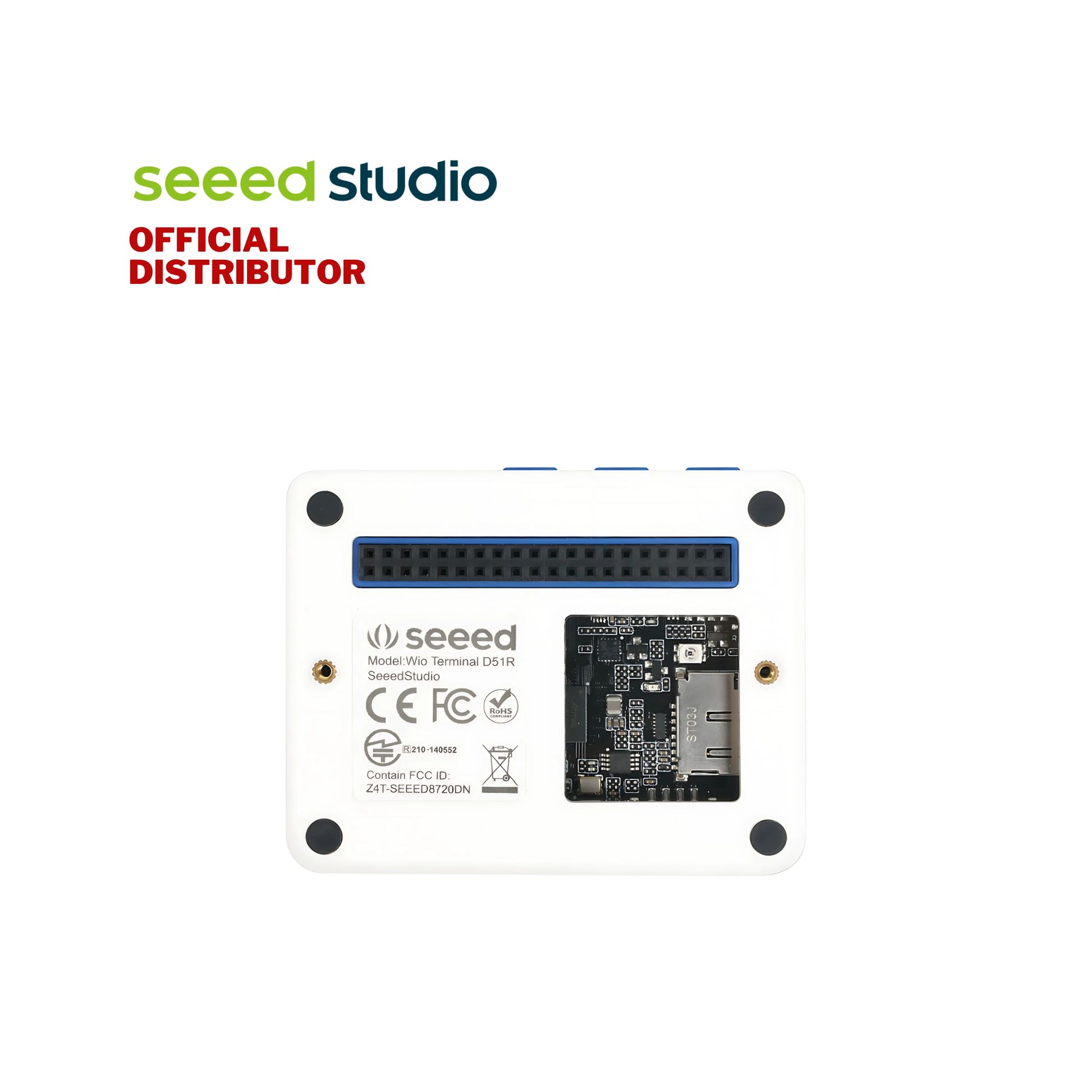

Hardware Overview:
Pinout Diagram:
Application:
- Python Terminal Device
- Data Collection Machine Learning powered device
- Hand-held analyzer
- Retro Gaming Device
- IoT Controller
- Smart Robot for Education
- IoT application quick prototyping
- Slave device / Accessories for Raspberry Pi
Documents:
Part List:

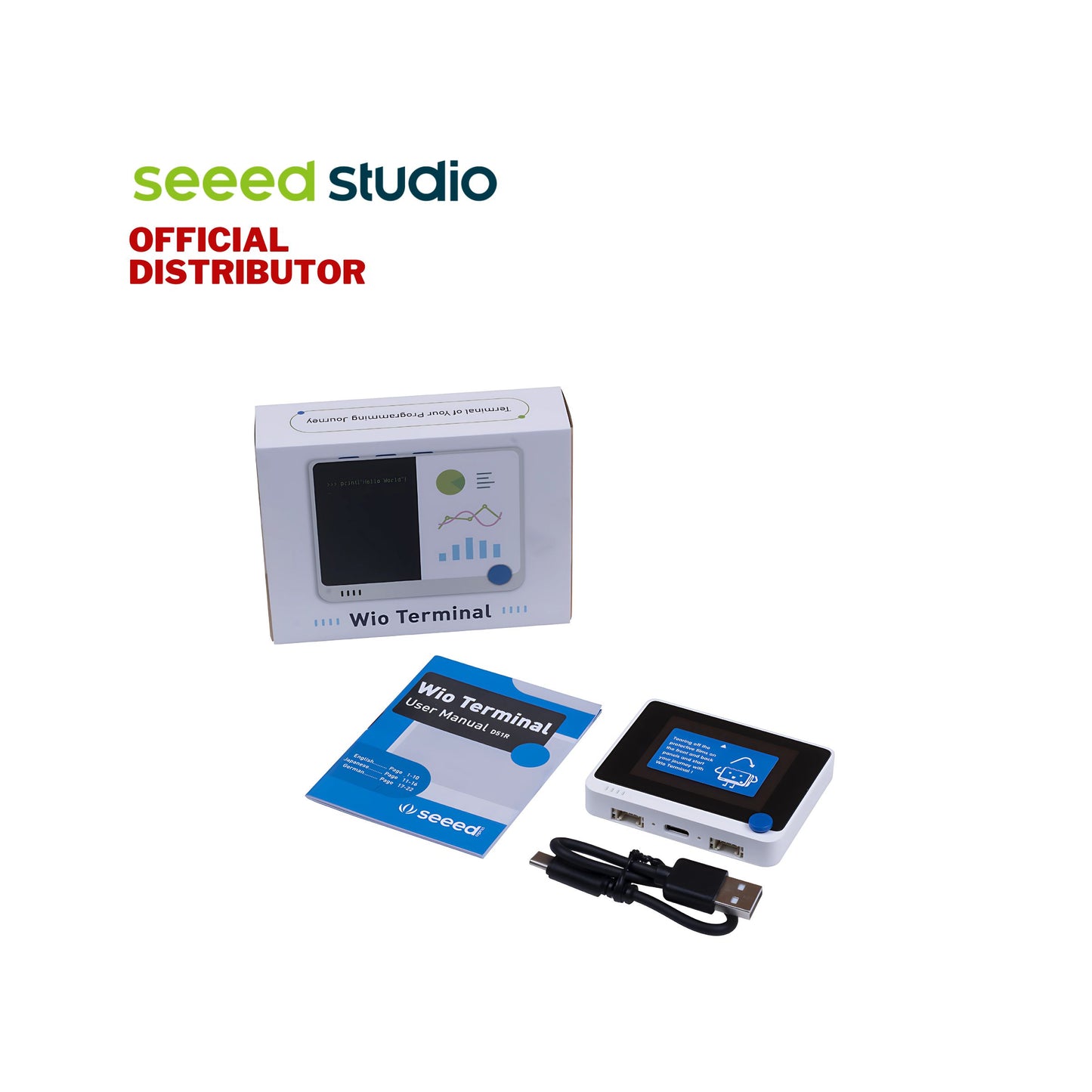

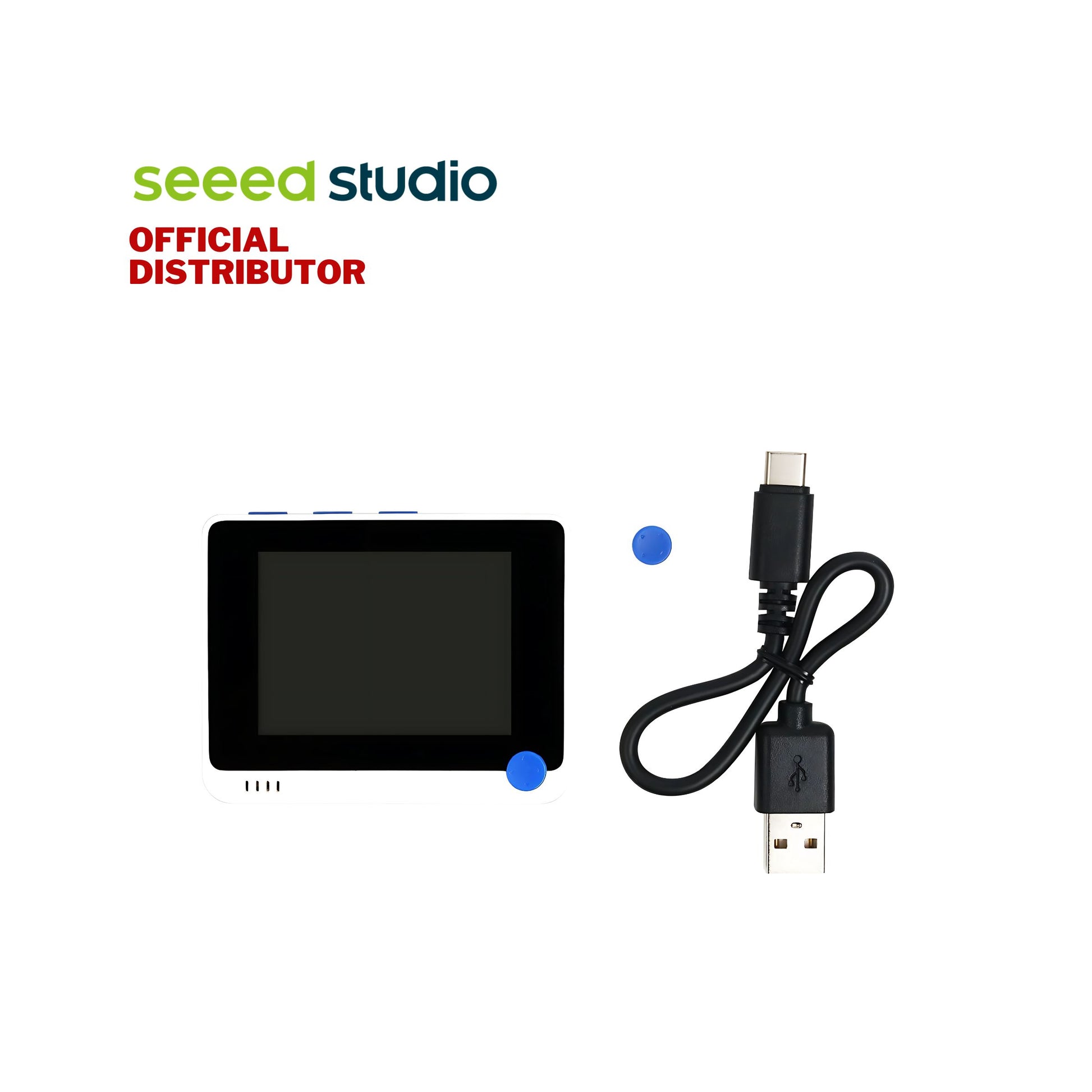

1x Wio Terminal
1x USB Type-C Short Cable
1x User Manual
