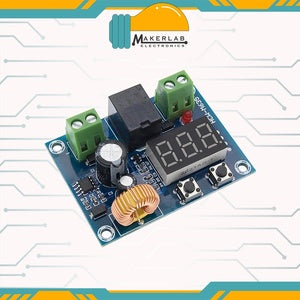

XH-M609 Lithium Battery Over-Discharge Protection Module

XH-M609 Lithium Battery Over-Discharge Protection Module

In stock

SKU:MLE03916

Regular price ₱125.00
Regular price Sale price ₱125.00
Sale Sold out
View full details
XH-M609 DC 12V-36V Charger Module Voltage Over-Discharge Lithium Battery Protection Board digital battery over-discharge protection switch is specially designed for 12-36V lithium and lead-acid batteries.
This is a low voltage protection module that comes with an on-board momentary push button to set the low voltage disconnect parameter, when the battery voltage reaches the setting values, the module will disconnect the load automatically to avoid the battery from over-discharging to prolong the battery lifetime.
Features:
Automatic control circuit connection
Automatic charging and power off
Real-time voltage monitor
Autosave setting
Discharge protection.
Prolong battery life.
Specifications:
Product name: Battery over-discharge protection module
Model: XH – M609
Power supply voltage: 12 V- 36 V battery
Output voltage: Equal to power supply voltage
Control precision: 0.1 V
Power consumption: Less than 1.5 W
7Scope of application: Various storage batteries, lithium batteries
Net weight: 28 g
Size: 57 x 42 x 19 mm
Package Includes:
1 x XH-M609 DC 12V-36V Charger Module Voltage Over-Discharge Lithium Battery Protection Board
