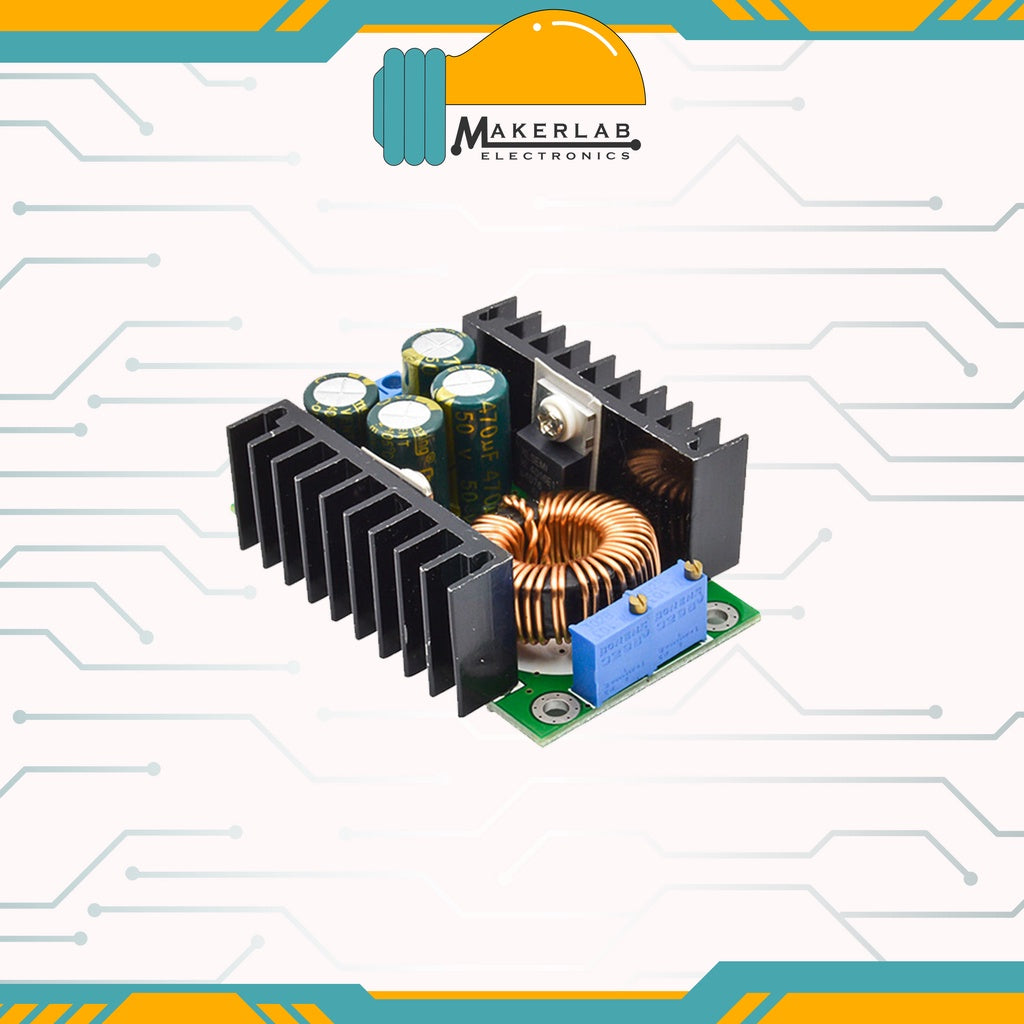

XL4016 CC-CV DC-DC Buck/Step-Down Converter

XL4016 CC-CV DC-DC Buck/Step-Down Converter, adjustable +0.8 to 28vdc output, 8A. Ideal for battery operated projects requiring a higher current regulated power supply. These modules use the XL4016 DC-DC converter IC, and applications include LED drivers, battery chargers, or a regulated power supply.

Technical Specifications:

• Module Properties: non-isolated step-down constant current, constant voltage module (CC CV)
• Input Voltage: DC 7-32V
• Output Voltage: DC 0.8-28V continuously adjustable
• Output Current: 8A maximum with heat sink
• Constant Current Range: 0.2-8A
• Efficiency: Up to 95% ( when output voltage is set high )
• Protection: Short circuit current limiting, thermal shutdown
• Load Regulation: +/- 1%
• Voltage Regulation: +/- 1%
• Temperature: 40 to +85 deg C ( output power less than 10Watts )
• Size: 65 x 36 x 23 mm
• Weight: 65.5 g

Documents:

• XL4016 Datasheet
