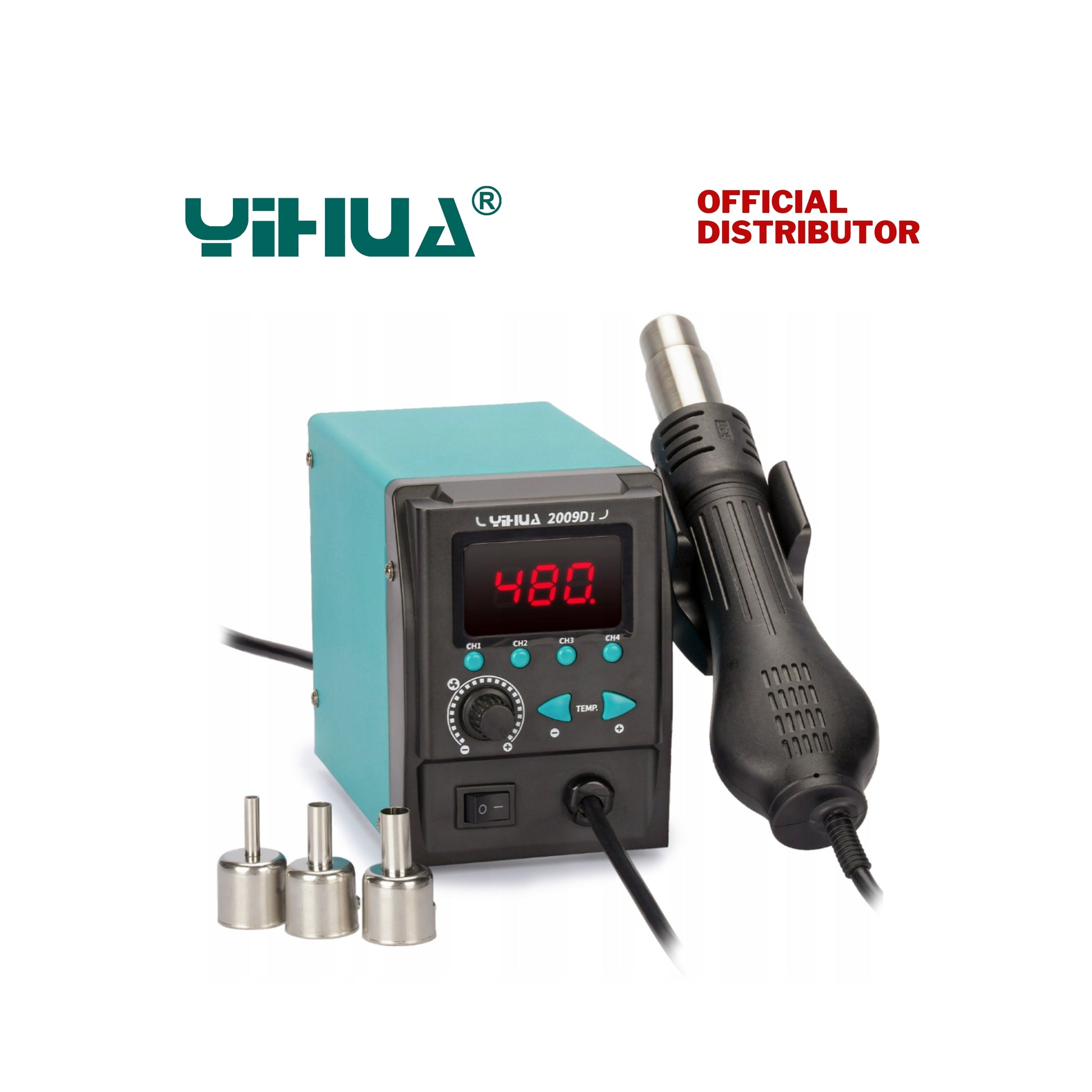

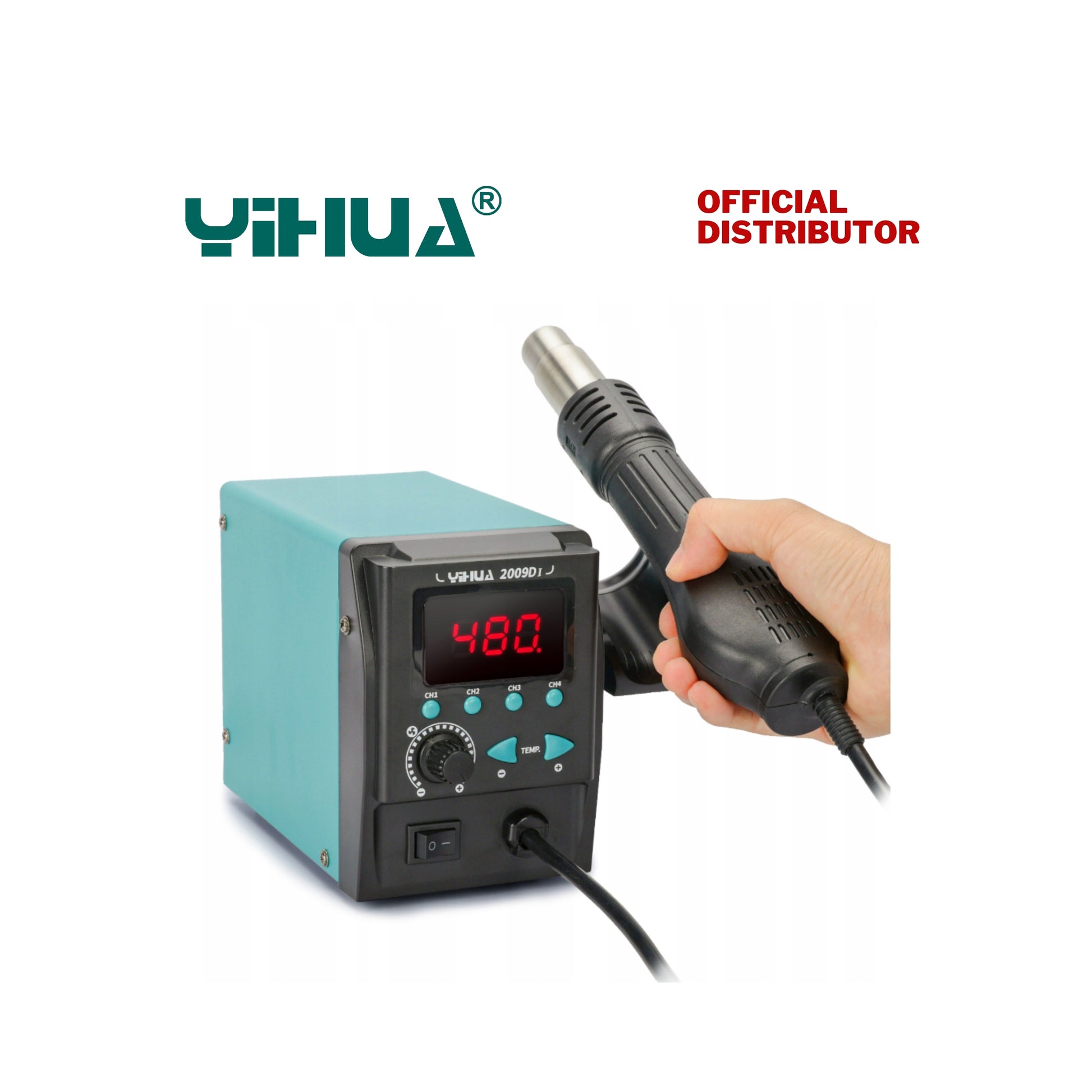

Yihua 2009D-I Soldering Station with Hot Air Gun

The Yihua 2009D-I is a high-performance hot air rework station designed for precision soldering and desoldering tasks, particularly suitable for Surface-Mount Device (SMD) components.

Key Features:
Temperature Range: Adjustable from 90°C to 450°C (194°F to 842°F), accommodating a wide variety of soldering applications.

PID Temperature Control: Employs a Proportional-Integral-Derivative (PID) control system for real-time temperature tracking and correction, ensuring consistent and accurate heating.

Airflow: Equipped with a brushless fan delivering airflow up to 120 liters per minute, providing efficient heat distribution for effective soldering and desoldering.

Automatic Failure Detection: Features an intelligent system that automatically detects and alerts users to any malfunctions, ensuring continuous and efficient operation.

Programmable Profiles: Allows users to set up to three distinct temperature profiles, each with customizable time settings, ideal for standardized assembly line production.

Energy Efficiency: Operates in constant temperature mode to reduce power consumption, contributing to energy savings.

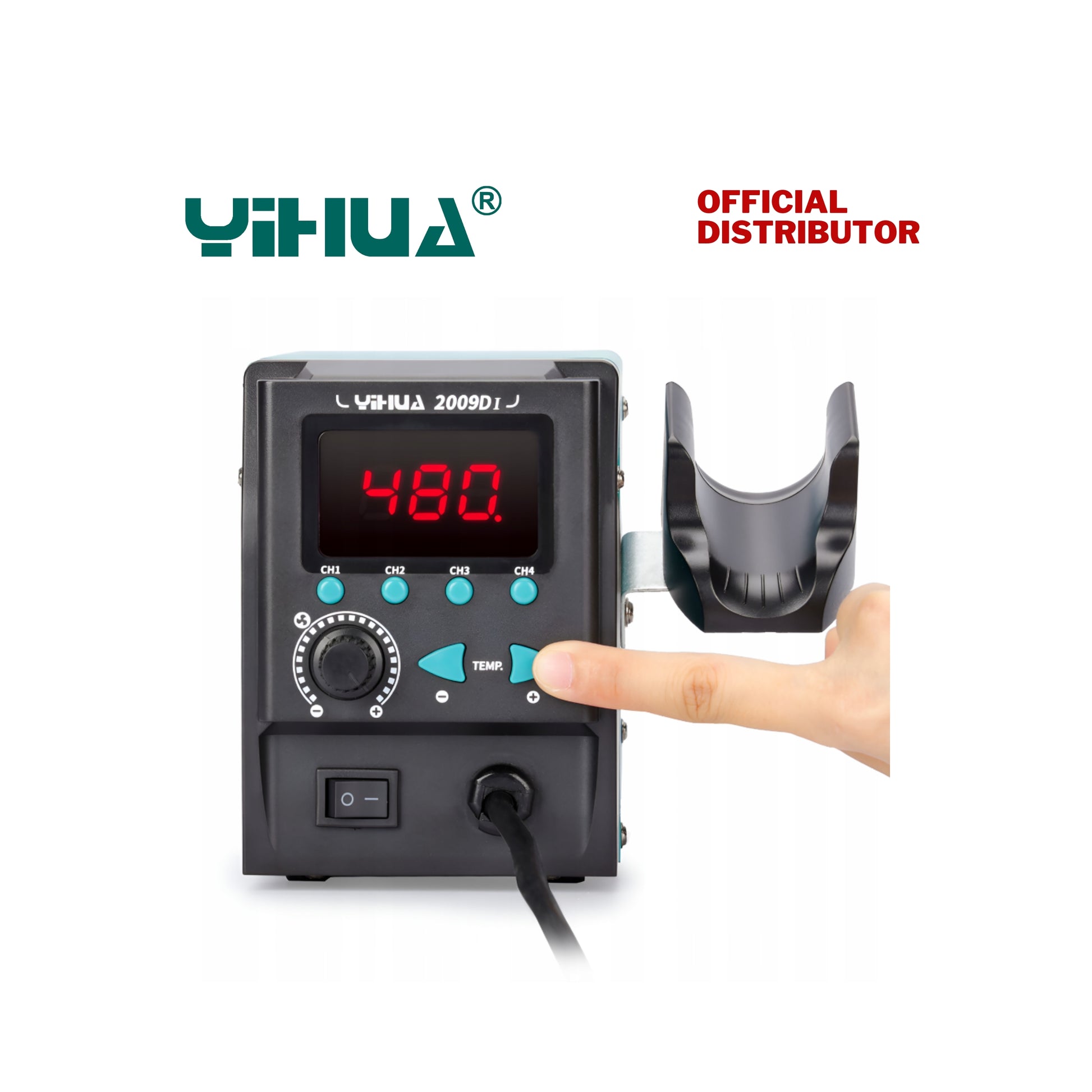

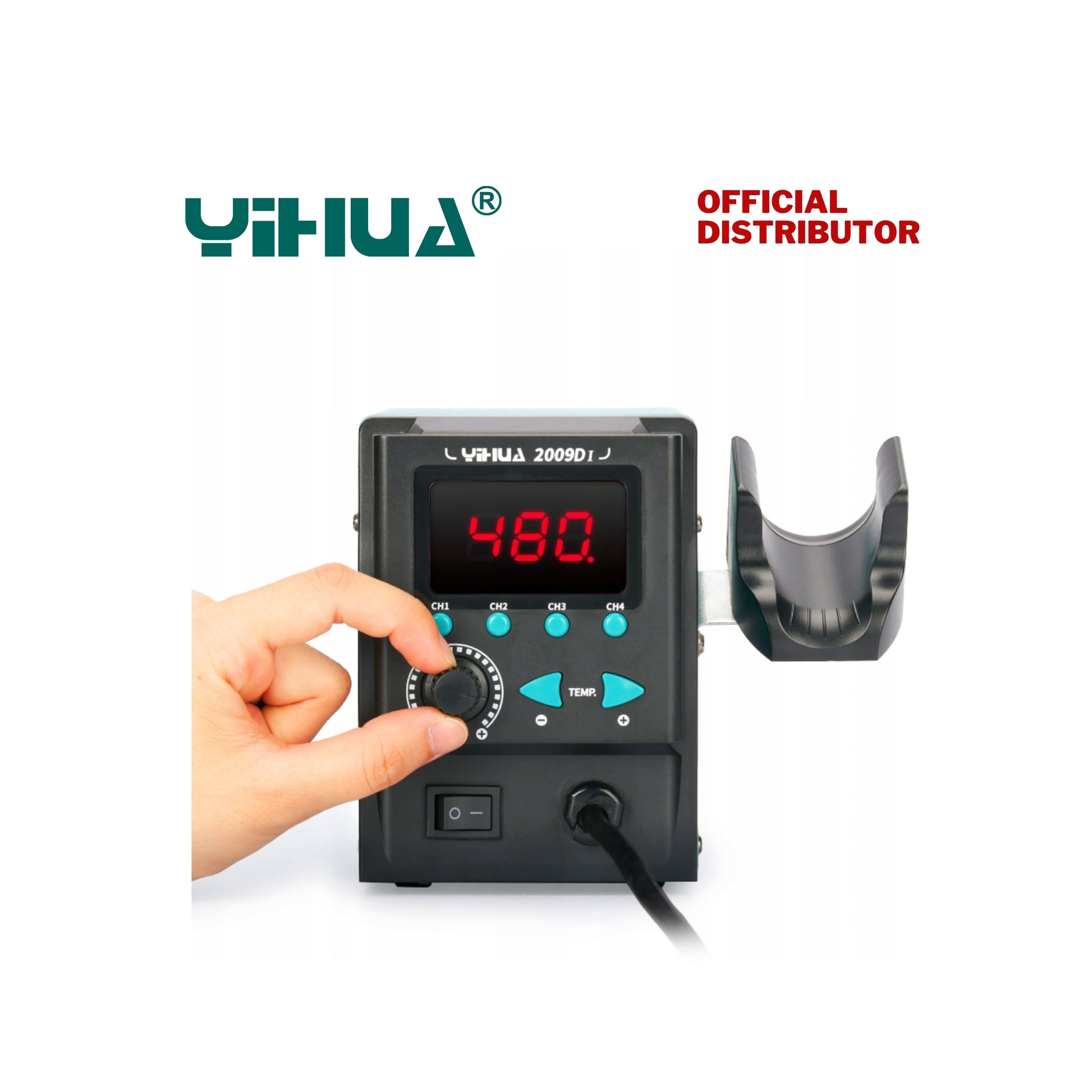

LED Display: Features a clear, easy-to-read LED display for real-time monitoring of temperature and airflow settings.

Specifications:
Model Unit: Yihua 2009D-I
Power: 650W
Input Voltage: 220V
Display: LED
Tip of Ground Resistance (OHM): ＜2
Package Dimensions: 20x20x20cm
Package Weight: 3.5kg
