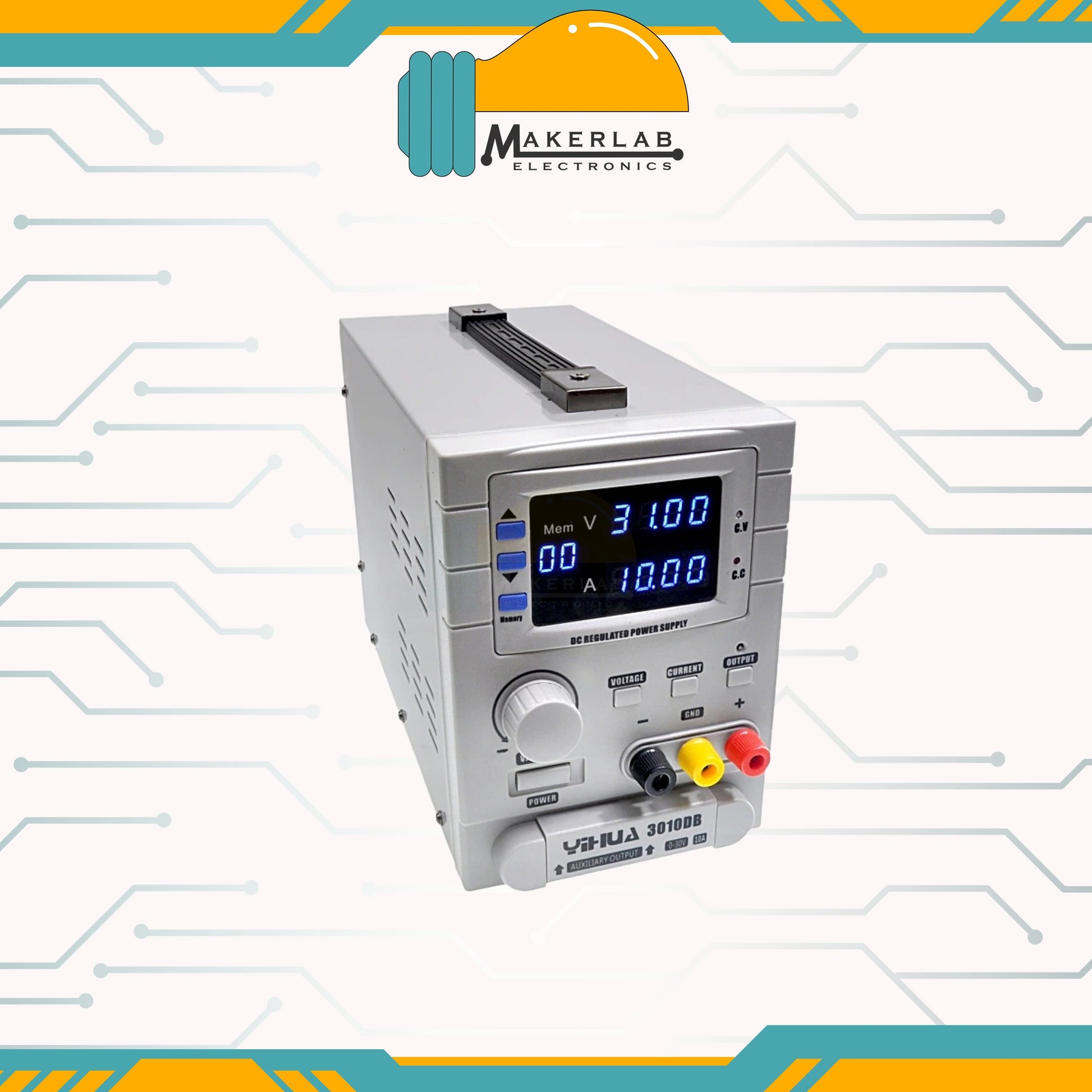

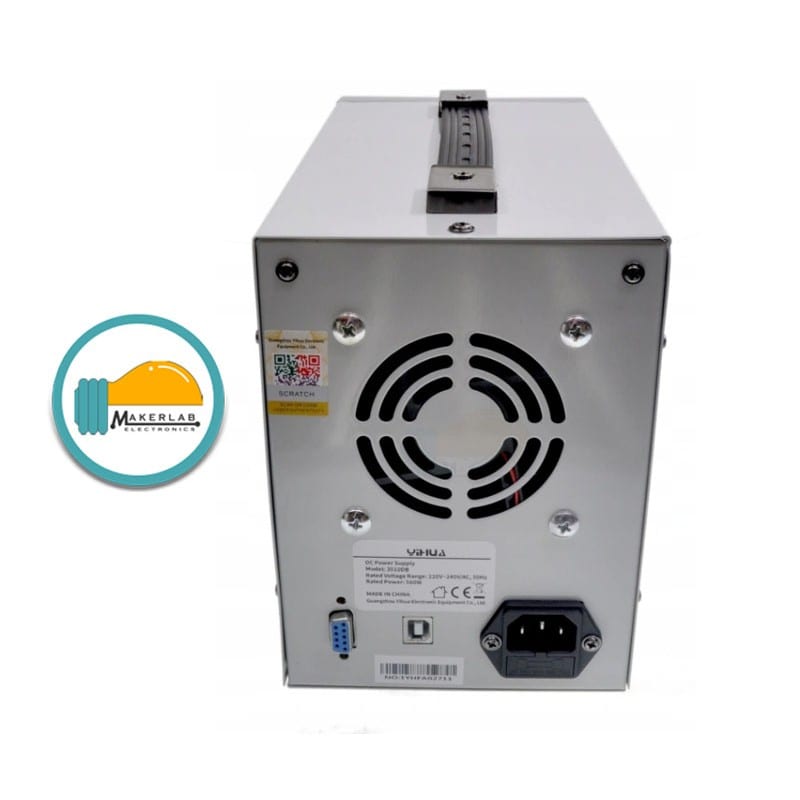

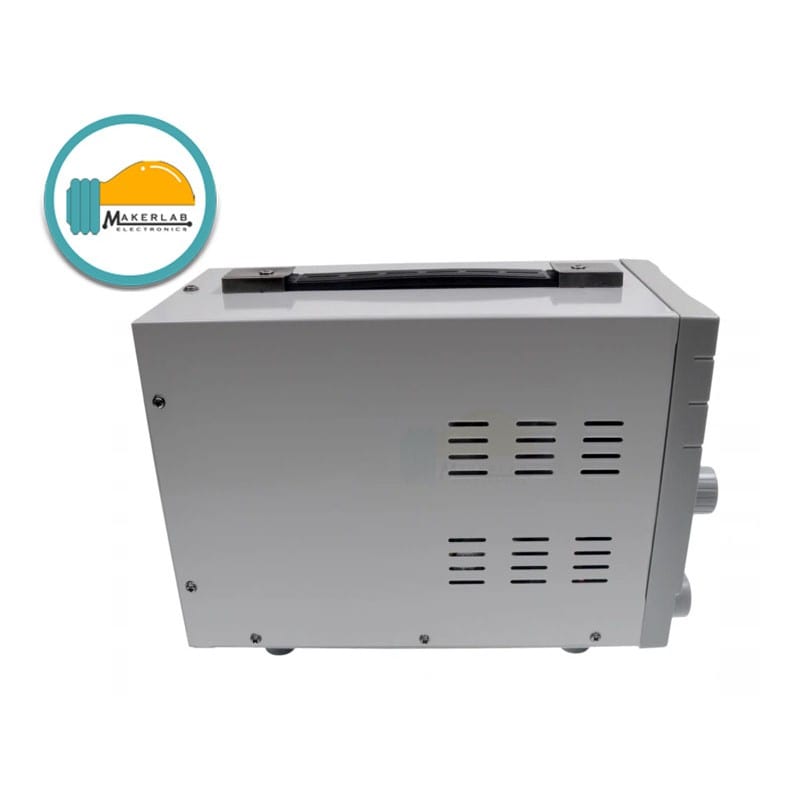

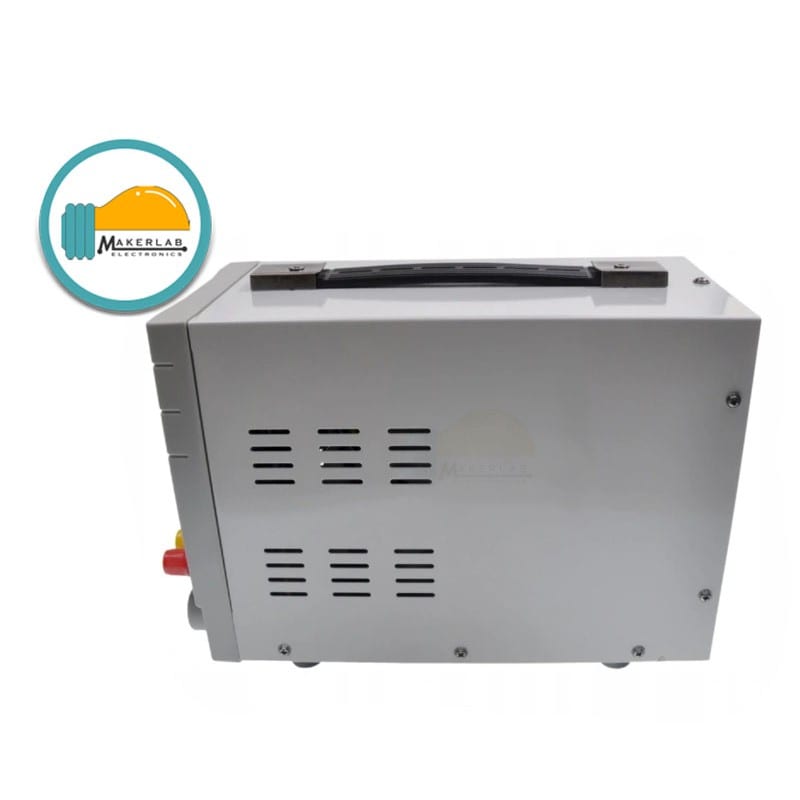

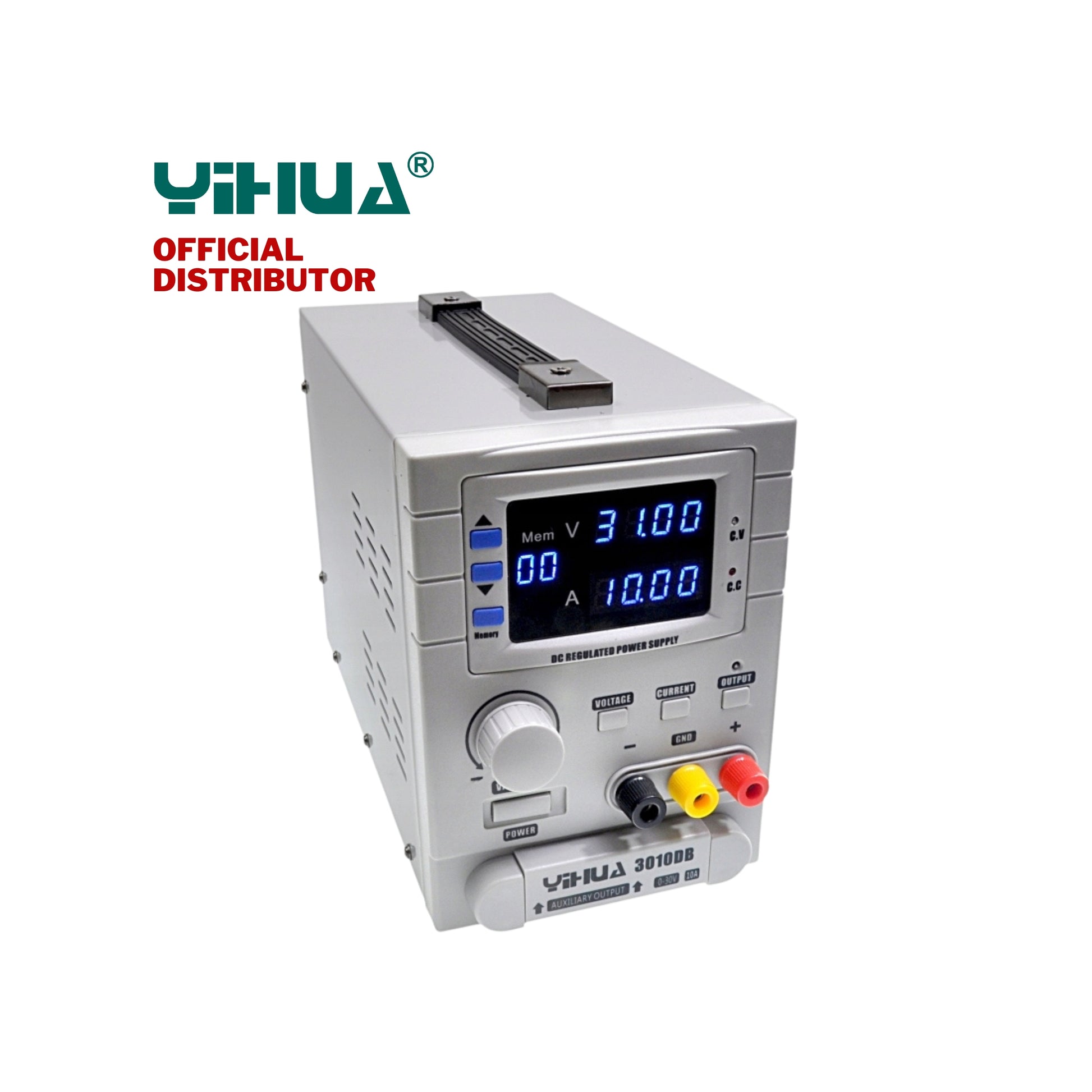

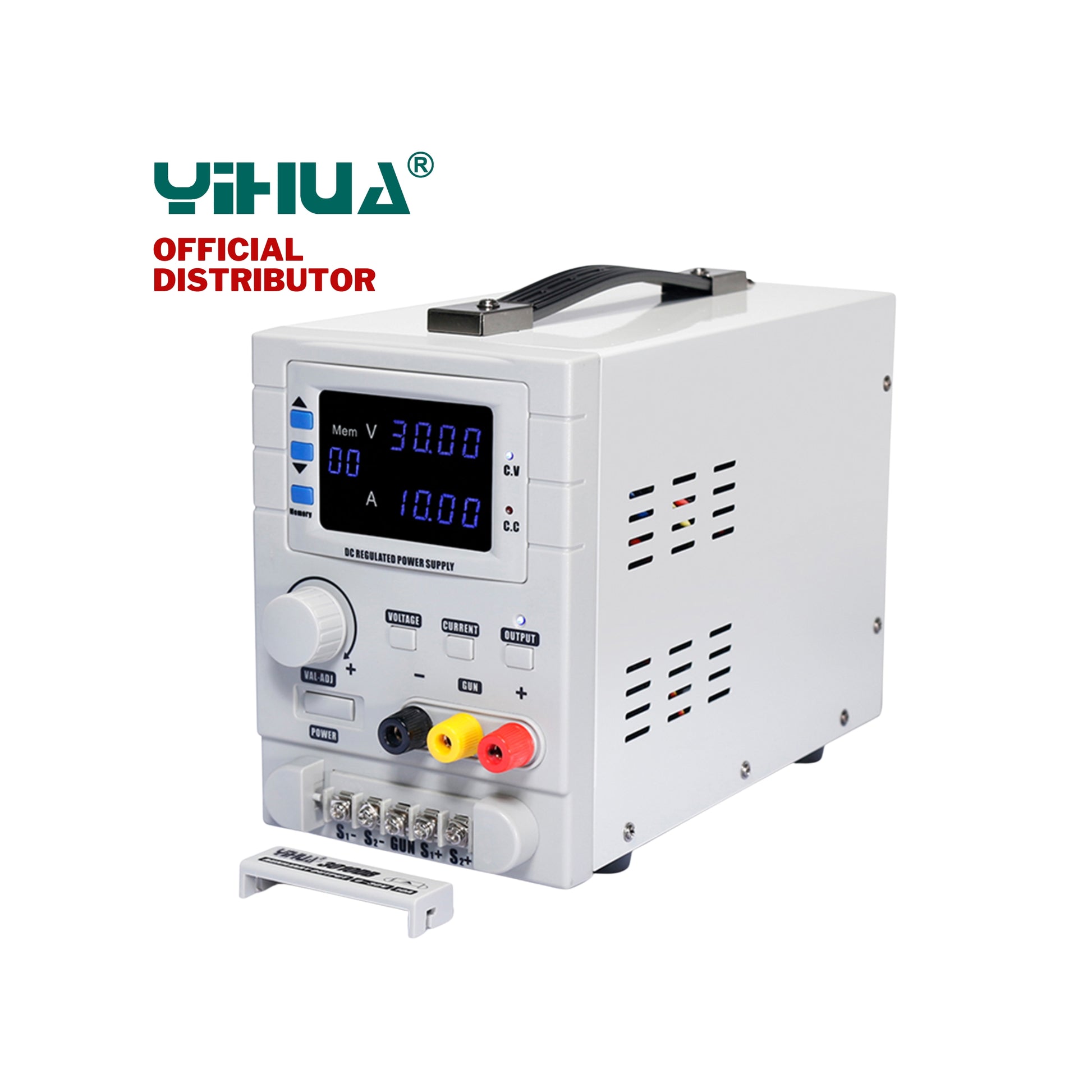

Yihua 3010DB 30V 10A memory Laboratory DC Power Supply

Yihua 3010DB 30V 10A memory Laboratory DC Power Supply

In stock

SKU:MLE02407

Regular price ₱7,900.00
Regular price Sale price ₱7,900.00
Sale Sold out
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
View full details

Yihua 3010DB 30V 10A memory Laboratory DC Power Supply

Product Description
  • Application
  • Research institutes
  • Electronics services
  • Industrial institutes
  • Electronic industry
  • Education and schooling
  • Laboratory equipment

Features:

  • High quality and reliability
  • Clear digital LED displays
  • Operation in voltage (CV) or current (CC) stabilization mode
  • One main and 2 auxiliary outputs
  • Communication with the PC enabling the parameters to be set by the program
  • Protection against short circuit and overload
  • Built-in fan
  • The device memory can save up to 60 power profiles, which makes work much easier
  • Thermal fan switch
  • Ability to work with a current limitation of 990mA (indications with an accuracy of 1mA) and 10A (indications with an accuracy of 10mA)

Technical specifications

  • Supply voltage: 220V AC ± 10%, 50 / 60Hz
  • Working environment: -10 ÷ 40 ° C, RH <90%
  • Storage environment: -10 ÷ 40 ° C, RH <80%
  • Power: 560W

Voltage stabilization

  • The output voltage is adjustable in the range: 0 - 30V in a linear way
  • Voltage stabilization factor: 0.01% + 3mV
  • Load stabilization factor: 0.01% + 3mV
  • Recovery time: 100?s Ripple and noise: 0.5 mVrms (effective value)

Current stabilization

  • The output current is adjustable in the range: 0-10A in a linear manner
  • Current stabilization factor: 0.1% + 3mA
  • Load stabilization factor: 0.2% + 3mA
  • Ripple and noise: 2 mArms (effective value)

Included

  • Laboratory power supply Yihua 3010DB
  • Test leads ended with crocodile clips
  • User manual
