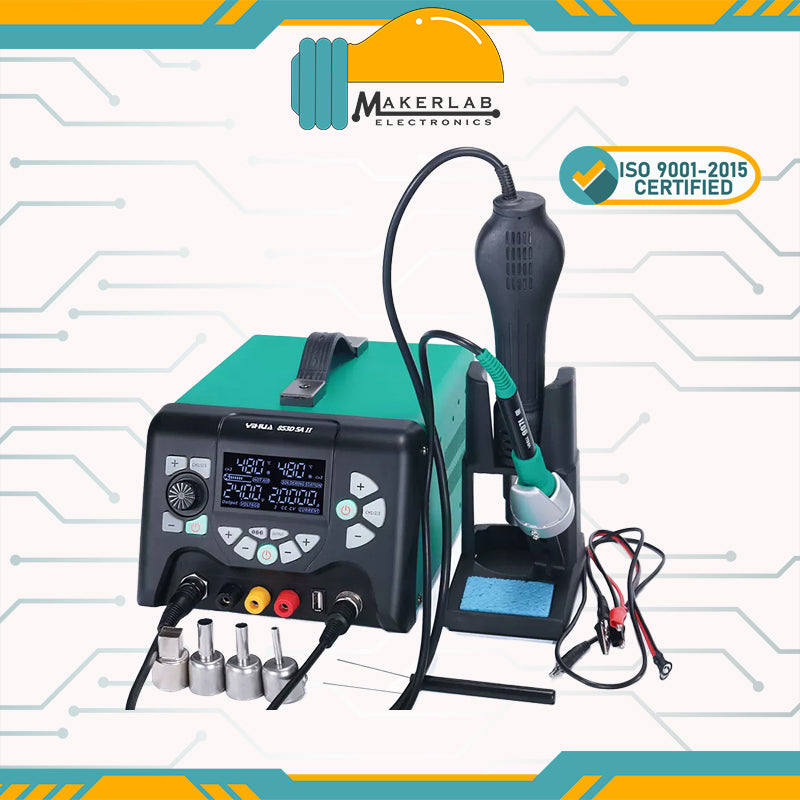

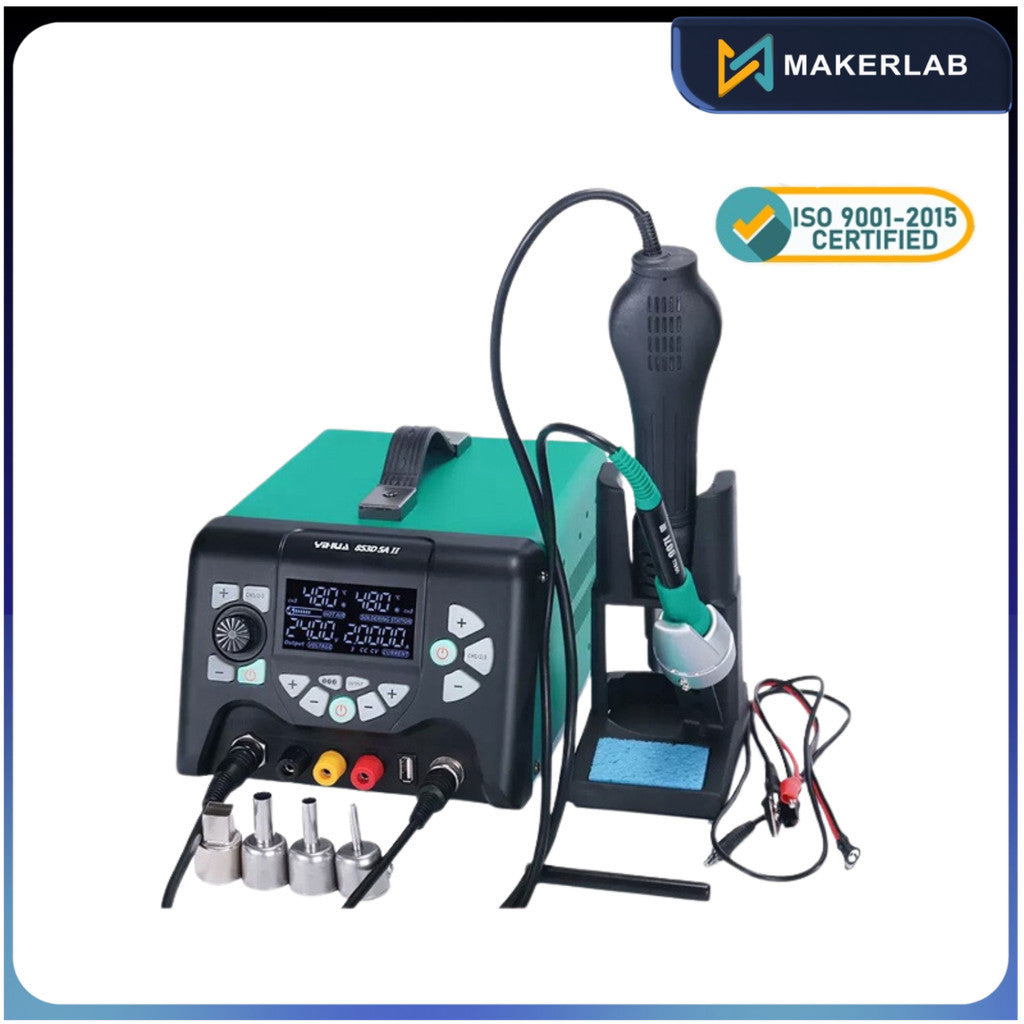

Yihua 853D 5A-II 3 in 1 Soldering Rework Station with Hot Air Heat Gun and Soldering Iron

Yihua 853D 5A-II 3 in 1 Soldering Rework Station with Hot Air Heat Gun and Soldering Iron

In stock

SKU:MLE04030

Regular price ₱7,500.00
Regular price Sale price ₱7,500.00
Sale Sold out
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
View full details
Product Description

853D 5A-II Soldering Rework Station with Hot Air Heat Gun and Soldering Iron

Parameters

Model: YIHUA 853D 5A-II

Power Consumption: 970W

Measurement: L250xW190xH137mm ±5mm

Working Temperature: 0~50°C

Storage Temperature: -20-80°C



Hot Air Reworks

Power: 700W

Airflow type brushless fan gentle wind

Airflow: ≤120L/min

Temperature range: 100°C-480°C

Temperature Stability: ±1°C



Soldering Iron

Power: 32W (max: 120W)

Temperature Range: 200°C-480°C

Temperature Stability: ±1°C

Tip to Ground Voltage: < 2mV

Tip to Ground Impedance: < 2 ohm

Iron heater material: high-power heater

Iron Handle Color: blue



DC Power Supply

Output Power: 150W

USB Output Power: 10W

Output Voltage: DC 0~30V

Output Current: 0~5 adjustable

Load Stability: < 0.01±2mv

Temperature Coefficient: < 300ppm/°C

Ripple dB: <1mvrms (virtual value)



Features

Equipped with soldering iron, hot air gun, power supply, and 5V 2A USB interface for charging during repair.

Designed with PID program-controlled temperature control technology for more stable working temperature.

Lightweight for easy transportation;

This soldering station is also equipped with the following user-friendly functions: 1) Digital temperature correction function for precisely controlling working temperature;

2) Celsius/Fahrenheit display temperature conversion function;

3) Soldering iron 0-99 minutes sleep function for saving energy;

4) Hot air fan malfunction protection for safe operation;

5) The power supply is designed with an over-temperature protection function.
