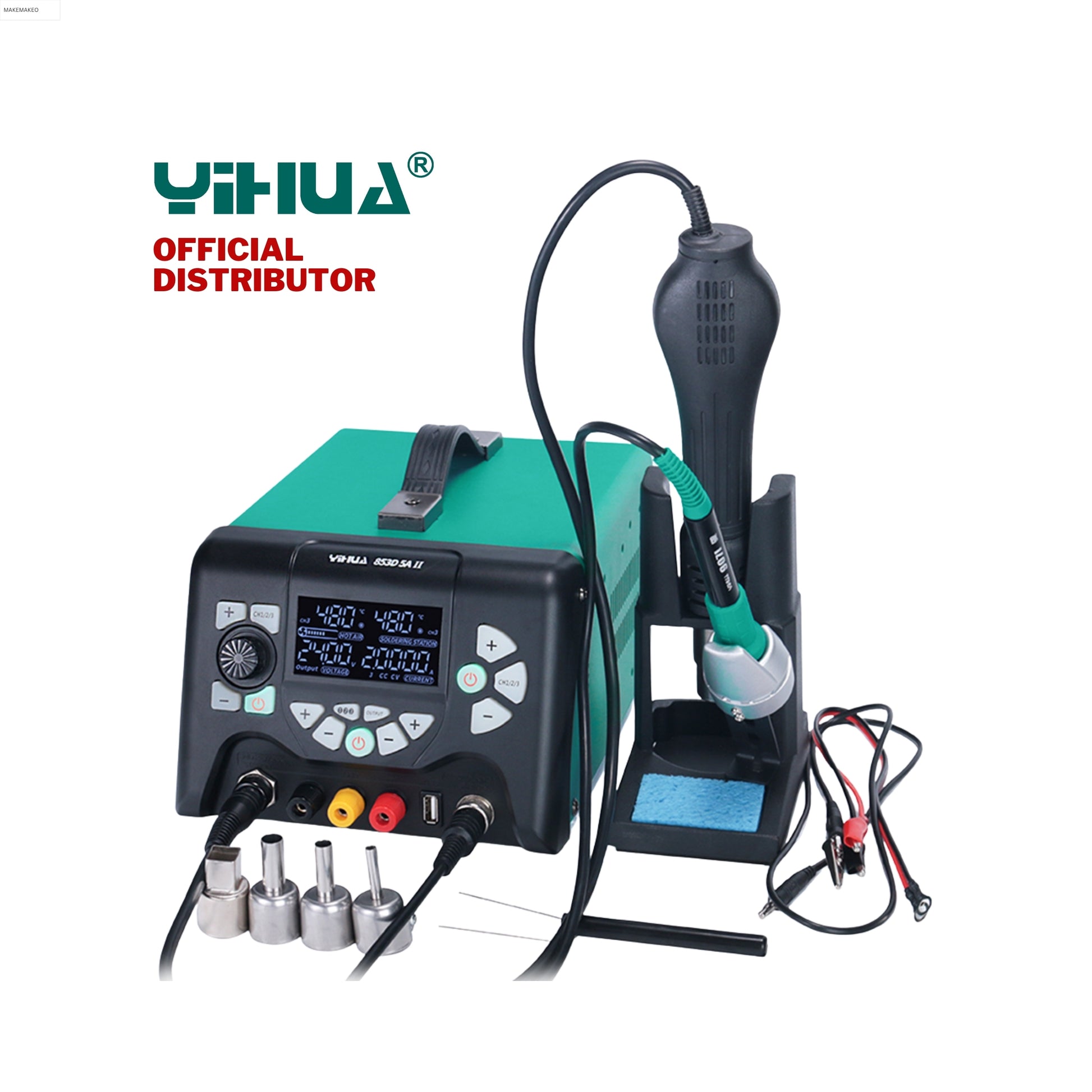

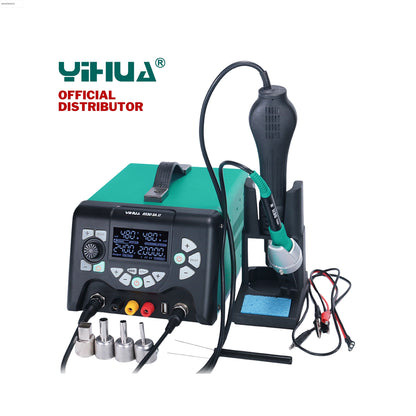

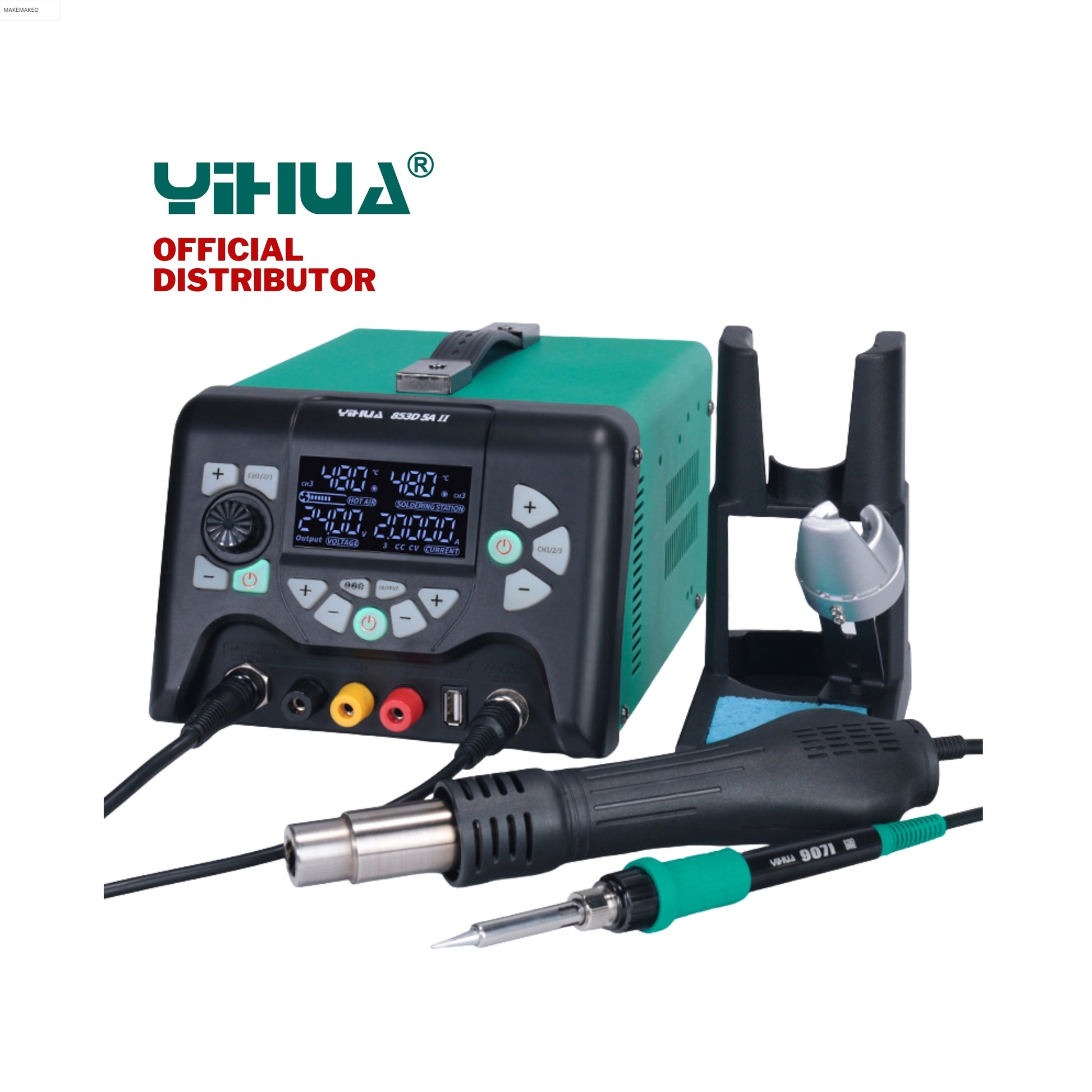

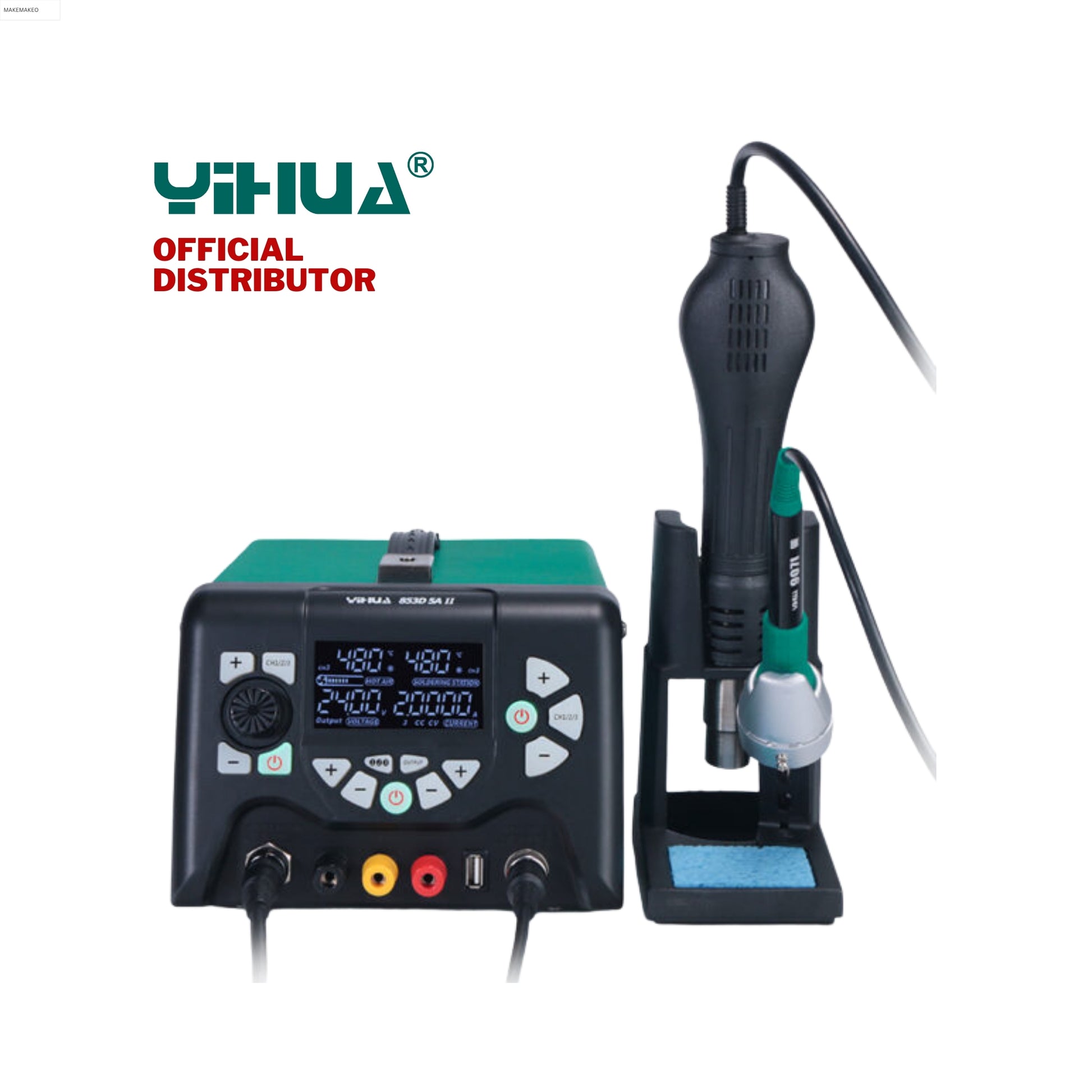

Yihua 853D5A-II 3 in 1 Soldering Rework Station with Hot Air Heat Gun and Soldering Iron
₱7,500.00
₱7,500.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
0% Interest Installment Plans
Total Price: ₱7500.0
Term | Monthly Payment |
---|---|
3 Months | ₱2500.0 |
Installment options available for:



Installment also available via:


*Home Credit is available only to existing Home Credit customers with an active account.
Couldn't load pickup availability
Loading locations...
files/MLE04030.jpg
07:06 AM
Product Description
Description:
YIHUA-853DA or YIHUA-853D soldering rework station with power supply is ideal for various electronic components soldering or desoldering, for instance, SOIC, CHIP, QFP, PLCC, BGA, SMD, etc. It is also suitable for other purpose, including thermoshrinking, paint drying, adhesive removal, thawing, warming, plastic welding, etc.
Features:
- Equipped with soldering iron, hot air gun, power supply, and 5V 2A USB interface for charging during repair.
- Designed with PID program-controlled temperature control technology for more stable working temperature.
- Lightweight for easy transportation
- This soldering station is also equipped with the following user-friendly functions: 1) Digital temperature correction function for precisely controlling working temperature
- Celsius/Fahrenheit display temperature conversion function
- Soldering iron 0-99 minutes sleep function for saving energy
- Hot air fan malfunction protection for safe operation
- The power supply is designed with an over-temperature protection function.
Specifications:
- Model: YIHUA 853D 5A-II
- Power Consumption: 970W
- Measurement: L250xW190xH137mm ±5mm
- Working Temperature: 0~50°C
- Storage Temperature: -20-80°C
Hot Air Reworks
- Power: 700W
- Airflow type brushless fan gentle wind
- Airflow: ≤120L/min
- Temperature range: 100°C-480°C
- Temperature Stability: ±1°C
Soldering Iron
- Power: 32W (max: 120W)
- Temperature Range: 200°C-480°C
- Temperature Stability: ±1°C
- Tip to Ground Voltage: < 2mV
- Tip to Ground Impedance: < 2 ohm
- Iron heater material: high-power heater
- Iron Handle Color: blue
DC Power Supply
- Output Power: 150W
- USB Output Power: 10W
- Output Voltage: DC 0~30V
- Output Current: 0~5 adjustable
- Load Stability: < 0.01±2mv
- Temperature Coefficient: < 300ppm/°C
- Ripple dB: < 1mvrms (virtual value)
