Description:

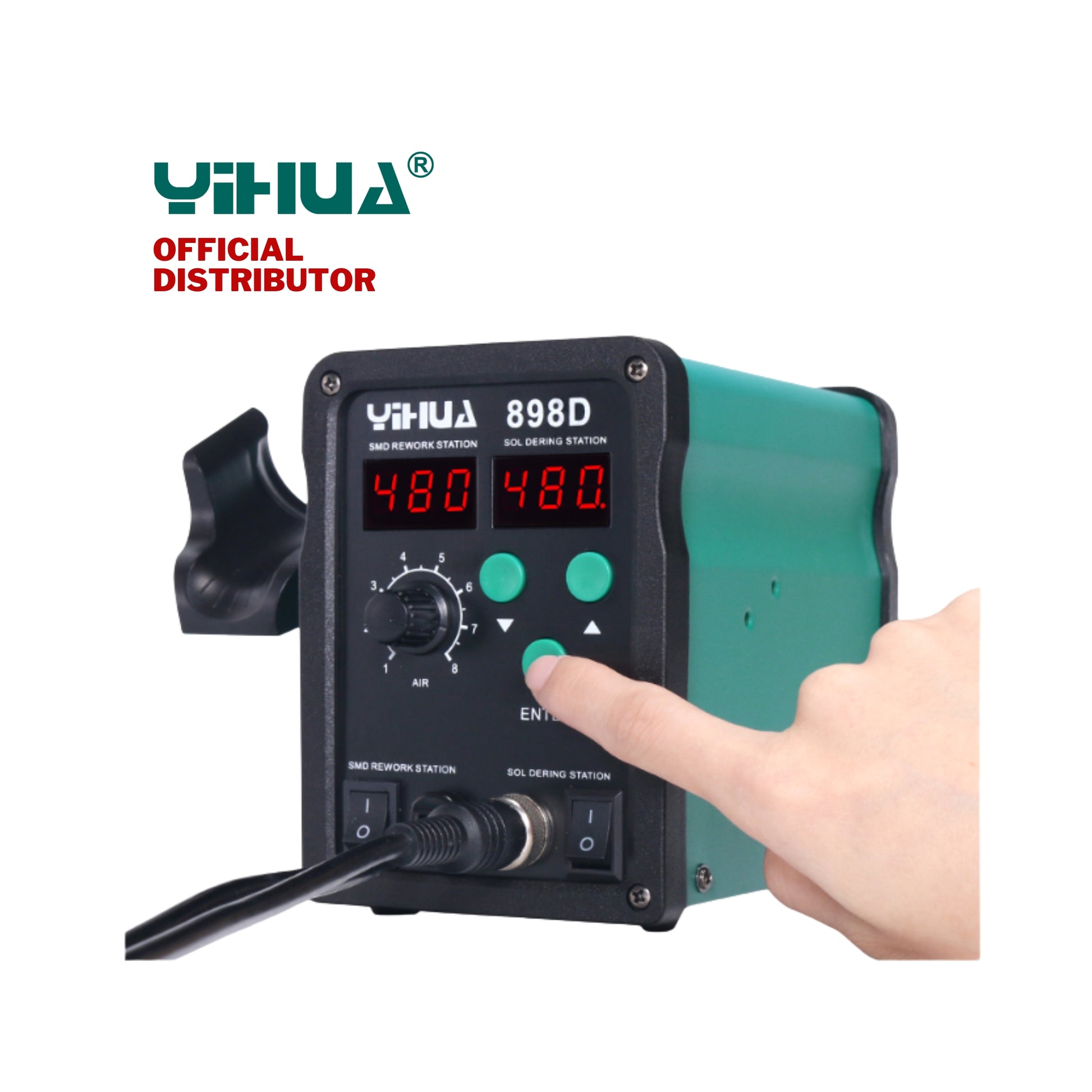

The YIHUA-898BD hot air rework station with soldering iron has 2 LED displays, respectively for air gun and iron work temperature. It has pretty appearance and good quality, because of the small case design.
Specifications:
Machine
- Rated Voltage: AC220V±10% 50Hz
- Machine Power: 730W
- 300°C Constant Temperature Power: 250W±10%
- Working Environment: 0~40°C Relative Humidity<80%
- Storage Temperature: -20~80°C<80%
- Machine Size: 13.5*15*10cm
- Weight: 2.65kg
Hot Air Gun
- Temperature Range: 100°C~480°C
- Working Voltage: AC 220V±10% 50Hz
- Output Power: 650W
- Mode of Airflow: Brushless fan
- Airflow: 120L/min (max.)
- Temperature Stability: ±5°C (static)
- Display: LED (red/green)
- Temperature Correction: PID digital program proofreading
- PID Temperature Cycle: Fast 200ms
- Heater: Heating core ceramics heater
Soldering Iron
- Working Voltage: AC 26V°C10% 50Hz
- Output Power: 50W/75W
- Temperature Range: 200°C~480°C
- Temperature Stability: ±5°C (static)
- Display: LED (red/green)
- Temperature Correction: PID digital program proofreading
- PID Temperature Cycle: Fast 200ms
- Heater: Common metal heater
- Tips to Ground Impedance: < 2?
- Tips Voltage to Ground: < 2mV

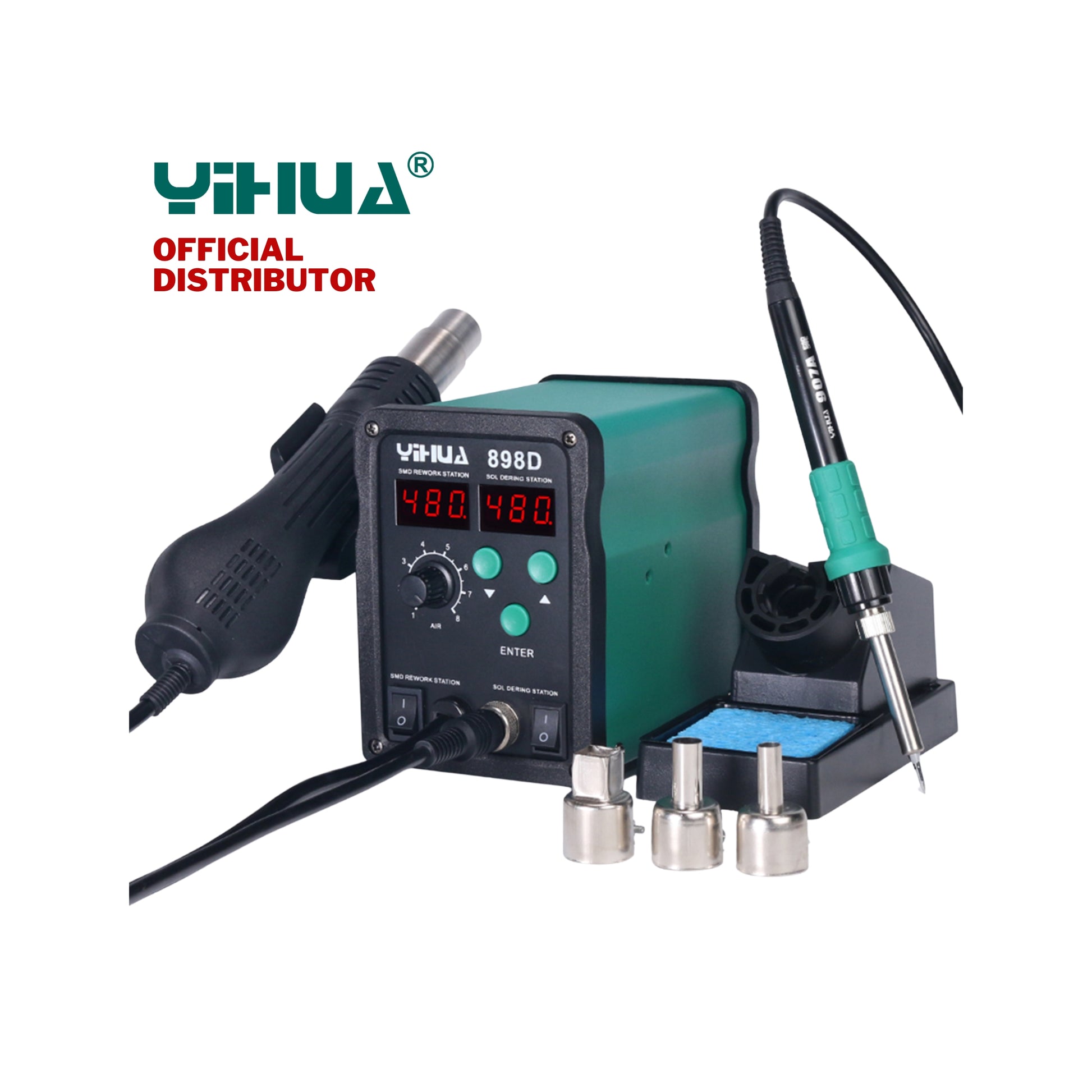

Part List:
- Machine: 1 set
- Specifications: 1
- Air Gun Handle: 1pc
- Nozzle: 3pcs (5mm, 8mm, 10mm)
- IC Puller: 1pc
- Handle Frame: 1pc
- Iron Handle (including a heater and tips): 1pc
- Iron Holder: 1pc
- Power Plug: 1pc
Warranty Policy
This warranty is valid within 1 month from the date of purchase and covers any defects in materials or workmanship under normal use during the warranty period. During this time, we will repair or replace, at no charge, products or parts of a product that prove defective because of improper material or workmanship, under normal use and maintenance.
The warranty does not cover:
- Damage due to misuse, abuse, negligence, or accidents.
- Damage caused by unauthorized repairs or modifications.
- Normal wear and tear.
To file a warranty claim, please contact our customer service department with the following information:
- Proof of purchase (Sales Invoice).
- Detailed description of the issue.
- Photos or videos of the defect (if applicable).
