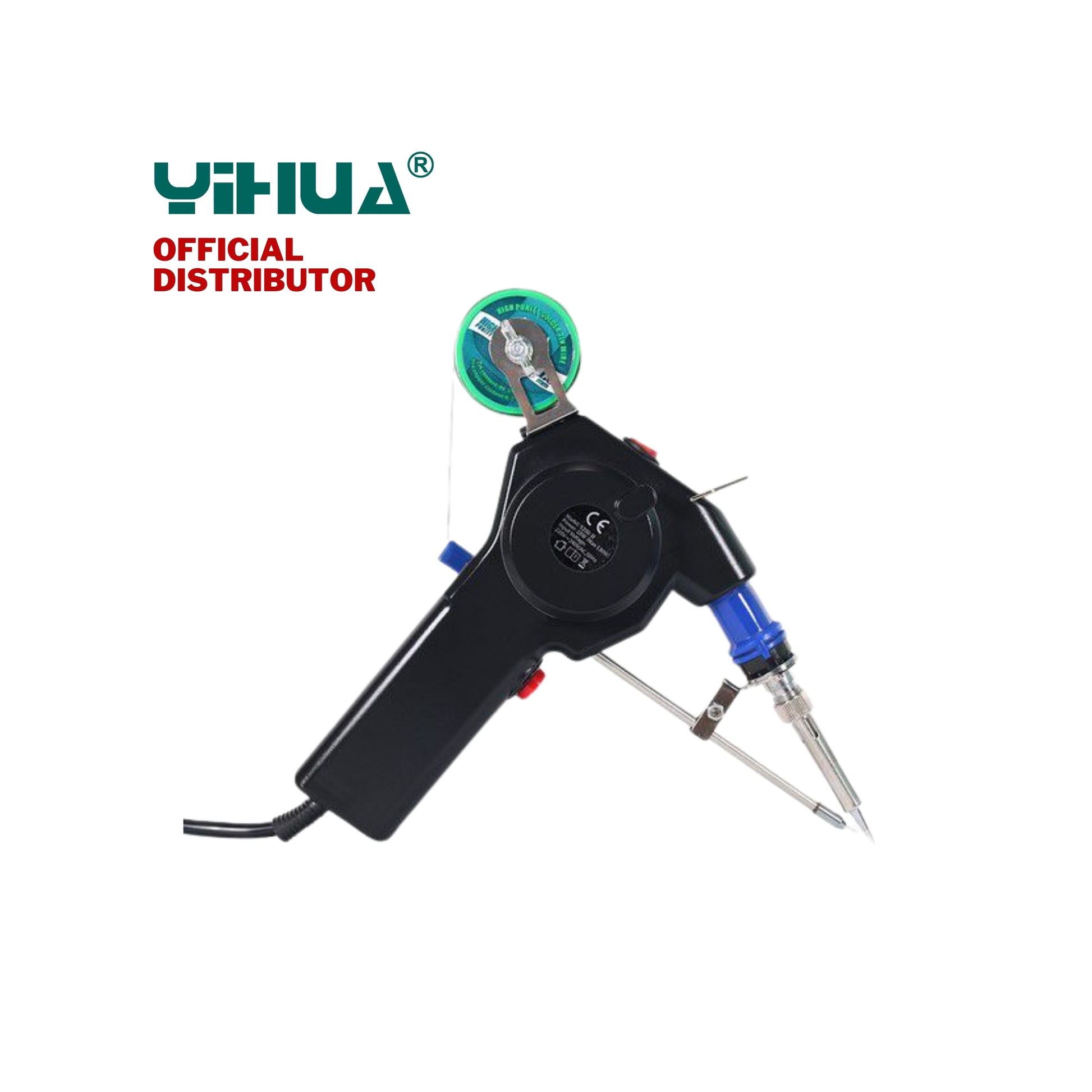

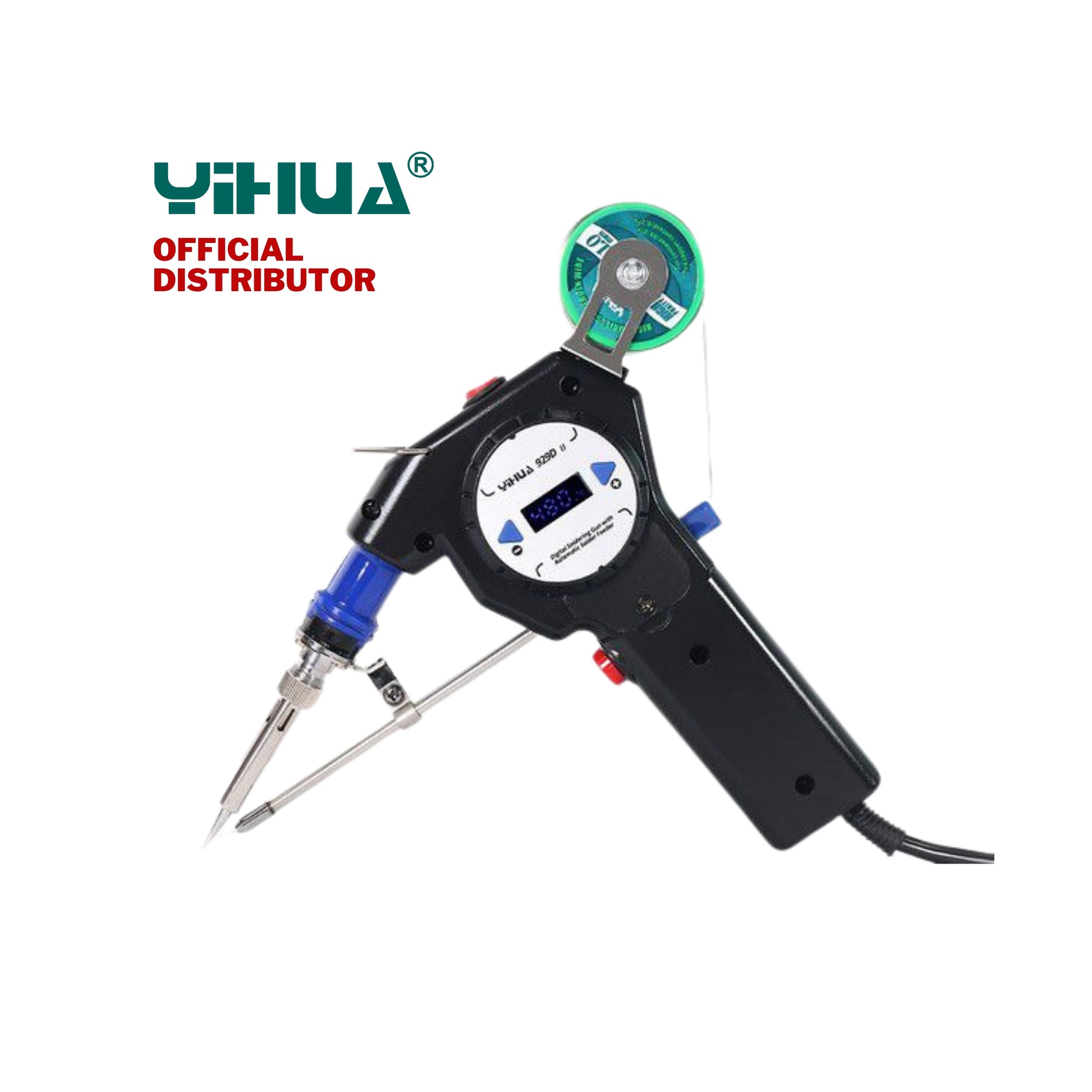

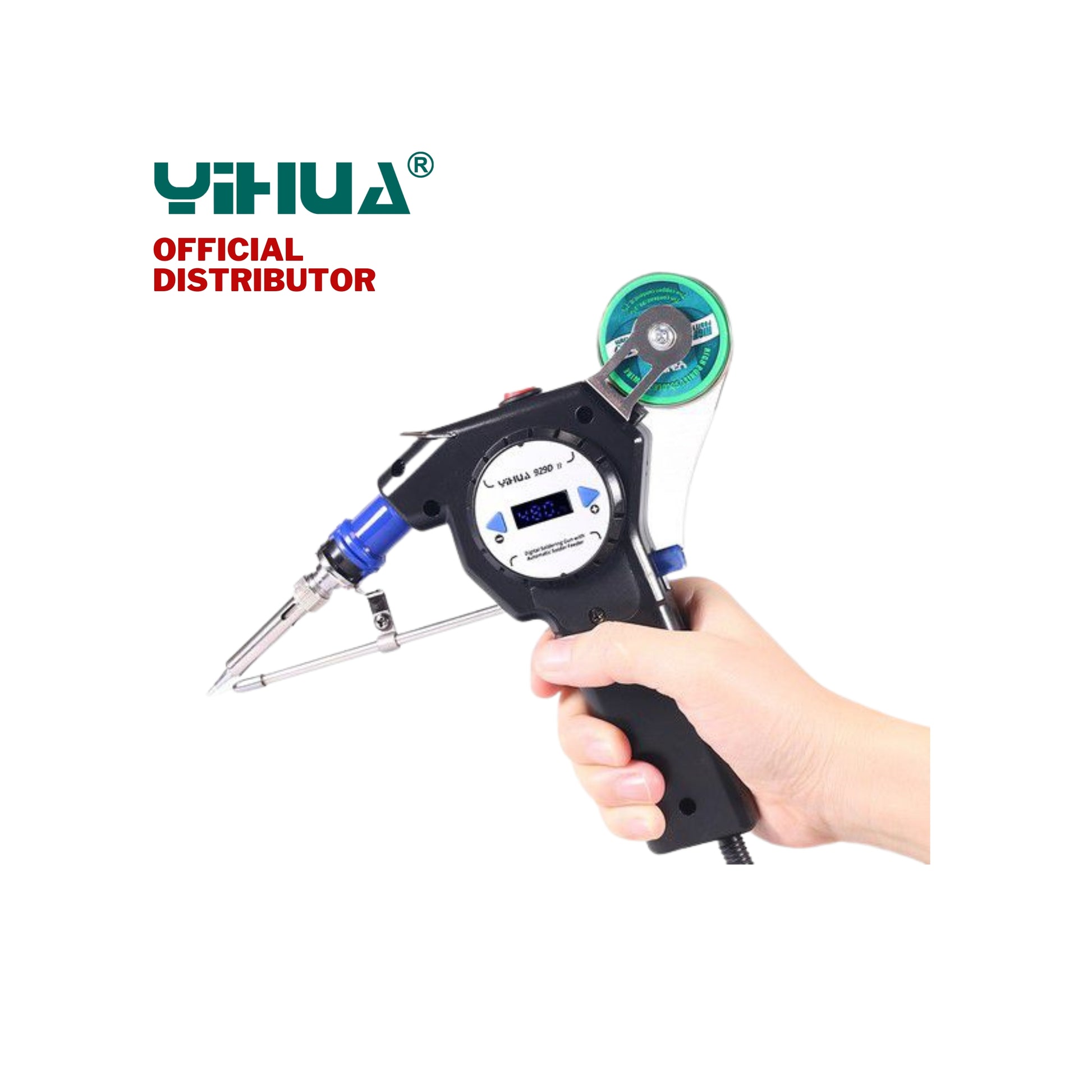

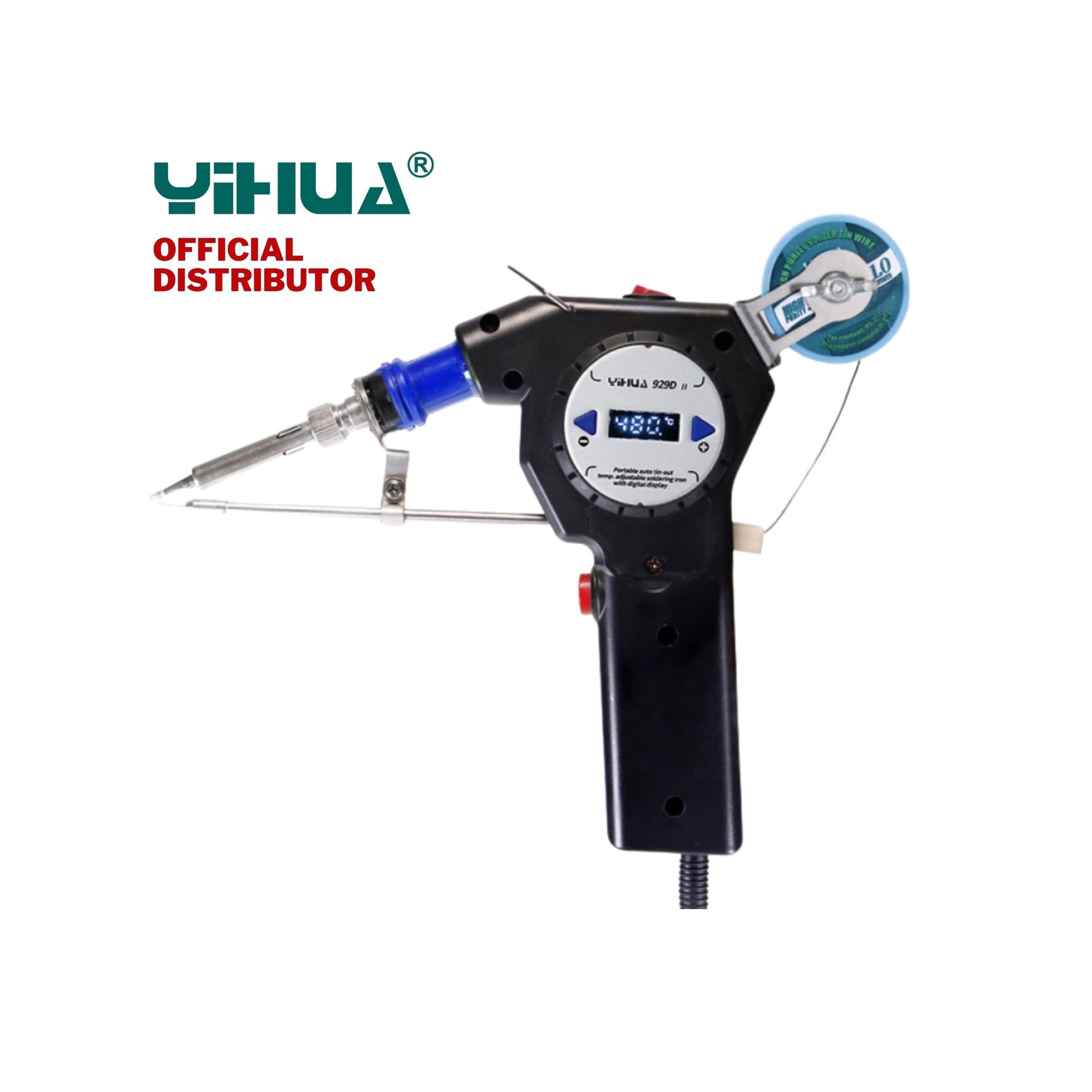

YIHUA 929D-II Automatically Feeding Solder Wire Electronic Soldering Iron

Description:

This soldering iron features rapid heating, adjustable temperature, and a convenient solder feed system for efficient one-handed operation. With its plug-and-play heating element, safety power switch, and SMT double-sided manufacturing, the YIHUA 929D-II ensures precise, safe, and efficient soldering.

The heating elements and heating system feature improved design, enabling the heat to quickly conduct to the soldering tips. This significantly improves the soldering efficiency.

Features:

• Quick Heating Up
  The heating elements and heating system feature improved design, enabling the heat to quickly conduct to the soldering tips. This significantly improves the soldering efficiency. Built-in Feeder Driven by an electric motor, the continuous solder feeding can be carried out only when pressing the button. The feeding will immediately stop after loosing the button.
• PID Temperature Controller
  Equipped with the PID temperature controller, the temperature tracking and adjustment can be made in a timely manner, ensuring the temperature always keeps constant.
• Intelligent Control & Reliable Design
  In addition to intelligent heat control, °C/°F display can be freely switched (only for 929D-II). The soldering and rework station features 10-minuite Sleep Mode, digital calibration, On-Off switch, and easy-to-replace Solder Roll.


Specifications:

• Input voltage: 110~127V/AC, 60Hz or 220~240V/AC, 50Hz
• Power: 18W (Max. 130W)
• Temperature Range: 90~480℃/194~896℉
• How to adjust temperature: +/- buttons
• Display: LED display
• Tip to ground resistance<2ohms
• Power on/off Switch: Yes
• Main unit dimensions: L186*W230*H54mm ±5mm
• Unit weight: 0.73 KG/PCS
