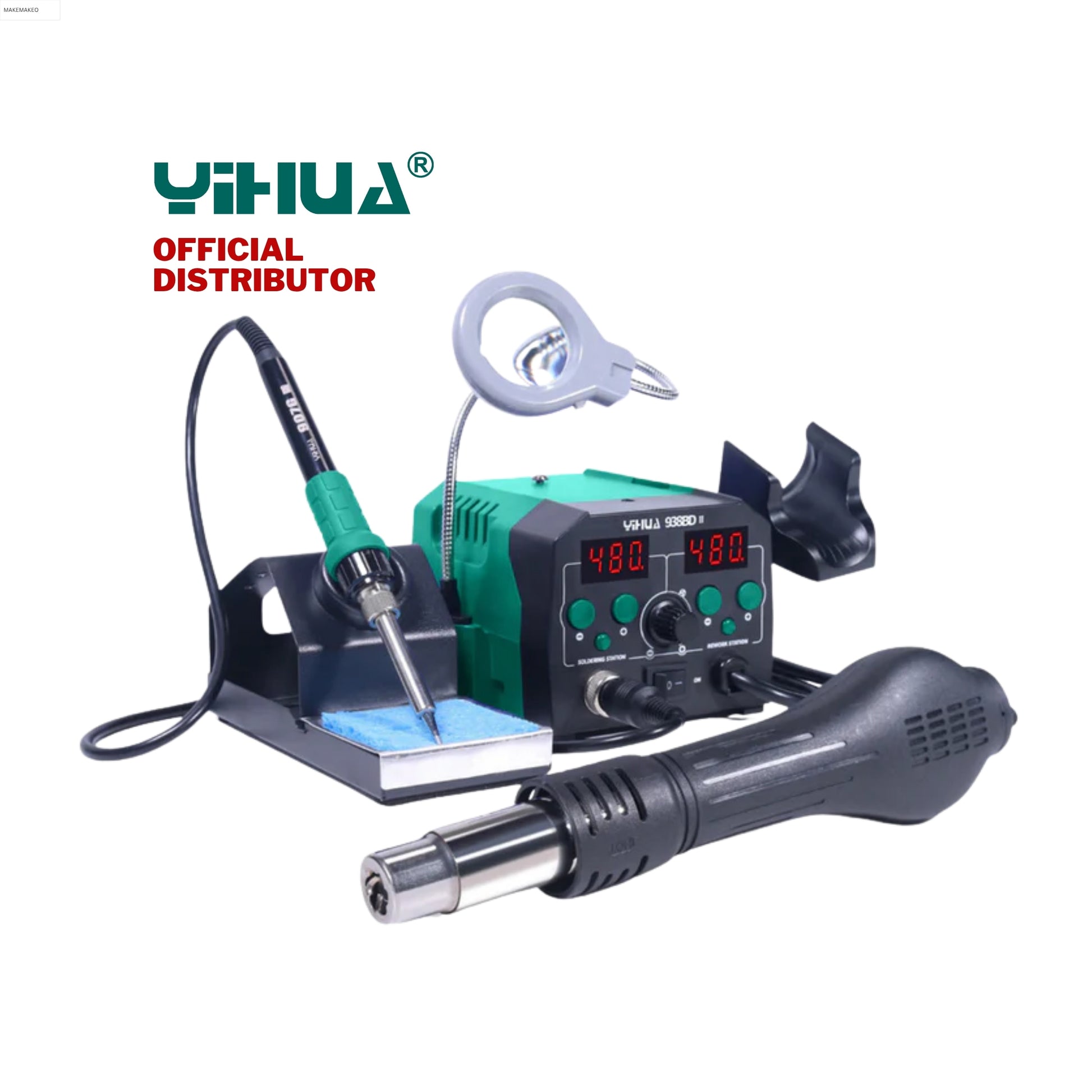

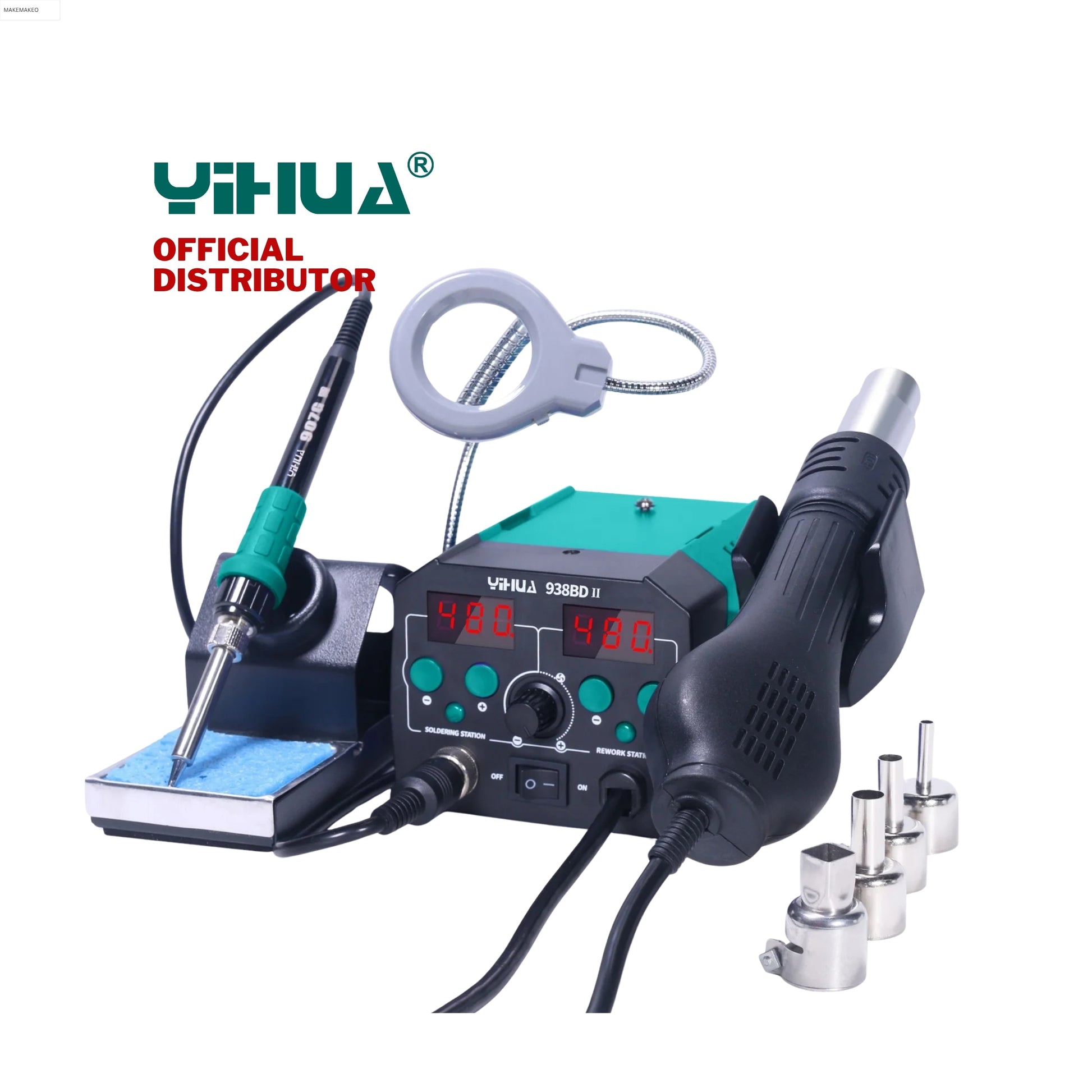

Yihua 938BD-II 2-in-1 Soldering Station and Hot Air Rework Station with Magnifier

₱1,979.00 PHP
₱1,979.00 PHP ₱2,749.00 PHP
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
Only 3 units left

About the Product

A compact 2-IN-1 rework station integrated with a soldering station, and a hot air rework station. Perfect
for beginners and hobbyists for general purpose soldering, and SMD rework use.

Features:
• The station comes with a compact body to ensure the station’s minimum presence and allow the users to fit more equipment on the work desk.
• The station’s main unit comes with an LED display to show parameters including real-time temperature, and set temperature.
• Comes with a soldering iron holder system that integrates a soldering iron holster, solder wire
dispenser, brass wool tip cleaner, cleaning sponge, silicone shock absorber, and tip storage slots. This
holder can be mounted on top of the main unit to save even more space.
• Both the soldering iron and the hot air gun are powered by our built-in PID temperature stabilization program that cycles within milliseconds to keep the temperature steady. This way, users can enjoy a smooth soldering and rework experience without having to worry about actual temperature.
The soldering iron’s temperature is adjustable from 200°C to 480°C.
• The hot air gun’s temperature is adjustable from 100°C to 480°C with adjustable air volume (30L/min Max.,
measures at exhaust)
• Comes with a sleep mode that enters a lower idling temperature when not in use for an extended period.
Reduces the wear and extends the lifespan of the soldering iron tip and the heating element.
• Comes with an auto start/stop hot air mode to reduce wear, and improve work efficiency. In this mode, the hot air gun automatically cools to 100°C and enters standby mode when inside the holder.
• Comes with °F and °C display functions for users to set their preferred temperature display unit.
• Comes with a digital temperature calibration function for users to calibrate the soldering iron tips/hot air
actual temperature without complicated mathematics.
• The soldering iron is detachable for easy replacement.
• the magnification is 5X, the supply voltage is 3-5V, and the magnifier backlight is turned on: have turn off switch, if you need it, then turn on the switch, if you don't need it, you can turn off the switch (but if you need it, the machine main unit also need turn on it.

Technical data:
Rated Voltage Range: 220V-240V
Rated Frequency: 50Hz
Rated Power: 740W
Operating Ambient Temperature: 0〜40℃/32℉〜104℉
Hot Air Rework Station
Air Delivery: Brushless blower with smooth air delivery
Temperature range: 100〜480℃/212〜896℉
Air volume (Measured at exhaust): ≤30L/min
Display mode: LED

Soldering Station
Output power: 40W (936 type soldering iron handle)
Temperature range:200〜480℃/392〜896℉
Soldering iron: ESD design
Display mode: LED
