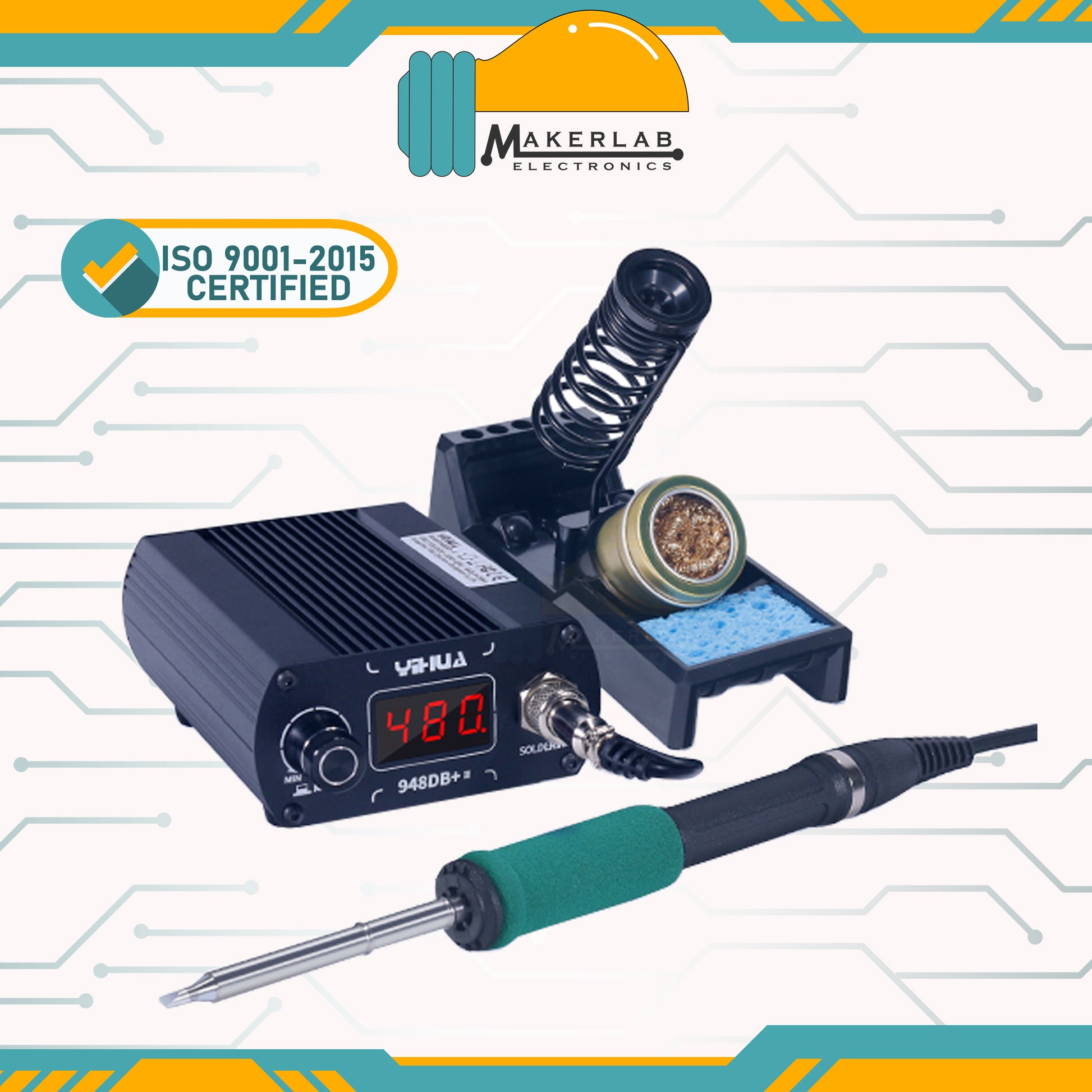

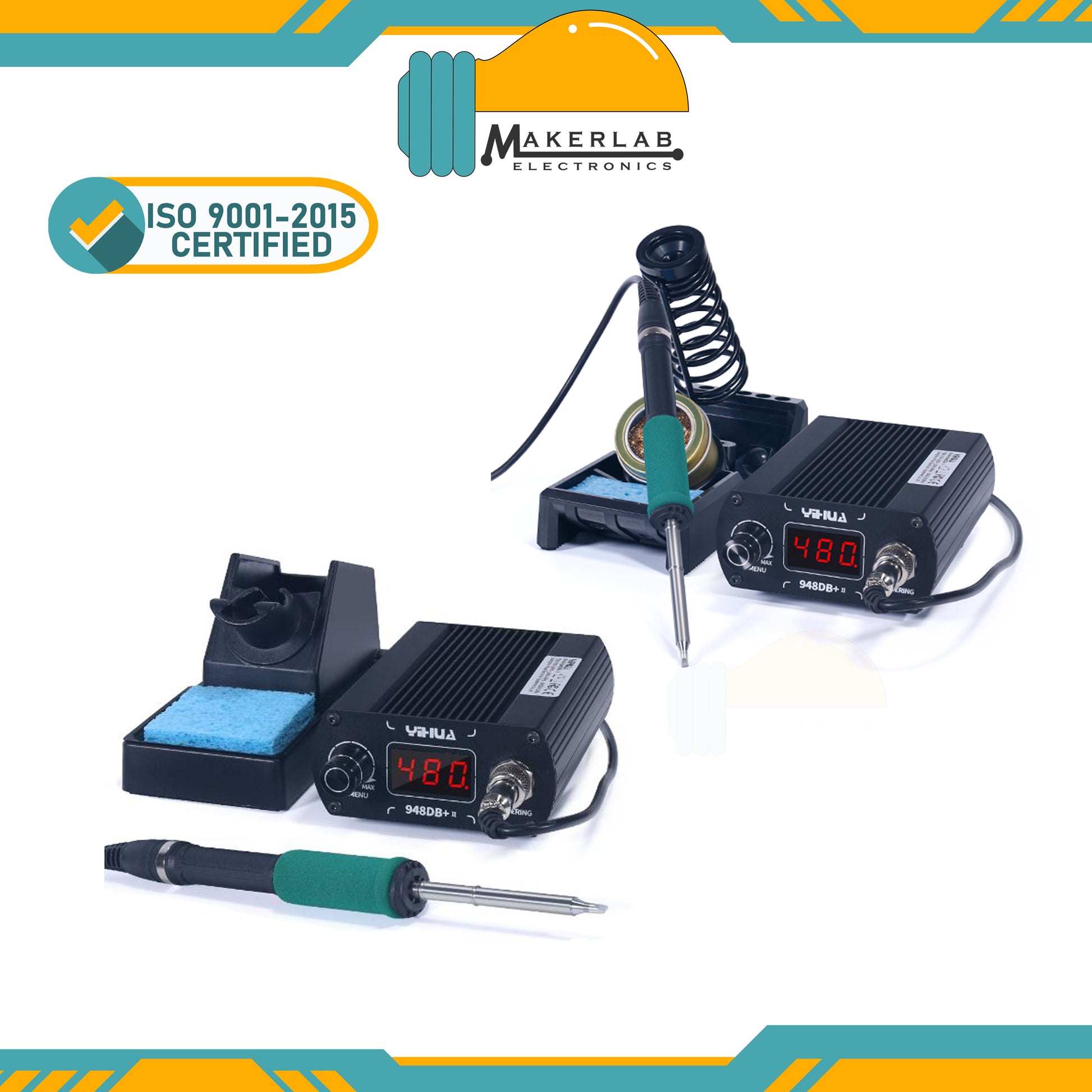

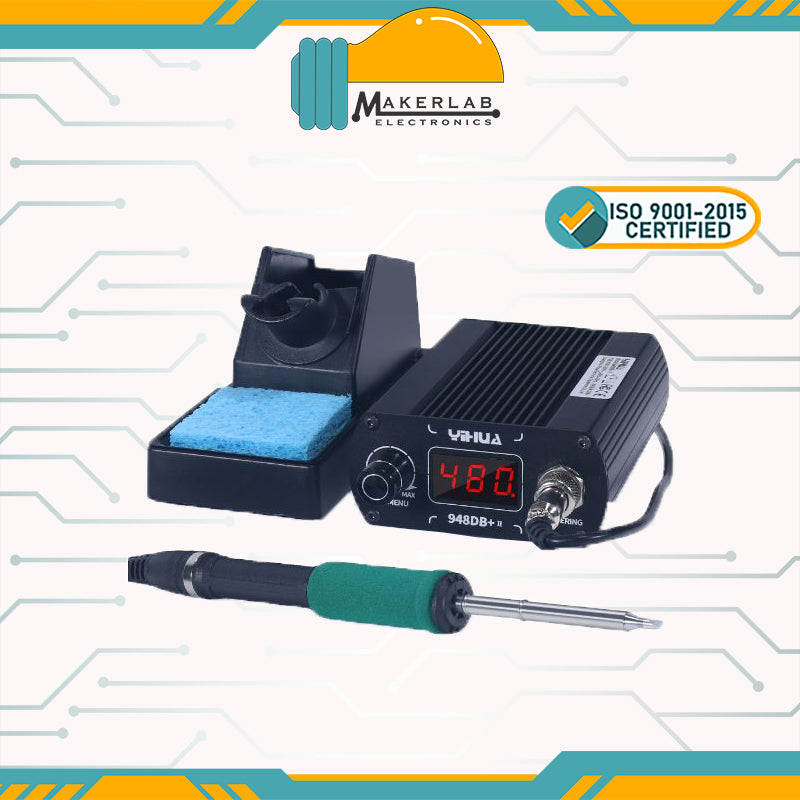

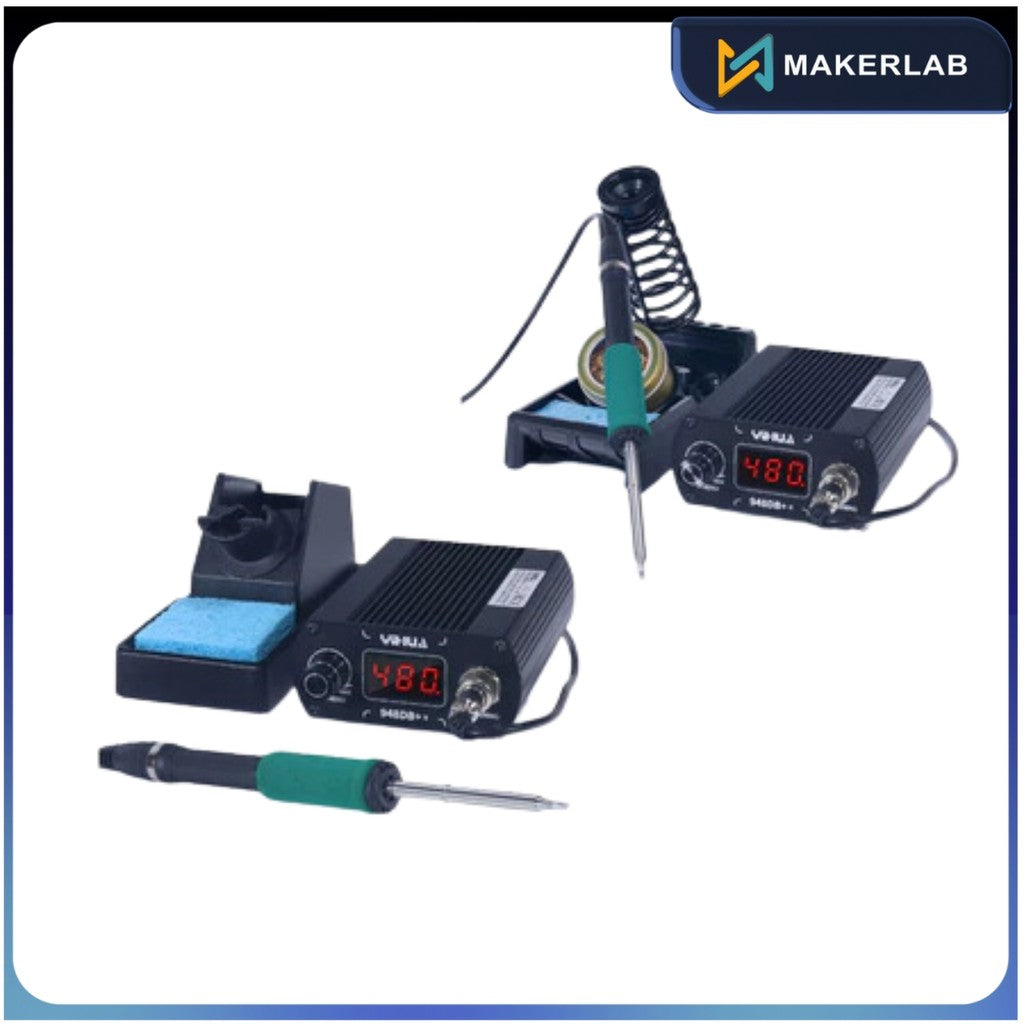

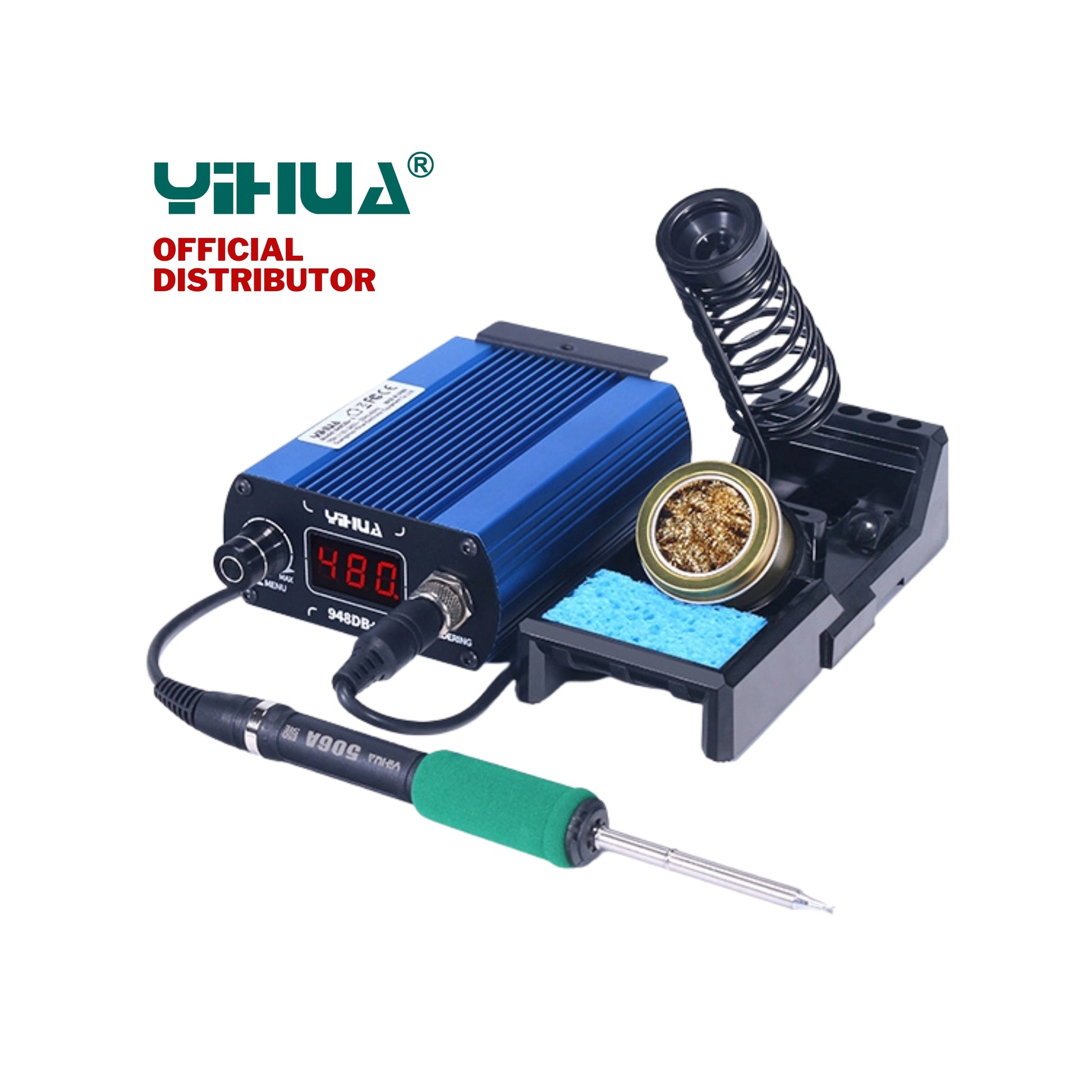

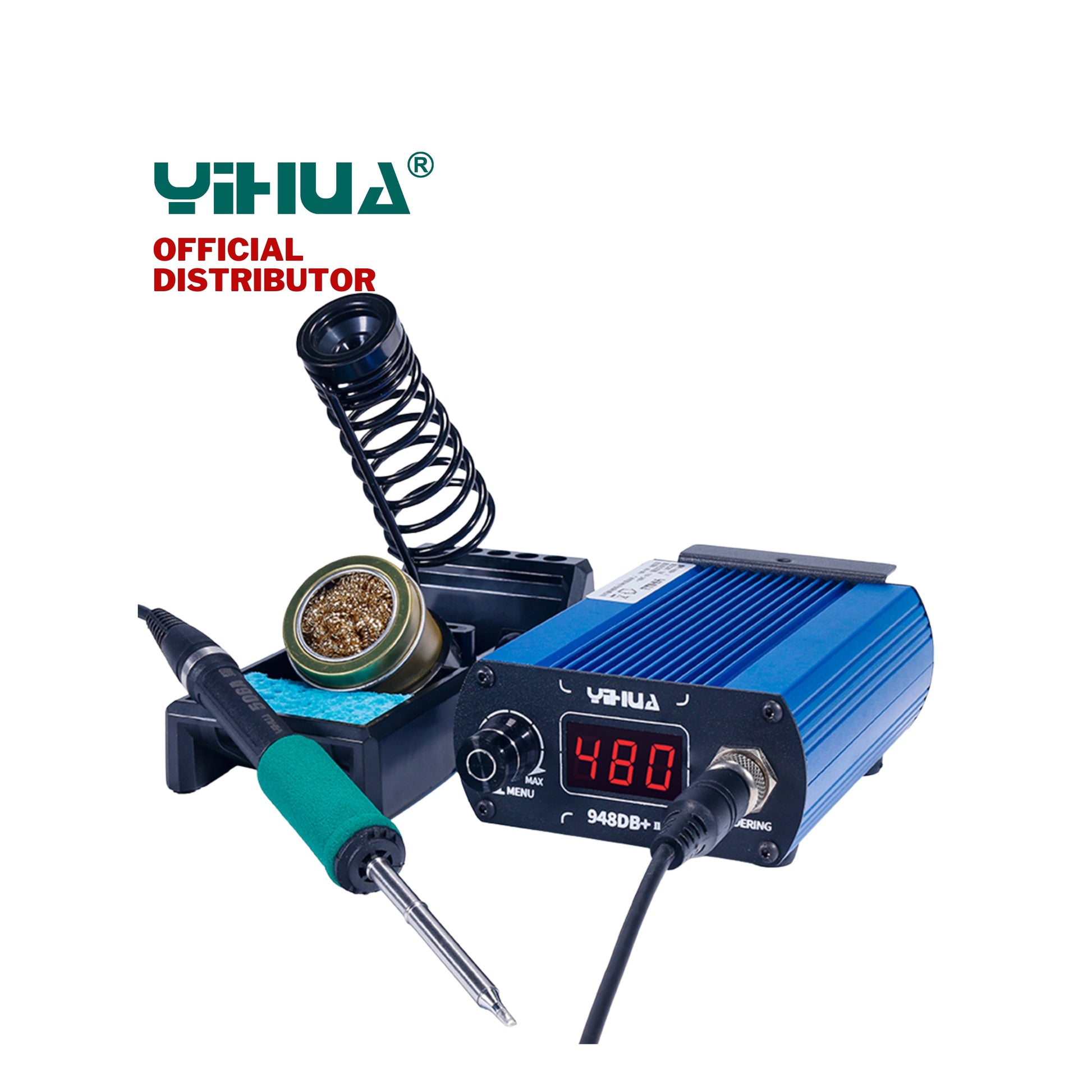

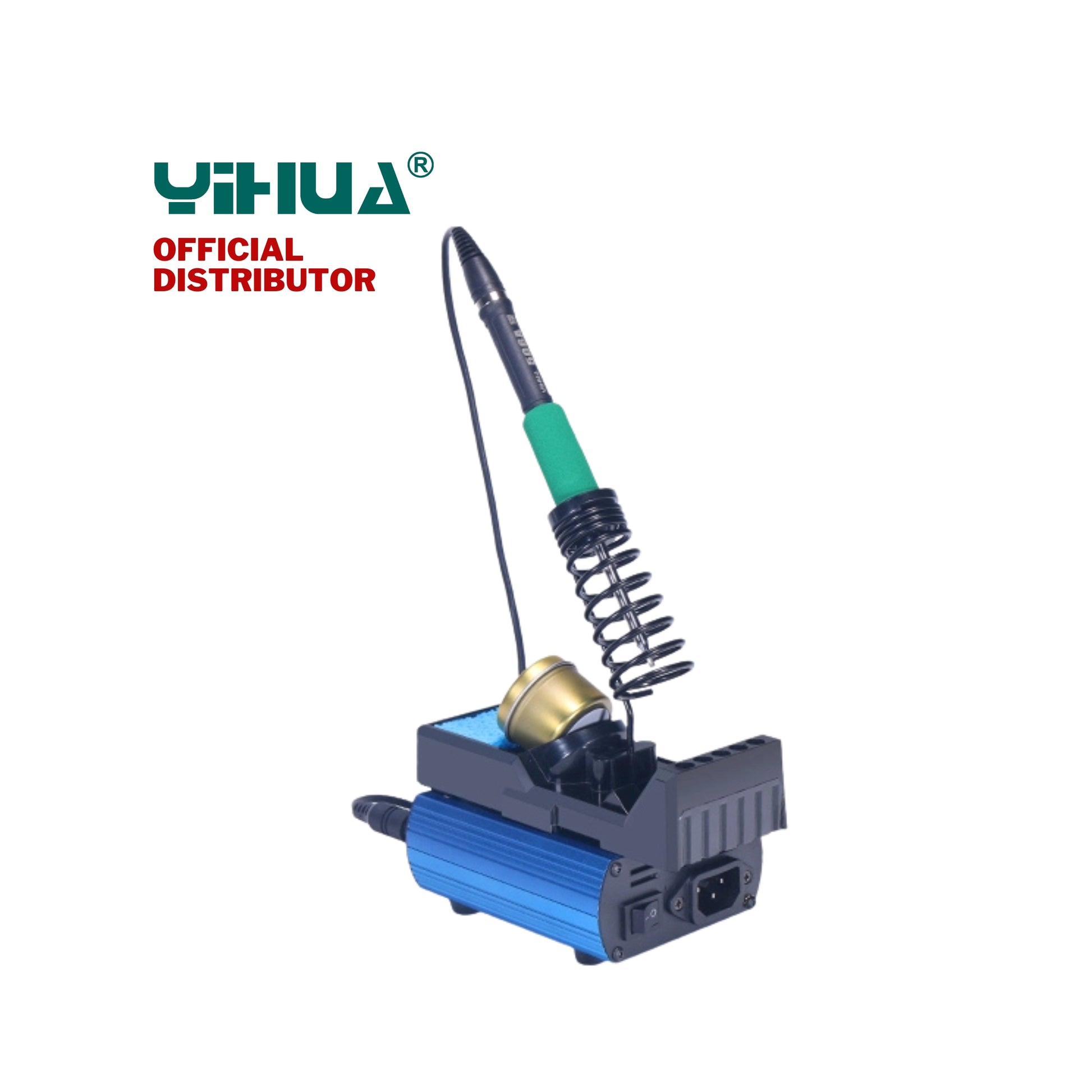

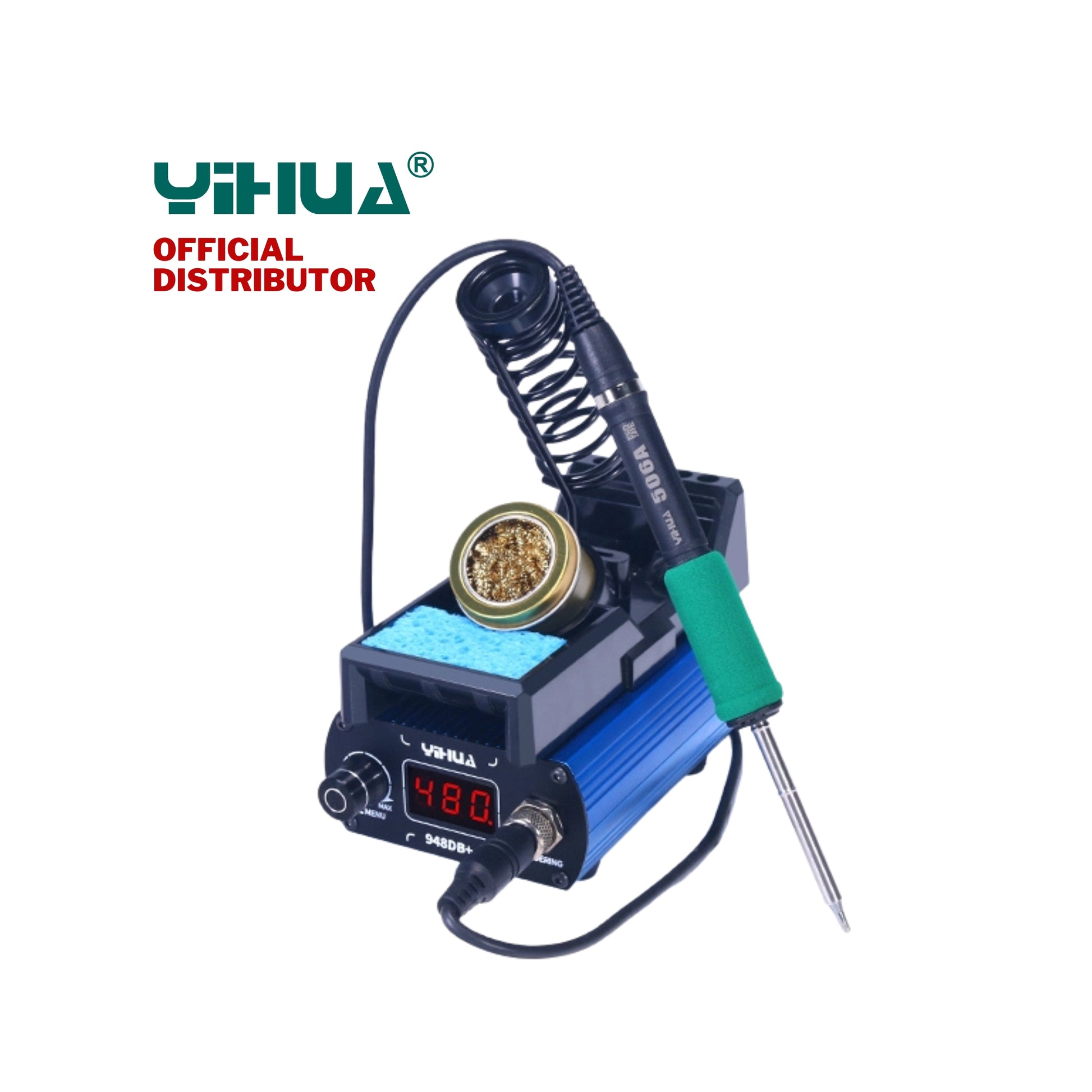

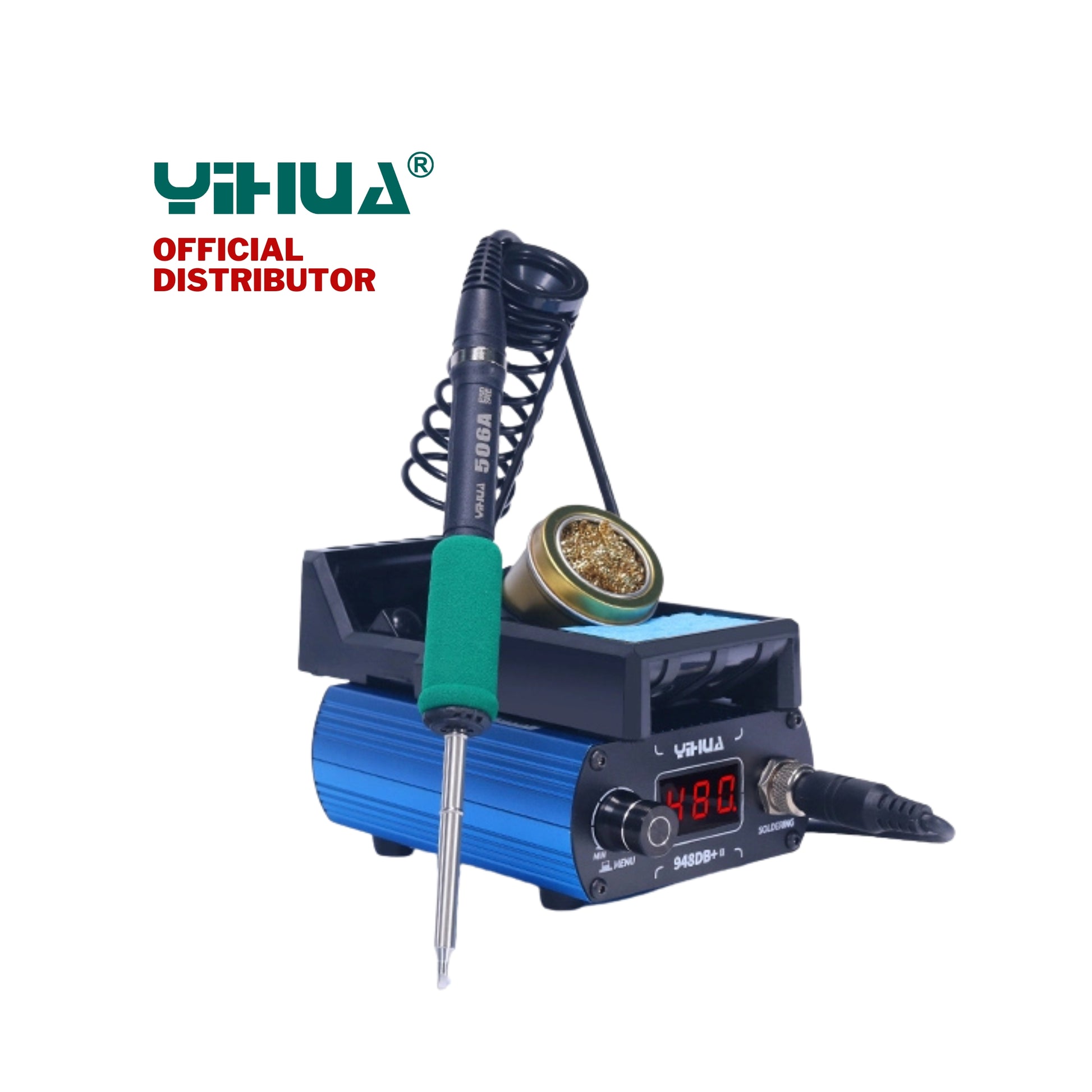

Yihua 948DB+II Mini Digital Display Temperature Adjustable T12 Soldering Iron Station
files/MLE03970_2.jpg
02:40 AM
Couldn't load pickup availability
Product Description
Description:
YIHUA 948DB+-II 75W Heating Soldering Iron Tip T12 Electronic Soldering Iron Station born for precision soldering. Rapid heating soldering tip and comes with PID program to keep the set temperature stabilized.
Features:
- The soldering station can heat up to 300℃ within 7 seconds.
- Easy to replace the soldering iron tip.
- The soldering station features functions up to 5, one Hotkey to Operate.
- Fahrenheit and Celsius can be easily switched to meet different market demands.
-
Three/Four Programmable Presets Available
You can preset temperature in each memory channel for different needs. When soldering, you can quickly select the suitable temperature settings in CH1/CH2/CH3 according to different soldering applications. -
Digital Temperature Correction Function
When temperature deviation happens because of environmental impact or replacing the spare parts such as heating element, soldering iron, you can use this function to correct. -
Sleep Mode
The sleep time can be set, including 0/5/10/30 minutes. You can pick up the soldering iron to wake the station. This extends the lifespan of the heating element, conserves energy, and protects the environment. -
Automatic Shut-Down
When the soldering iron enters sleep mode and isn’t picked up within approximately 30minutes, the soldering station will automatically shut off, you can pick up the soldering iron to restart the soldering station. This prevents leaving the station ON unsupervised or forgetting to turn OFF the station. -
Buzzer Prompt
The soldering iron has built-in buzzer to remind.
Specifications:
- Model number: 948DB+-II
- Rated Voltage Range: 110V-240V ,50HZ-60HZ
- Rated power: 75W
- Operating Ambient temperature: 0-40℃/32-104℉
- Temp. range: 200-480℃/392-896℉
- Tip to ground resistance:<2 ohms
- Screen Display: LED
