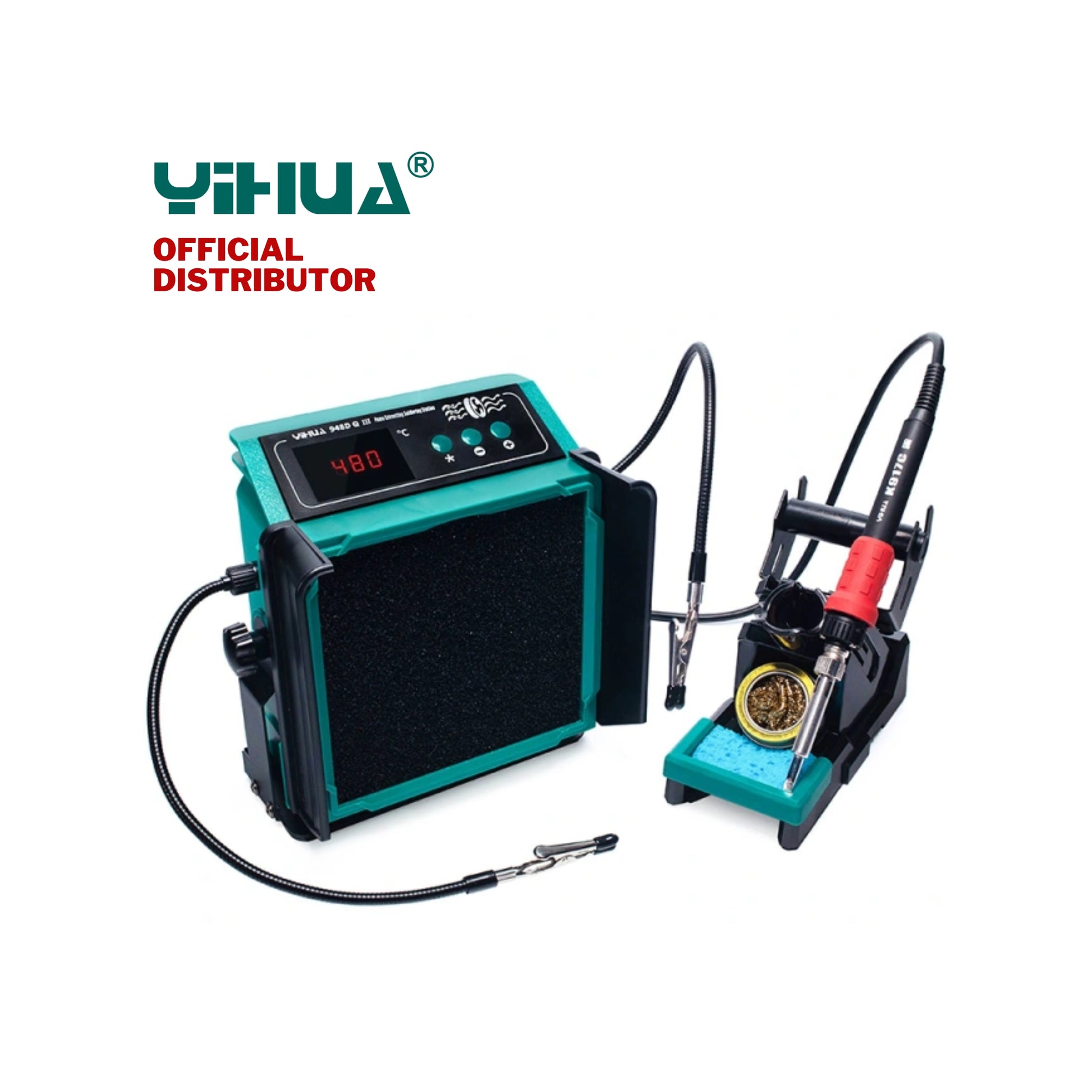

Yihua 948DQ-III Fume Extractor

Description:

The YIHUA 948DQ-III 2-In-1 station is designed to save your desk space by integrating a fume extractor and a 110W high-power soldering iron into one. The station comes with LED nixie display, X-2 soldering iron holder, and helping hand. The soldering iron is 110W high-power and features PID temperature stabilization, sleep mode, auto shutdown, °C/°F conversion, and digital temperature calibration.

The YIHUA 948DQ-III is a multi-functional unit combining a digital soldering station with an integrated fume extraction system. It features a clear digital display for precise temperature control of the soldering iron. The built-in fume extractor uses a vacuum absorption method to remove harmful smoke and odors produced during soldering, helping to maintain a cleaner and safer workspace.

This station is suitable for various electronics repair, assembly, and hobbyist projects, offering consistent soldering performance and improved air quality.

Features:

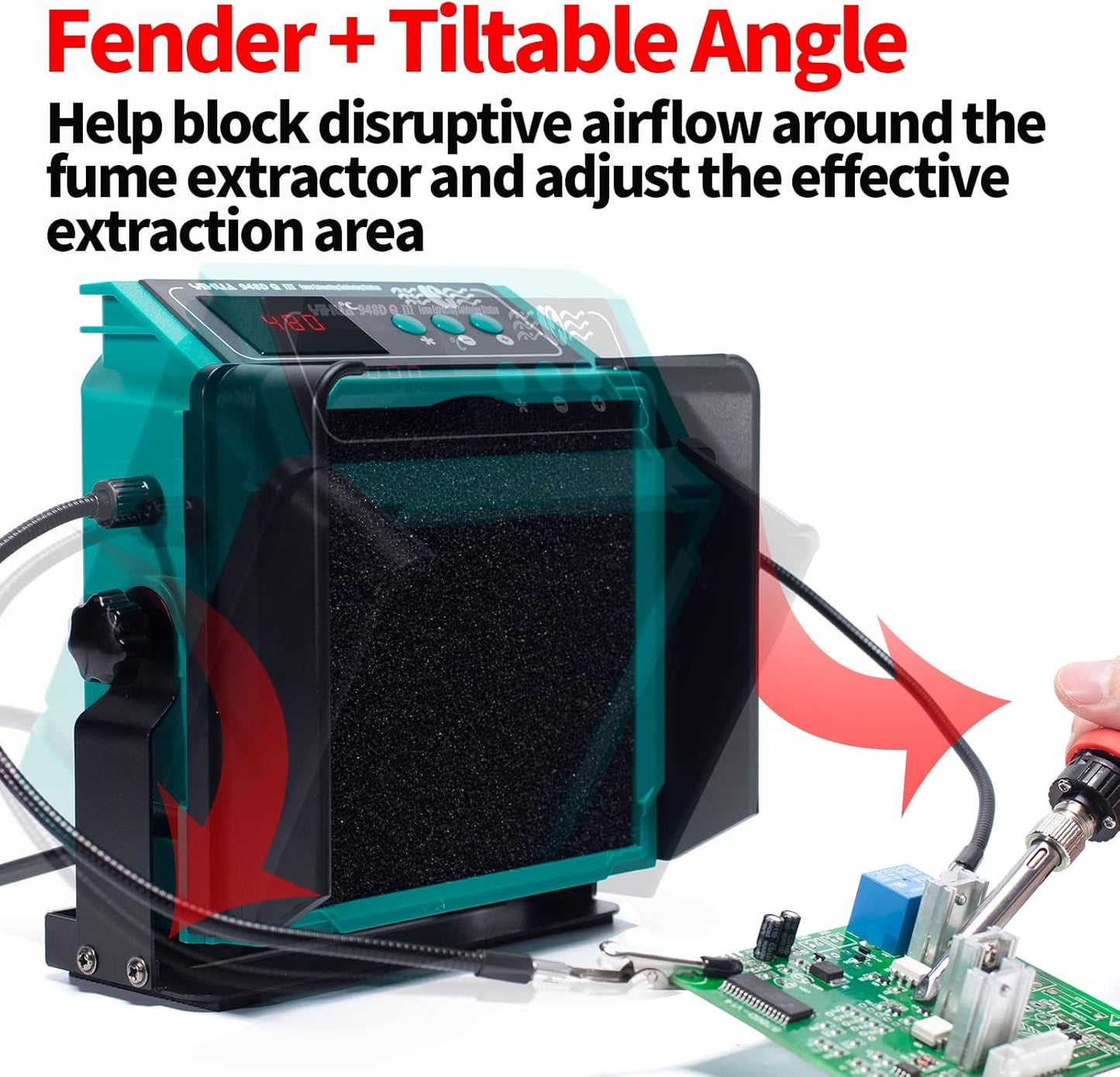

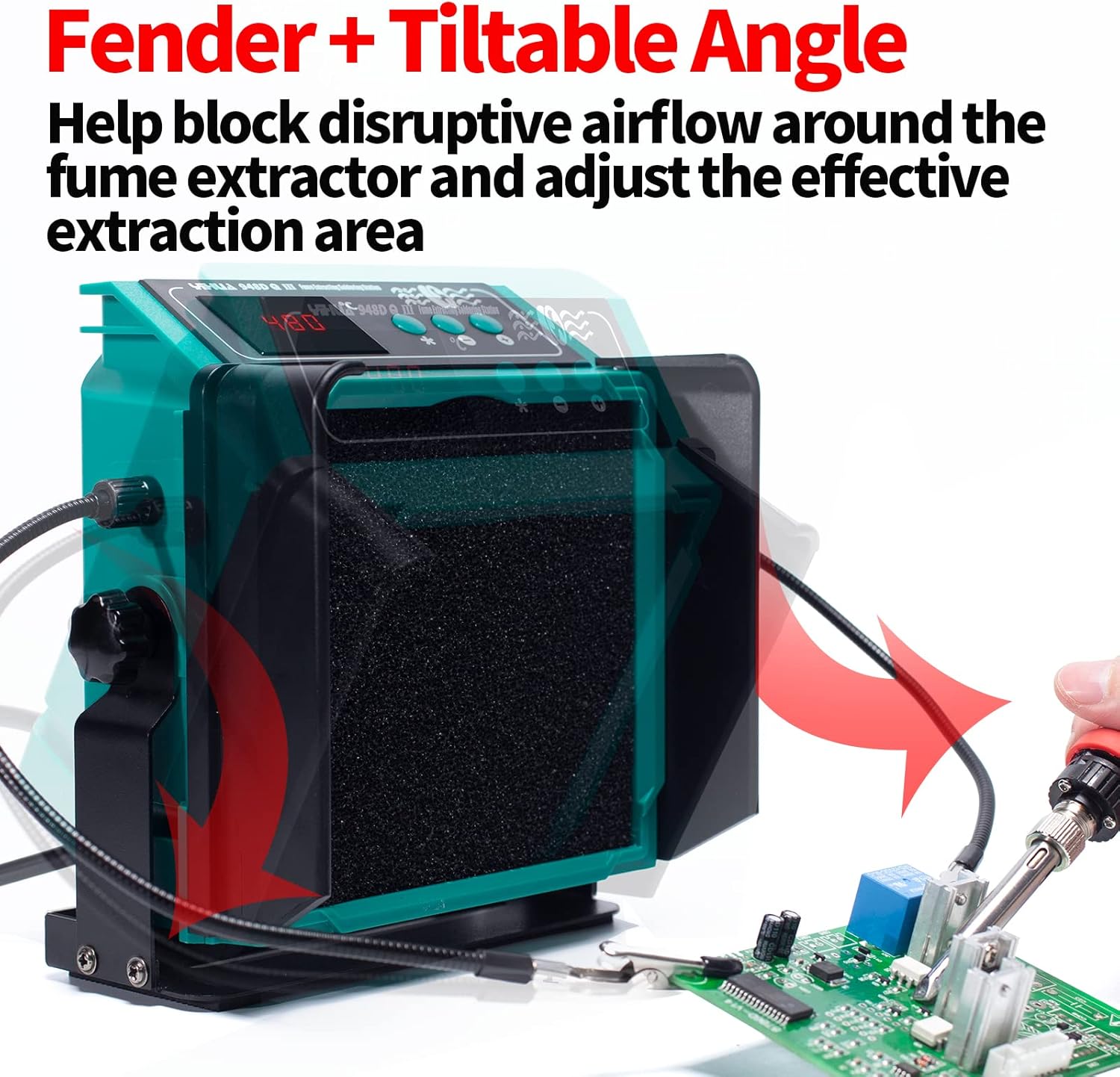

Effective Fume Extraction - Integrates a powerful, quiet 5-blade fan with a fume-directing fender design for enhanced suction and a safer workspace.

Dual Activated Carbon Filtration - High-quality, 9mm thick activated carbon filters efficiently absorb harmful particles and odors from soldering fumes.

Compact Integrated Design - Combines a full-featured digital soldering station with a fume extractor, saving valuable desk space.

Independent Control - Separate power switches allow you to use the soldering station and fume extractor simultaneously or individually, based on your task.

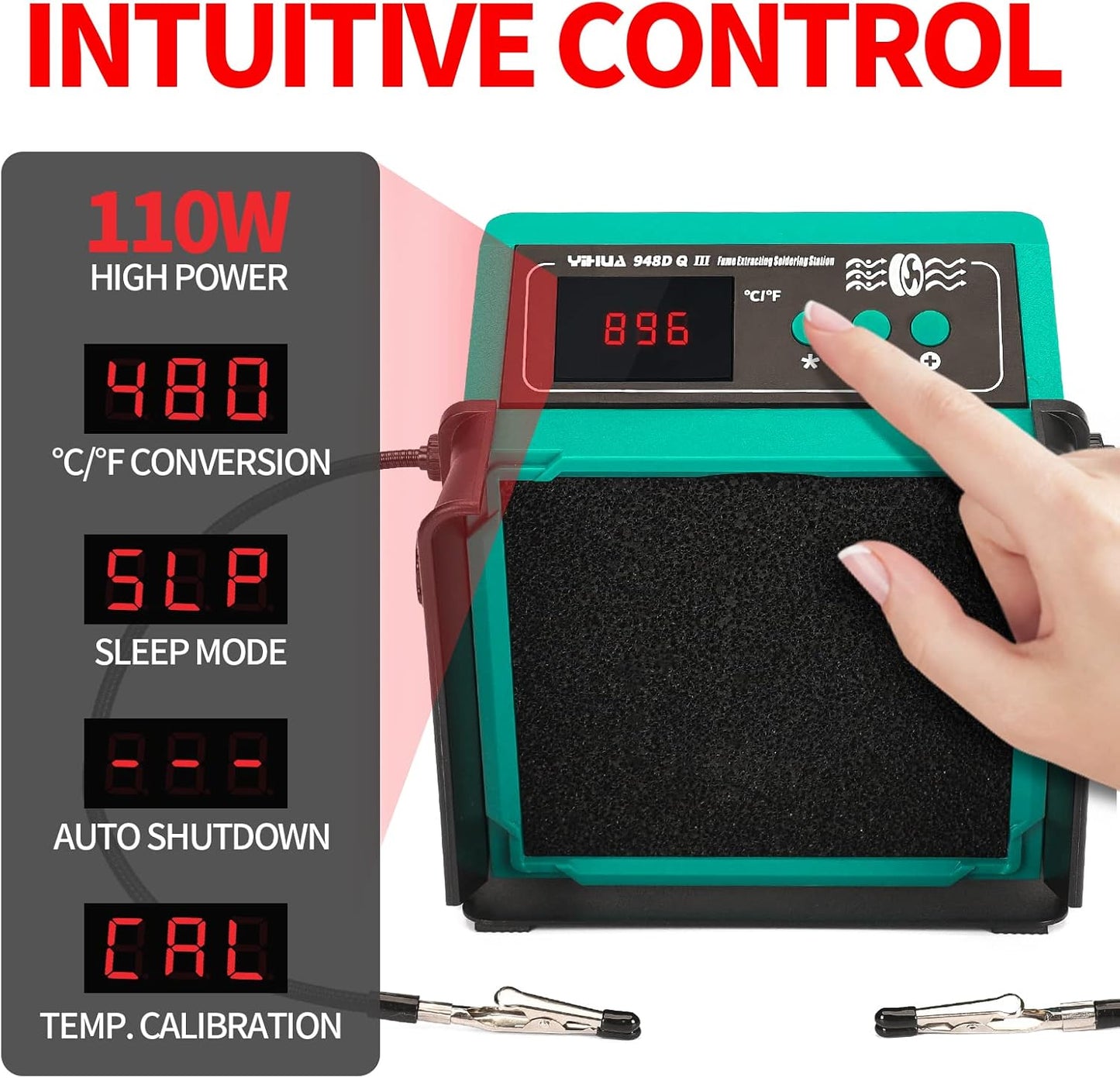

Precision PID Temperature Control - Built-in PID program monitors and precisely maintains the soldering iron's tip temperature in real-time for consistent performance and a smoother soldering experience.

Detachable Handpiece - The soldering iron handpiece is detachable, making replacement of heating elements or other consumables quick and easy.

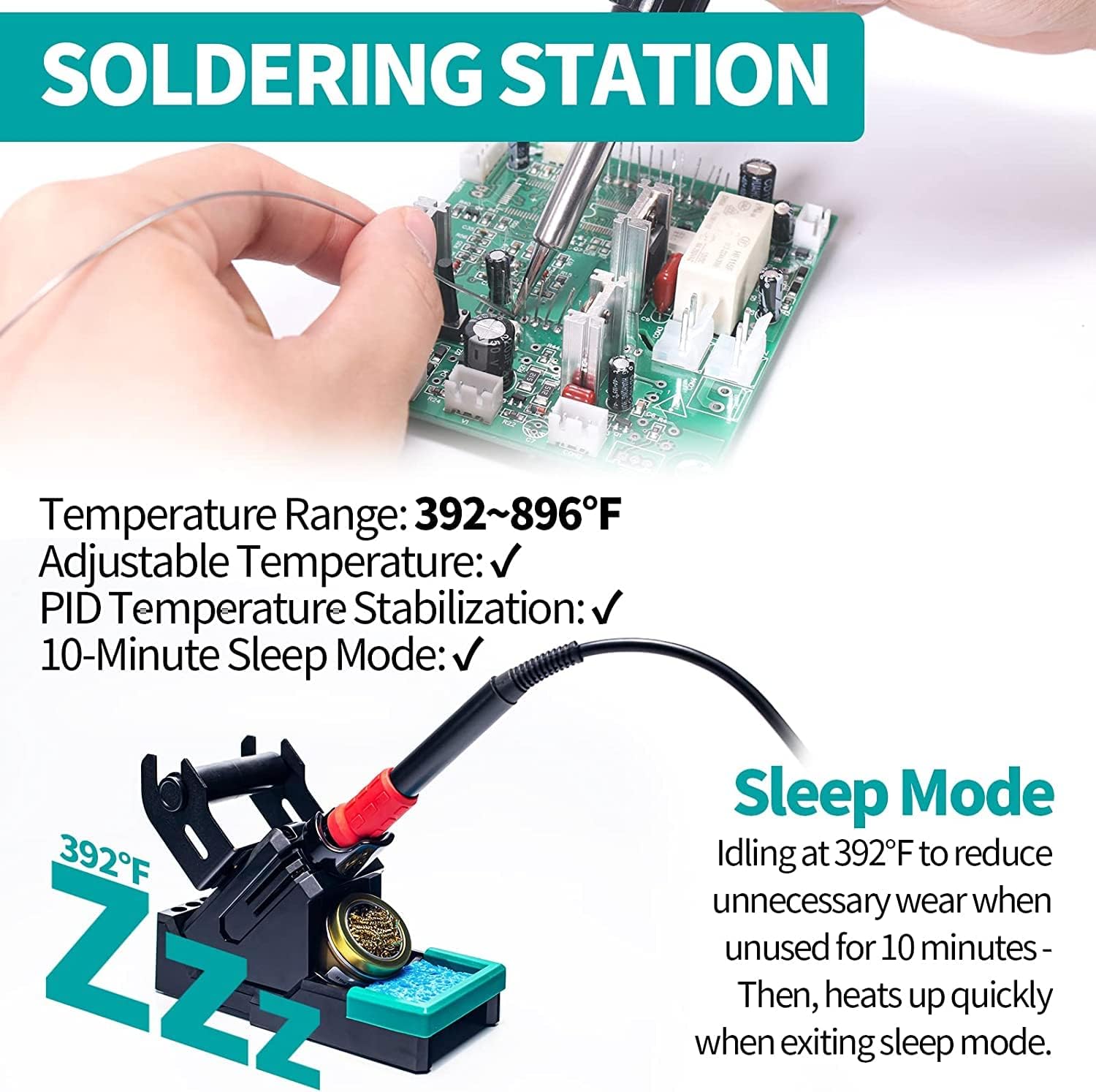

Smart Power Management - Features a 10-minute low-temperature sleep mode to extend heating element and tip lifespan, and a 30-minute automatic shut-down for enhanced safety and energy saving.

Digital Temperature Calibration - Allows for easy and accurate temperature correction by simply entering the measured value, without manual calculation.

Specifications:

Model Number: 948DQ-III
Rated Voltage Range: 220V-240V
Rated Frequency: 50Hz
Max Power: 200W
Rated Power: 25W
Main Unit Dimensions: L90*W145*H164mm ±5mm
Operating Ambient Temperature: 0-40℃/32-104℉
Temperature Range: 200-480℃/392-896℉
Display: LED Nixie
Tip to Ground Resistance: ＜2 ohms
