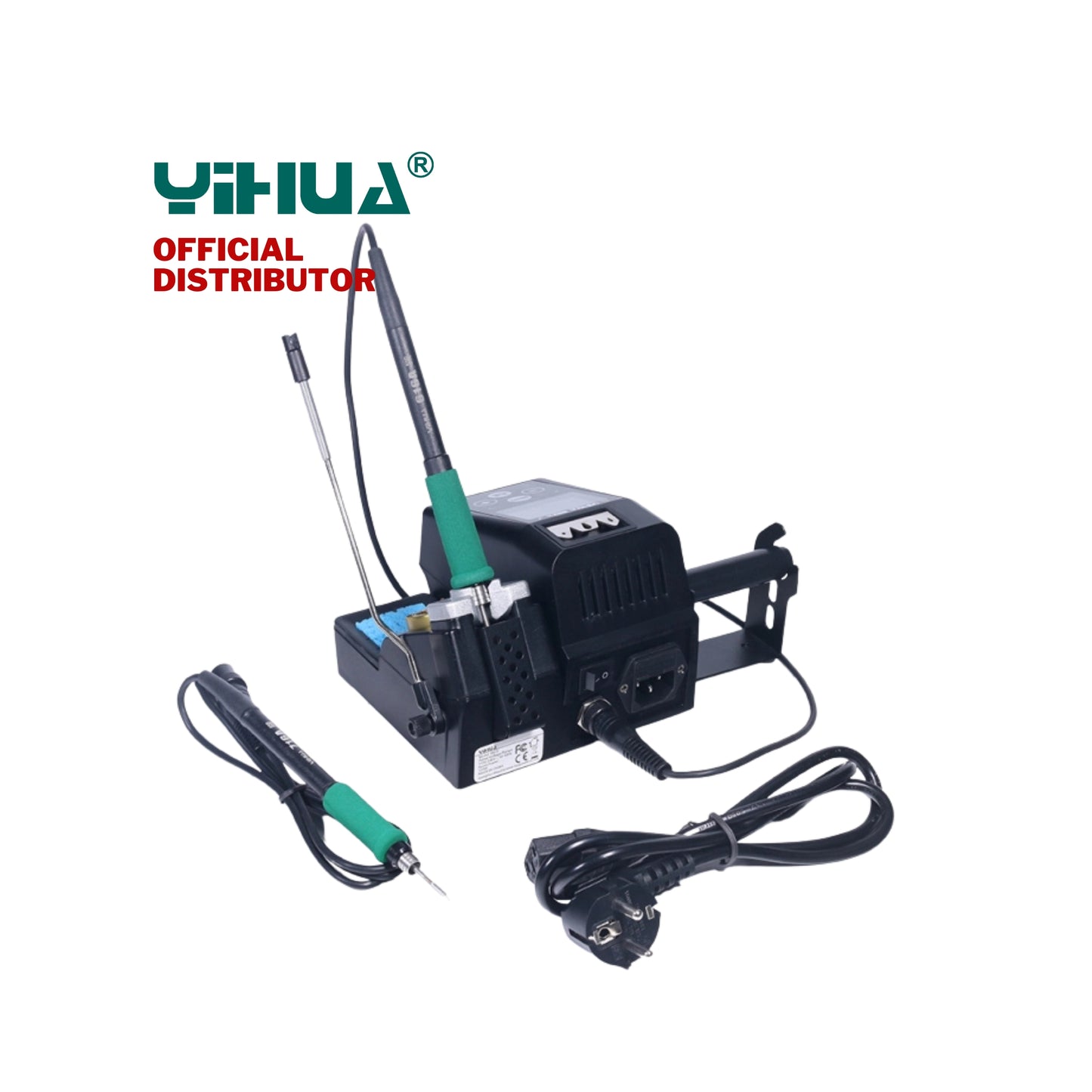

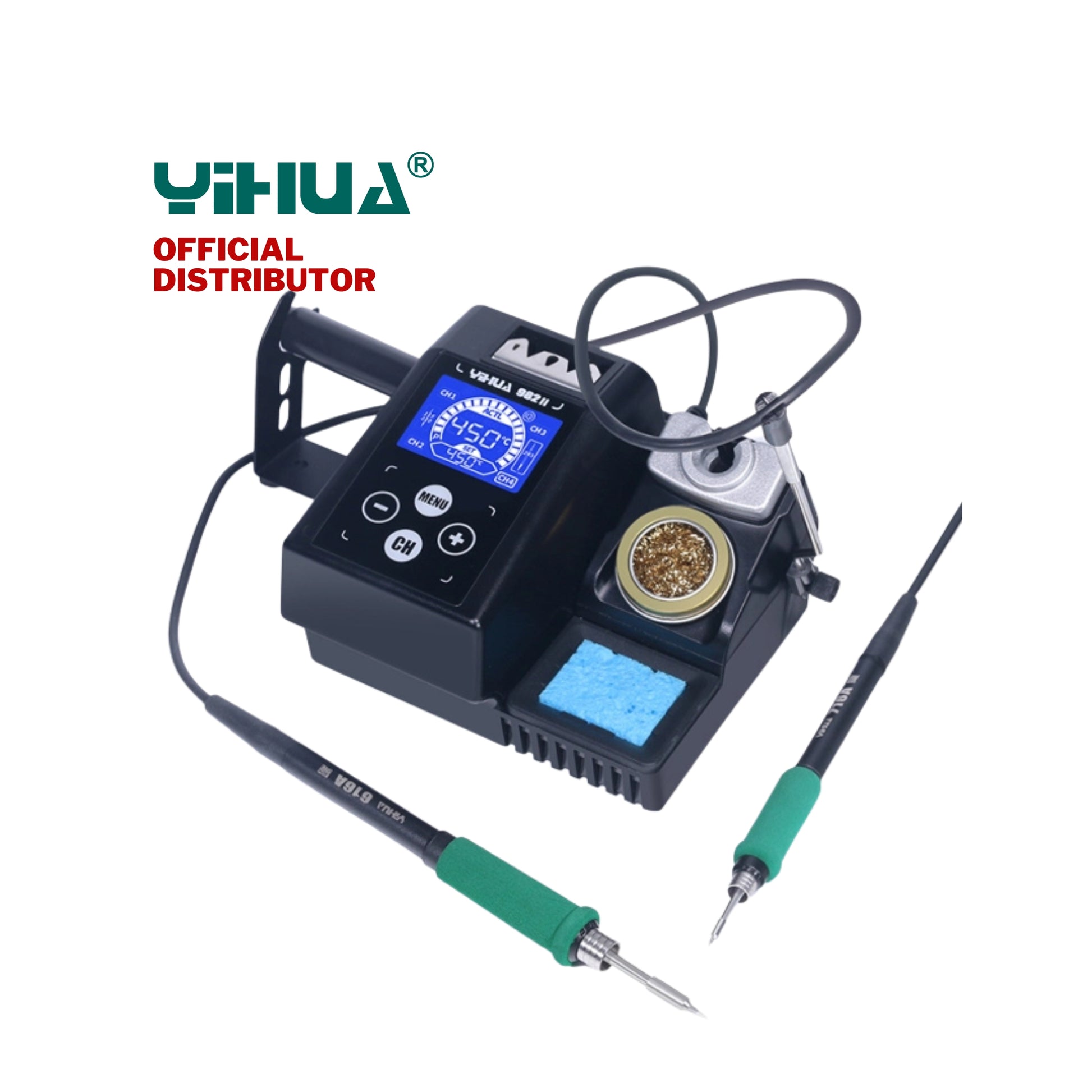

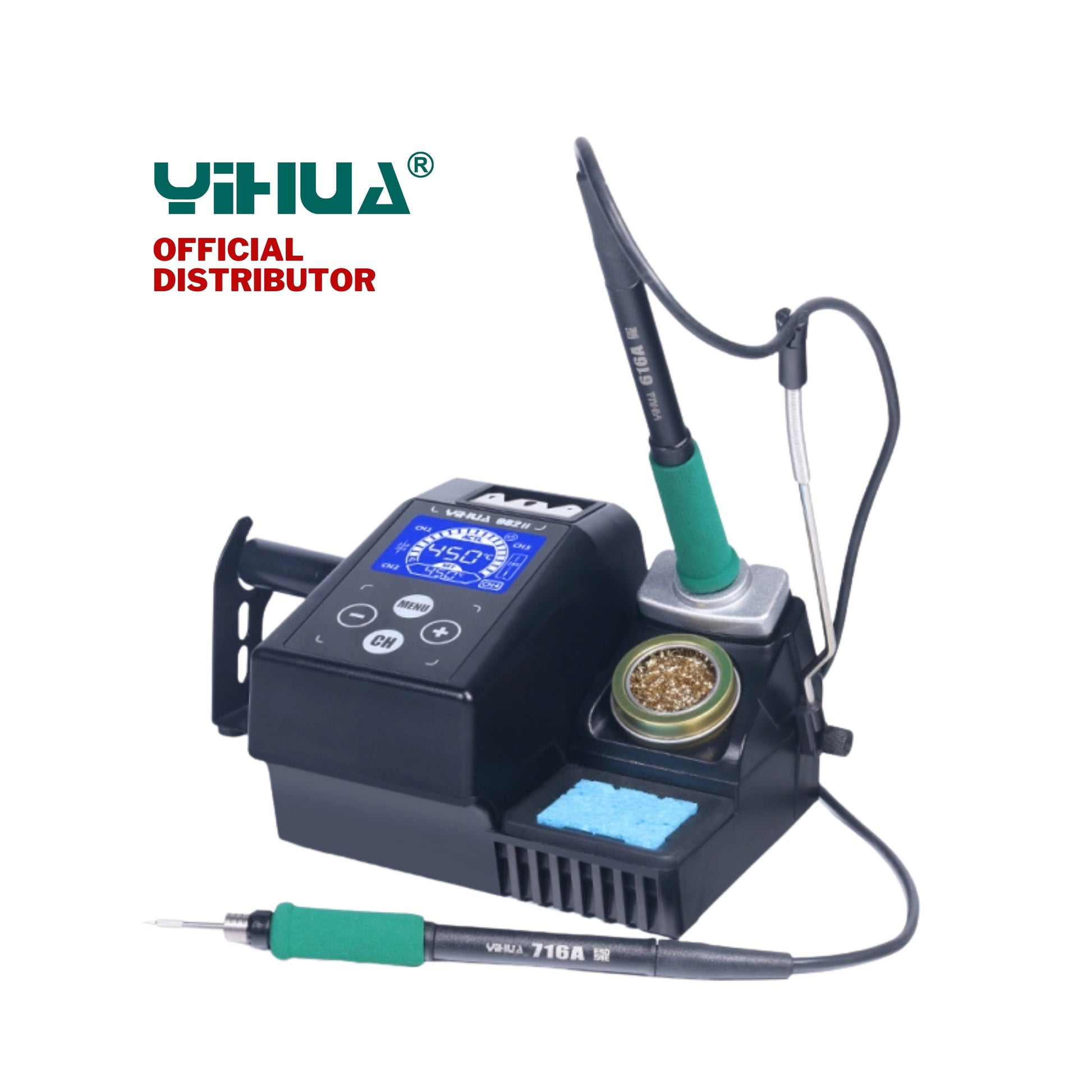

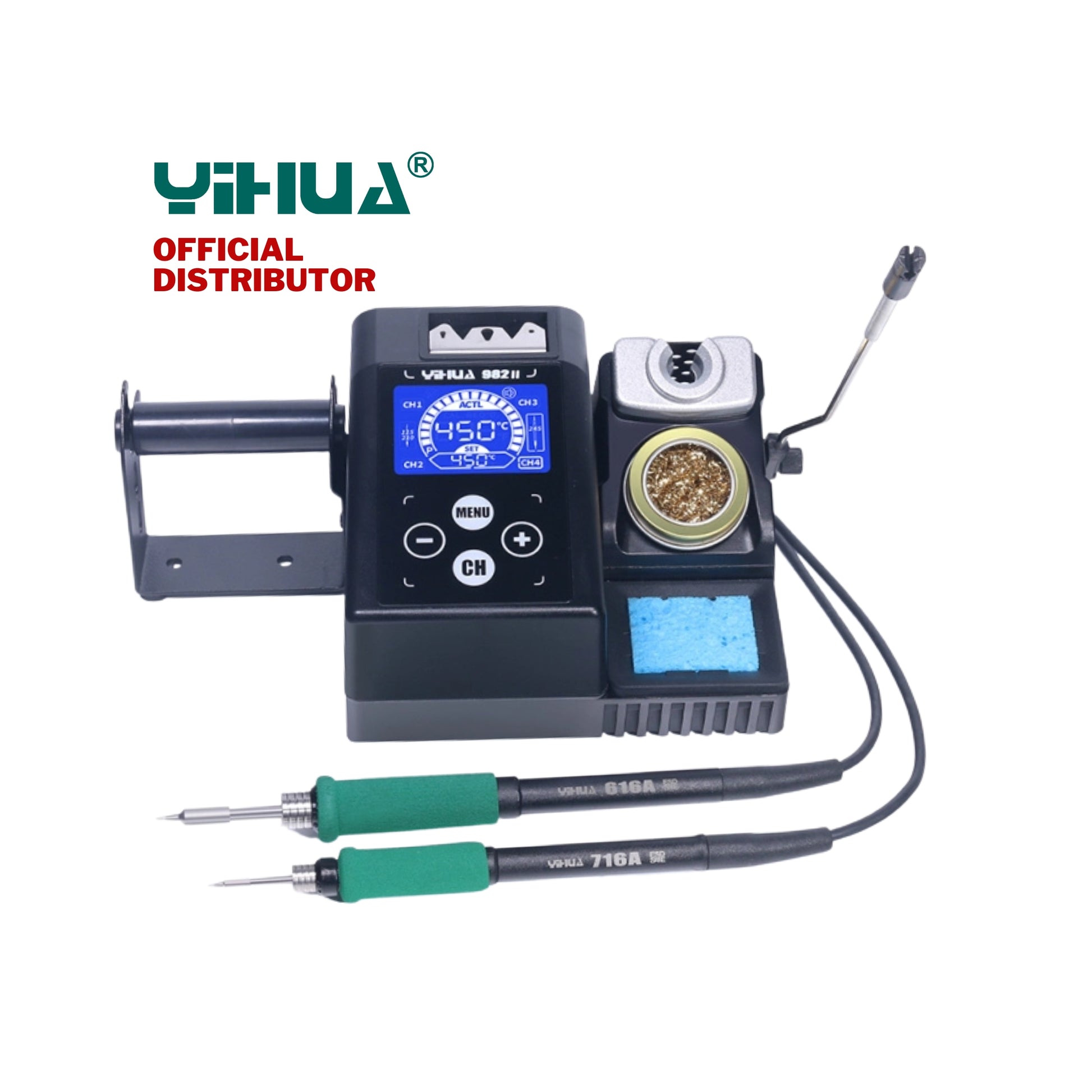

YIHUA 982-II Compatible Soldering Iron Handle C210 C245 Lead Free Welding Rework Soldering Station

Description:

Designed for accuracy and efficiency, our YIHUA 982-II features a rapid-heating soldering tip and advanced PID technology to maintain stable, consistent temperatures throughout your work.

Features:

• Equipped with both the C210 and C245 compatible soldering handpiece, you can solder both micro-sized and standard-sized components. (C245 for general soldering, C210 for precision soldering). Compatible tips include C210/C245-I/K/SI.Muti package for you choose package 1: with C210 package 2: with C245 package 3: with C210+C245.
• Just 1 second heats to operating temperature, 90-450℃ option, when temperature deviation happens because of environmental impact or replacing the spare parts such as heating element, soldering iron, you can use digital temperature calibration to correct.
• Smart touch screen, LCD display, quick and accurate temperature adjustment.
• Fahrenheit/Celsius can be easily switched to meet different market demands.
• Four Programmable Presets Available: You can preset temperature in each memory channel for different needs. When soldering, you can quickly select the suitable preset temperature settings in CH1/CH2/CH3/CH4 according to different soldering applications.
• Sleep Mode: The sleep time can be set, including 0/5/10/30 minutes. You can pick up the soldering iron to wake the station. This extends the lifespan of the heating element, conserves energy, and protects the environment.
• Automatic Shut-Down: When the soldering iron enters sleep mode and isn’t picked up within approximately 30minutes, the soldering station will automatically shut off, you can pick up the soldering iron to restart the soldering station. This prevents leaving the station ON unsupervised or forgetting to turn OFF the station.
• Buzzer Prompt: The soldering iron has built-in buzzer to remind.
• Machine body integrates useful functions such as brass wool tip cleaner, cleaning sponge with temperature-resistant surround, tip-change/storage groove, solder wire dispenser, handpiece cable guide, calibration thermocouple, and more.

Specifications:

• Model: 982-II
• Rated power: 120W(C245 handpiece)/40W(C210 handpiece)
• Main unit dimensions: L147×W143×H106±5mm
• Operating ambient temperature: 0~40℃/32℉~104℉
• Temperature range: 90℃~450℃/194℉~842℉
• Display: LCD
• Tip-to-ground resistance:＜2 Ohms

This station intelligently adjusts its output based on the connected handpiece:

• 120W when paired with a C245 handpiece, ideal for high-power, general-purpose soldering tasks.
• 40W when paired with a C210 handpiece, perfect for precision work on delicate components
