SKU:MLE00509

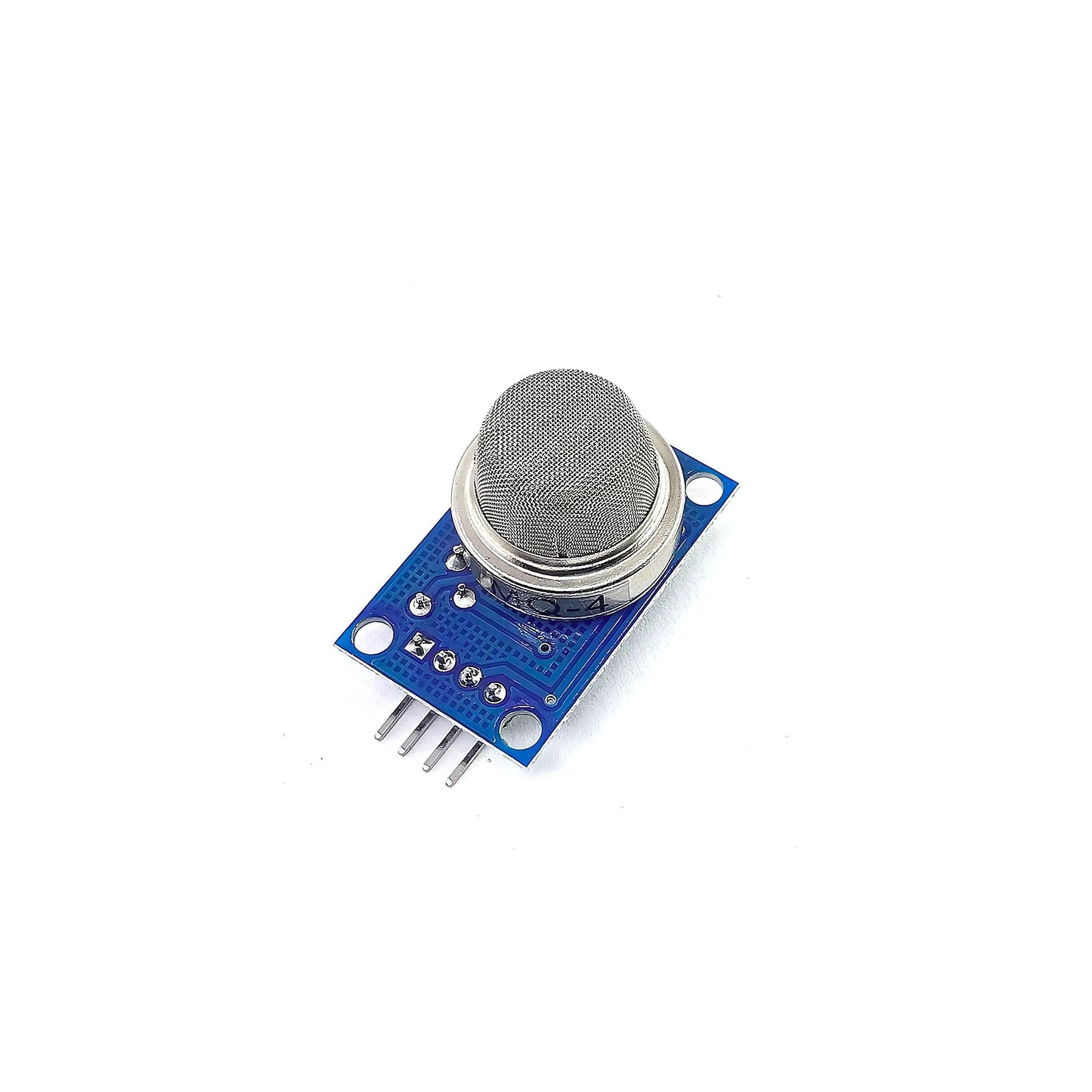

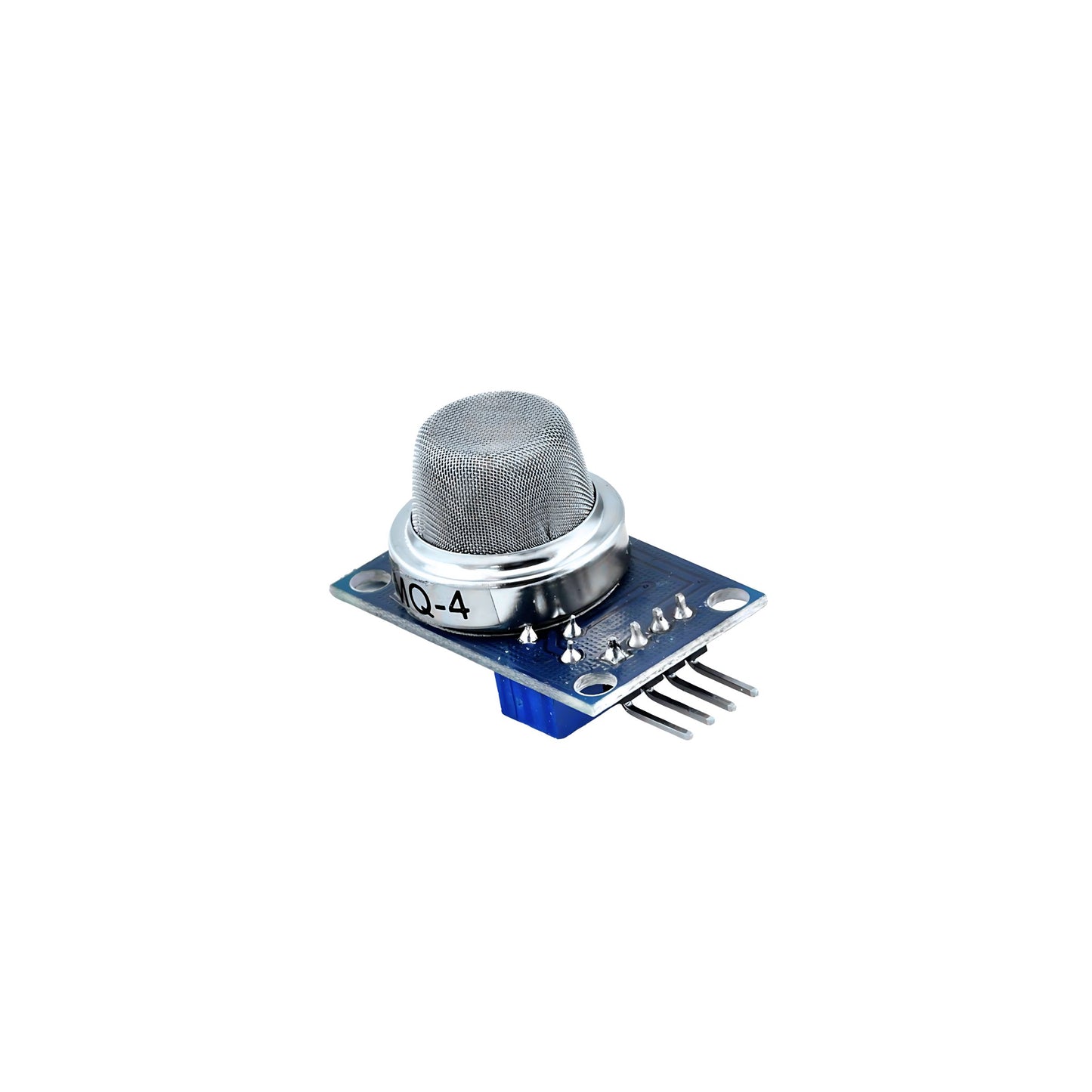

MQ-4 Methane Gas Sensor

₱75.00
₱75.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Loading locations...
Or 3 months for only ₱1,000 with . Learn More.

About the Product

Description:

The MQ-4 Methane Gas Sensor is specifically designed for the detection of methane (CH4), the primary component of natural gas. It utilizes a Metal Oxide Semiconductor (MOS) type sensor, where the sensing material, tin dioxide (SnO2) doped with a catalyst, undergoes a change in electrical conductivity when exposed to methane or natural gas. The change in conductivity is then converted into an analog voltage output that corresponds to the concentration of the detected gas. The MQ4 offers good sensitivity to methane and is widely used in applications related to natural gas leak detection and monitoring.


Features:

  • High Sensitivity to Methane and Natural Gas
  • Good Sensitivity in a Wide Range
  • Fast Response
  • Stable and Long Lifespan
  • Low Cost
  • Simple Drive Circuit


Specifications:

Target Gas: Methane (CH4), Natural Gas (primarily methane with smaller amounts of other hydrocarbons)
Detection Range: 200 ppm - 10000 ppm
Operating Voltage: 5V DC ± 0.1V AC/DC
Heating Voltage: 5V DC ± 0.1V AC/DC
Heating Consumption: < 750 mW
Load Resistance: 20KΩ
Heater Resistance: 33Ω ± 5% (Room Temperature)
Preheat Time: Over 24 hours
Operating Temperature: -10°C - 50°C
Storing Temperature: -20°C - 70°C
Operating Humidity: < 95% RH
Standard Condition: Temperature: 20°C ± 2°C; Humidity: 65% ± 5% RH


Application:

Domestic Gas Leakage Detection
Industrial Combustible Gas Detectors
Portable Gas Detectors
Gas Leak Alarms
Environmental Monitoring for Methane Emissions
Smart Home Gas Detection Systems
Educational and Hobbyist Projects
