SKU:MLE04208
reComputer J1010 with Jetson Nano 4GB
₱15,990.00
₱15,990.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with
. Learn More.
. Learn More.
Couldn't load pickup availability
About the Product
Description:

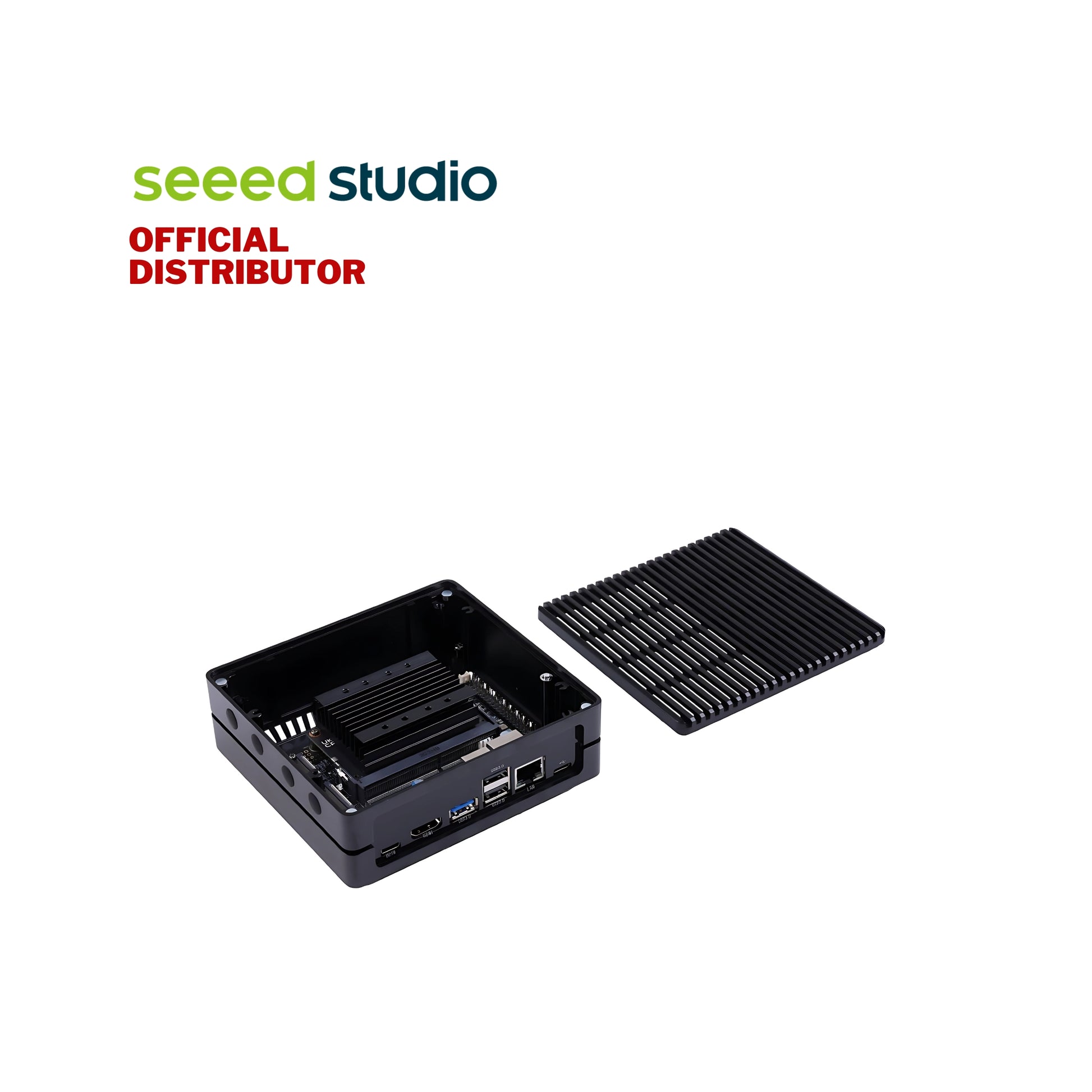

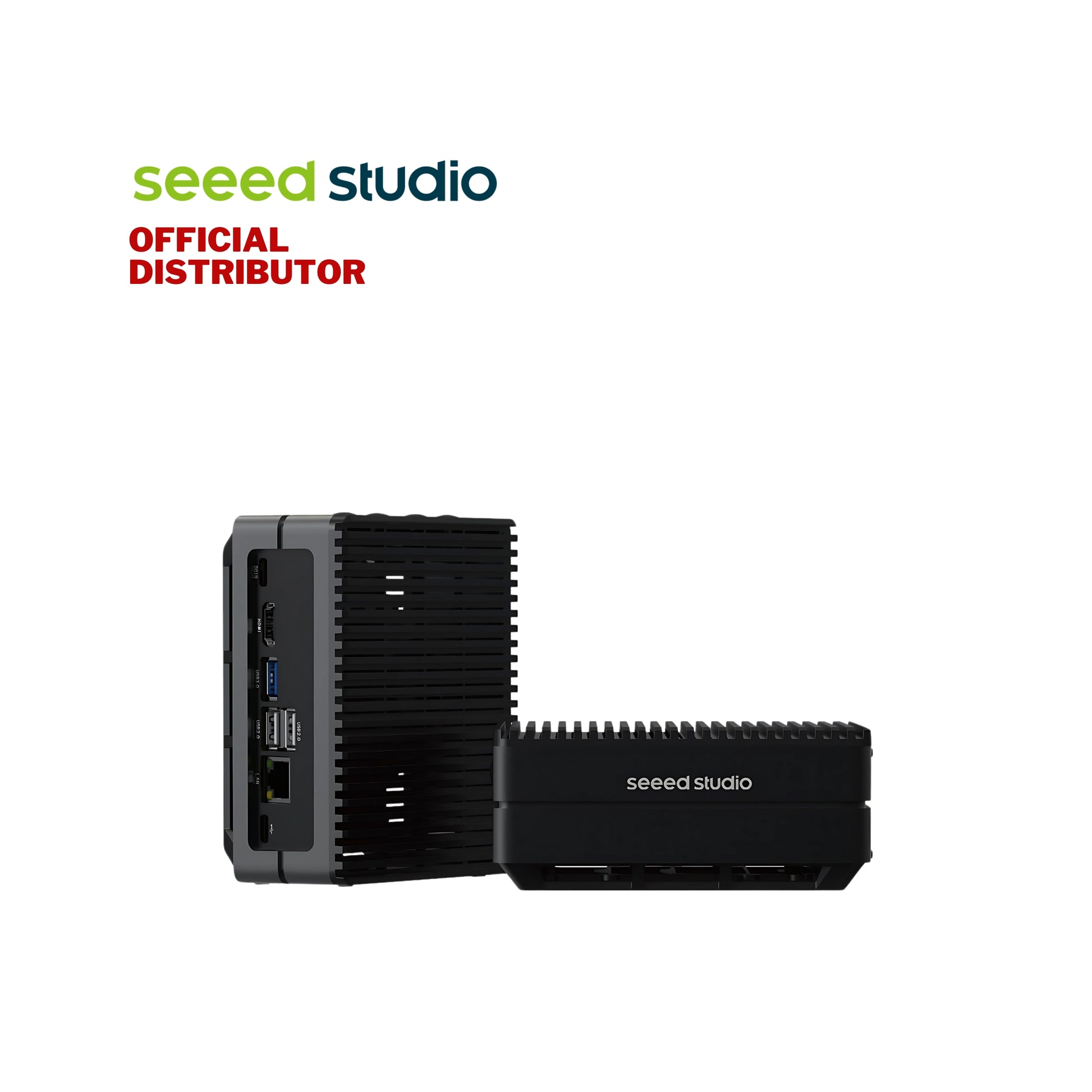

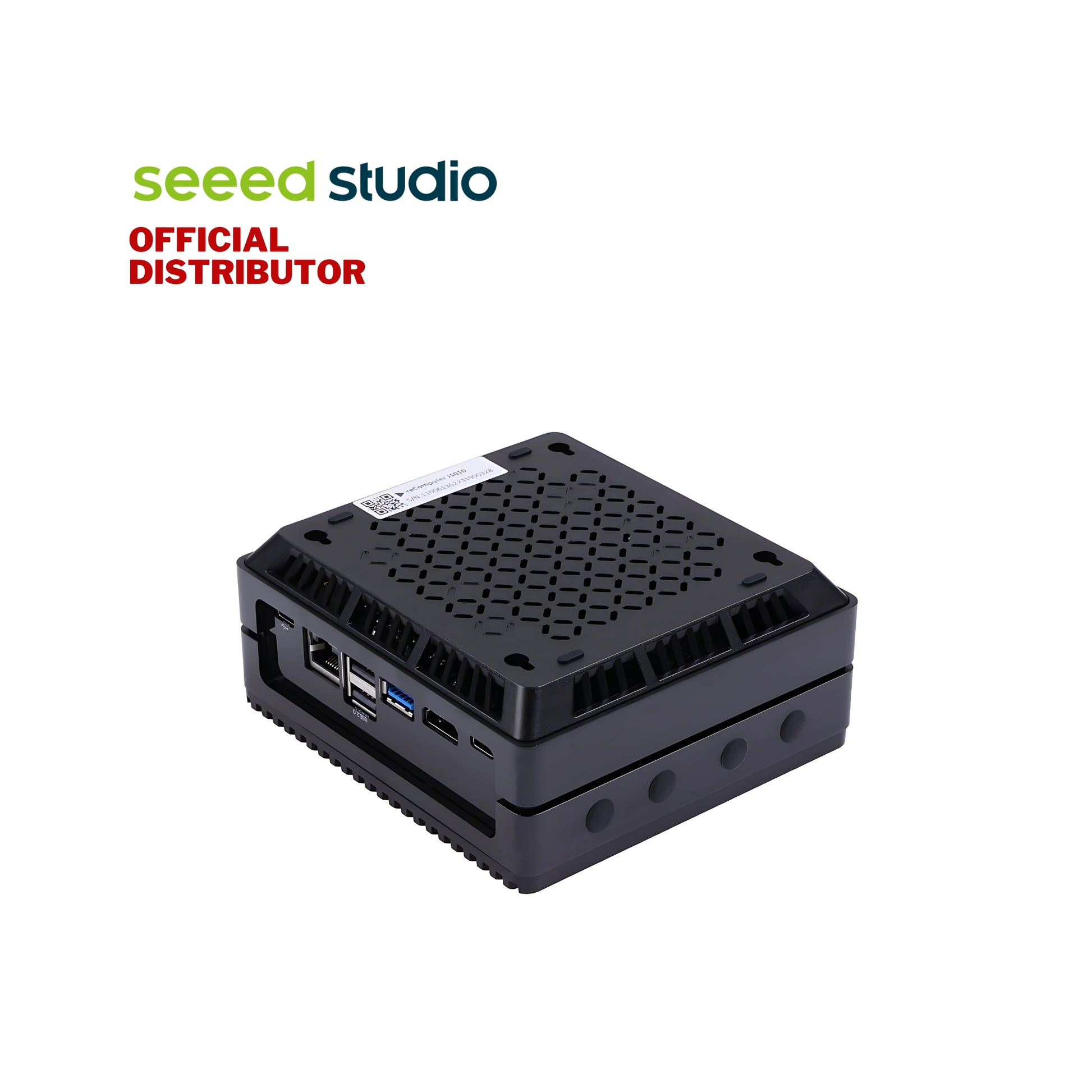

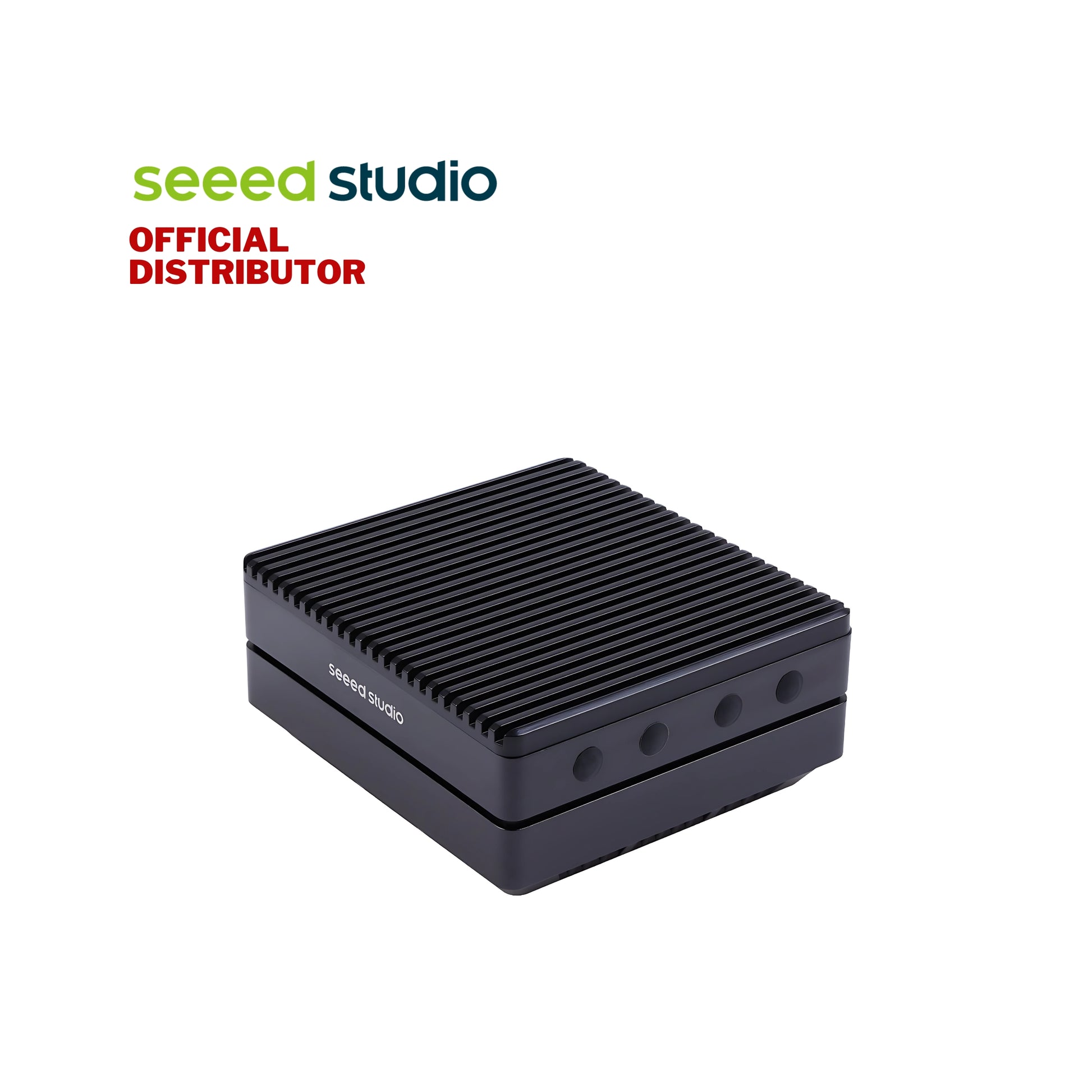

The reComputer J1010 is a hand-sized Edge AI computer with 0.5 TFLOPs of power, built with the NVIDIA Jetson Nano 4GB production module. It features a rich set of IOs, an aluminum case, a passive heatsink, pre-built Jetpack 4.6.1, onboard 16 GB eMMC, 2x SCI, 1x USB 3, 2x USB 2, M.2 Key E, HDMI, and Type-C connector.
Features:
Compact and Powerful: Hand-size edge AI full system delivering modern AI power of 0.5 TFLOPs (FP16) and rich interfaces for embedded development.
Ready for Development and Deployment: pre-installed NVIDIA JetPack supports the entire Jetson software stack and industry-leading AI developer tools for building robust AI applications such as logistics, retail, service, agriculture, smart city, healthcare, and life sciences.
Power Efficient: powered by Type C 5V/3A, consuming as little as 5 watts. Expandable with the onboard interfaces and the reComputer case, able to mount on the wall with mounting holes on the back.
Specifications:
Jetson Nano 4GB System on Module
-
Al Performance: Jetson Nano 4GB - 0.5 TOPS
-
GPU: NVIDIA Maxwel™ architecture with 128 NVIDIA CUDA® cores
-
CPU: Quad-core ARM Cortex-A57 MPCore processor
-
Memory: 4 GB 64-bit LPDDR4 25.6 GB/s
-
Video Encoder: 1x 4K30 | 2x1080p60 | 4x1080p30 | 4x720p60 | 9x720p30 (H.265 & H.264)
- Video Decoder: 1x 4K60 | 2x 4K30 | 4x 1080p60 | 8x 1080p30 | 9x 720p60 (H.265 & H.264)
Carrier Board
-
Storage: 1x TF_Card
-
Networking:
-
Ethernet: 1x RJ-45 Gigabit Ethernet (10/100/1000M)
-
M.2 KEY E: 1x M.2 Key E for WiFi/Bluetooth module
-
Ethernet: 1x RJ-45 Gigabit Ethernet (10/100/1000M)
-
I/O:
-
USB: 1x USB 3.0 Type A; 2x USB 2.0 Type A; 1x USB Type C for device mode; 1x USB Type C for 5V power input
-
Camera: 2x CSI
-
Display: 1x HDMI Type A
-
Fan: 1x 4 pin Fan Connector (5V PWM)
-
Multifunctional Port: 1x 40-Pin Expansion header; 1x 12-Pin Control and UART header
-
USB: 1x USB 3.0 Type A; 2x USB 2.0 Type A; 1x USB Type C for device mode; 1x USB Type C for 5V power input
-
Power: USB-Type C 5V⎓3A
-
Mechanical:
-
Dimensions (W x D x H): 130 mm x 120 mm x 58.5 mm (with case)
-
Installation: Desk, wall-mounting
-
Dimensions (W x D x H): 130 mm x 120 mm x 58.5 mm (with case)
- Operating Temperature: 0℃ ~ 60℃
Hardware Overview:
- reComputer J101 carrier board, included in the full system - reComputer J1010
Application:
Computer Vision
Machine Learning
Autonomous Mobile Robot (AMR)
Documents:
Part List:
1x reComputer J1010 (System Installed)
Note: The power supply and RTC (CR1220) are not included.
