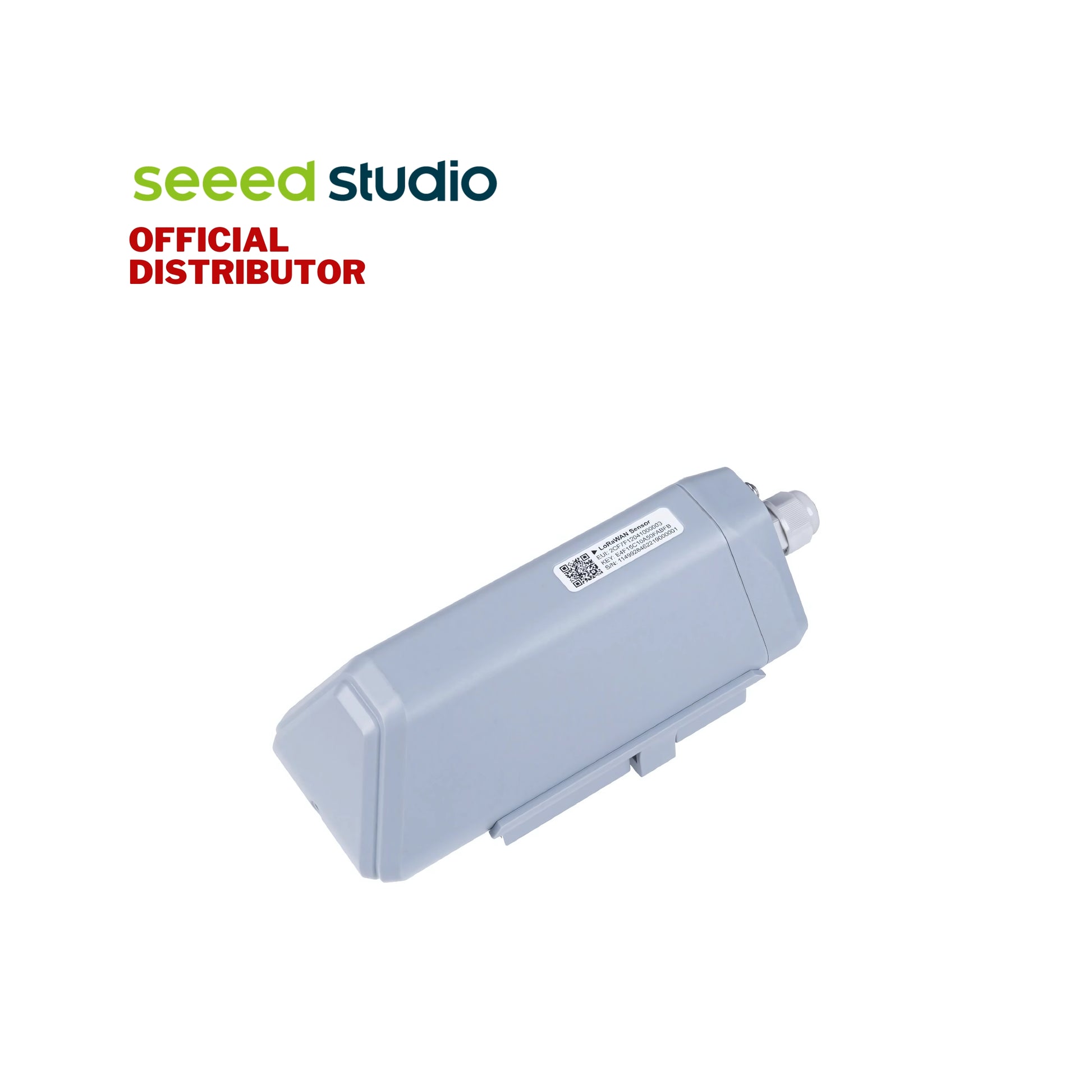

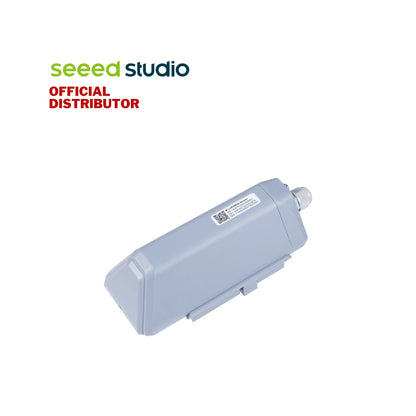

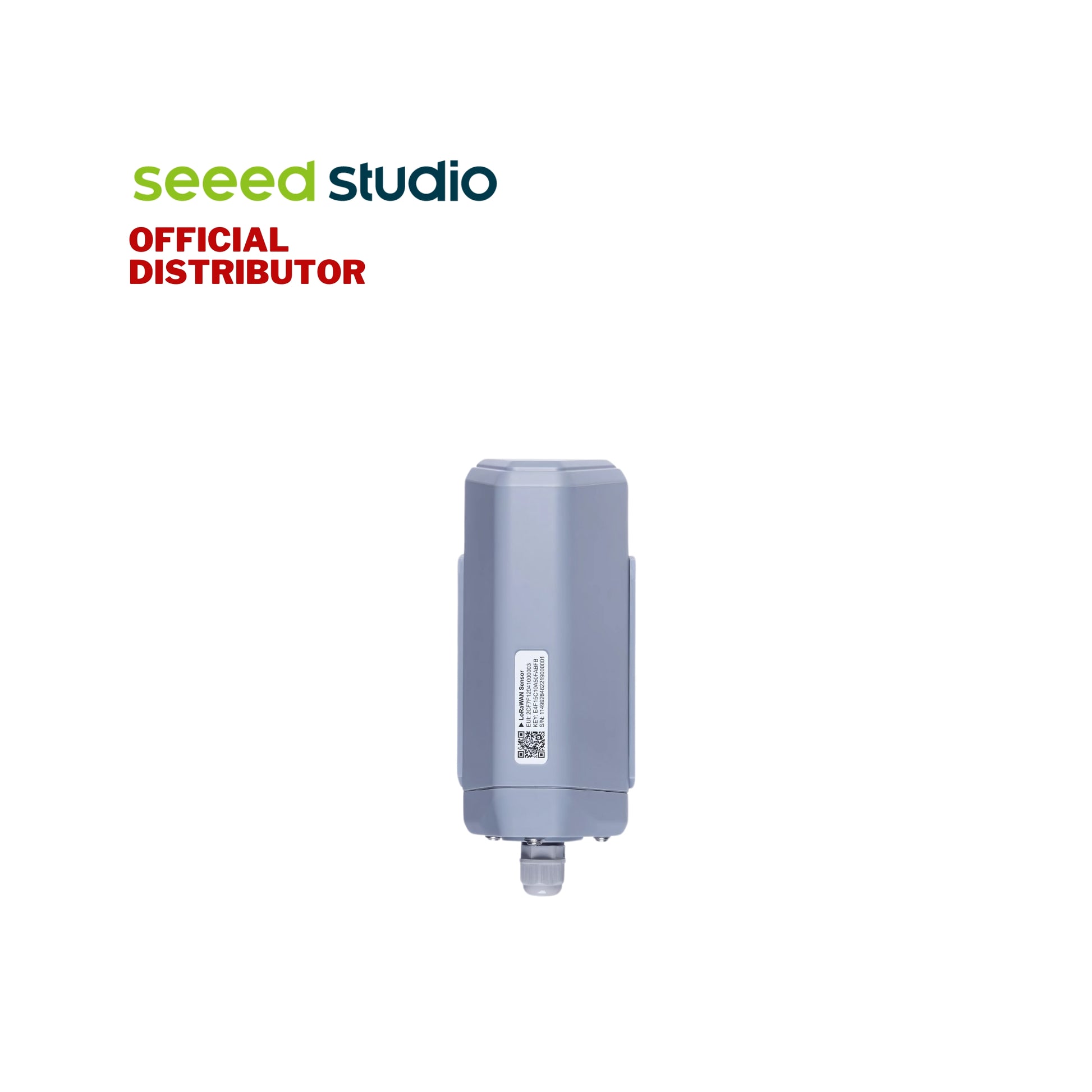

SenseCAP S2100 - LoRaWAN® Data Logger/DTU

Name: SenseCAP S2100 - LoRaWAN® Data Logger/DTU
Brand: Others
SKU: MLE06273
Price: 3999.0 PHP
Availability: OutOfStock

₱3,999.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Loading locations...

Or 3 months for only ₱1,000 with

. Learn More.

Quantity

About the Product

Description:

The SenseCAP S2100A is a battery-powered LoRaWAN® IP66 wireless data logger/ DTU that supports RS485/Analog/GPIO sensors, equipped with built-in Bluetooth and APP service for OTA configuration and remote device management.

Features:

Strong Compatibility with Different Sensors: supports all MODBUS-RTU RS485/Analog(4~20mA/0~10V) / GPIO(level/pulse) sensors.

Compatible with Worldwide LoRaWAN® Networks: Compatible with LoRaWAN® V1.0.3 protocol and can work with LoRaWAN® gateway (supports the universal frequency plan from 863MHz ~928MHz).

Long Range & Replaceable Battery Powered: With LoRaWAN® wireless transmission, the S2100 supports a 19Ah built-in battery and external 12V DC to supply devices, and an ultra-wide-transmission range of 2km in urban scenes and 10km in line of sight scenes.

Designed to Use in Harsh Environments: -40℃ ~ 85℃ operating temperature and IP66 rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc.

Remote Configuration and Management: Seeed provides SenseCAP Mate APP and SenseCAP Portal, allows users to remotely manage data and configure.

Specifications:

Interface

Current Input: 4 to 20 mA (2 channel)
Voltage Input: 0 to 10V (2 channel)
RS485: RS485 Modbus-RTU Protocol

General Parameters

Product Model: SenseCAP S2100
Microcontroller: Wio-E5
Support Protocol: LoRaWAN v1.0.3 Class A
Built-in Bluetooth: App Tool to change parameters and set data conversion algorithm
Long-Range Channel Plan: IN865/EU868/US915/AU915/ AS923*
Max Transmitted Power: 19dBm
Sensitivity: -136dBm@SF12 BW=125KHz
Communication Distance: 2 to 10km (depending on the environment)
IP Rating: IP66
Operating Temperature: -40 to +85 °C
Operating Humidity: 0 to 100 %RH (non-condensing)
Device Weight: 280g
Certification: CE / FCC / RoHS

Battery (Contained in equipment)

Battery Life: Up to 10 years**
Battery Capacity: 19Ah (non-rechargeable)
Battery Type: Standard D-size SOCl2 Battery

Application:

Precision Agriculture

Industrial Manufacturing

Smart Building

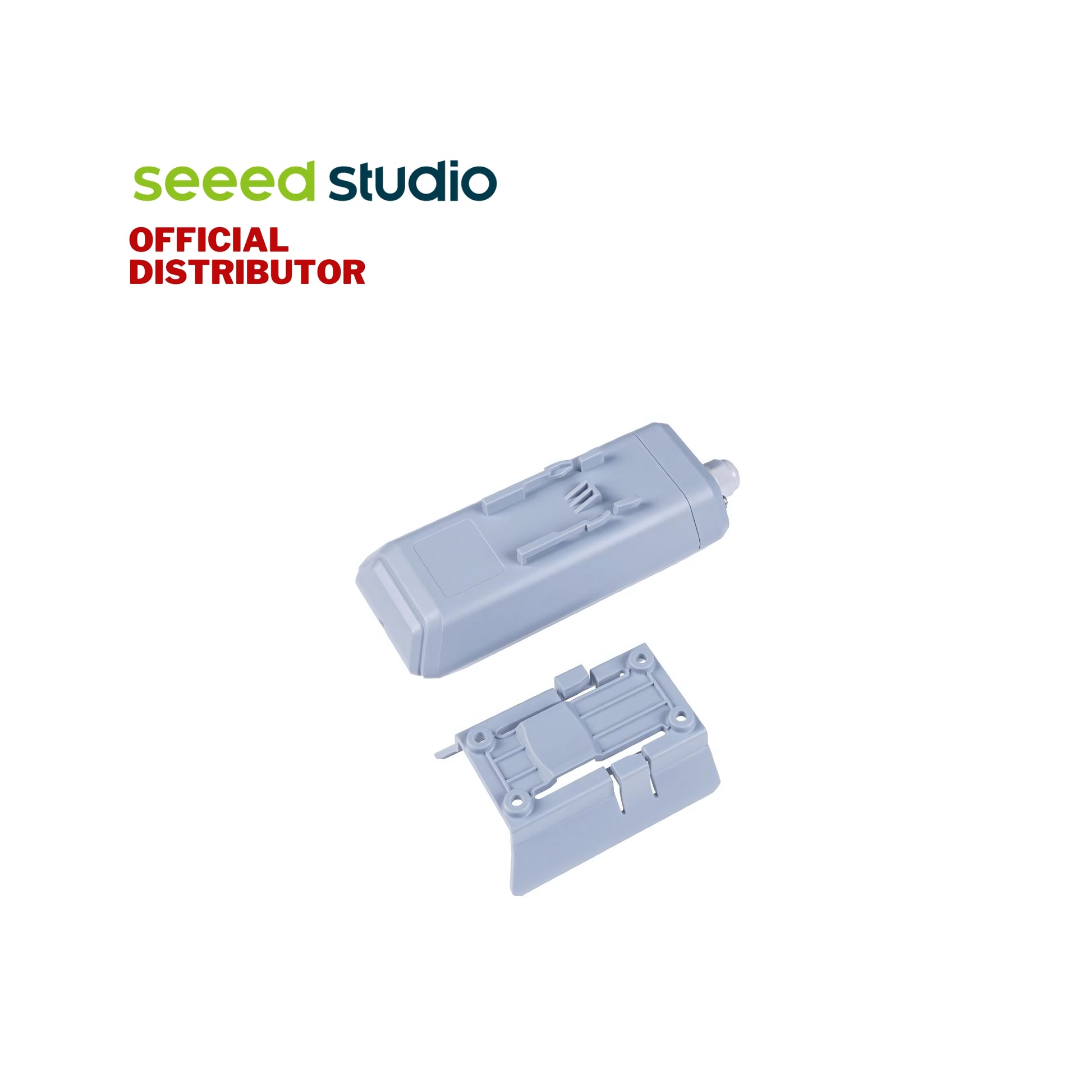

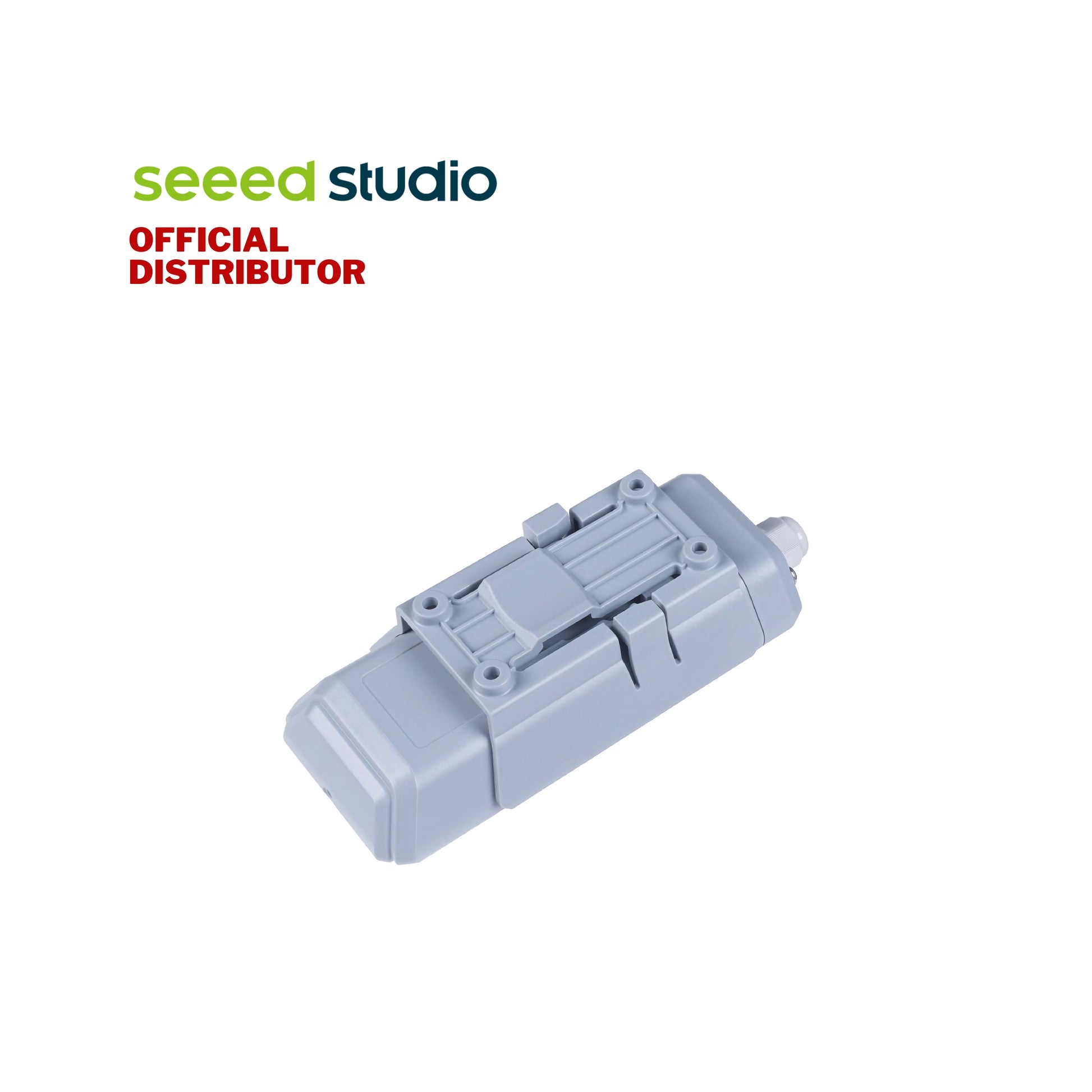

Hardware Overview:

SenseCAP S2100 Data Logger/DTU can connect to MODBUS-RTU RS485/Analog/GPIO sensors and transmit data from sensors to the LoRaWAN network. Benefits from LoRa and IP66 design, this device features stability and reliability and can cover a long transmission range while keeping ultra-low power consumption, ideal for outdoor use. It is specifically optimized for OTA with built-in Bluetooth, which enables quick setup and update. It can be battery-powered or connected to a 12V external power supply. When the 12V power supply is connected, the replaceable built-in battery is set to be used as the backup power supply. What's more, with the help of the S2110 converter, the S2100 Data Logger/DTU can connect to Grove Sensor. It is an ideal solution for developing, fast prototyping, and small deployment for DIY Industrial level LoRaWAN Sensors.

S2100 LoRaWAN Data Logger/DTU supports MODBUS-RTU RS485/Analog/GPIO input and transmits the data from sensors to the LoRaWAN network.

It can cover a transmission range of 2km in urban scenes and 10km in line-of-sight scenes while keeping lower power consumption during the transmission process. Together with a replaceable battery that supports up to 10 years of usage and an industrial IP66 enclosure. It supports -40 ~ 85℃ operating temperature and can be deployed in harsh environments.
