3pin Photosensitive Sensor Module Light Dependent Control LM393
Share
About the Product

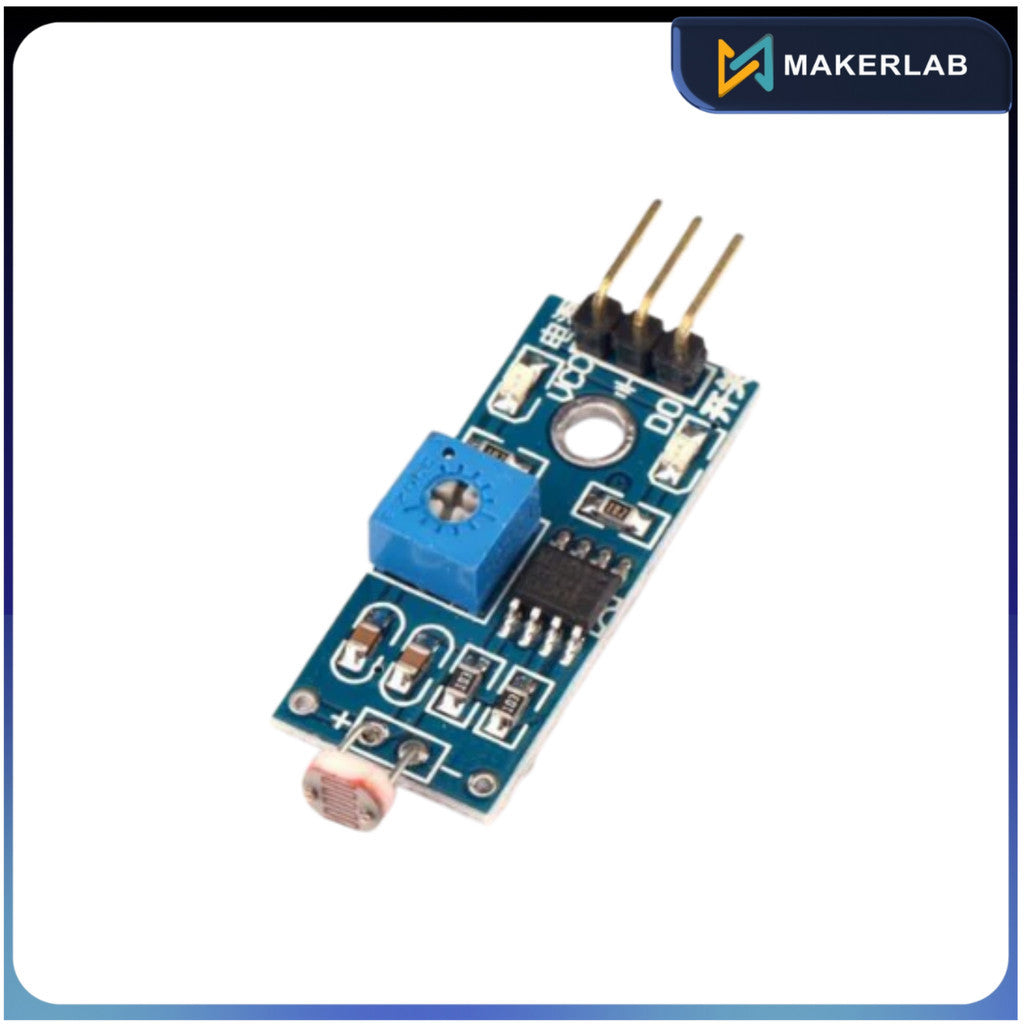

This LM393 Photosensitive Light-Dependent Control Sensor LDR Module is using a high-quality LM393 voltage comparator. Easy to install using the sensitive type photosensitive resistance sensor the comparator output signal gives a clean and good waveform.
Driving ability is 15mA with the adjustable potentiometer, it can adjust the brightness of the light. Working voltage is 3. 3V to 5v. Where output is a digital switch output. Since this module is sensitive to the light, usually used for detecting the ambient brightness and light intensity.
You can use this board digital output DO port drive relay module directly, and can also use it as a photoelectric switch.
Features :
1.It comes with a Mounting Hole Screw.
2. Easy to install
3.Signal output indicator light.
4. LDR module 3 PIN
5. Able to detect ambient brightness and light intensity Adjustable sensitivity (via blue digital potentiometer adjustment)
6. Output: DO digital switch output (0 and 1)
