DFRobot Gravity: PPG Heart Rate Monitor Sensor for Arduino | SEN0203

Description:

Heart Rate Sensor compatible with Arduino

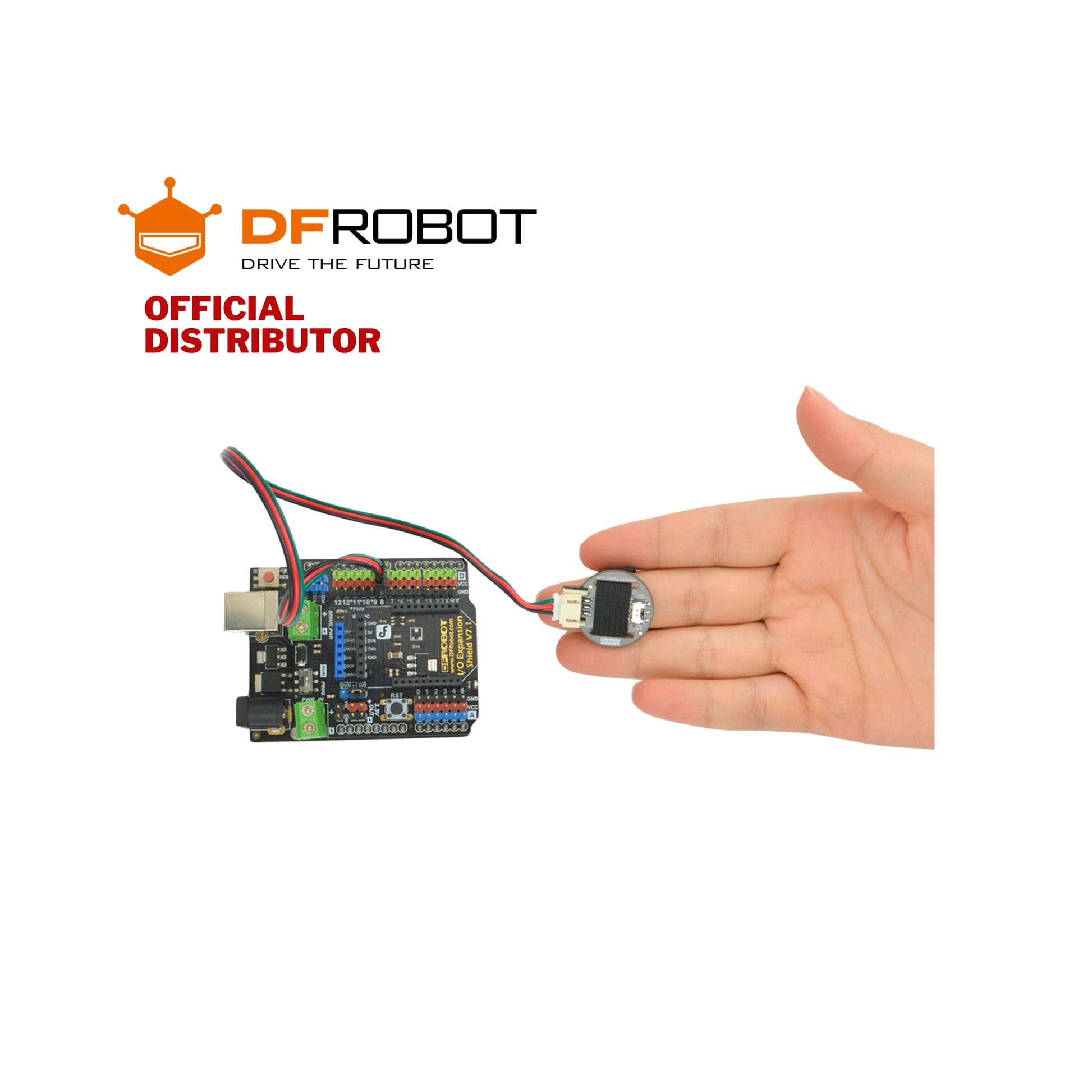

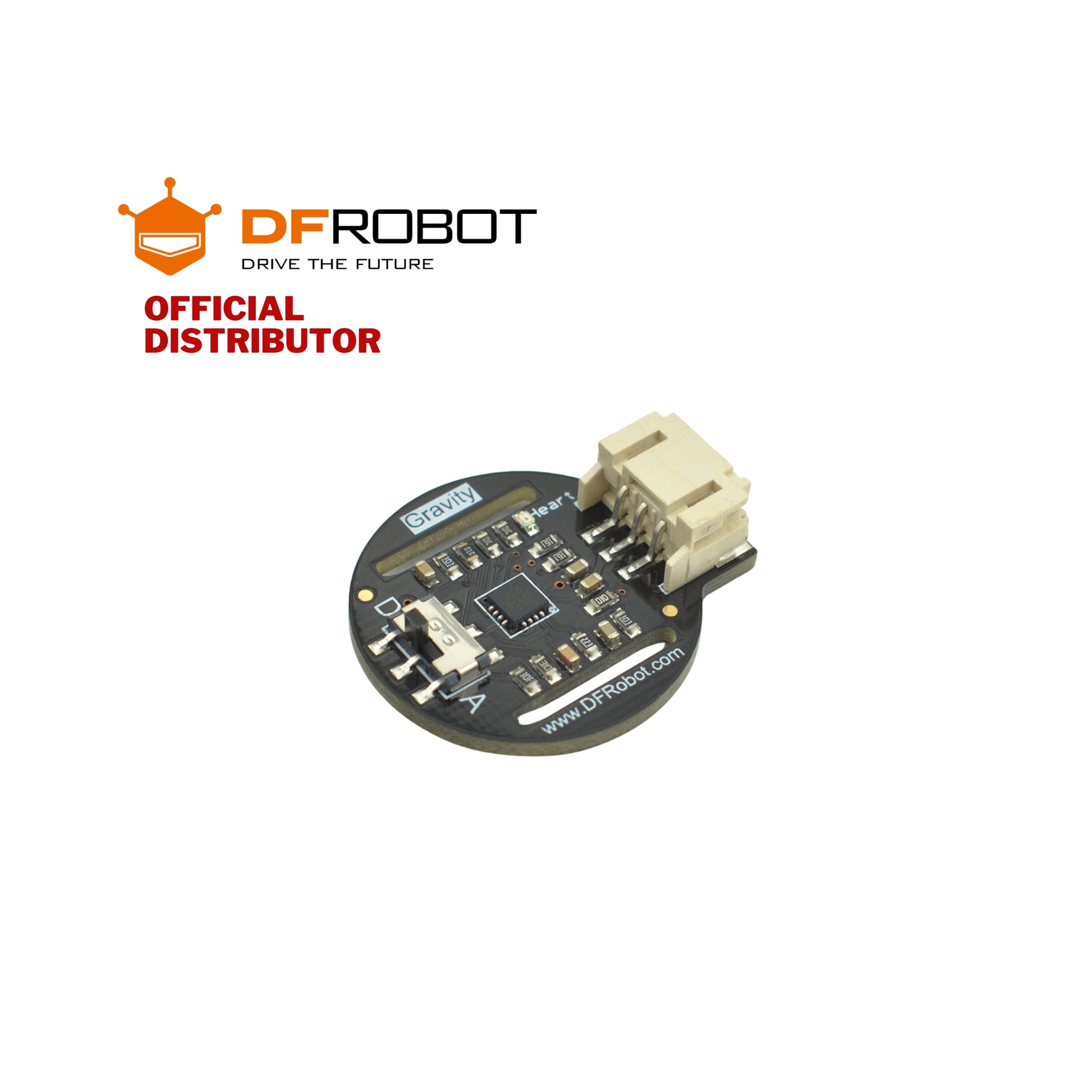

The DFRobot heart rate sensor is a thumb-sized heart rate monitor designed for Arduino microcontrollers. This sensor is developed based on PPG (PhotoPlethysmoGraphy) techniques. This simple and low-cost optical technique that can be used to detect blood volume changing in the micro-vascular bed of tissues. It is relatively easy to detect the pulsatile component of the cardiac cycle according to this theory.

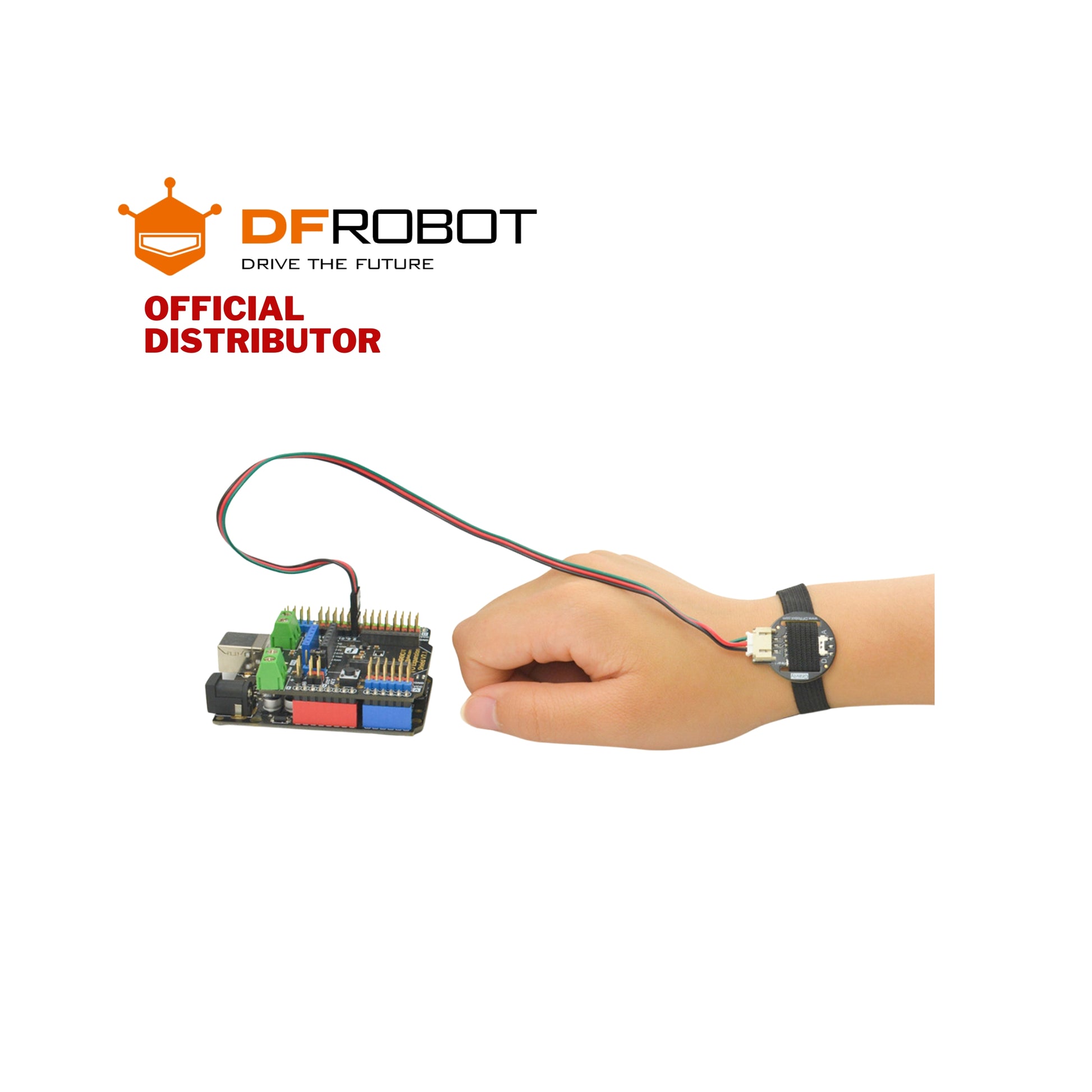

The sensor has two holes that you can use to attach to your belt. You can wrap on your finger, wrist, earlobe or other areas where it has contact with skin.

This Product has another version, Arduino Heart Rate Sensor ECG, it has basically the same function but uses ECG electrodes instead.

IoT Based Heart Rate Monitoring System is a very basic project on sending the pulse rate to Blynk Application and monitoring it from anywhere.

NOTE: 1. This product is NOT a professional medical device and should not be used to diagnose or treat medical conditions. 2. This sensor is designed to work when the user is not moving. If used while moving it will give inaccurate results.

Specifications:

• Input Voltage (Vin): 3.3 - 6V (5V recommended)
• Output Voltage: 0 - Vin (Analog), 0/ Vin (Digital)
• Operating current: <10mA
• Dimension: 28 x 24(mm), 1.102" x 0.945"(in)
• Interface Type: PH2.0-3P

Documents:

• Product WIKI
• Related Documents

Part List:

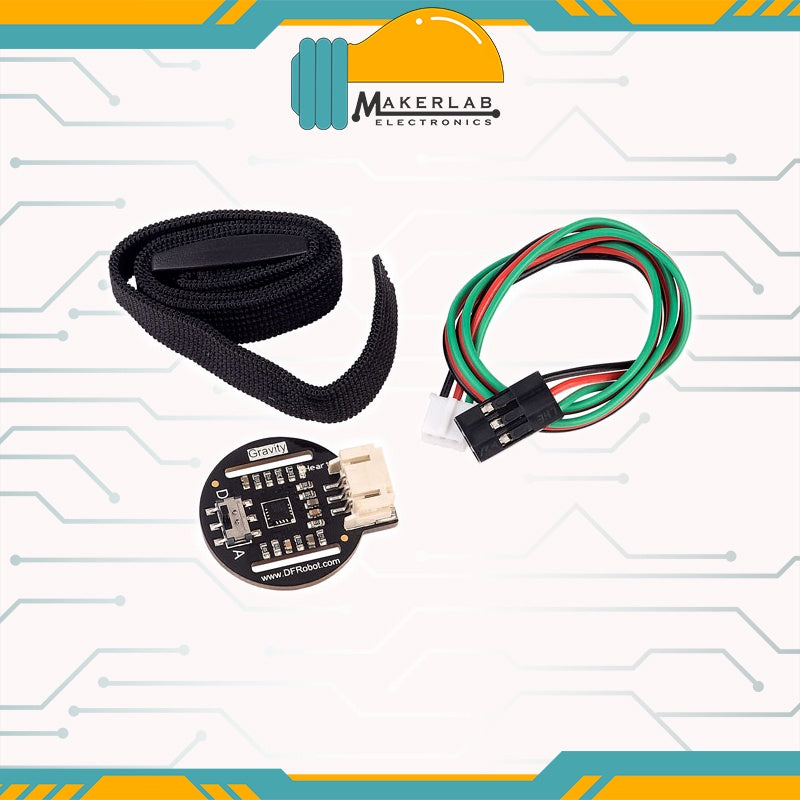

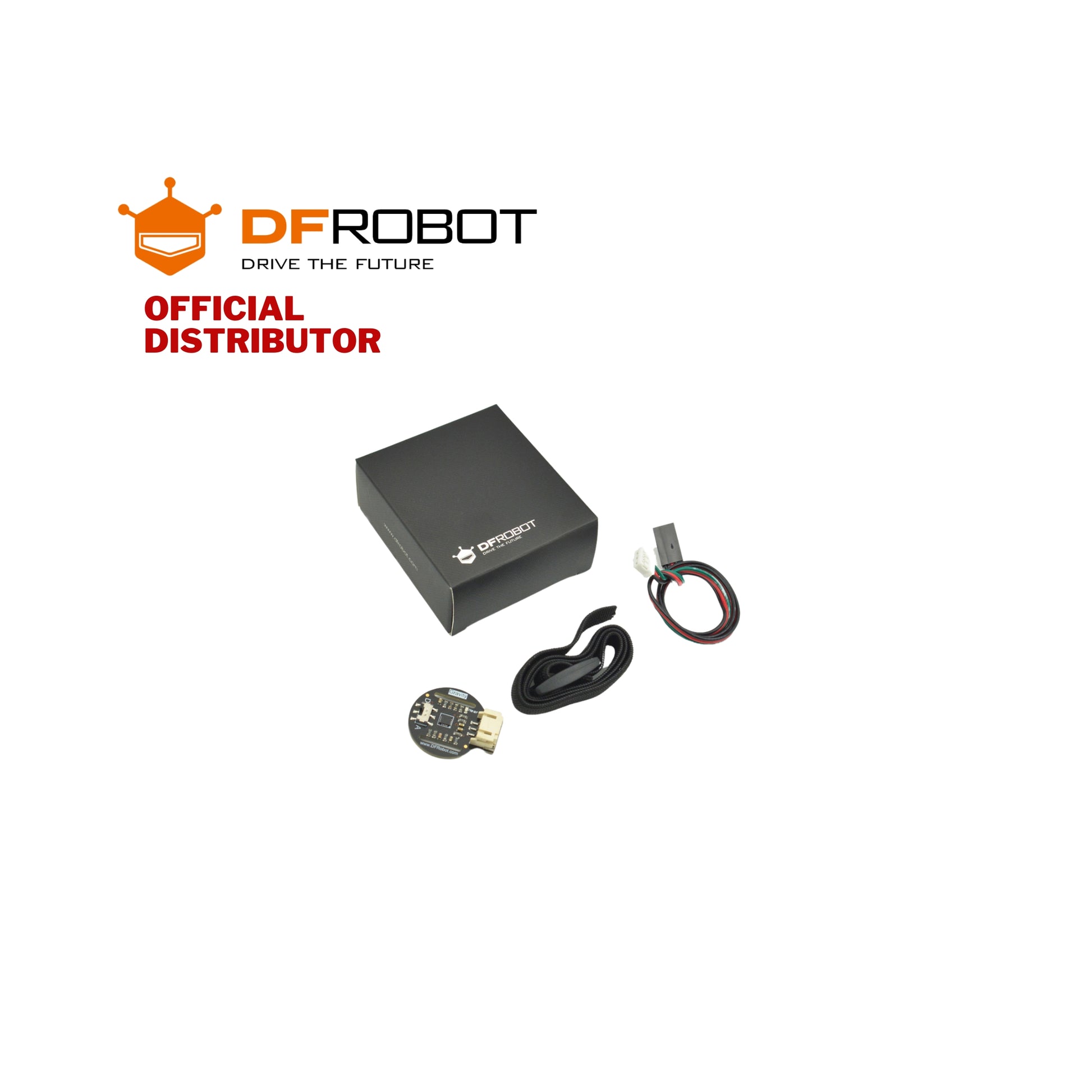

• Heart Rate Monitor Sensor For Arduino x1
• Wrist belt x1
• PH2.0-3P cable x1
