SKU:MLE00001+MLE01112

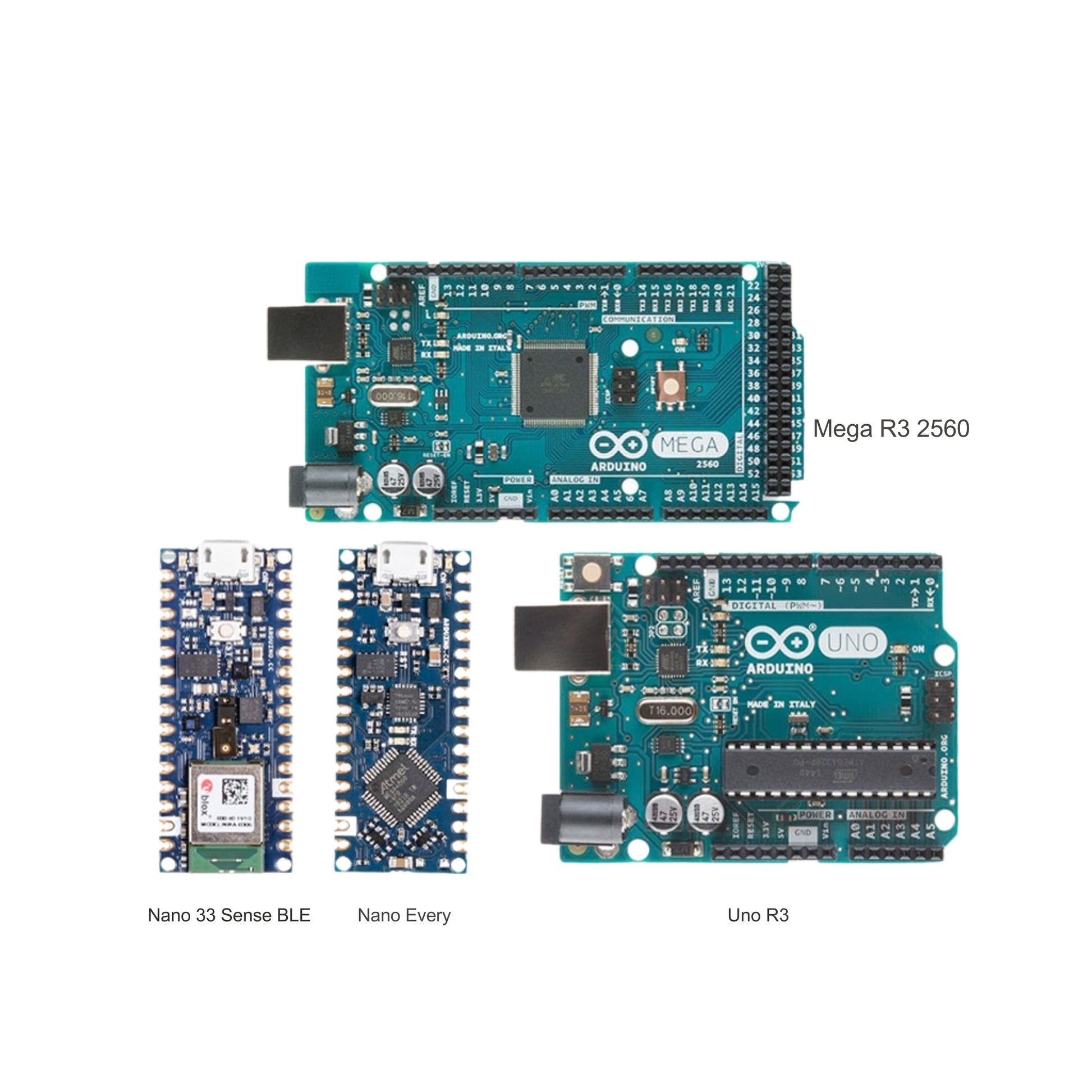

Arduino Uno R3 l Mega R3 2560 l Nano Every l Nano 33 Sense BLE with Headers Genuine Original Italy

₱1,799.00 PHP
₱1,799.00 PHP ₱2,400.00 PHP
Sale Sold out
Tax included. Shipping calculated at checkout.
Arduino:
Or 3 months for only ₱1,000 with . Learn More.
In stock

About the Product

As the title suggest the following are the Genuine/ Original Board made from Italy, and not a clone which are usually made in China, though it is more expensive compared to the clones, the board is more robust and will last longer compared to a clone.

*Arduino Uno R3 Italy Genuine
Specs:
- ATmega328 microcontroller
- Input voltage – 7-12V
- 14 Digital I/O Pins (6 PWM outputs)
- 6 Analog Inputs
- 32k Flash Memory
- 16Mhz Clock Speed

*Arduino Mega 2560 R3 Italy Genuine
Specs:
- ATmega2560 microcontroller
- Input voltage – 7-12V
- 54 Digital I/O Pins (14 PWM outputs)
- 16 Analog Inputs
- 256k Flash Memory
- 16Mhz Clock Speed

* Arduino Nano Every with Headers
- The Nano Every is Arduino’s 5V compatible board in the smallest available form factor: 45x18mm!
- preferred board for many projects requiring a small and easy to use microcontroller board.
- suited for wearable inventions, low-cost robotics, electronic musical instruments, and general use to control smaller parts of a larger projects.
- an evolution of the traditional Arduino Nano board but features a lot more powerful processor, the ATMega4809

*Arduino Nano 33 BLE Sense with Headers
- This board is based on the nRF52480 microcontroller.
- Arduino Nano 33 BLE only supports 3.3V I/Os and is NOT 5V tolerant so please make sure you are not directly connecting 5V signals to this board or it will be damaged. Also, as opposed to Arduino Nano boards that support 5V operation, the 5V pin does NOT supply voltage but is rather connected, through a jumper, to the USB power input.
- The Bluetooth is managed by a NINA B306 module.
- The IMU is a LSM9DS1 and it is managed through I2C.
- The LPS22HB reads barometric pressure and environmental temperature.
- The HTS221 senses relative humidity.
- The ADPS-9960 is a digital proximity, ambient light, RGB and gesture sensor.
- The MP34DT05 is the digital microphone
- Crypto keys are managed by the ATECC608A crypto chip.
- The board has a two 15 pins connectors – one on each side -, pin to pin compatible with the original Arduino Nano.
