Battery Protection Board BMS PCM

Battery Protection Board BMS PCM

In stock

SKU:MLE00230

Regular price ₱38.00
Regular price ₱45.00 Sale price ₱38.00
Sale Sold out
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
Model:
View full details

*1S 12A Li-ion Battery Protection Board BMS PCM FDC-3574
Technical Parameters:
Model: FDC-3574
Overcharge detection voltage: 4.25 + -0.05V
Overcharge release voltage: 4.23 + -0.05V
Over discharge detection voltage: 2.45 + -0.1V
Upper limit continuous current: 12A
Overcurrent detection current: 15A
Charging voltage: 4.2V
Product Size: 35 x 7.4 x 2.2MM
IC components: DW01 + 8205A
Short Circuit Protection: Overcharge overcurrent

*2S 5A Li-ion Battery Protection Board BMS PCM HX-2S-01(STAIGHT) | HX-2S-A2 (ROUND)
Specifications:
Charging Voltage: 8.4V-9V
Overcharge Voltage Range: 4.25V-4.35V ± 0.05V
Overpressure Voltage Range: 2.3V-3.0V ± 0.05V
Upper Limit Operating Current: 5A
Upper Limit Instantaneous Current: 7A
Quiescent Current: less than 10uA
Internal Resistance: less than 100m Ω
Operating Temperature: -40- +50 degrees
Storage Conditions: -40- +80 degrees
Size: 38 x 8 x 2.5mm

*4S BMS Battery Protection Board 40A
Specifications:
Range: Nominal voltage of 3.6V, 3.7V lithium battery
Charge Voltage: 16.8V-18.1V
Continuous Discharge Current (upper limit): 40A
Continuous Charging Current (upper limit): 20A
Size: 6.1×4.7cm/2.4×1.85″

*BW-4S-S30A BMS Protection Board
Specification:
•Continuous discharge current: 30(MAX)A
•Instantaneous discharge current: 70A
•Charging voltage: 16.8V
•Charging current: 30(MAX)A
•Over charge detection voltage: 4.28±0.05V
•Over charge protection delay: 0.1S
•Over charge release voltage: 4.08±0.01V
•Battery balance detection voltage: 4.2±0.025V
•Battery balance release voltage: 4.2±0.05V
•Electricity balance current : 60±5mA
•Over discharge detection voltage : 2.55±0.08V
•Over discharge release voltage: 3.0±0.1V
•Operating temperature: -30℃~+80℃
•Size: 45x56mm

*4S BMS Protection Board HX-JH-001
Specification:
•Type: Voltage Regulator
•Supply Voltage:14.8V/16.8V
•Condition: New
•Operating Temperature: Discharge Shunt balanced 4.2V 66mA
•Model Number: HX-JH-001
•Dissipation Power:18650 Lithium Battery Balanced Function Board
•Application:14.8V/16.8V 18650 Lithium Battery Balanced Function Board

*6S 18650 BMS Protection Board 22V 24V
Specification:
Max discharge current: 15A
Instantaneous discharge current: 25A
Charge voltage: 25.5V
Charging current: 15A(Max)
Overcharge detection voltage: 4.28±0.05V
Over discharge detection voltage: 2.55±0.08V
Overcurrent detection voltage: 150mV
Overcurrent protection current: 30±3A
Working current: ≤30uA
Sleep current (when over discharge): ≤10uA
Working temperature: -30~80℃

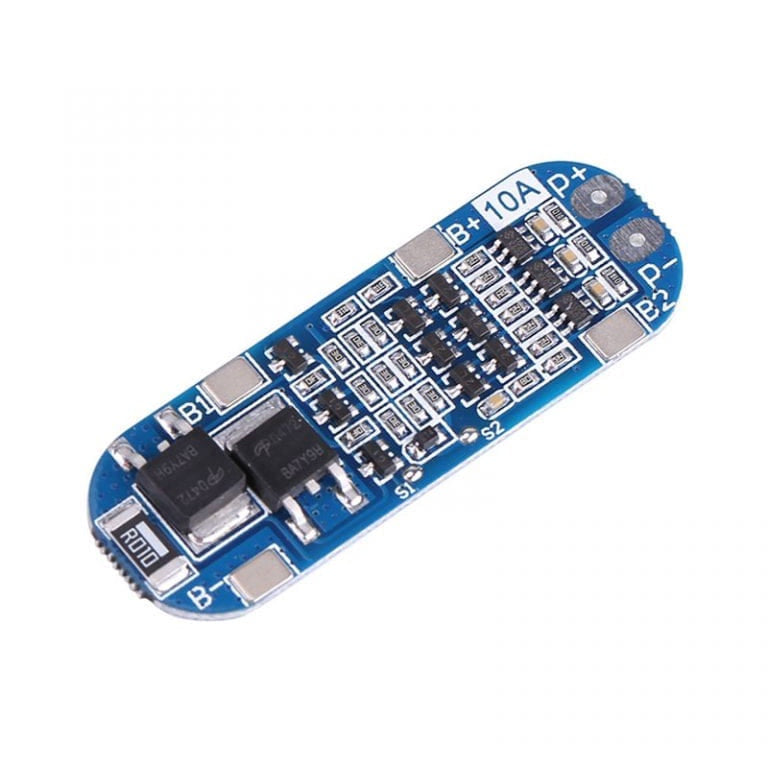

*HX-3S-01 3S | HX-3S-FL10A-A 10A Li-ion Lithium Battery 18650 Charger Protection Board
Specifications:
Model: HX-3S-01
Dimensions: 50 x 16 x 1mm
Over voltage range: 4.25-4.35v±0.05v
Over discharge voltage range: 2.3-3.0v±0.05v
Maximum operating current: 6-8A
Maximum transient current: #1: 9-10A, #2:10-13A
Quiescent current: < 30uA
Internal resistance: < 100mΩ
Charging voltage: 12.6v – 13V
Working temperature: -40~+50℃
Storage condition: -40~ +80℃
