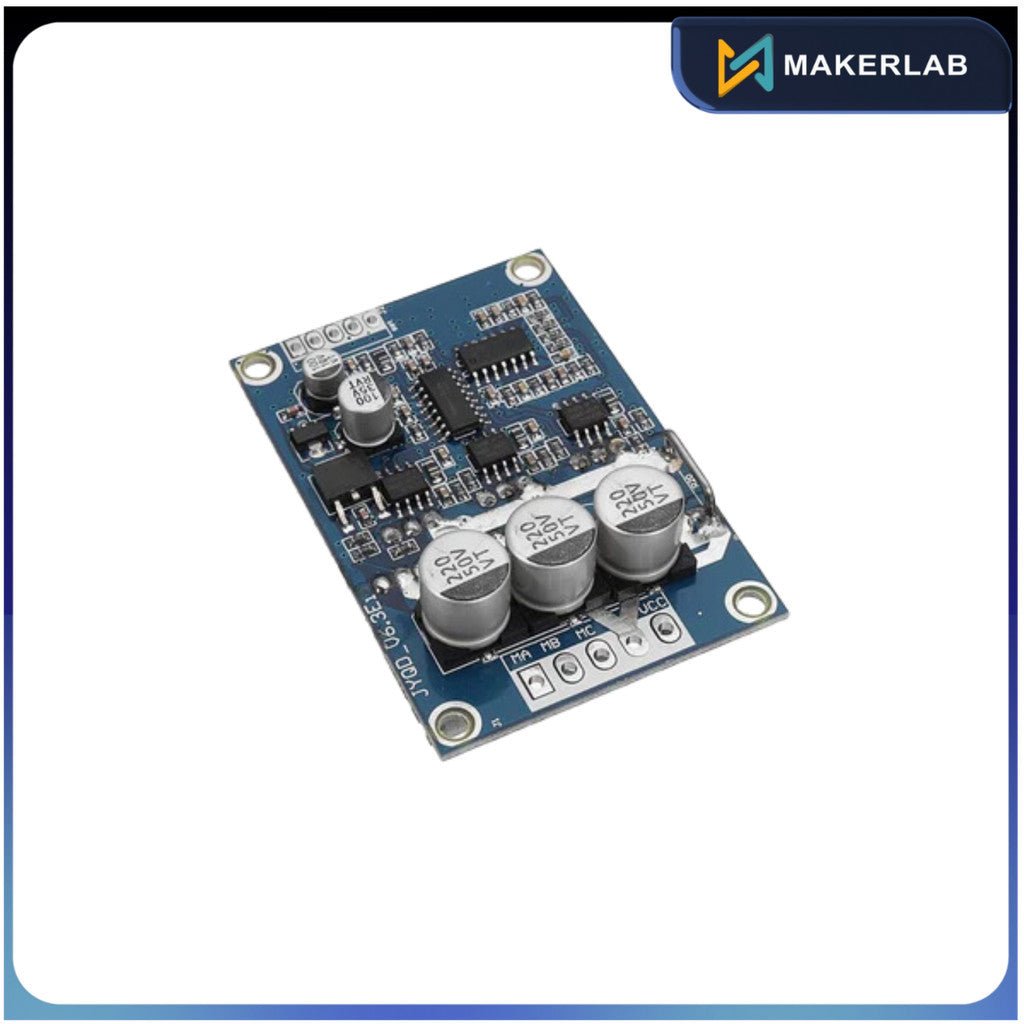

DC 12V-36V 15A 500W Brushless Motor Controller Hall Motor Balanced Car Driver Board with Hall Driver

DC 12V-36V 15A 500W Brushless Motor Controller Hall Motor Balanced Car Driver Board with Hall Driver

In stock

SKU:MLE04573

Regular price ₱700.00
Regular price ₱875.00 Sale price ₱700.00
Sale Sold out
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
Model:
View full details

Product Description
Description:
100% Brand New & High Quality.

Specification:
Operating voltage: DC 12V-36V
Operating Current: <=15A
Driver Power: <=500W
Speed Voltage: 0.1V-5V
Operating Temperature:-40-85°C
Humidity: 90%RH
Stall protection:Yes
Enable Control: Yes
Over-current protection: Yes
Steering control: Yes
Speed control signal: Yes
Size: 63×42×17mm(L×W×H); Probe size 3mm, length: fixing hole center distance 57mm; width:fixed hole center distance 36.5mm

Wiring:
Control terminal for SET:
1. The motor speed control wiring methods: available potentiometer system speed can also be connected to the MCU control, when the potentiometer control wiring, the potentiometer middle pin is connected to VR speed port, potentiometer connected to both ends of 5V and GND terminal voltage more high speed faster.
2. Motor steering control wiring methods: you can switch control can also be connected to the MCU control, to GND in one direction, then in one direction 5V.

Note: Due to different motor manufacturers to make the hall of hall line order does not necessarily follow the line on the board to match the sequence, need to be adjusted. Motor driver board 12-36V DC power input, VCC positive power supply,GND power supply is negative.

Tips:
If you use less than 60W, without additional heat sink , be sure to add more than 60W
heatsink fins drive efficiency without lowering the temperature is too high will shine into permanent damage! We recommend cooling surface area greater than 200 square centimeters! Proposes to add insulation films, both sides of the insulating sheet plus thermal grease!

Package Includes:
1 × 12-36V 500W Brushless Motor Controller
