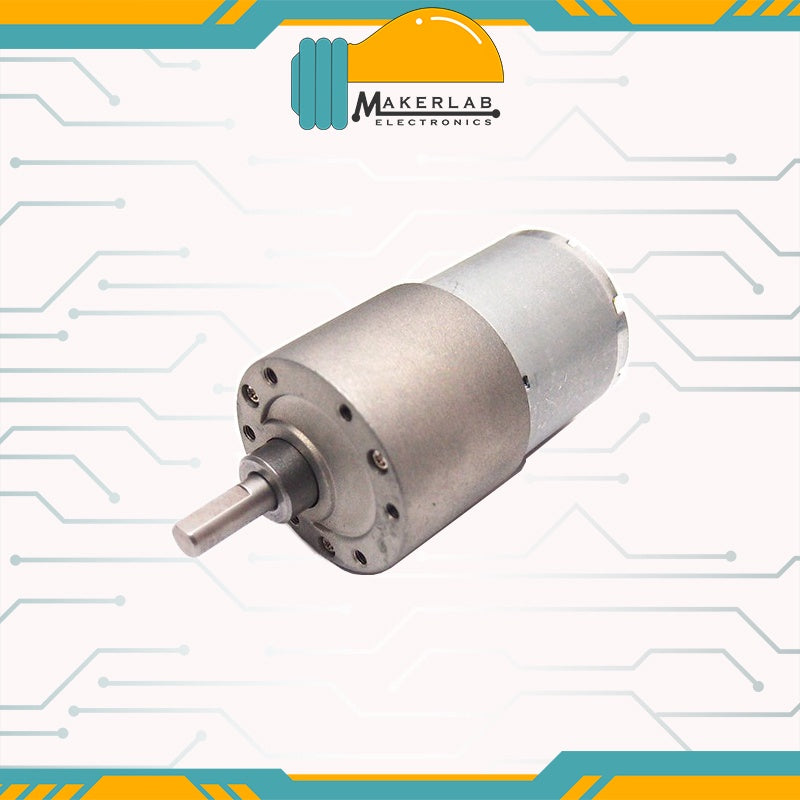

DC Gear Motor 12V 20RPM|12RPM |37RPM |76RPM |111RPM |178RPM |333RPM|531RPM |1000RPM SGM37-3530

Pololu - 131:1 Metal Gearmotor 37Dx57L mm 12V (Spur Pinion)

This gearmotor is a powerful brushed DC motor with 131.25:1 metal gearbox intended for operation at 12 V. These units have a 16 mm-long, 6 mm-diameter D-shaped output shaft.

Specifications:

• Voltage: 12V

• No-load performance: 76 RPM, 200 mA

• Stall extrapolation: 45 kg⋅cm (630 oz⋅in), 5.5 A

DC Gear Motor 12V 333RPM SGM37-3530

Specifications:

• Gearbox: Spur Gear

• Rated Voltage: 12V (6 to 12V Range)

• Nominal Voltage: 12 V

• Free-run speed at 12 V: 333 RPM

• Free-run current at 12 V: 120 mA

• Stall current at 12 V: 1.2 A

• Stall torque at 12 V: 4.5 kg.cm

• Gear Ratio: 1:30

• Reductor Size: 22 mm

• Max Power: 4.8W

• Weight: 200 g

DC Gear Motor 12V 20RPM SGM37-3530

Specifications:

• Gearbox: Spur Gear

• Rated Voltage: 12V (6 to 12V Range)

• No-Load Current: 120mA

• Rated Current: 400mA

• No-load Speed: 20 RPM

• Rated Speed: 16 RPM

• Rated Torque: 19 Kg-cm

• Stall Torque: n/a (will result in immediate failure when stalled)

• Max Power: 4.8W

• Weight: 200g

DC Gear Motor 12V 37RPM – SGM37-3530

Specifications:

• Gearbox: Spur Gear

• Rated Voltage: 12V (6 to 12V Range)

• No-Load Current: 120mA

• Rated Current: 400mA

• No-load Speed: 37 RPM

• Rated Speed: 29 RPM

• Rated Torque: 10 Kg-cm

• Stall Torque: 40 Kg-cm

• Max Power: 4.8W

• Weight: 200g

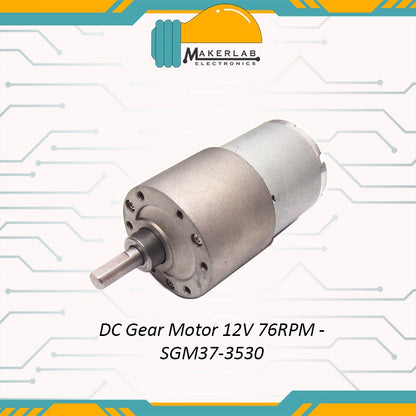

DC Gear Motor 12V 76RPM – SGM37-3530

Specifications:

• Gearbox: Spur Gear

• Rated Voltage: 12V (6 to 12V Range)

• No-Load Current: 120mA

• Rated Current: 400mA

• No-load Speed: 76 RPM

• Rated Speed: 60 RPM

• Rated Torque: 5 Kg-cm

• Stall Torque: 20 Kg-cm

• Max Power: 4.8W

• Weight: 200g

DC Gear Motor 12V 111RPM SGM37-3530

Specifications:

• Rated Speed: 111 RPM

• Rated Torque: 3.4kg.cm

• Rated Voltage: 12v DC

• No load current: 0.5a

• Stalling current: 1.4a

DC Gear Motor 12V 178RPM SGM37-3530

Specifications:

• Gearbox: Spur Gear

• Rated Voltage: 12V (6 to 12V Range)

• Nominal voltage: 12 V

• Free-run at 12 V: 178 RPM

• Free-run current at 12 V: 120 mA

• Stall current at 12 V: 1.2 A

• Stall torque at 12 V: 8.4 kg.cm

• Gear ratio: 1.56

• Reductor size: 24 mm

• Max Power: 4.8W

• Weight: 200g

DC Gear Motor 12V 12RPM SGM37-3530

Specifications:

• Gearbox: Spur Gear

• Rated Voltage: 12V (6 to 12V Range)

• No-Load Current: 120mA

• Rated Current: 400mA

• No-load Speed: 12 RPM

• Rated Speed: 9 RPM

• Rated Torque: 30 Kg-cm

• Stall Torque: n/a (will result in immediate failure when stalled)

• Max Power: 4.8W

• Weight: 200g

DC Gear Motor 12V 531RPM SGM37-3530

Specifications:

• Operating voltage: between 6 V and 15 V

• Nominal voltage: 12 V

• Free-run speed at 12 V: 531 RPM

• Free-run current at 12 V: 120 mA

• Stall current at 12 V: 1.2 A

• Stall torque at 12 V: 2.8 kg.cm

• Gear ratio: 1:18.8

• Reductor size: 22 mm

• Weight: 180 g

DC Gear Motor 12V 1000RPM – SGM37-3530

Specifications:

• Operating voltage: between 6 V and 15 V

• Nominal voltage: 12 V

• Free-run speed at 12 V: 1000 RPM

• Free-run current at 12 V: 120 mA

• Stall current at 12 V: 1.2 A

• Stall torque at 12 V: 1.52 kg.cm

• Gear ratio: 1:10

• Reductor size: 19 mm

• Weight: 177g
