SKU:MLE00431

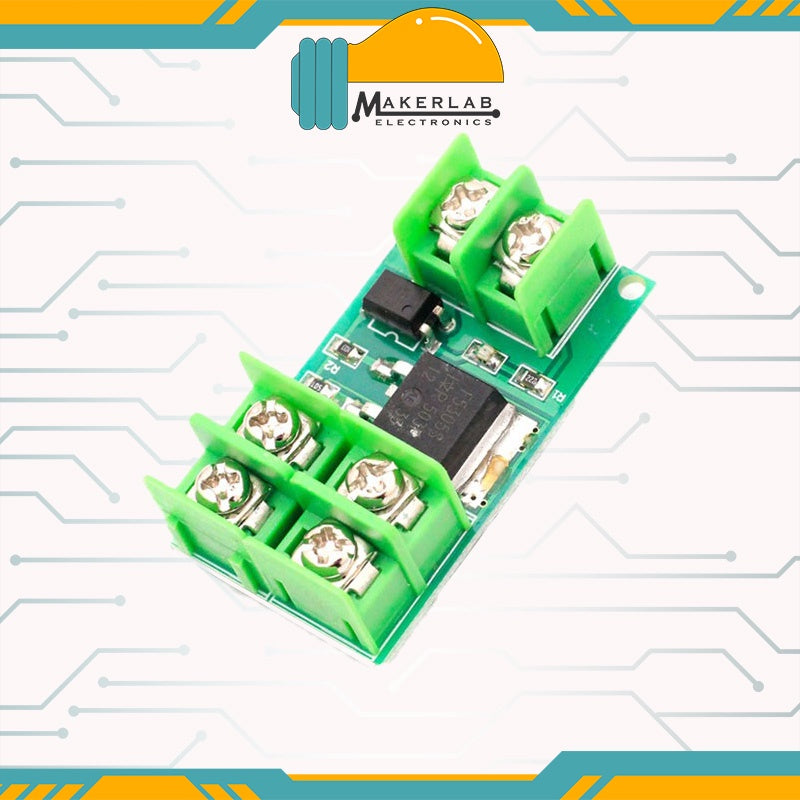

F5305S Power Mosfet Module

₱150.00 PHP
₱150.00 PHP
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
In stock

About the Product

F5305S Power Mosfet Module

The F5305S Power Mosfet Module is based on the FET model of the new original F5305S. We can input PWM signal for motor control Speed, lightness, etc.

Features:
  • The FET module, the input and output are completely isolated from each other.
  • Input signal voltage: 3 V ~ 20 V; Input current: about 5mA.
  • Output voltage: 5V ~ 36V (current: at 5A, max current 20A .When the current exceeds 5A, please add a heat sink).
  • Trigger signal: digital high / weak signal, can be connected to IO microcontroller, plc interface, DC power supply, and so on.
  • Output data can control powerful devices: motor, light bulb, light and strips, DC motor, small pumps, solenoid valve.

Specifications:

  • Signal input: Voltage: 3 V ~ 20 V; current: 5mA
  • Output: Voltage: 5 V ~ 36 V; Current: 5A
  • Item Dimensions: 46 * 25 * 18mm / 1.8 * 0.98 * 0.7in
  • Cross-stitch embroidery.
