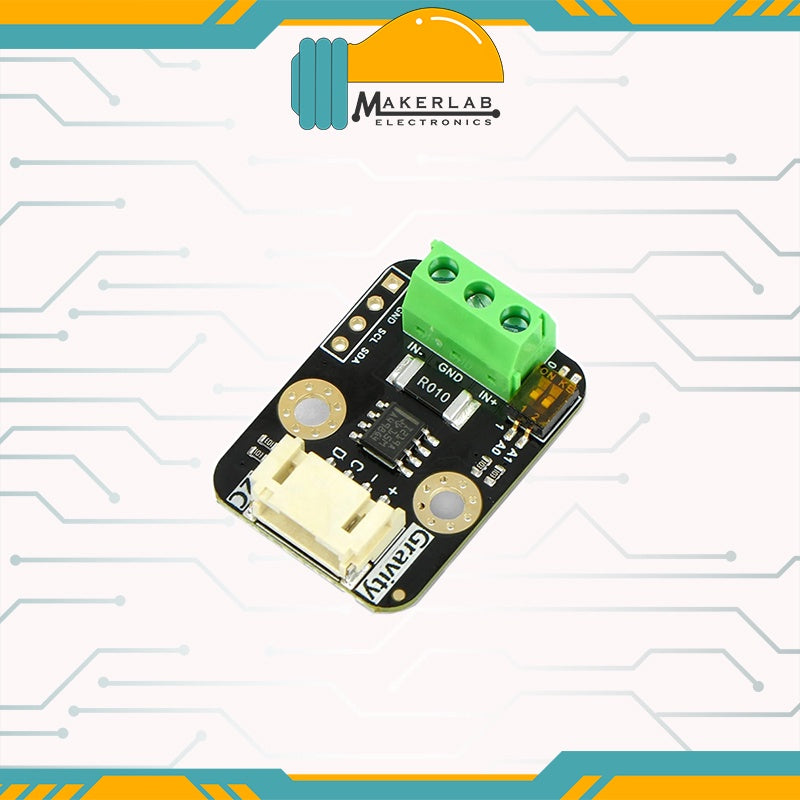

Gravity: I2C Digital Wattmeter

Gravity: I2C Digital Wattmeter is a high-resolution, high-precision, large-scale measurement module that can measure the voltage, current and power of various electronic modules and electrical equipment within 26V 8A, and the maximum relative error is no more than ±0.2% (A simple manual calibration is required before usage). It can be used for power consumption or battery life evaluation of solar energy systems, battery, motors, controller or electronic modules.

Gravity: I2C Digital Wattmeter Connection Diagram (Arduino Uno)
Gravity: I2C Digital Wattmeter Connection Diagram (Arduino UNO)

Gravity: I2C Digital Wattmeter Connection Diagram (Raspberry Pi)

Gravity: I2C Digital Wattmeter Connection Diagram (Raspberry Pi 3B)

Features

  • High precision, high resolution, large range, low temperature drift
  • Bidirectional current high side measurement
  • Compatible with 3.3V/5V controller
  • Sophisticated and compact, easy to embed in the project

Applications

  • Solar Power Management
  • Battery Fuel Gauge
  • Electronic Module Power Evaluation

Specifications

  • Input Voltage (VCC) : 3.3V~5.5V
  • Voltage Range (IN+ or IN- relative to GND): 0 ~ 26 V
  • Voltage Resolution: 4 mV
  • Voltage Relative Error: <±0.2% (Typical)
  • Current Range: 0 ~ ±8A (Bidirectional current)
  • Current Resolution: 1mA
  • Current Relative Error: <±0.2% (Typical, manual calibration required)
  • Power Range: 0 ~ 206 W
  • Power Resolution: 20 mW (Hardware) / 4 mW (Software)
  • Quiescent Current: 0.7 mA
  • Interface: Gravity I2C (logic level: 0-VCC)
  • I2C Address: Four options 0x40, 0x41, 0x44, 0x45
  • Dimension: 30.0mm*22.0mm
  • Weight: 4g

Documentation

Package Included

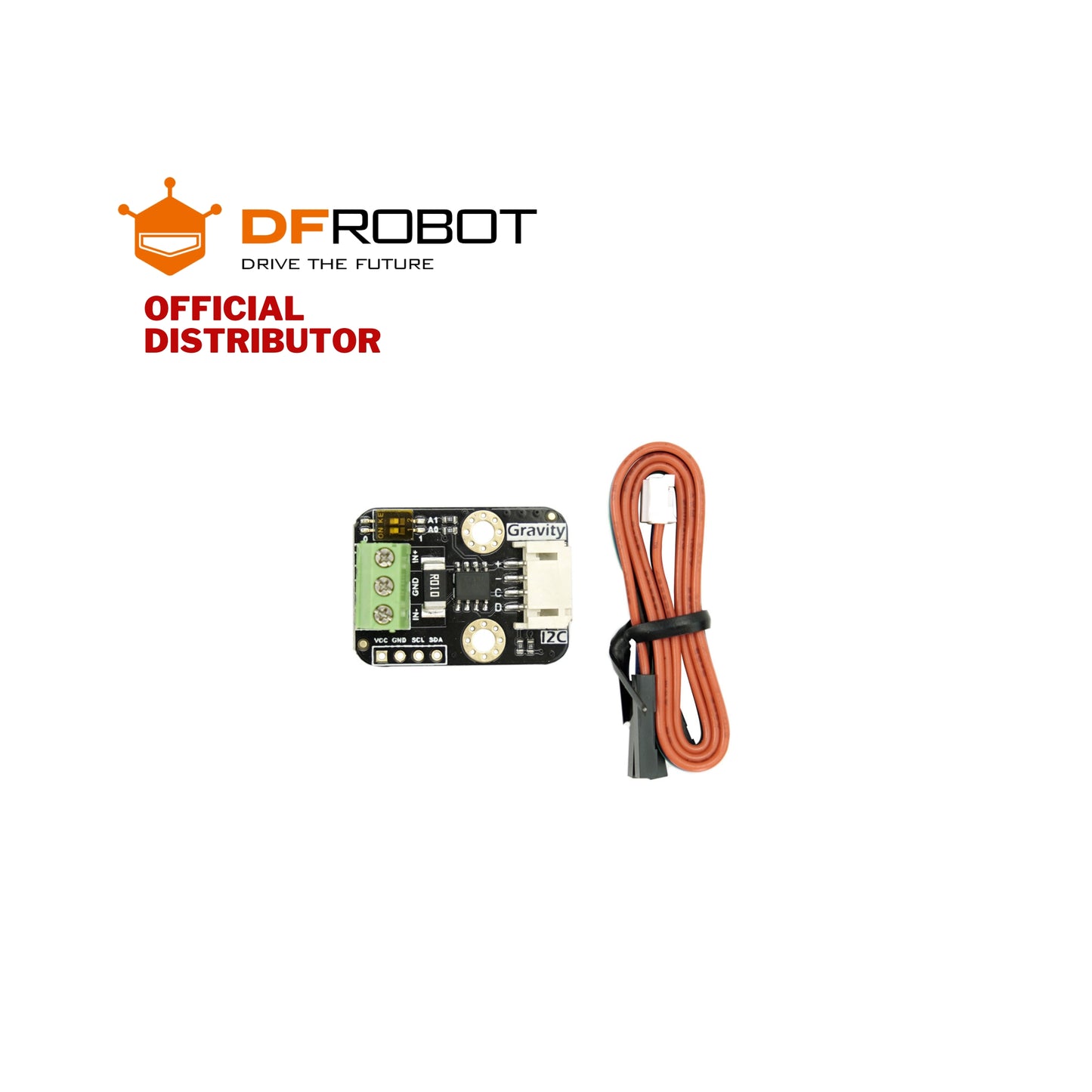

  • 1 x Gravity: I2C Digital Wattmeter
  • 1 x XH2.54-4P Black Header
  • 1 x Gravity-4P I2C/UART Sensor Wire
