SKU:MLE01058

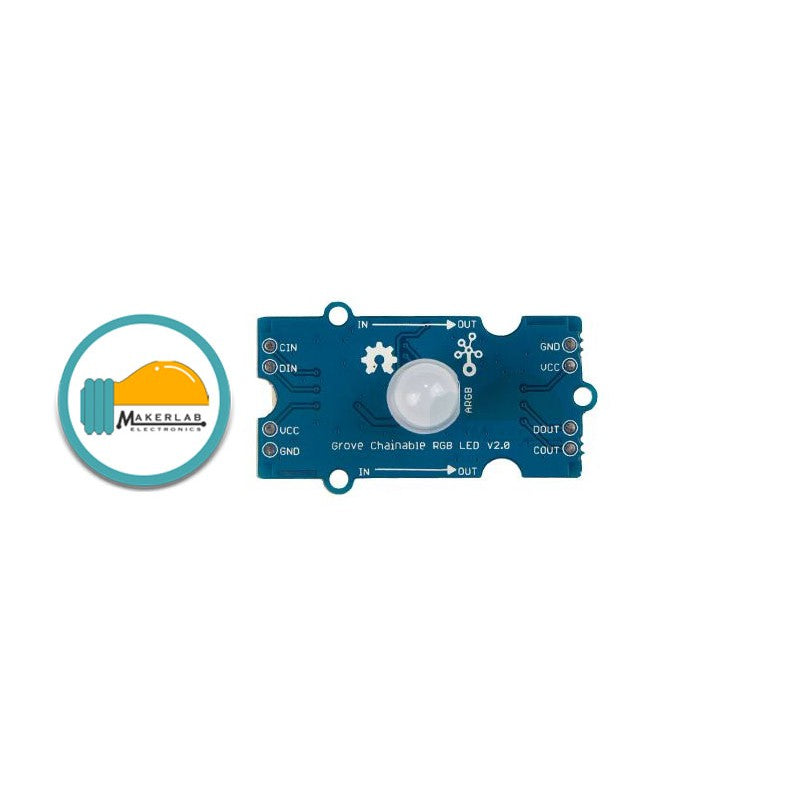

Grove – Chainable RGB LED V2.0
₱70.00
₱70.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Loading locations...
files/MLE01058_2.jpg
11:41 PM
Couldn't load pickup availability
Product Description
Description:
The Grove - Chainable RGB LED V2.0 is based on the P9813S14 chip. This chip is a full-color light source driver chip that can provide three constant current drivers and 256 greyscale modulation outputs. It communicates with an MCU using 2-wire transmission (Data and Clock). This 2-wire transmission can be used to cascade additional Grove - Chainable RGB LED modules. The built-in clock regeneration enhances the transmission distance. This Grove module is suitable for any colorful LED-based projects.
The keyword of this product is “Chainable”, so how many LEDs can it be chained? By connecting the output grove connector of one LED to the input grove connector of another one, you are able to chain 1024 RGB LEDs at most! If you have experience using Grove-Chainable RGB LED V1.0, you will find that V2.0 is a bit longer than V1.0. In V2.0, we adjust the grove connectors to be parallel with the board instead of vertically, so that the cable doesn’t need to be crooked.
Features:
Operates on Multiple LEDs: Support for control of each individual LED.
High-performance chip: The transmission speed of the chip is up to 1024 cascade points of light and can be connected to 6 series LED.
Grove unified socket: The product ensures "Plug and Play" and could be versatile for various applications.
Specifications:
Dimensions: 40mm x 20mm x 15mm
Weight: G.W 11g
Input Voltage: 5V
Working Temperature: -40 – 85℃
Max Working Current: 60mA
Max Chained LED Quantity: 1024
Application:
- Light-fixtures
- Smart Toys
- Home Automation
- Multiple light control
Documents:
Part List:
1x Grove - Chainable RGB LED V2.0
1x Grove - Cable
