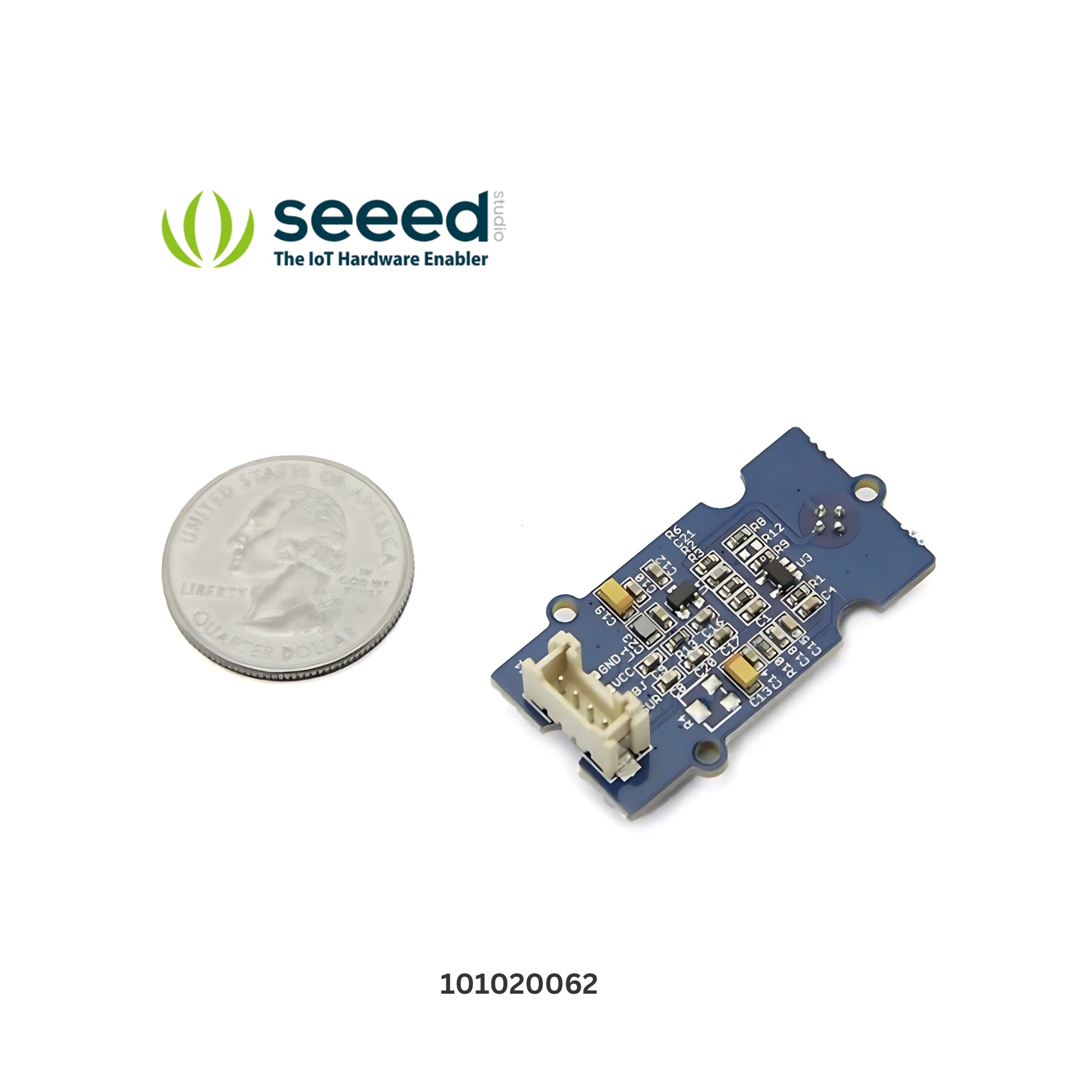

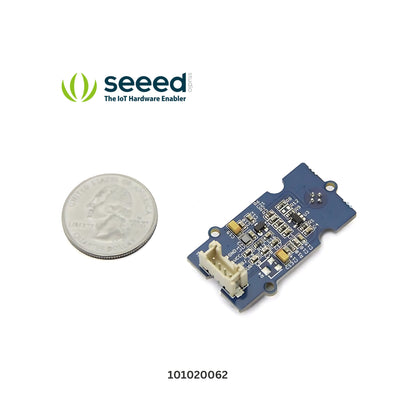

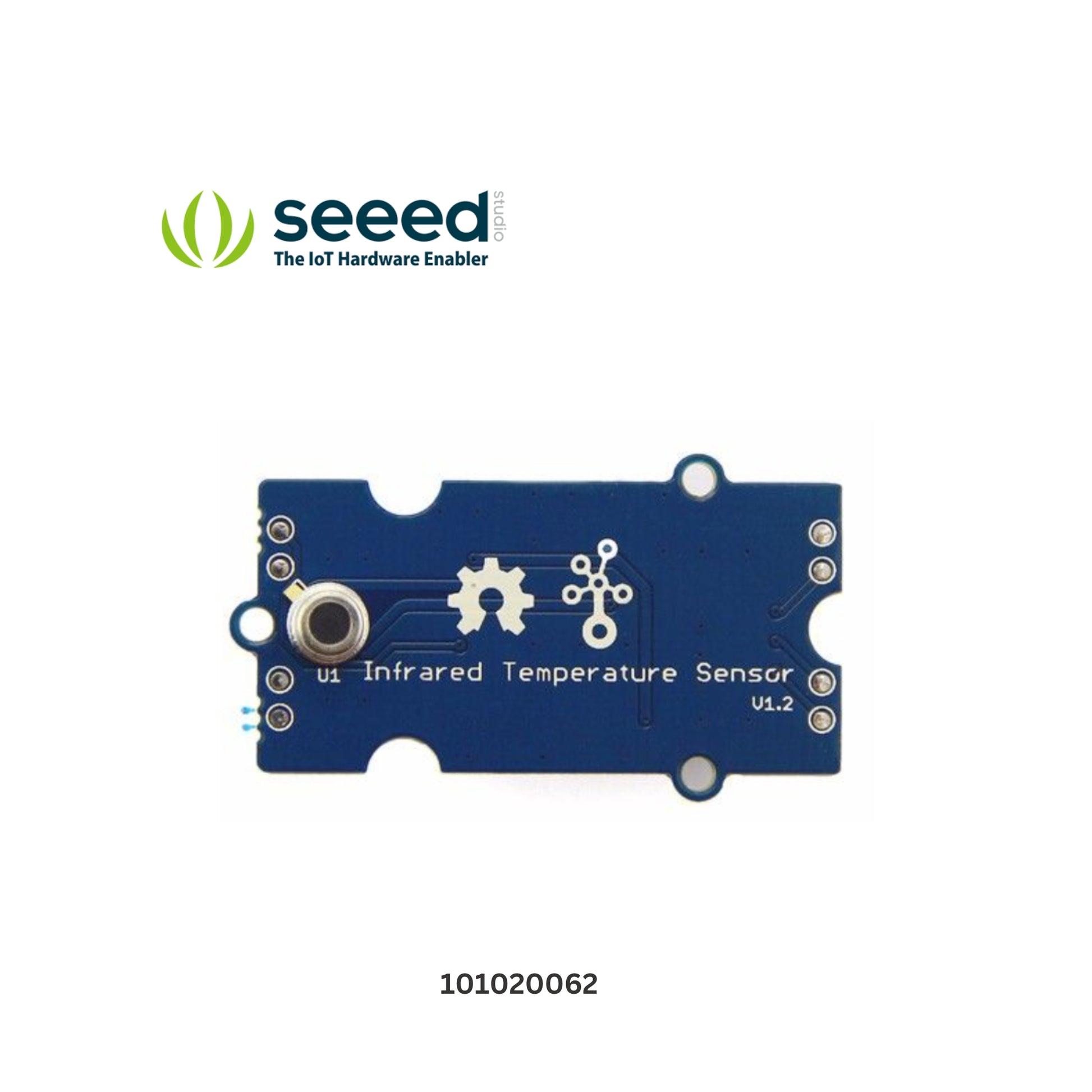

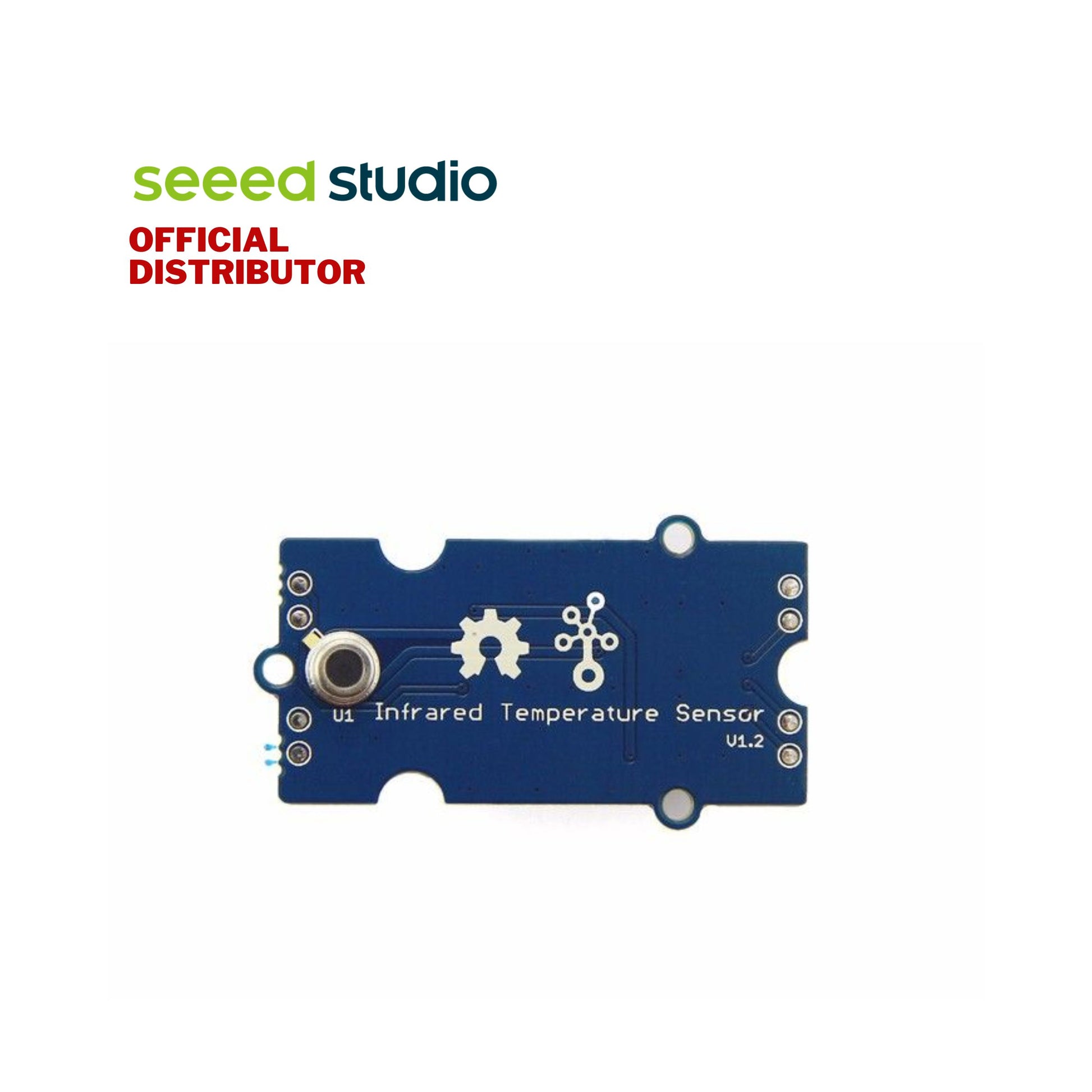

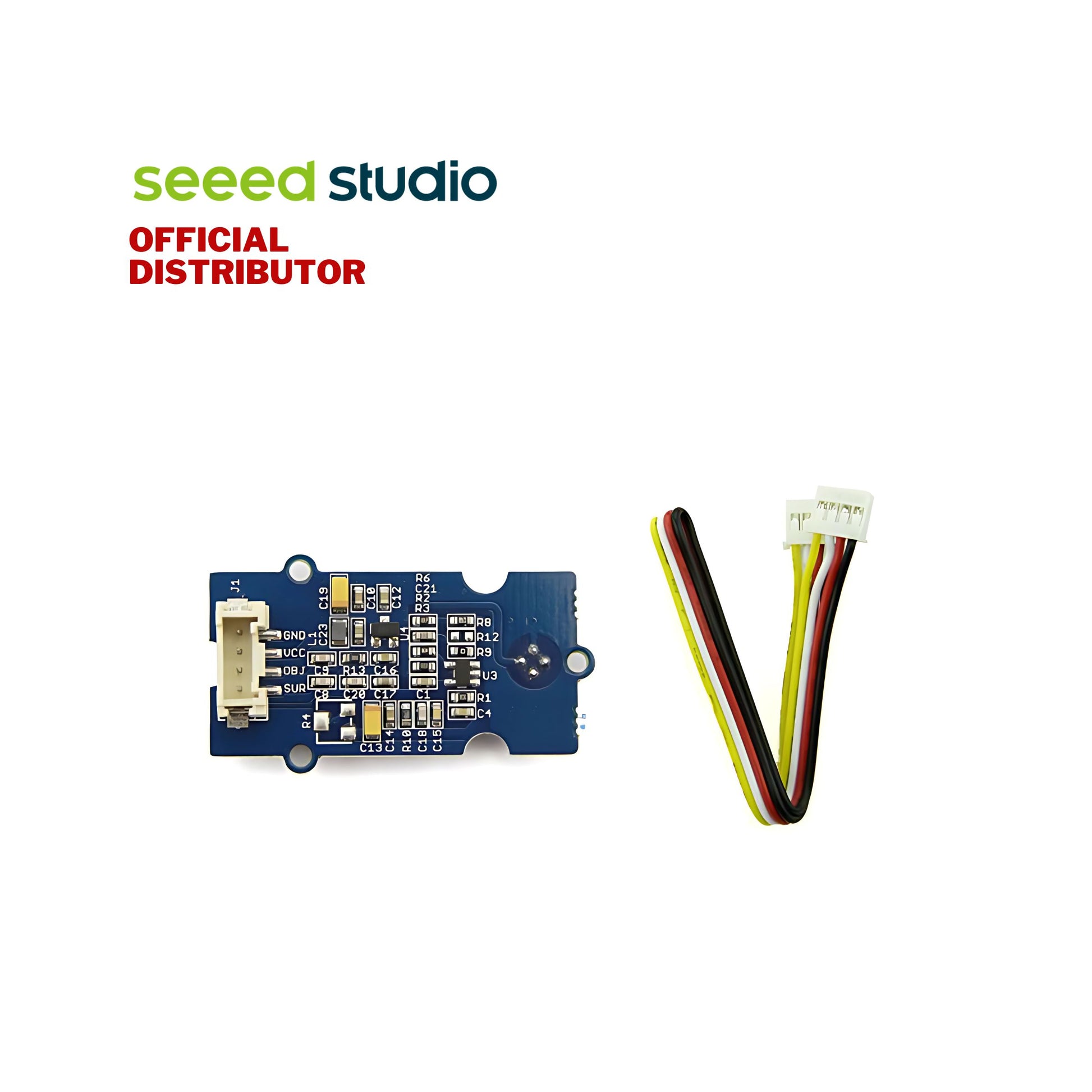

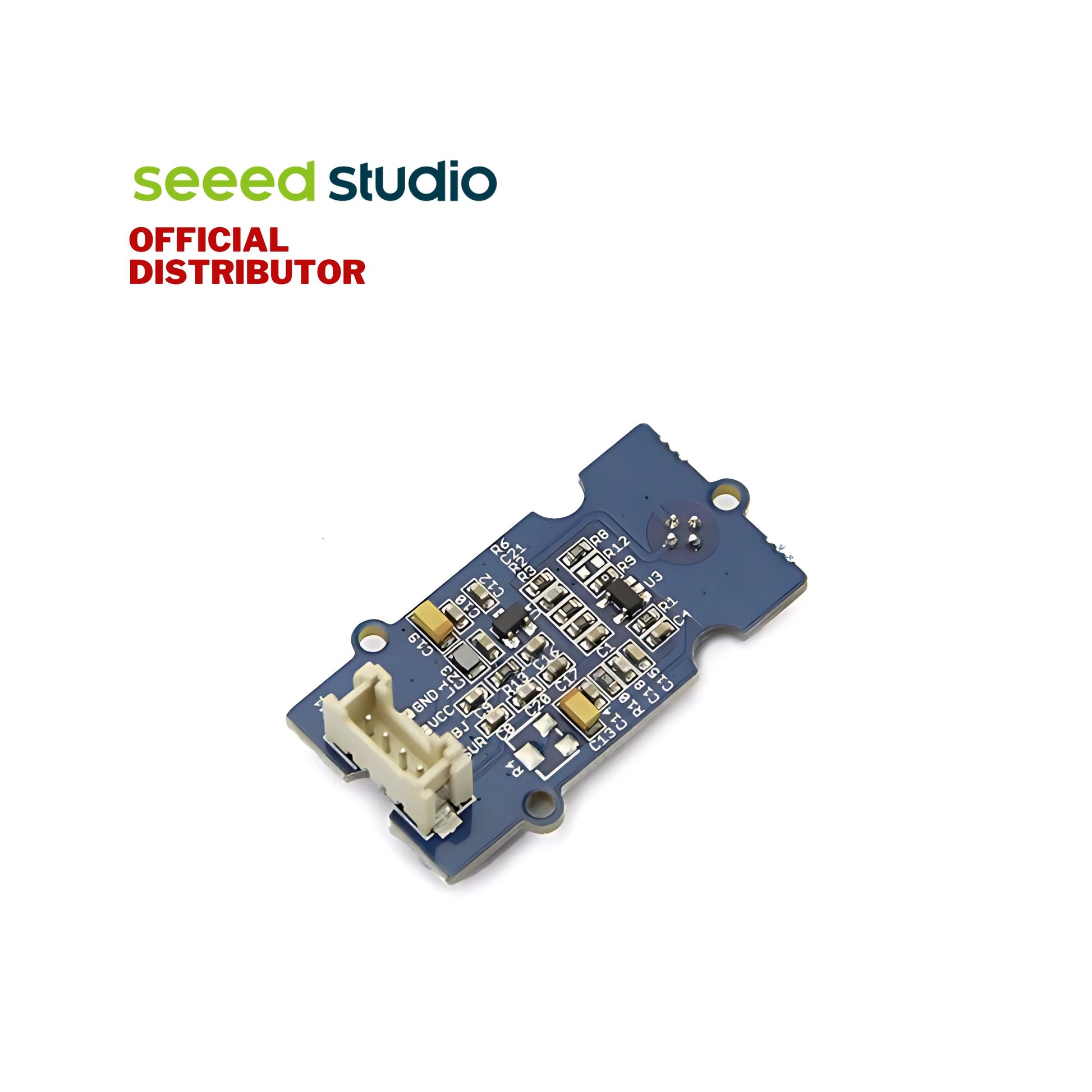

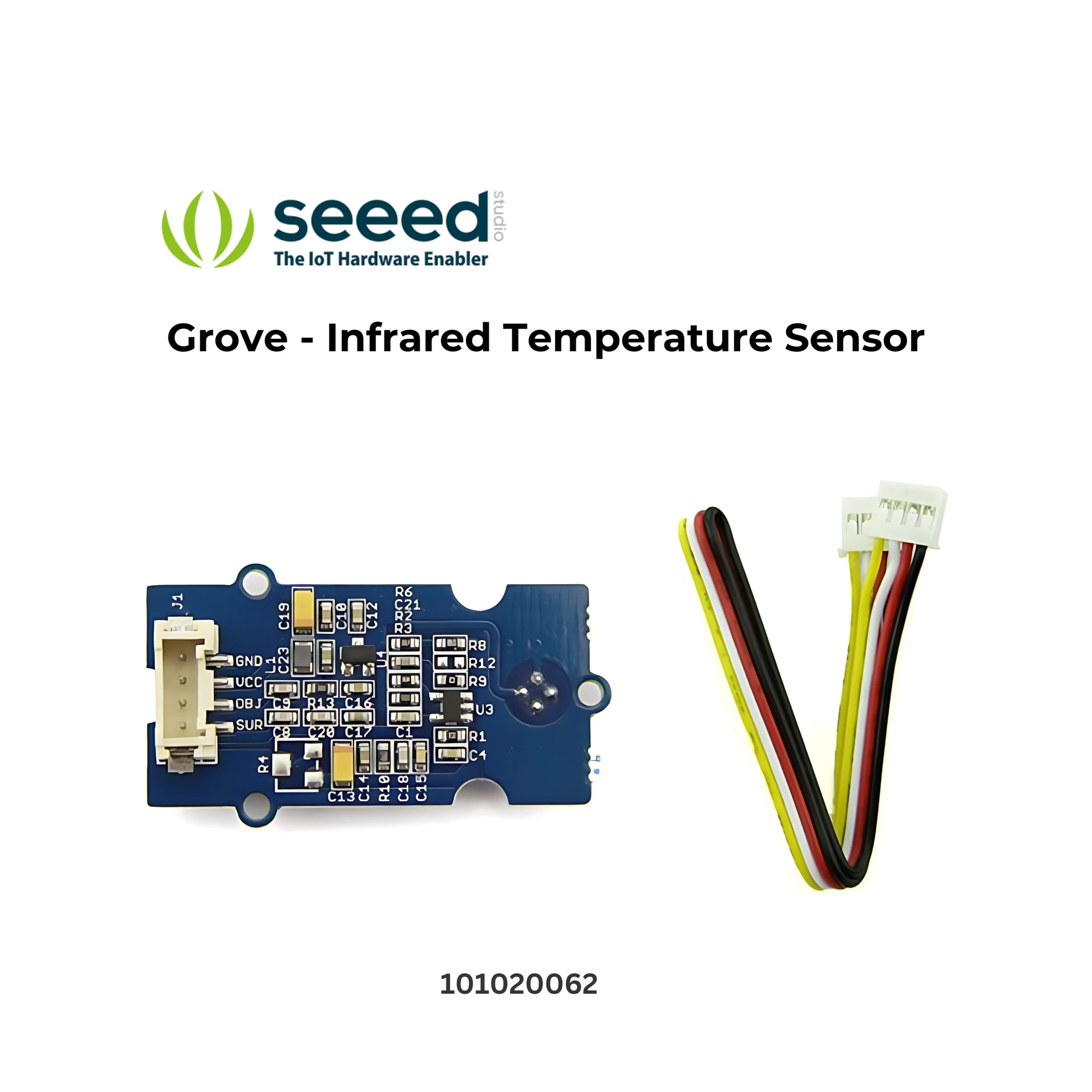

Grove - Infrared Temperature Sensor

This Grove-Infrared temperature sensor is a non-contact temperature measure model. The sensor is composed of 116 elements of thermocouple in series on a floating micro-membrane having an active diameter of 545μm and with a blackened surface to absorb the incident thermal infrared radiation, which induces a voltage response at output terminals.

Features:
Non-contact temperature measurement: Infrared temperature collection within 9CM
Wide range of temperature measurements: Temperature measurements range from -10 to 100 ℃
Low power consumption: The power consumption is less than 0.6mW
Accurate temperature measurement: The measurement accuracy error was only ±2℃
Grove compatible interface: The product ensures "Plug and Play" and could be versatile for various applications of Grove

Application:
Motion sensor
Thief-guarding System
Switch
Industrial automation
Body distance check
