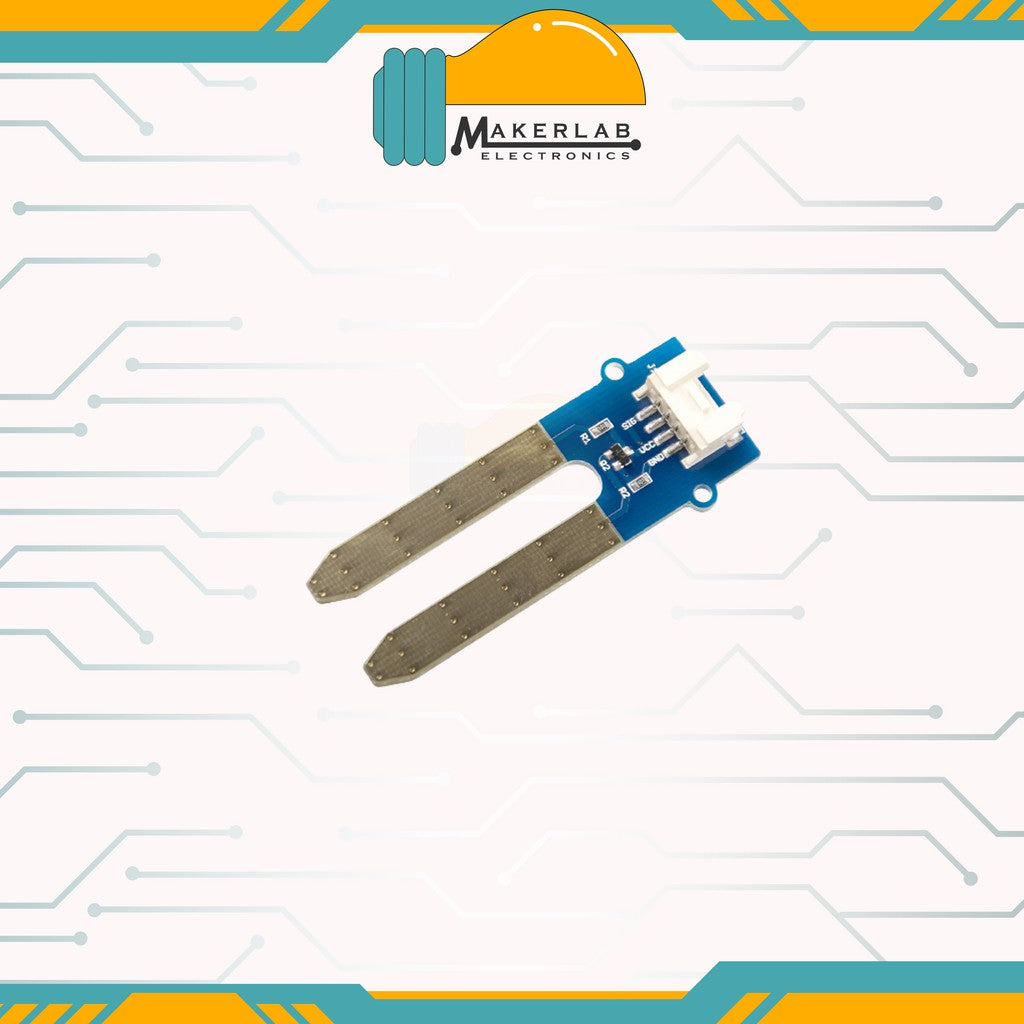

Grove - Soil Moisture Sensor -Arduino Compatible

Grove - Soil Moisture Sensor can measure soil moisture for plants. The soil moisture sensor consists of two probes that allow the current to pass through the soil and then obtain resistance values to measure soil moisture content. It can be used to decide if the plants in a garden need watering. You can also use soil moisture sensors in gardens to automate watering plants. It can be used very easily by just inserting the sensor into the soil and reading the output using ADC.

Features
Soil moisture sensor based on soil resistivity measurement
Consists of two probes that allow the current to pass through the soil
Easy to use and cost-effective
Grove compatible interface( u-blox version)

Applications
Botanical Gardening
Moisture Sensoring
Consistency Measurement

Technical details
Dimensions 60mm x20mm x6.35mm
Operating voltage 3.3~5V
Operating current 35mA
Sensor Output Value in dry soil 0~ 300
Sensor Output Value in humid soil 300~700
Sensor Output Value in water 700 ~ 950
PCB size 2.0cm X 6.0cm

Package Include:
1xGrove - Soil Moisture Sensor
