SKU:MLE06280

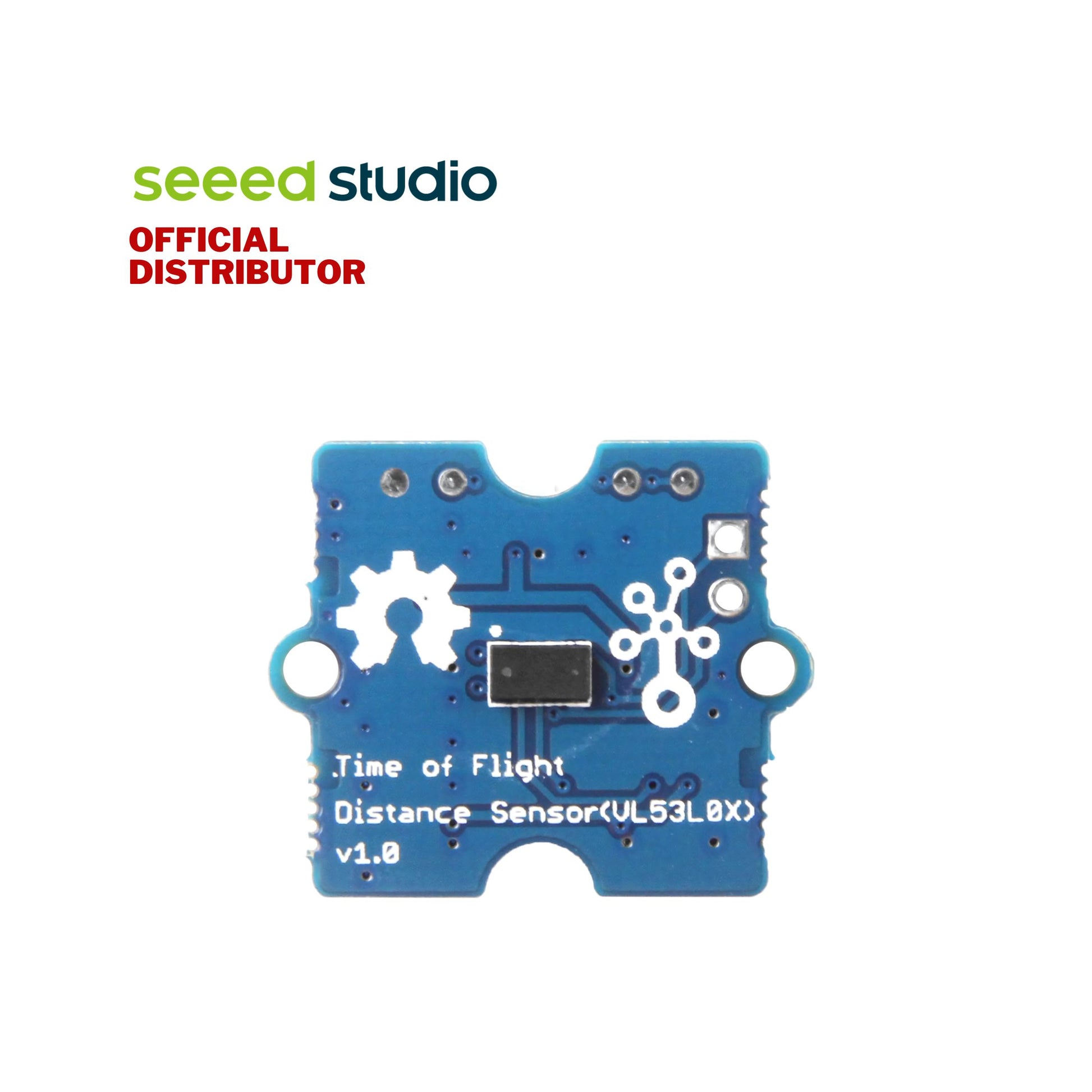

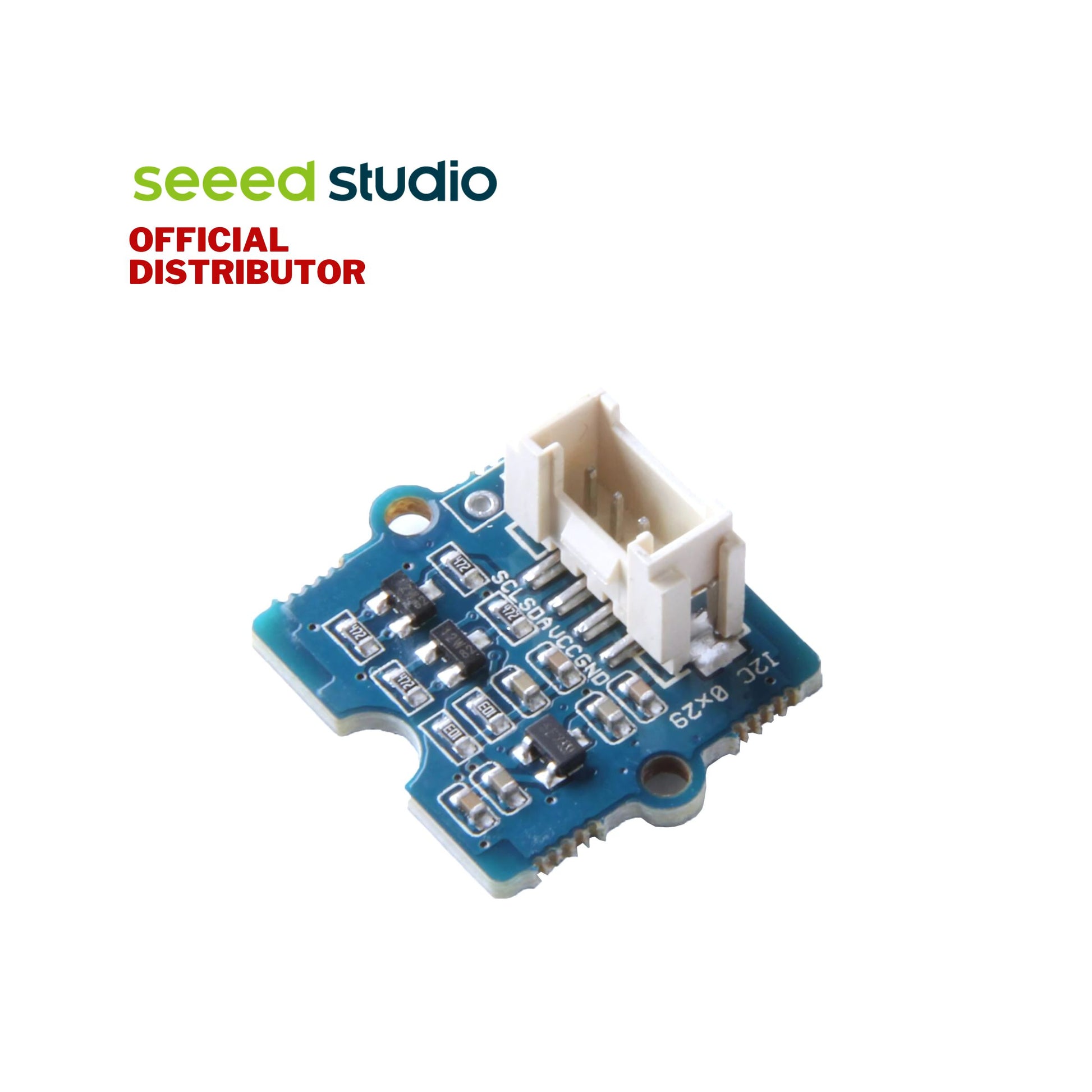

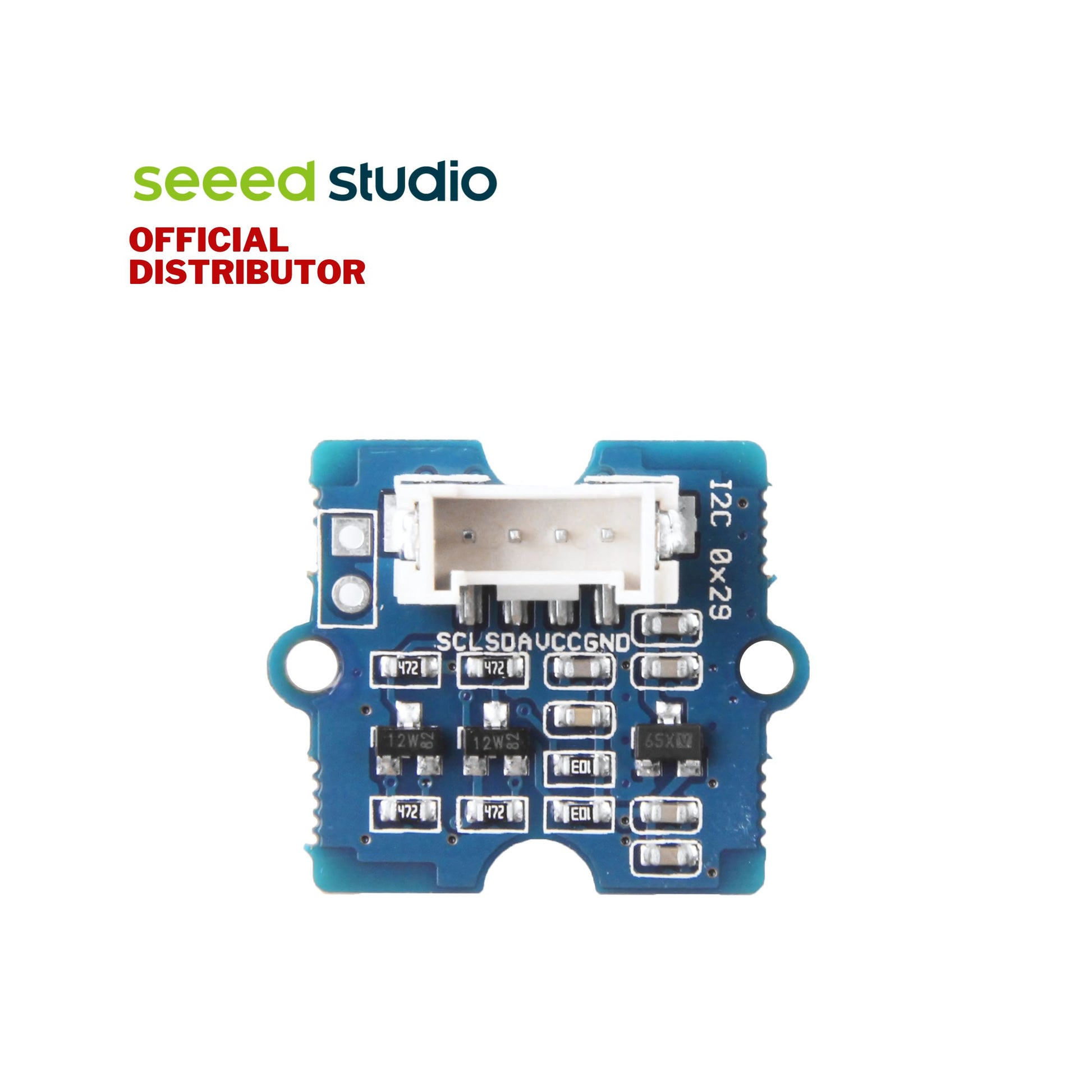

Grove - Time of Flight Distance Sensor (VL53L0X)

₱499.00
₱499.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Loading locations...
Product Description

Description:

The Grove - Time of Flight Distance Sensor (VL53L0X) is a new generation Time-of-Flight (ToF) laser-ranging module housed in the smallest package on the market today, providing accurate distance measurement, whatever the target reflectances, unlike conventional technologies. It can measure absolute distances up to 2m, setting a new benchmark in ranging performance levels and opening the door to various new applications. The VL53L0X integrates a leading-edge SPAD array (Single Photon Avalanche Diodes) and embeds ST’s second-generation Flight SenseTM patented technology. The VL53L0X’s 940 nm VCSEL emitter (Vertical-Cavity Surface-Emitting Laser) is invisible to the human eye. Coupled with internal physical infrared filters, it enables longer-ranging distances, higher immunity to ambient light, and better robustness to cover glass optical crosstalk.


Features:

Fully Integrated Miniature Module
  • 940 nm laser VCSEL
  • VCSEL driver
  • Ranging sensor with an advanced embedded microcontroller
Fast, Accurate Distance Ranging
  • Measures absolute range up to 2 m
  • The reported range is independent of the target reflectance
  • Advanced embedded optical cross-talk compensation to simplify cover glass selection
Eye Safe
  • Class 1 laser device compliant with the latest standard IEC 60825-1:2014 - 3rd edition
Easy Integration
  • Single power supply
  • I2C interface for device control and data transfer
  • Xshutdown (reset) and interrupt GPIO
  • Programmable I2C address


Specifications:

Dimensions: 20mm x 20mm x 11mm
Weight: 7.8g
Working Voltage: 3.3V/ 5V
Working Temperature: -20℃ - 70℃
Recommended Measure Distance: 30mm - 1000mm
Resolution: 1mm
Infrared Emitter: 940 nm
Default IIC Address: 0x52


Application:

  • User detection for personal computers/laptops/tablets and IoT (energy saving)
  • Obstacle detection with Robots (Robotics)
  • White goods (hand detection in automatic faucets, soap dispensers, etc.)
  • 1D gesture recognition
  • Laser-assisted autofocus. Enhances and speeds up camera autofocus system performance, especially in difficult scenes (low light levels, low contrast) or fast-moving video mode


Documents:

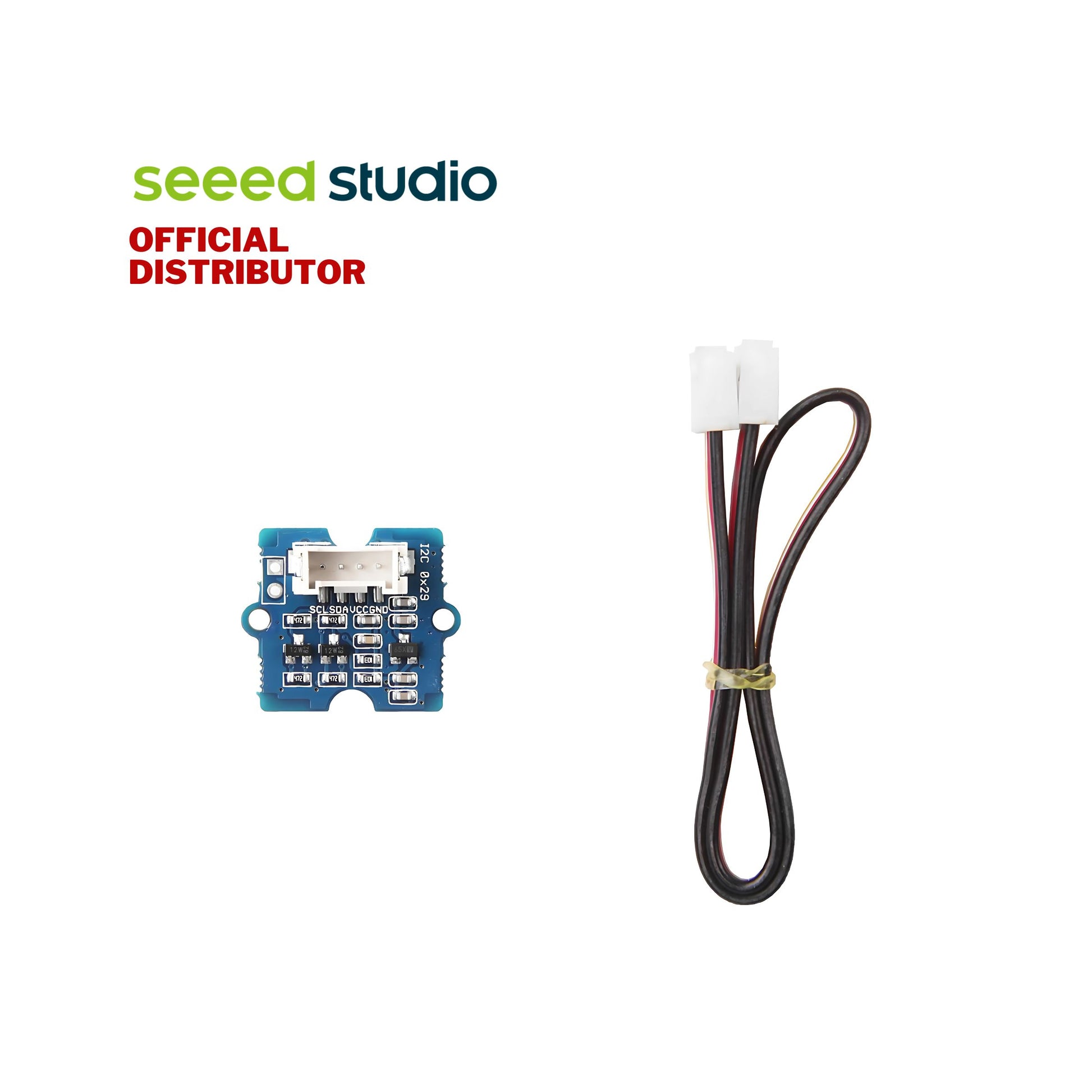

Part List:

1x Grove - Time of Flight Distance Sensor 30 to 1000mm (VL53L0X)
1x Grove - Cable
