SKU:MLE03759

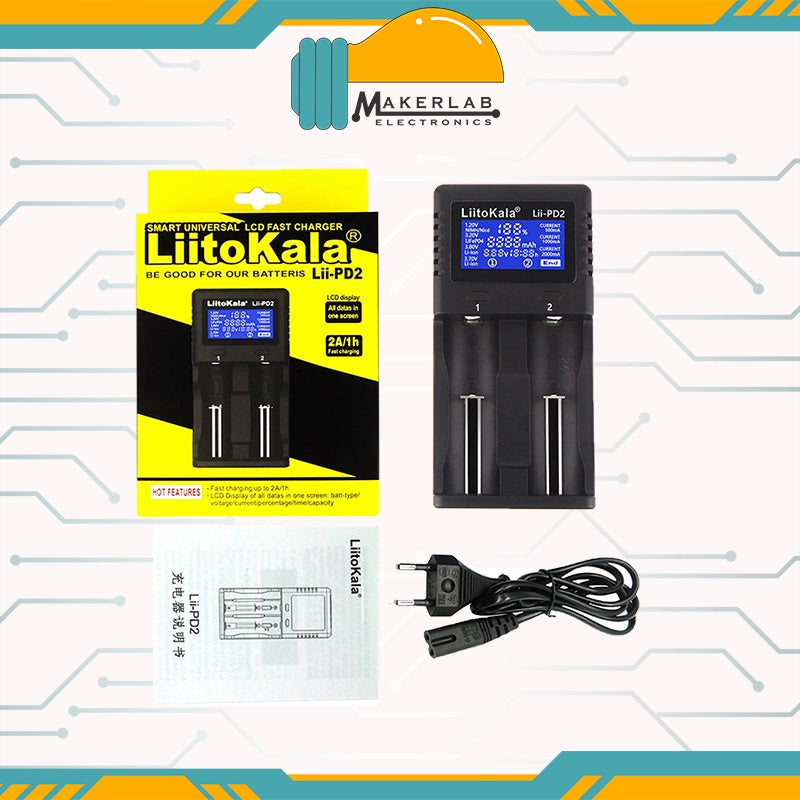

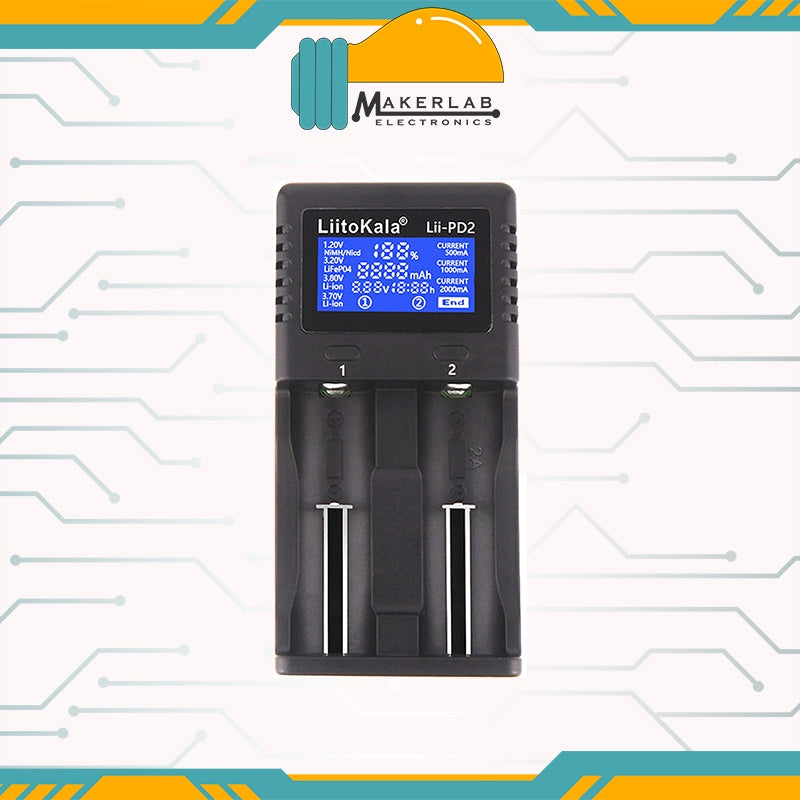

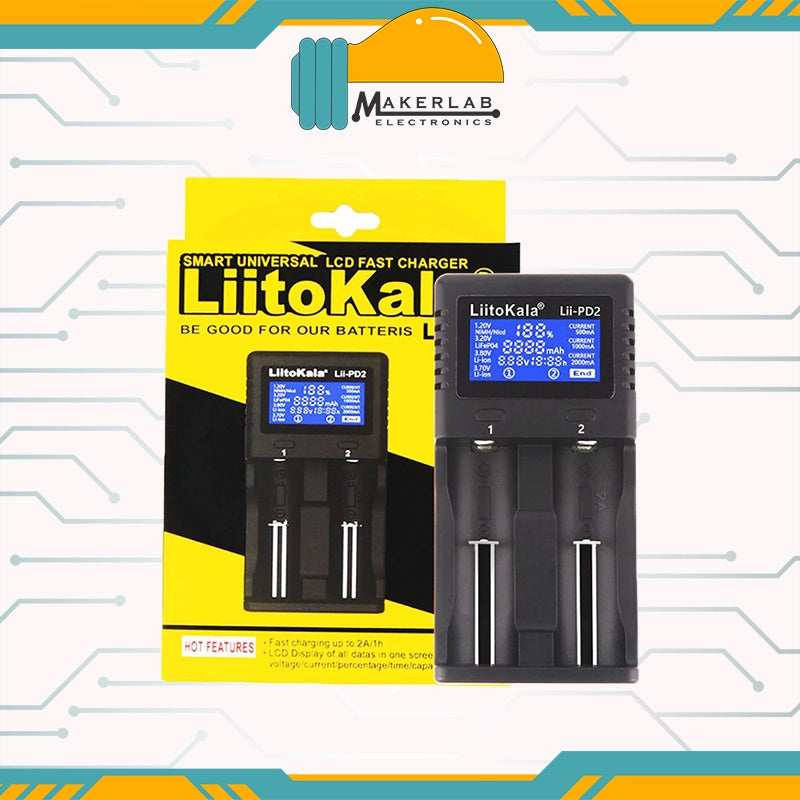

LiitoKala Lii-PD2/Lii-PD4 Battery Charger 26650 21700 18650 18350 14500 AA AAA

₱550.00 PHP
₱550.00 PHP
Sale Sold out
Tax included. Shipping calculated at checkout.
Variation:
Or 3 months for only ₱1,000 with . Learn More.
In stock

About the Product

Product Description

Features:
2-slots independent charging and independent management system, DC 12V/1A input.
With battery polarity auto-detection function(any polarity).
Selective 0.5A/1A/2A charging currents for Lithium batteries by long press the current button. The defaulted current is 0.5A.
Built-in digital display screen shows the real-time charging status of channel no. (CH), voltage, current, time, capacity and battery type of Li-Fe 3.20V / Li-ion 3.70V /Li-ion 3.85V (IMR); When two channels charging, total current will be no more than 2A( when only 1pcs battery inserted, the charging current will be 2A, after the second battery inserted, the current will be automatically lowered to 1A; when charging finish, it shows "FULL".
Automatic recognition of Li-Ion 3.70V and Ni-MH batteries, manual selection of LiFePO4 battery (3.20V) and Li-Ion 3.85V battery.
With 0V voltage activation function, 1.65-2.20V cannot be charged (but there will be activated current trickle charging).
Multiple safety protection functions of over-charging, over-discharge, short-circuited and can automatically Identify broken/defective battery(will not charge bad batteries). Charging under constant voltage and current.

Specification:
Type: Battery Charger
Color: Black
Input: DC 12V 1A
Output:
DC 4.20V for Li-Ion
DC 4.35V for IMR
DC 3.65V for LiFePO4
DC 1.48V for NiMH / NI-Cd
Output Current(Selective):
Li-Ion / IMR / LiFePO4: 2000mA * 1 (only one) / 1000mA * 2 / 500mA * 2, NiMH / NiCd: 500mA
Constant current / constant voltage charging, cut-off current: <100mA
No-load standby current: <15mA
Compatible with:
Li-ion / IMR/LiFePO4: 26650, 21700, 20700, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440
NiMH/Cd: AA, AAA, SC, C
Package Size: 17.3 * 11.5 * 4.3cm / 6.8 * 4.5 * 1.7in
Package Weight: 230g / 8.1oz

Package List:
1 * Battery Charger
1 * Power Adapter
1 * User Manual(Chinese&English)

Overview:
This charger is designed for portable and multiple types of batteries. It can detect the battery type and charge the battery automatically under your selected charging current. Built-in LCD screen displays the charging real-time status.

Specifications:

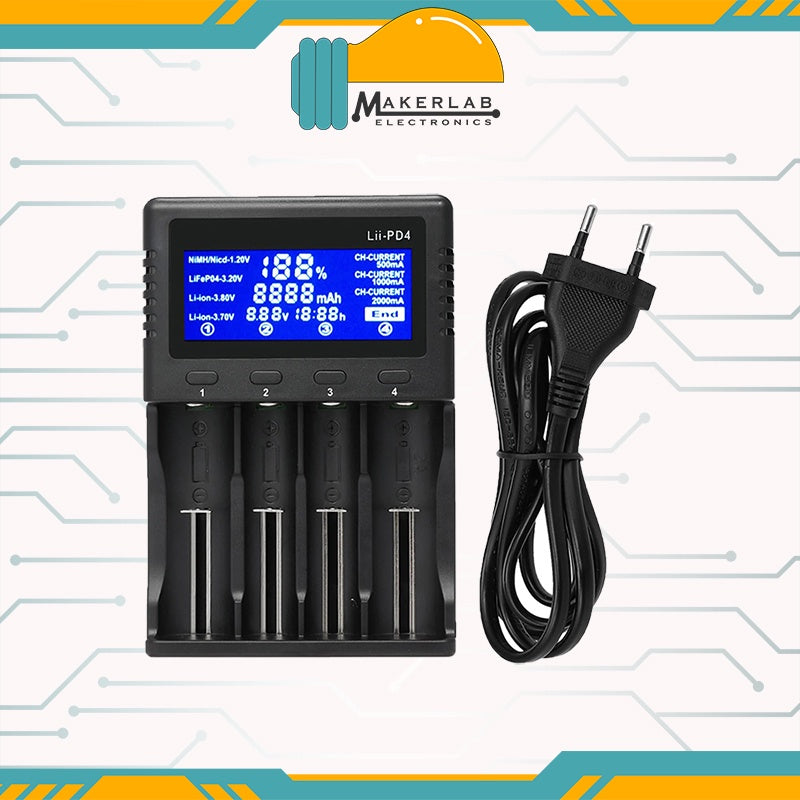

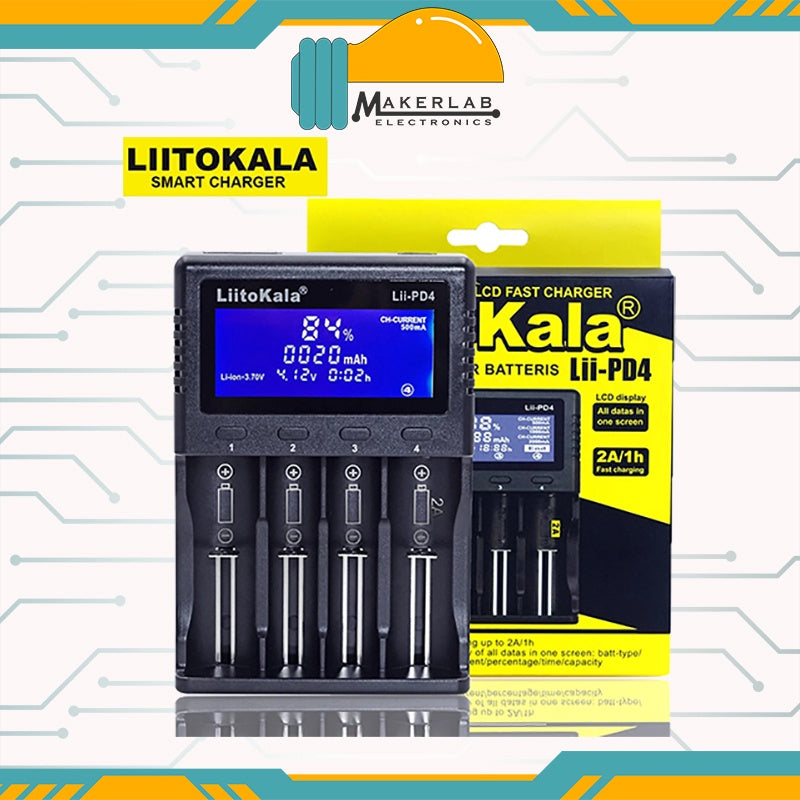

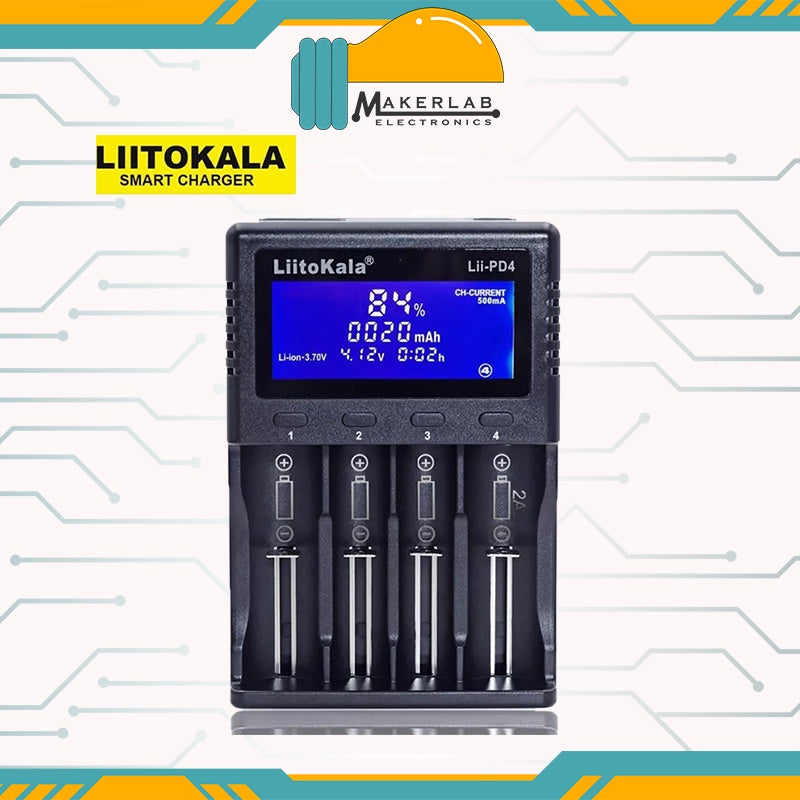

Model Number: Lii-PD4
Input Voltage: AC 110-240V 50/60Hz; DC 12V/1A
Output voltage:
DC 4.2V for Li-ion
DC 4.35V for IMR
DC 3.65V for LiFePO4
DC 1.48V for NiMH/Cd
Output current:
Li-ion/IMR/LiFePO4: 2000mA * 1 (only the passage 4), 1000mA * 2, 500mA * 3, 500mA * 4
NiMH/Cd: 1000mA * 2, 500mA * 2, 500mA * 3, 500mA * 4
Rechargeable battery specifications:
Li-ion/IMR/LiFePO4: 26650, 20700, 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440
NiMH/Cd: AA, AAA, SC, C
Color: Black
Main Item Size: approx. 14.7 * 10 * 3.7cm / 5.78 * 3.93 * 1.45in
Main Item Weight: approx. 216g / 7.61oz
Main Package Size: approx. 17.8 * 14 * 4cm / 7.00 * 5.51 * 1.57in
Main Package Weight: approx. 314g / 11.07oz
