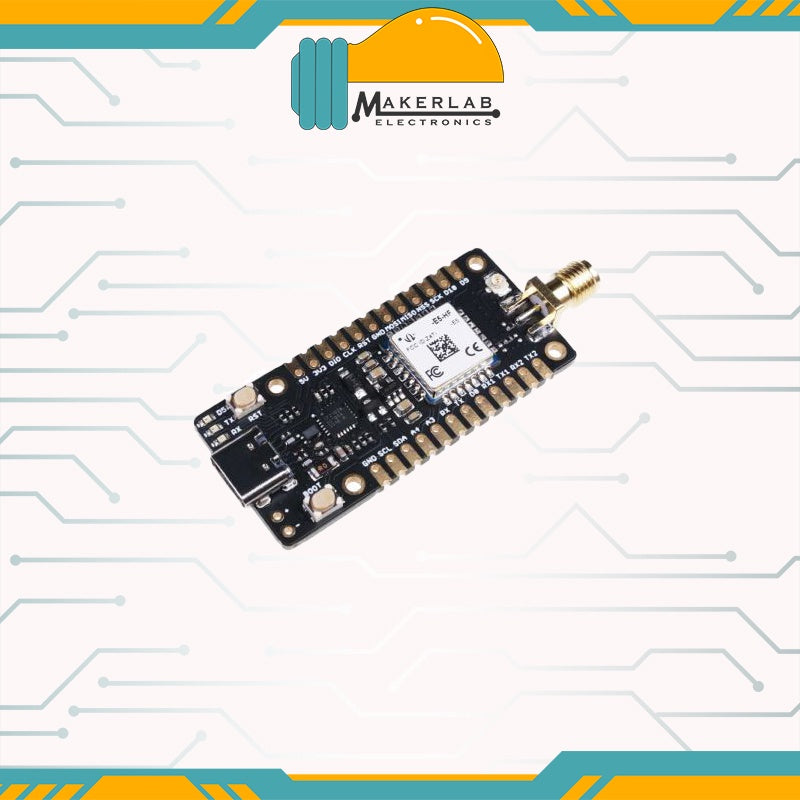

LoRa-E5 mini (STM32WLE5JC) Dev Board LoRaWAN protocol and worldwide frequency supported

₱1,700.00 PHP
₱1,700.00 PHP ₱2,125.00 PHP
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
Only 1 units left

About the Product

Product details of LoRa-E5 mini (STM32WLE5JC) Dev Board LoRaWAN protocol and worldwide frequency supported


Features

Full GPIOs led out from the Wio-E5 STM32WLE5JC

Global Long Range frequency plan supported

Long-distance transmission range to 10km (ideal value in open area)

Mini and compact size, suitable for rapid testing and building small size prototype Convenient RESET and BOOT buttons on board

Wio-E5 mini is a compacted-sized development board suitable for the rapid testing and building of small-size prototyping and helps you design your ideal Long Range wireless IoT device with a long-distance transmission range.

Wio-E5 mini is embedded with Wio-E5 STM32WLE5JC Module, which delivers the world-first combo of Long Range RF and MCU chip into one single tiny chip and is FCC and CE certified. It is powered by ARM Cortex-M4 core and Semtech SX126X Long Range chip and supports Long Range protocol on the worldwide frequency and (G)FSK, BPSK, (G)MSK, and Long Range modulations.

Wio-E5 mini leads out all GPIOs of Wio-E5, including UART, ADC, SPI, IIC, and etc. It contains RESET and BOOT buttons and is use-friendly. Supporting Long Range protocol, Wio-E5 mini features ultra-long-range transmission and ultra-low power consumption: it is able to achieve a transmission range of up to 10 km, and the sleep current of Wio-E5 modules on board is as low as 2.1 uA(WOR mode). It is designed with industrial standards with a wide working temperature at -40 ℃ ~ 85℃, high sensitivity between -116.5dBm ~ -136 dBm, and power output up to +20.8 dBm at 3.3V.

Other than the Wio-E5 mini, we also provide other choices including the Wio-E5 Development Board carrying more complex interfaces and features to unlock the more powerful performance of the Wio-E5 module. It provides a broader range of access protocols and superabundant types of interfaces. Thus you are able to test and prototype the module rapidly with RS-485, Grove interfaces, and rich GPIOs.

Since Wio-E5 is a Long Range chip with an MCU, there are three main ways to utilize the Wio-E5 mini:

1. Connect Wio-E5 mini to PC and control by AT commands There is a built-in USB to UART function on board, you could connect the Wio-E5 mini to your PC with a USB type C cable, and use serial communication software to send AT commands and read data from the board.

2. Connect Wio-E5 mini to another mainboard via UART and control by AT commands For example, connect Wio-E5 mini to Seeeduino XIAO and the Expansion Board via UART, and send AT commands and read data from Seeeduino XIAO through Arduino IDE serial monitor.

3. User Application Development by using SDK Develop your own Long Range development board with MCU function by using STM32Cube Programmer, which is the SDK officially provided by STMicroelectronics. To download this SDK resource, please find the resources in learning and document down below.

With all the outstanding features listed above, the Wio-E5 mini will be a superior choice for IoT device development, testing, prototyping, and applications in long-distance, ultra-low power consumption IoT scenarios like smart agriculture, smart office, and smart industry.

Applications

Wio-E5 module Easy testing

Rapid small-dimension prototyping of Long Range devices with Wio-E5

Any long-distance wireless communication application development

Long Range application learn and research

1. Factory AT Firmware Wio-E5 series has a built-in AT command firmware, which supports Long Ragne Class A/B/C protocol and a wide frequency plan: EU868/US915/AU915/AS923/KR920/IN865. With this AT command firmware, users can easily and quickly build their prototype or application.

The AT command firmware contains a bootloader for DFU and the AT application. The "PB13/SPI_SCK/BOOT" pin is used to control Wio-E5 to stay in the bootloader or jump to the AT application. When PB13 is HIGH, the module will jump to AT application after reset, with a default baud rate of 9600. When PB13 is LOW (press the "Boot" button on Wio-E5 Dev Board or Wio-E5 mini), the module will stay in the bootloader, and keep transmitting "C" character every 1S at baud rate 115200.

2. Clock Configuration

2.1 HSE

32MHz TCXO

TCXO power supply: PB0-VDD_TCXO 2.2

LSE 32.768KHz crystal oscillator

3. RF Switch

Wio-E5 module ONLY transmits through RFO_HP:

Receive: PA4=1, PA5=0

Transmit(high output power, SMPS mode): PA4=0, PA5=1

Specifications

Parameters Specifications

size 50*23mm

voltage - supply 3.7V - 5V

power - output up to +20.8 dBm at 3.3V

working frequency 868/915MHz protocol

Long Range sensitivity -116.5 dBm ~ -136 dBm

interfaces USB Type C / 2P-2.54mm Hole / 1*12P-2.54mm Header*2 / SMA-K / IPEX modulation Long Range, (G)FSK, (G)MSK, BPSK

working temperature -40℃ ~ 85℃

current Wio-E5 module sleep current as low as 2.1uA (WOR mode)

Part List:

  • Wio-E5 mini *1
  • Antenna (EU868/US915) *1
  • USB TypeC (20cm) *1
  • Sticker *1 1X12pin
  • male pin headers *2
View Product Details
