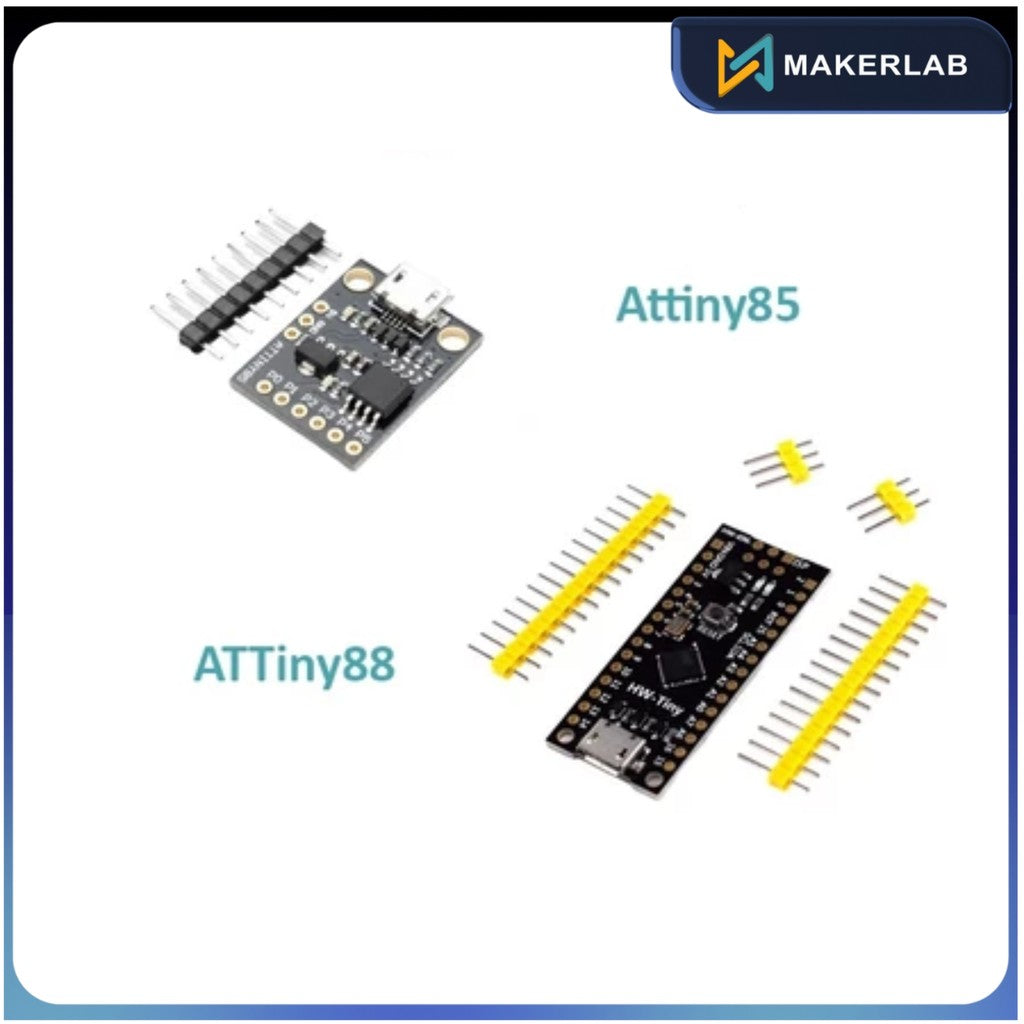

MH-Tiny Attiny88 development module NANO v3.0 micro usb | Attiny85 Micro USB Development Board

₱200.00 PHP
₱200.00 PHP ₱550.00 PHP
Sale Sold out
Tax included. Shipping calculated at checkout.
Model::
Or 3 months for only ₱1,000 with . Learn More.
In stock

About the Product

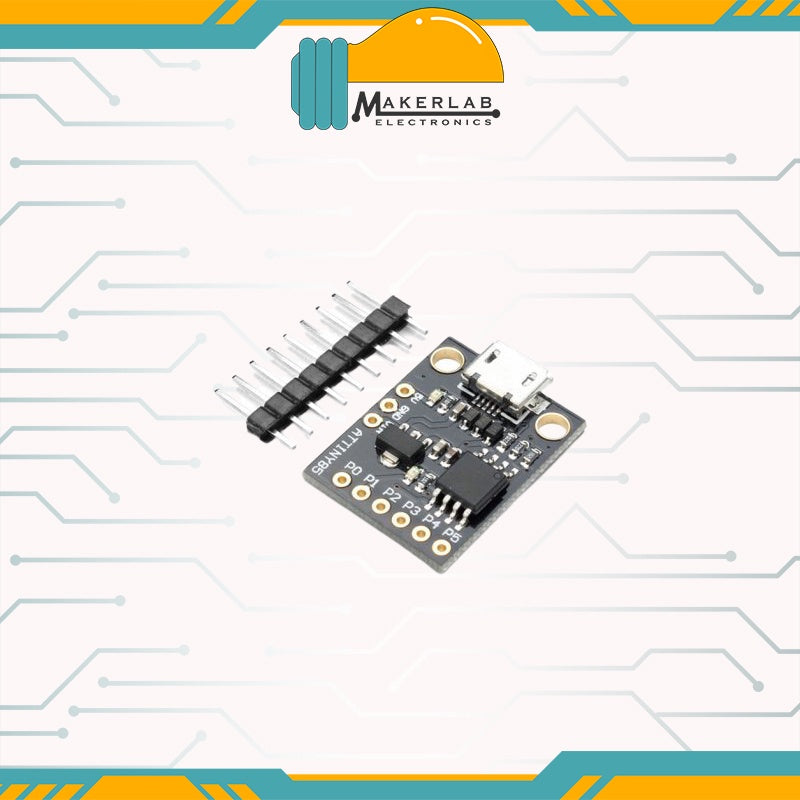

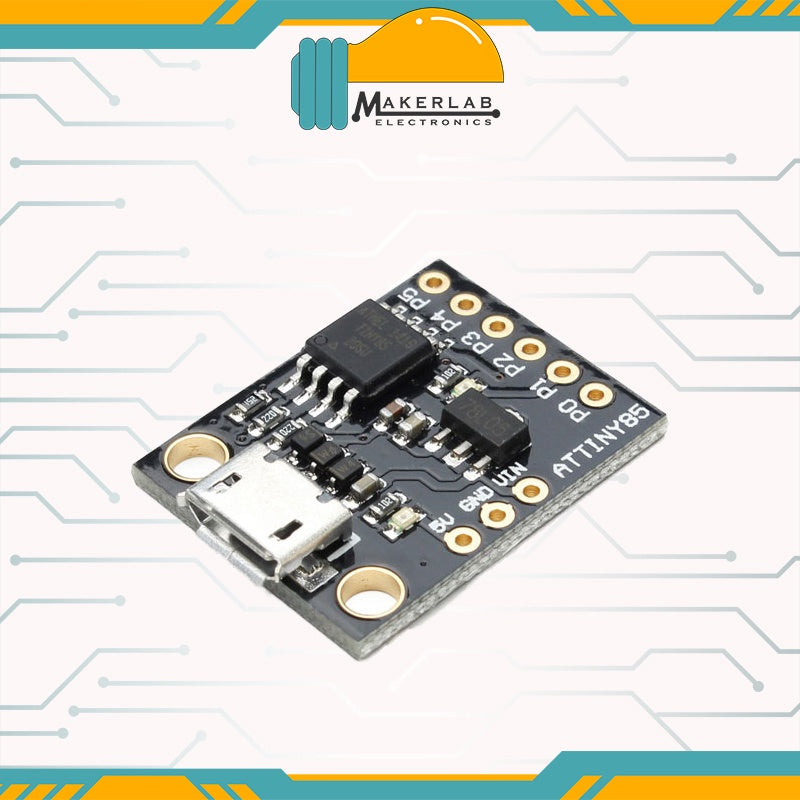

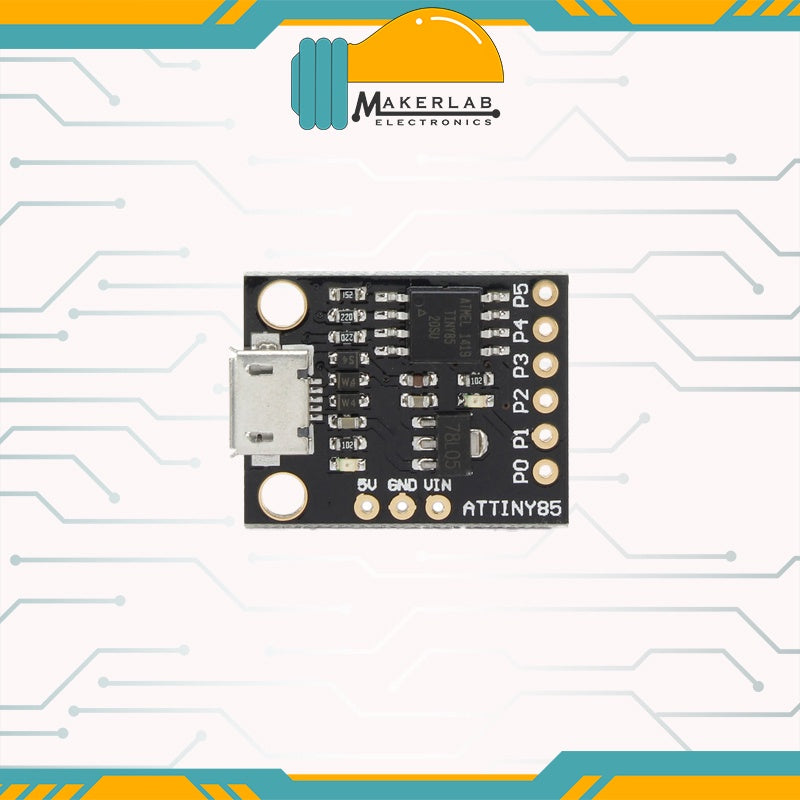

Attiny85 Micro USB Development Board
The Attiny85 Micro USB Development Board is Similar to the Arduino line, only cheaper, smaller, and a bit less powerful. With a whole host of shields to extend its functionality and the ability to use the familiar Arduino IDE the Digispark is a great way to jump into electronics, or perfect for when an Arduino is too big or too much.

Specification:
Support for the Arduino IDE 1.0+ (OSX/Win/Linux)
Power via USB or External Source – 5v or 7-35v (12v or less recommended, automatic selection)
On-board 500ma 5V Regulator
Built-in USB
6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)
8k Flash Memory (about 6k after bootloader)
I2C and SPI (vis USI)
PWM on 3 pins (more possible with Software PWM)
ADC on 4 pins
Power LED and Test/Status LED
Product size: approx. 28*15*5mm/1.1*0.59*0.19”
Net weight: approx. 8g

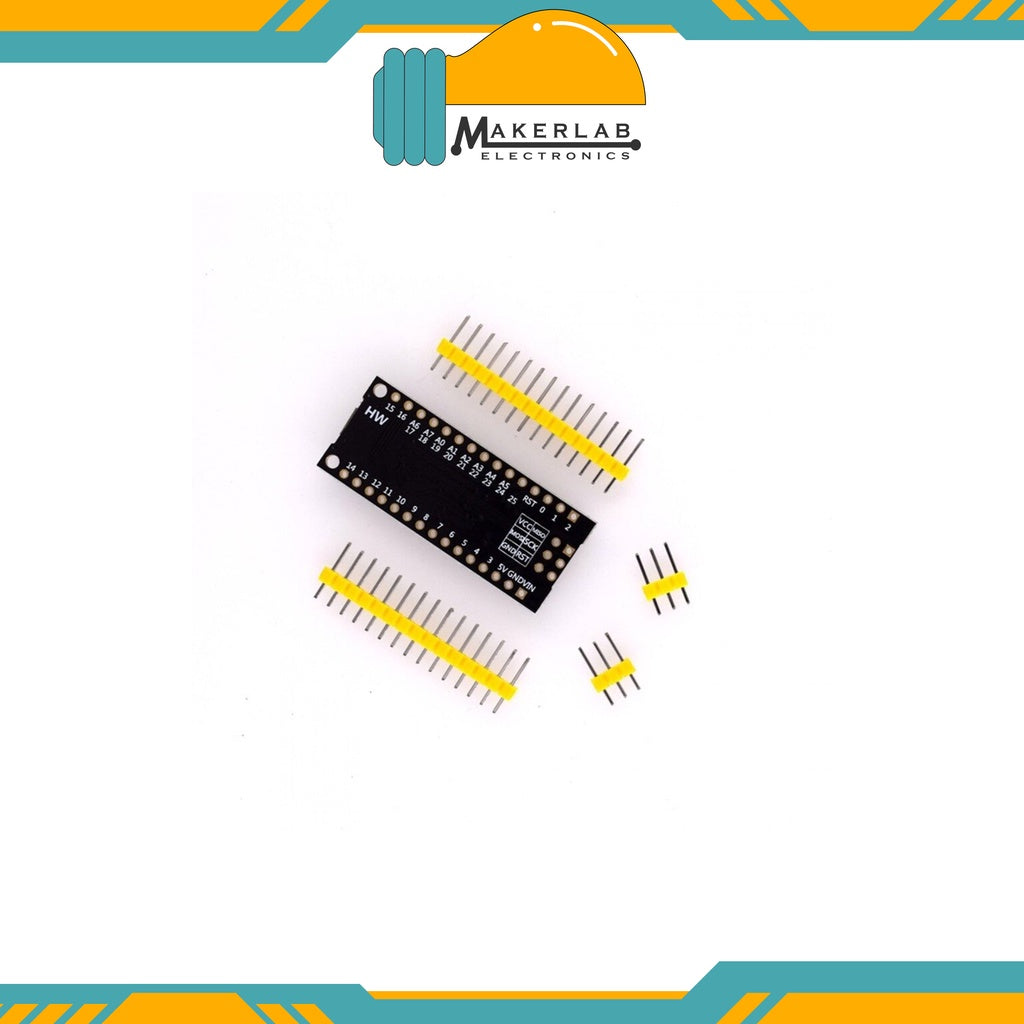

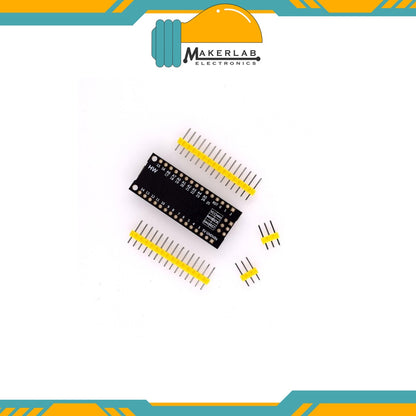

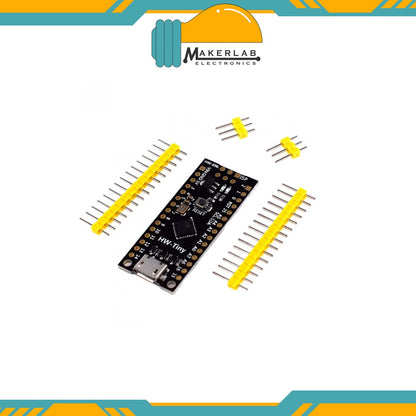

The ATtiny88 Nano V3.0 is a compatible and cheaper version of the Arduino Nano V3.0. This variant is based on the ATtiny88 Microcontroller chip. This board contains a Micro USB connection with which the ATtiny can be programmed and powered. Usually Nano boards use a CH340 chip for converting USB to Serial, for example, but the ATtiny88 microcontroller has this built in.

Specifications:

Microcontroller: ATtiny88
8KB Flash
512B SRAM
64B EEPROM
Micro USB connection for programming
Input voltage (VIN pin): 7V - 12V DC
I/O pin voltage: 5V
Digital I/O Pins: 26 (including 2 PWM)
Analogue inputs: 8

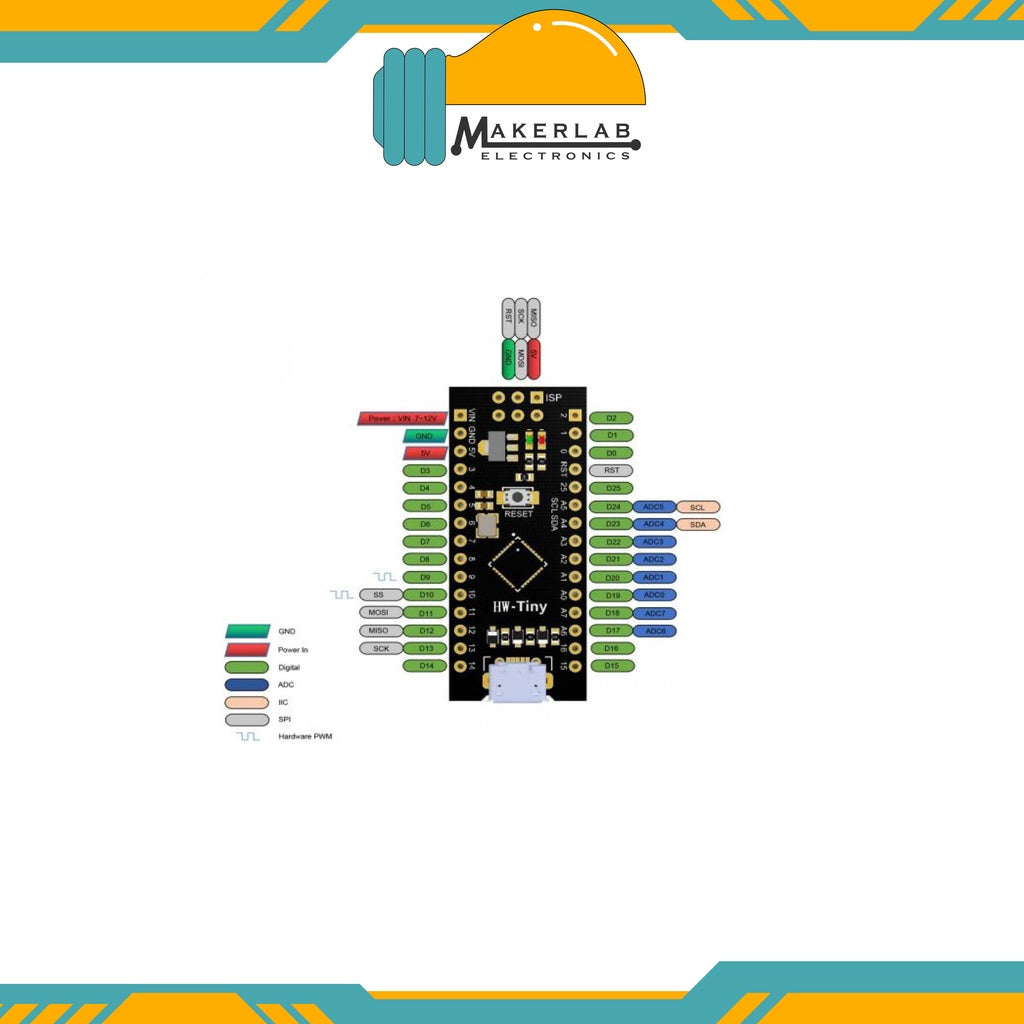

Pin Layout: See images

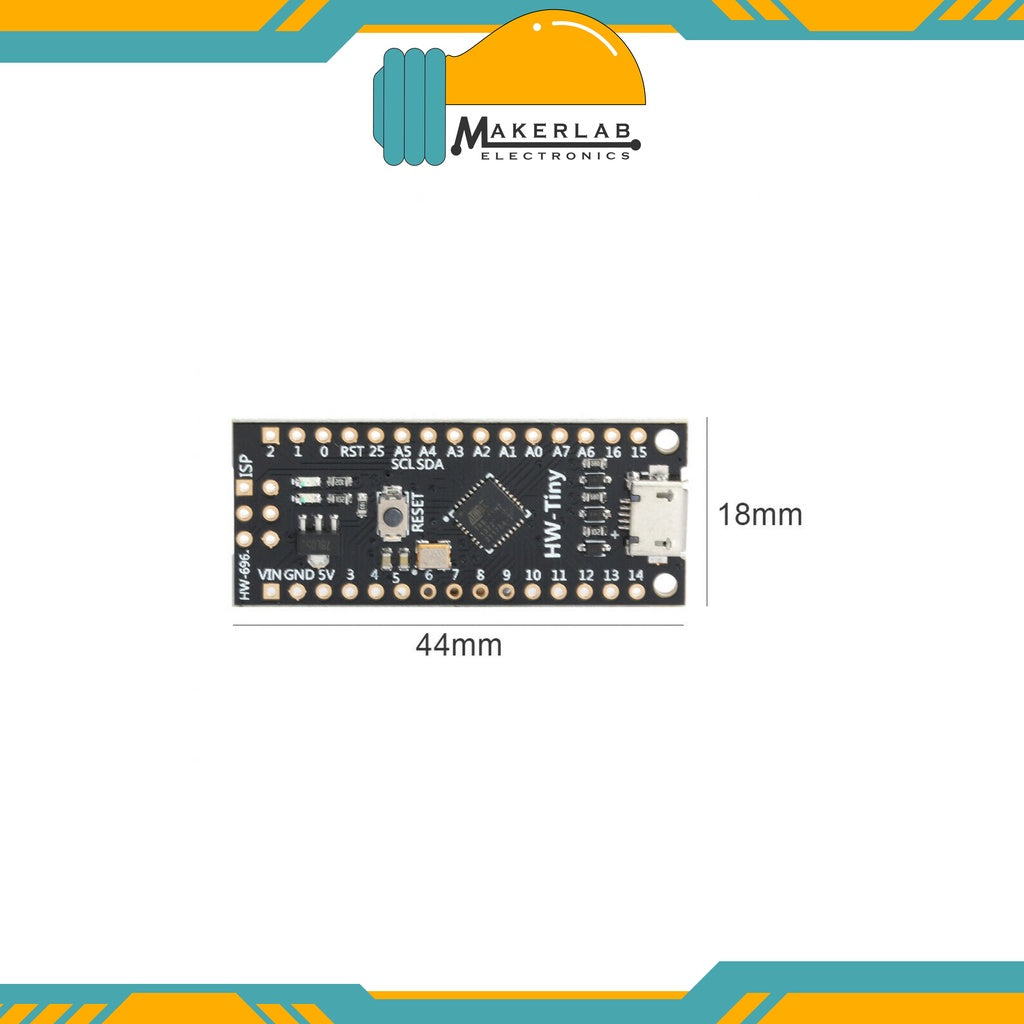

Dimensions PCB: See images
Package contents:

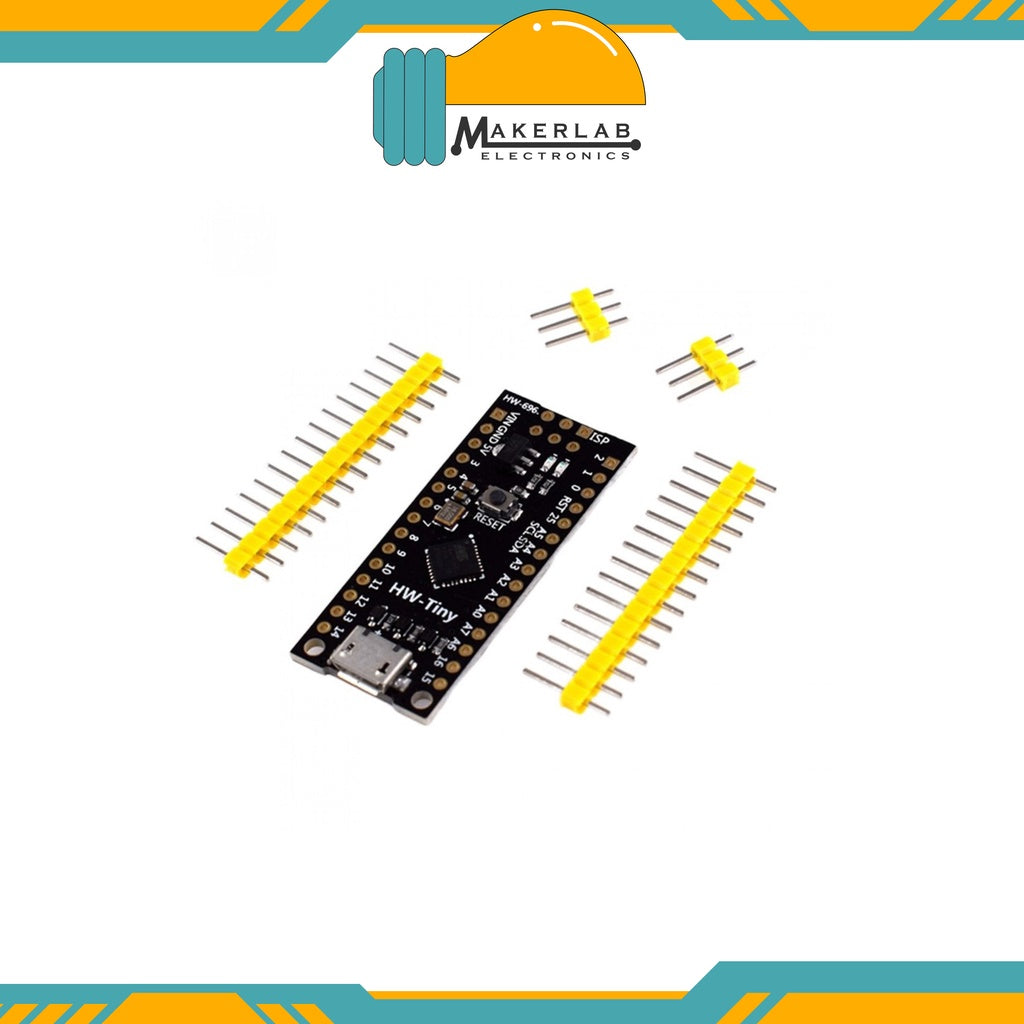

1x HW-696 ATtiny88 Nano V3.0
Male headers
