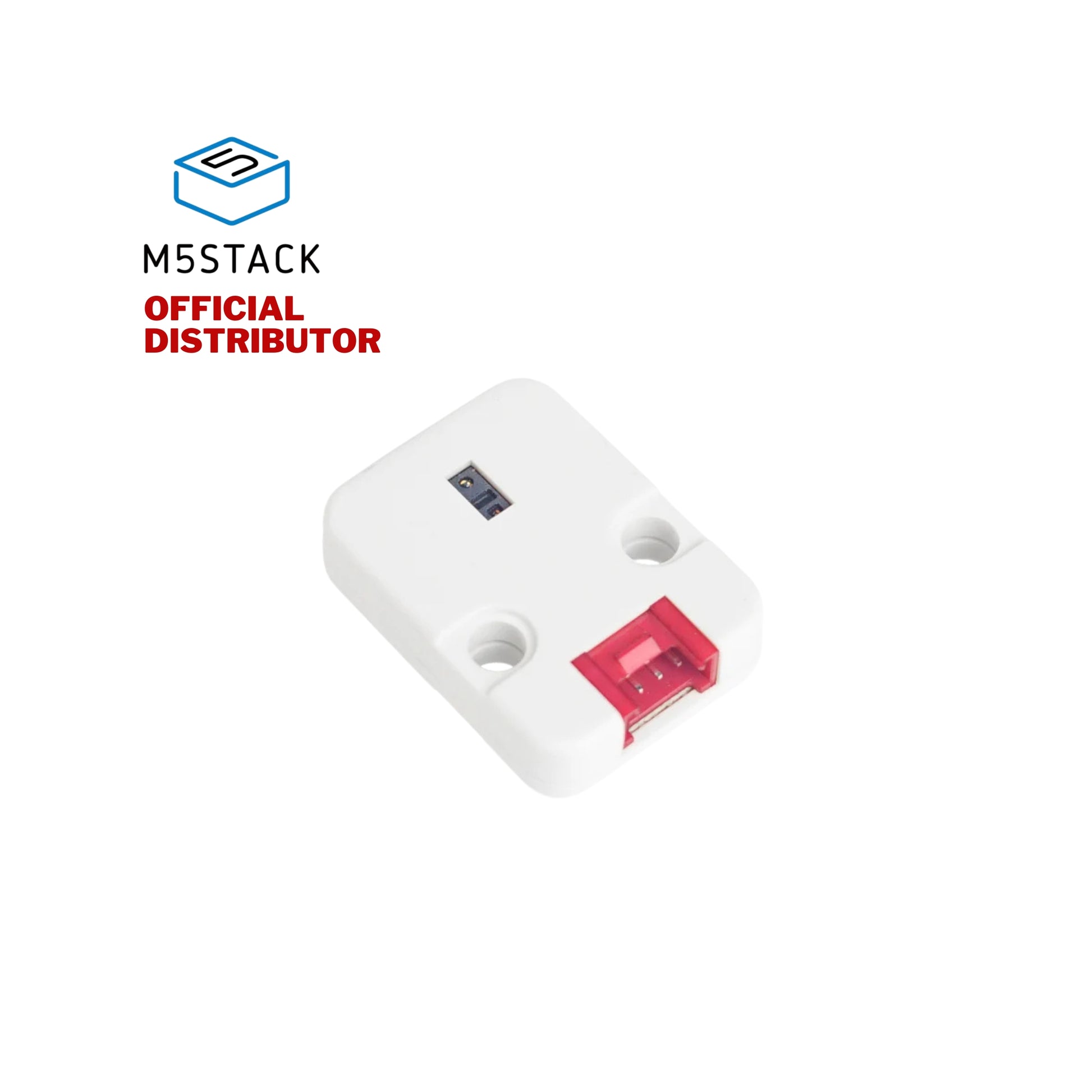

M5Stack Mini Heart Rate Unit (MAX30100) Pulse Oximeter

M5Stack Mini Heart Rate Unit (MAX30100) Pulse Oximeter

Out of stock


Regular price ₱750.00
Regular price Sale price ₱750.00
Sale Sold out
Or 3 months for only ₱1,000 with . Learn More.
View full details

HEART is built using the MAX30100 chipset.

MAX30100 is a complete pulse oximetry and heart-rate sensor system solution designed for the demanding requirements of wearable devices.

The MAX30100 provides very small total solution size without sacrificing optical or electrical performance. Minimal external hardware components are needed for integration into a wearable device.

  • How do we use this Unit to test the heart rate ?

Put your finger on the detection area.

  • What is the communication protocol between M5 core and this unit?


Product Features

  • Programmable Sample Rate and LED Current for Power Savings
  • Ultra-Low Shutdown Current (0.7µA, typ)
  • Advanced Functionality Improves Measurement Performance
  • High Sample Rate Capability
  • Fast Data Output Capability
  • GROVE interface
  • Software Develop platform: Arduino
  • Two Lego-compatible holes

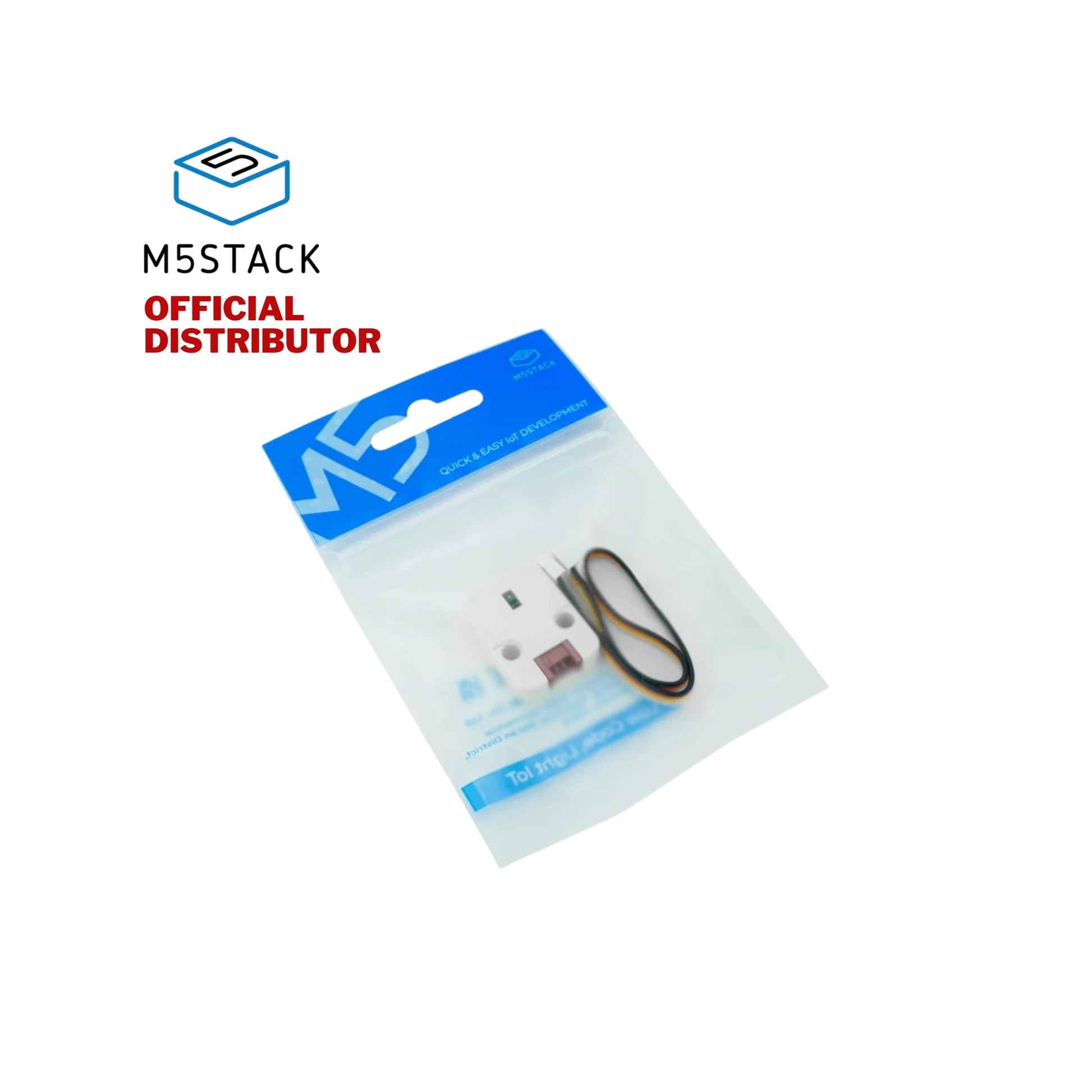

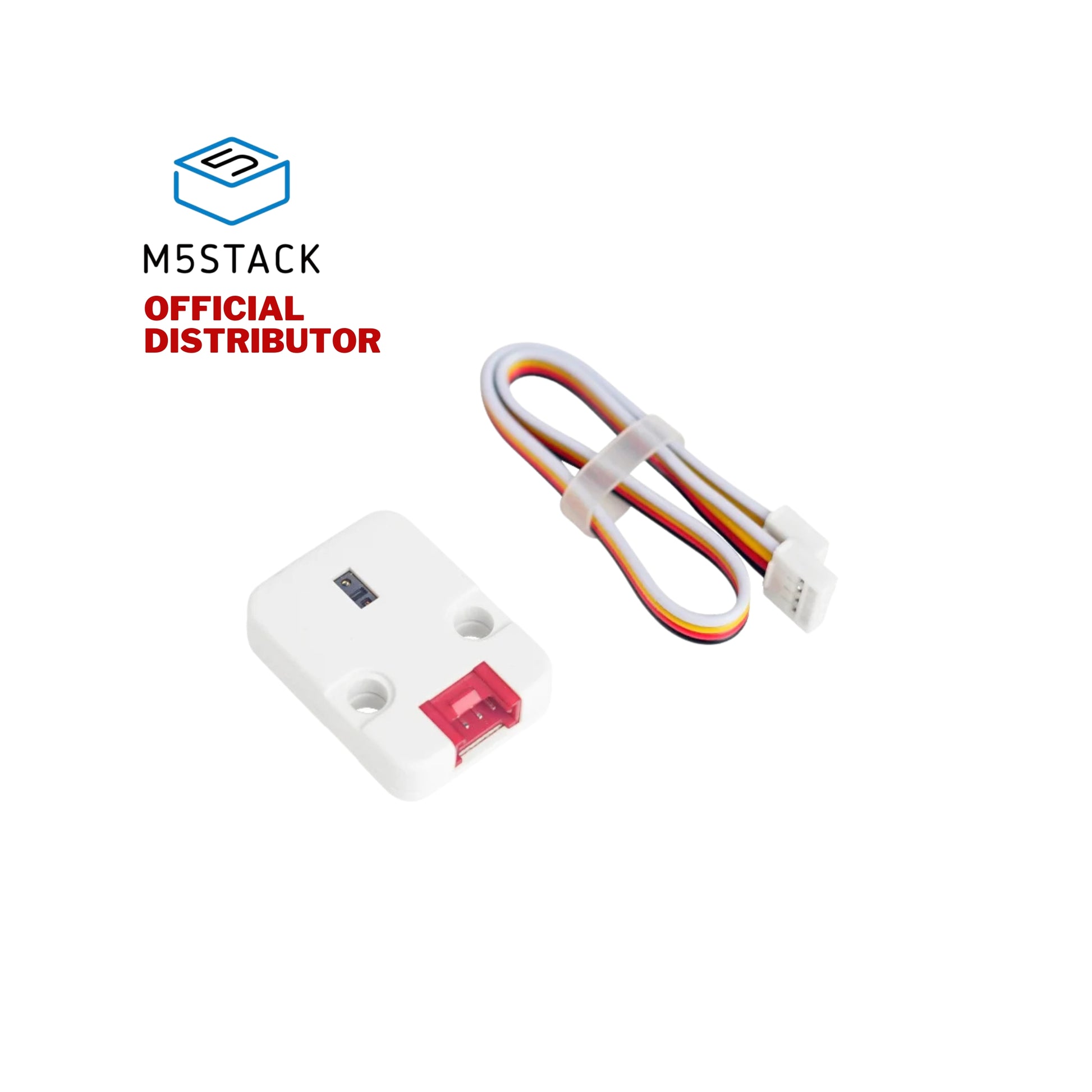

  • 1x HEART Unit
  • 1x Grove Cable


Resources Parameter

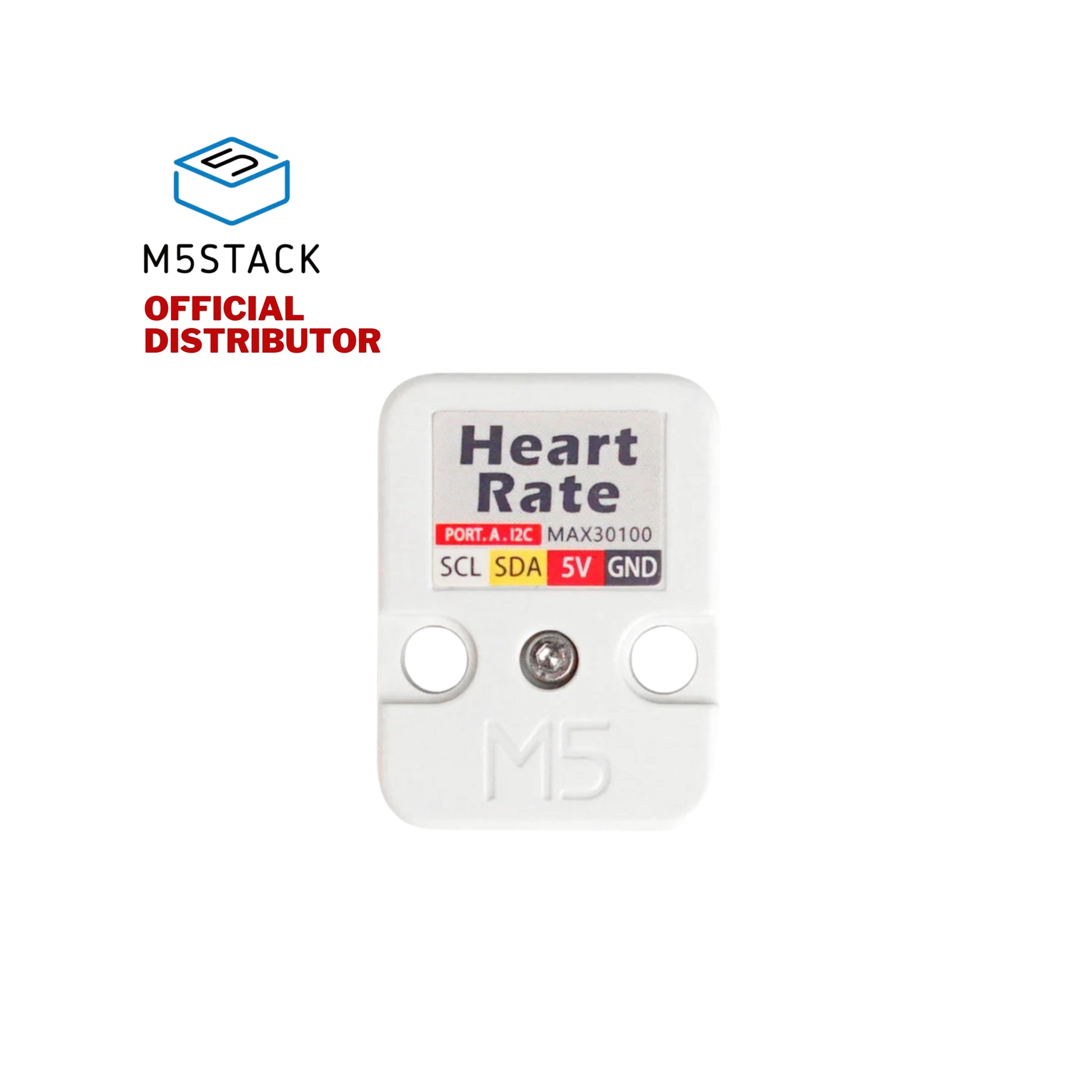

Communication protocol I2C?0x57
Operating Voltage 1.8V-3.3V
Net weight 5g
Gross weight 18g
Product Size 32*24*8mm
Package Size 67*53*12mm
