About the Product

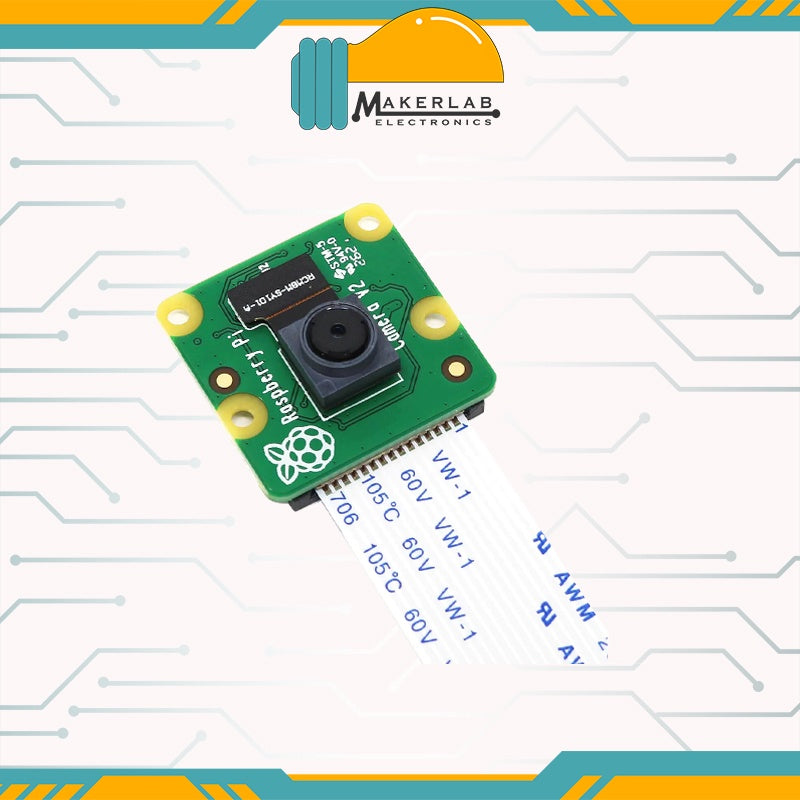

Raspberry Pi Camera Module 8 Megapixels
The Raspberry Pi Camera Module V2 is specifically designed for Raspberry Pi. It attaches to Raspberry Pi by way of one of the two small sockets on the board upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data.
Technical Details
- Board size: 25mm x 20mm x 9mm
- Sony IMX219 8-megapixel
- 3280 x 2464 pixel static images, 1080p30, 720p60, and 640x480p90 video.
| Size | Around 25 × 24 × 9 mm |
| Weight | 3g |
| Still resolution | 8 megapixels |
| Video modes | 1080p47, 1640 × 1232p41 and 640 × 480p206 |
| Sensor | Sony IMX219 |
| Optical size | 1/4" |
| Focus | Adjustable |
| Depth of field | Approx 10 cm to ? |
| Focal length | 3.04 mm |
| Horizontal Field of View (FoV) | 62.2 degrees |
| Vertical Field of View (FoV) | 48.8 degrees |
| Focal ratio (F-Stop) | F2.0 |
| Maximum exposure time (seconds) | 11.76 |
