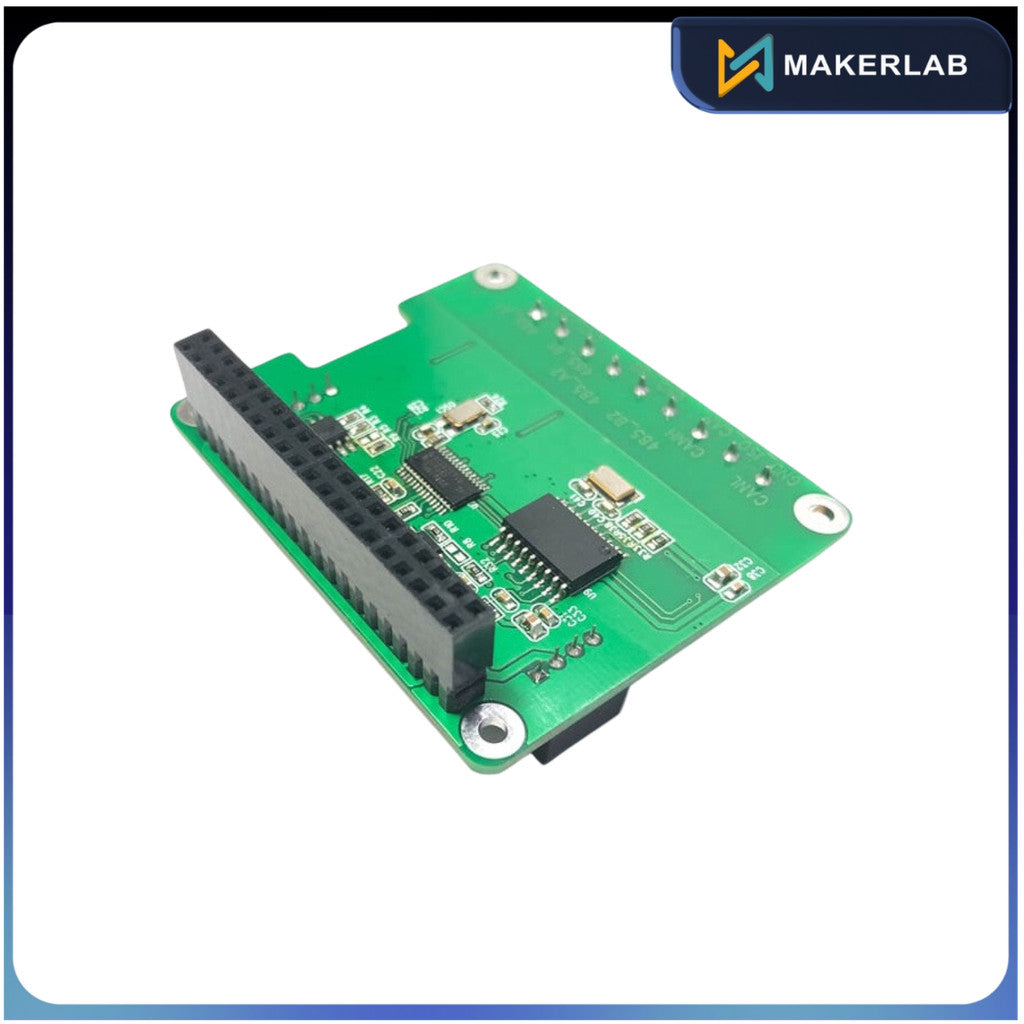

RS485 And CAN Module

RS485 And CAN Module

Out of stock

SKU:MLE01033

Regular price ₱1,699.75
Regular price Sale price ₱1,699.75
Sale Sold out
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
View full details

RS485 And CAN Module

  • RS485&CAN Module is an industrial communication module for Raspberry Pi, on board 2*RS485 Bus and 1*CAN Bus communication interface via SPI interface.
  • CAN bus and RS485 bus powered through separated isolation power module, signal between the transceiver and the controller is isolated , ESD protection for the communication port, ensure your raspberry pi can be used in more strictly industrial sites.

Features

  • Compatible with Raspberry Pi Zero/Zero W/2B/3B/3B+. Only a small amount of GPIO are used and the rest pins allow to work for other extended function
  • Power supply and signal isolation, Build-in surge and ESD protection.
  • CAN function, onboard CAN controller MCP2515 via SPI interface, onboard high speed CAN transceiver, onboard digital isolation ADUM1201BRZ, Communication Rates 20Kbps-1Mpbs can be programmed arbitrarily.
  • RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard SPI to RS485 SC16IS1752. Electrical data isolation ADM2483.
  • On board individual 120 Ohm terminal resistance, Impedance matching and guarantee the ability to drive.

Output Interface Description:

Item Function Description
1 RS485_A1 RS485-1 A Single
2 GND_485 RS485-1 Isolated GND
3 RS485_B1 RS485-1 B Single
4 RS485_A2 RS485-2 A Single
5 GND_ISO RS485-2 Isolated GND
6 RS485_B2 RS485-2 B Single
7 CANH CAN-H
8 CAN_GND_ISO CAN Isolated GND
9 CANL CAN-L S

Pins map of GPIO header on the Raspberry Pi.

PIN No. PIN of Raspberry Usage
PIN19 GPIO_10 SPI0 MOSI
PIN21 GPIO_9 SPI0 MISO
PIN23 GPIO_11 SPI0 SCLK
PIN24 GPIO_8 RS485 Transfer Chip

Selection

PIN26 GPIO_7 CAN Transfer Chip

Selection

PIN18 GPIO_24 RS485 Interrupt
PIN22 GPIO_25 CAN Interrupt
